Entwodiksyon
Thank you for choosing the Fuzion Digital Pocket Scale FZ-200 Pro. This precision scale is designed for accurate measurements of small items, offering a capacity of 200g with 0.01g readability. Its compact and portable design makes it suitable for various applications, including weighing jewelry, food, herbs, and coins. Please read this manual carefully to ensure proper use and maintenance of your scale.
Enstalasyon
1. Enstalasyon batri
The Fuzion Digital Pocket Scale requires 2 AAA batteries (included). To install:
- Open the battery compartment cover located on the underside of the scale.
- Mete 2 pil AAA yo nan plas yo, asire w polarite a kòrèk (+/-).
- Fèmen kouvèti lòj batri a byen.
2. Plasman Inisyal
Place the scale on a flat, stable, and vibration-free surface to ensure accurate readings.
3. Kalibrasyon
Your scale comes pre-calibrated. However, periodic calibration is recommended for optimal accuracy. A 100g calibration weight is included with your scale. To calibrate:
- Turn the scale ON by pressing the ON/OFF bouton.
- Peze epi kenbe la MÒD peze bouton an jiskaske ekran an montre "CAL".
- Peze a MÒD button again. The display will flash "200.00g".
- Place the required 200g calibration weight (not included, but a 100g weight is provided for general use) on the center of the weighing platform.
- The display will show "PASS" when calibration is complete. Remove the weight.
Operasyon
1. Power On/Off
Peze a ON/OFF button to turn the scale on or off. The scale features an auto-off function to conserve battery power.
2. Peze atik yo
Place the item(s) gently on the center of the stainless steel weighing platform. The weight will be displayed on the LCD screen.
3. Fonksyon Tare
Fonksyon Tare a pèmèt ou soustrè pwa yon veso, konsa ou sèlman mezire pwa nèt sa ki ladan l.
- Vire sou echèl la.
- Mete yon veso vid sou platfòm peze a.
- Peze a TARE bouton. Ekspozisyon an ap re-mete a zewo.
- Add the items you wish to weigh into the container. The display will show the net weight of the items.

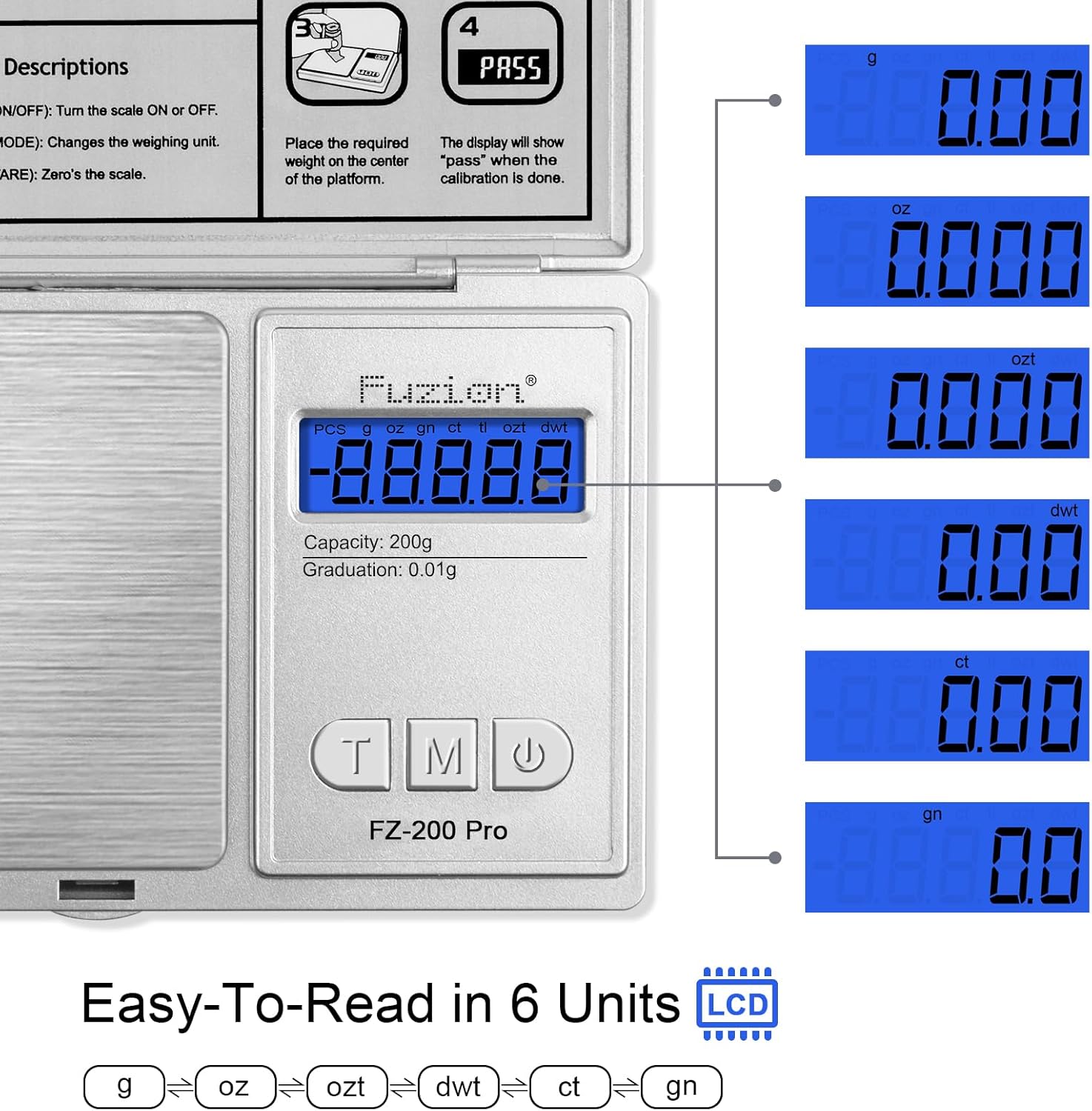

4. Chanje Inite yo
The scale supports 6 units of measurement. To change the weighing unit:
- Peze a MÒD button to cycle through the available units: Grams (g), Ounces (oz), Grains (gn), Troy Ounces (ozt), Pennyweights (dwt), and Carats (ct).
Antretyen
- Keep the scale clean. Wipe the surface with a soft, damp twal. Evite pwodui netwayaj abrazif oswa pwodui chimik ki fò.
- Pa plonje echèl la nan dlo.
- Sere balans lan nan yon kote ki sèk e fre.
- Protect the scale from strong impacts or vibrations.
- Si ou pa pral itilize balans lan pou yon peryòd tan pwolonje, retire pil yo pou anpeche likid koule.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Lekti kòrèk | Scale not on a flat surface, needs calibration, low battery, or overloaded. | Place on a stable surface. Perform calibration. Replace batteries. Do not exceed maximum capacity (200g). |
| Ekran an montre "Lo" | Ba pouvwa batri. | Ranplase pil AAA yo. |
| Display shows "O_Ld" | Balans lan twò chaje. | Remove the item immediately. Do not exceed 200g. |
| Echèl pa limen | Pil yo mal enstale oswa yo mouri. | Tcheke polarite pil yo oubyen ranplase yo ak nouvo pil AAA. |
Espesifikasyon
- Mak: Fuzion
- Modèl: FZ-200 Pro
- Kapasite: 200 gram
- Lizibilite: 0.01 gram
- Permissible Error: +/- 0.03 g
- Inite mezi: Grams (g), Ounces (oz), Grains (gn), Troy Ounces (ozt), Pennyweights (dwt), Carats (ct)
- Kalite ekspozisyon: LCD back-limen
- Materyèl: Stainless Steel platform, durable ABS flip cover
- Pouvwa: 2 x AAA pil (enkli)
- Karakteristik espesyal: Auto Shut Off, Tare Function
- Dimansyon pwodwi: 5 x 3 x 0.7 pous
- Pwa atik: 8.4 ons (0.24 kilogram)
- Itilizasyon Rekòmande: Food, Coins, Jewelry, Herbs, Gemstones
- UPC: 628719230251
Garanti ak sipò
Fuzion offers a Two Years Warranty and Lifetime Support for this digital pocket scale. For any concerns or assistance, please contact the Fuzion support team. We are committed to providing full-day service to address your needs.
For support, please visit the official Fuzion websit la oubyen gade enfòmasyon kontak ki vini ak anbalaj pwodwi a.
