Entwodiksyon
This manual provides detailed instructions for the Fuzion Digital Pocket Gram Scale FZ-200 Pro. Designed for precision, this scale offers 0.01g accuracy up to 200g, making it suitable for various applications including weighing food, jewelry, herbs, spices, and coins. Please read this manual thoroughly before using your scale to ensure proper operation and longevity.
Karakteristik pwodwi
- Peze presizyon: 0.01g accuracy with a capacity from 0.03g to 200g.
- Premium Build: Crafted with stainless steel and gold titanium plating for durability and a sleek finish.
- Pro Calibration: Includes a 100g calibration weight for maintaining accuracy.
- Versatile Weighing Modes: Six modes available (g, oz, ozt, dwt, ct, gn) for diverse applications.
- Tare Function & Clear Display: Easy net weight measurement and a backlit LCD for clear readings.
- Pòtab ak kontra enfòmèl ant: Lightweight design (140g) for on-the-go use.
Enstalasyon
Enstalasyon batri
The Fuzion Digital Pocket Gram Scale requires 2 AAA batteries (included).
- Louvri kouvèti konpatiman pil la ki anba balans lan.
- Mete 2 pil AAA yo nan plas yo, asire w polarite a kòrèk (+/-).
- Fèmen kouvèti lòj batri a byen.
Premye pouvwa sou
Peze a ON/OFF button to turn the scale on. The display will show "88888" then "0.00g".
Enstriksyon Operasyon
Peze
- Mete echèl la sou yon sifas ki plat, ki estab.
- Peze a ON/OFF button to turn the scale on. Wait for "0.00g" to appear.
- Mete bagay ou pral peze a dousman nan sant platfòm peze a.
- Li pwa ki parèt sou ekran LCD a.
Figi 1: Plis paseview of weighing, taring, and calibration instructions on the scale's lid.
Fonksyon Tare
The tare function allows you to subtract the weight of a container, so you only measure the net weight of its contents.
- Mete yon veso vid sou platfòm peze a.
- Peze a TARE bouton an. Ekspozisyon an ap retounen sou "0.00g".
- Mete atik yo pou peze nan veso a. Ekran an ap montre pwa nèt atik yo.
Figure 2: Step-by-step guide for using the tare function.
Chanje Inite Peze
The scale supports six different weighing modes: grams (g), ounces (oz), troy ounces (ozt), pennyweights (dwt), carats (ct), and grains (gn).
- With the scale turned on and displaying "0.00g", press the MÒD bouton repete.
- The display will cycle through the available units. Stop when your desired unit is shown.
Kalibrasyon
For optimal accuracy, periodic calibration is recommended. A 100g calibration weight is included with your scale.
- Turn the scale on and wait for "0.00g".
- Peze epi kenbe la MÒD peze bouton an jiskaske ekran an montre "CAL".
- Lage a MÒD button, then press it again. The display will flash "200.00g" (or the required calibration weight).
- Place the included 100g calibration weight on the center of the platform.
- The display will show "PASS" and then return to normal weighing mode, indicating successful calibration.
Figure 3: Calibrating the scale with the included 100g weight.
Antretyen
Netwayaj
Pou netwaye echèl la, siye li ak yon ti kras damp twal. Pa plonje balans lan nan dlo oswa itilize pwodui netwayaj abrazif.
Depo
Store the scale in a cool, dry place. The protective cover should be used when not in use to prevent damage to the weighing platform.

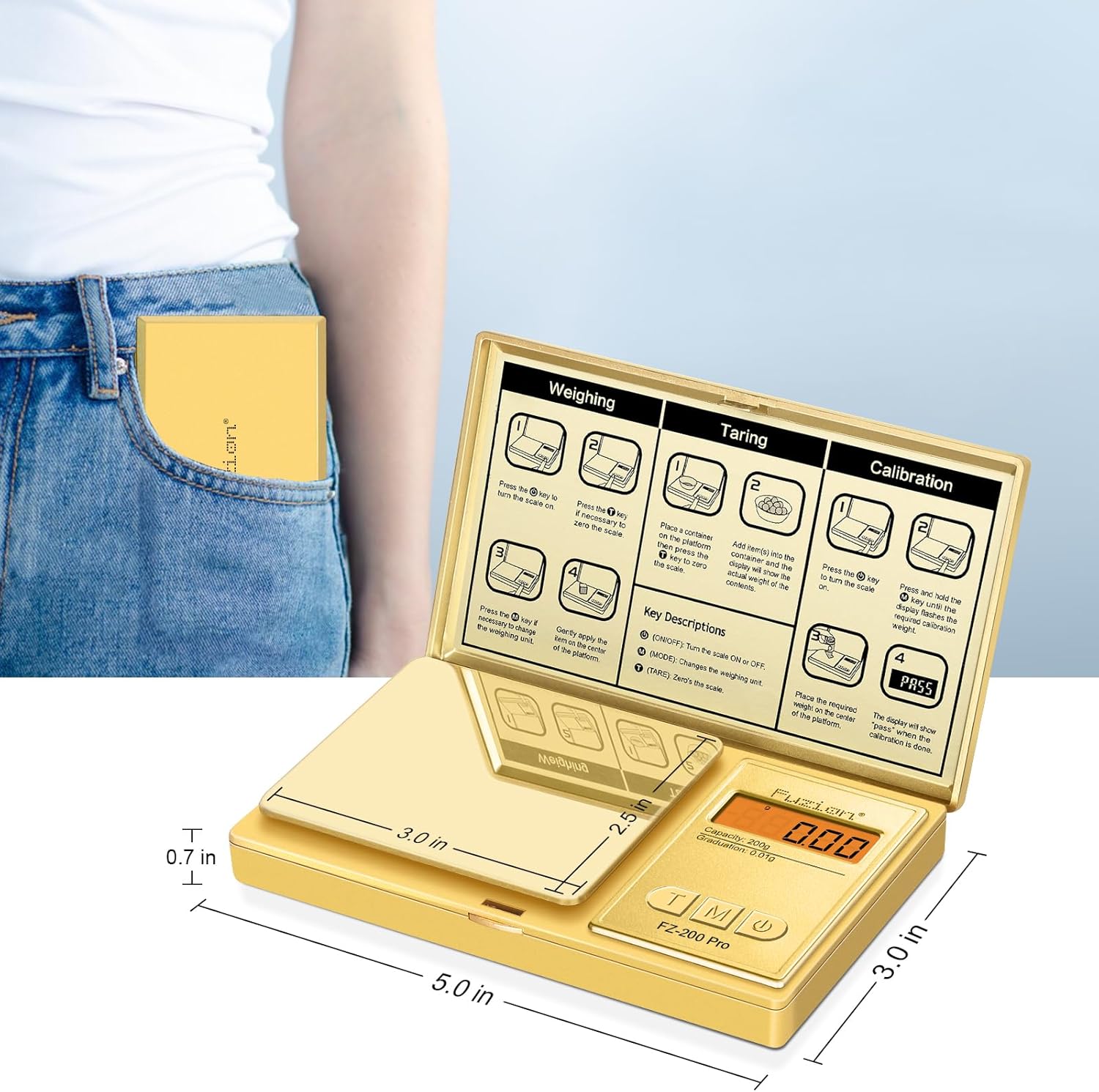

Figure 4: The compact Fuzion scale is easy to store and carry.
Depanaj
Pwoblèm komen ak solisyon yo
| Pwoblèm | Solisyon |
|---|---|
| Ekran an montre "Lo" | Pil yo fèb. Ranplase yo ak nouvo pil AAA. |
| Display shows "OUE2" | Overload error. Remove excess weight from the platform. |
| Lekti kòrèk | Ensure the scale is on a flat, stable surface. Recalibrate the scale using the 100g calibration weight. |
| Echèl pa limen | Tcheke enstalasyon pil yo epi asire w pil yo pa fin itilize. |
Si pwoblèm yo pèsiste, tanpri kontakte sèvis kliyan.
Espesifikasyon
Detay teknik
- Mak: Fuzion
- Koulè: Lò
- Itilizasyon Rekòmande: Food, Coins, Jewelry, Herbs, Spice, Gemstones
- Karakteristik espesyal: Retroeklere ekspozisyon
- Kalite ekspozisyon: LCD
- Limit pwa: 200 gram
- Faktè fòm: Mini
- Materyèl: Gold Titanium Plating Stainless Steel, ABS
- Presizyon lekti: 0.01 gram
- Pwa atik: 8.4 ons (0.24 kilogram)
- Dimansyon pwodwi: 5 x 3 x 0.7 pous
- Batri: 2 pil AAA obligatwa (enkli)
- UPC: 628719230268
Garanti ak sipò
Enfòmasyon sou Garanti
The Fuzion Digital Pocket Gram Scale comes with a two-year warranty. This warranty covers manufacturing defects and ensures reliable performance.
Sipò pou Kliyan
For any questions, technical assistance, or warranty claims, please visit the official Fuzion websit oswa kontakte ekip sipò kliyan nou an.
