Vinnova San Bathroom Vanity Instruction Manual

1. Pwodwi souview

The Vinnova San Bathroom Vanity is a premium fixture designed to enhance your bathroom space with its durable construction and timeless aesthetic. Crafted from natural, imported solid wood, this vanity offers exceptional longevity and a sophisticated look.

Karakteristik kle yo enkli:

• Materyèl dirab: Crafted from natural, imported solid wood for superior durability and long-lasting beauty.
• Stunning Finish: Available in Natural Walnut, finished with environmentally friendly Sherwin-Williams paint products.
• AmpEspas Depo: Four soft-closing doors and three sturdy, soft-closing dovetail drawers provide organized access to toiletries. Built-in partition storage space in the drawer allows for neat organization.
• High-Quality Hardware: Rugged zinc alloy knurled Matte Black or Brushed Gold handles add a stylish contrast.
• Modern Top: 1-inch thick, White grain composite stone top with 45-degree chamfered water retaining edges and backsplash.

2. Enfòmasyon sou Sekirite

Please read and understand all safety instructions before installation and use of the Vinnova San Bathroom Vanity. Failure to follow these instructions may result in injury or damage to the product.

• Always ensure the vanity is installed on a level and stable surface to prevent tipping.
• Due to the weight of the vanity (approximately 312 pounds), it is recommended that at least two people assist with lifting and positioning during installation.
• Exercise caution when handling the stone countertop to avoid chipping or cracking.
• Asire w tout koneksyon plonbri yo byen fèm epi yo pa gen flit pou anpeche domaj dlo.
• Keep small children away from the installation area.
• This product contains materials that may be subject to California Proposition 65 warnings.

3. Components and Dimensions

The Vinnova San Bathroom Vanity package includes the following main components:

• 1 x Main Cabinet (Natural Walnut finish)
• 2 x Ceramic Basins (Undermount)
• 1 x Composite Stone Countertop (White Grain)

Tanpri verifye tout konpozan yo prezan epi yo pa domaje anvan ou kòmanse enstalasyon an.

Detailed dimensions:

• Dimansyon pwodwi: 22"P x 72"L x 33.8"H
• Pwa atik: 312 liv

4. Gid Enstalasyon

This section provides general guidelines for installing your Vinnova San Bathroom Vanity. Professional installation is recommended for optimal results and to ensure proper plumbing connections.

4.1 Zouti ak Materyèl Nesesè (Pa Enkli)

• Kle reglabl
• Twous tournevis (Phillips ak Flathead)
• Nivo
• Mezire tep
• Silicone Sealant (mildew resistant)
• Plumbing Supplies (faucets, drain assemblies, supply lines, P-trap - faucets sold separately)
• Linèt sekirite ak gan

4.2 Etap Pre-Enstalasyon

1. Enspekte eleman yo: Unpack all components and inspect for any damage. Report any issues to the retailer immediately.
2. Zòn Prepare: Ensure the installation area is clean, dry, and level. Turn off the main water supply to the bathroom.
3. Mezire ak make: Measure and mark the desired location for the vanity, ensuring adequate space for plumbing connections and door/drawer clearance.

4.3 Asanblaj ak Plasman

1. The main cabinet comes pre-assembled. Carefully position the cabinet in its designated location.
2. With assistance, carefully place the composite stone countertop onto the main cabinet. Ensure it is properly aligned with the cabinet base.
3. Apply a bead of silicone sealant along the top edges of the cabinet where the countertop will rest to secure it in place.
4. Install the ceramic undermount sinks into the pre-drilled openings in the countertop. Secure them according to the sink manufacturer's instructions, typically using clips and sealant.

4.4 Koneksyon plonbri

1. Install your chosen faucets (sold separately) into the pre-drilled holes on the countertop according to the faucet manufacturer's instructions.
2. Connect the hot and cold water supply lines from the wall to the faucet connections. Ensure all connections are tight to prevent leaks.
3. Install the drain assemblies into the sinks. Connect the P-trap to the drain assembly and then to the wall drain pipe.
4. Turn on the main water supply slowly and check all connections for leaks. Tighten any leaking connections.

5. Operasyon

The Vinnova San Bathroom Vanity is designed for straightforward operation.

5.1 Doors and Drawers

• The vanity features soft-closing doors and drawers. To open, gently pull the handles. To close, push gently; the soft-close mechanism will engage to prevent slamming.
• The drawers include built-in partition storage space. These partitions can be adjusted to customize storage compartments for various items.

6. Swen ak Antretyen

Proper care and maintenance will ensure the longevity and beauty of your Vinnova San Bathroom Vanity.

6.1 Wood Cabinet Care

• Siye sifas bwa yo ak yon twal mou,amp twal. Evite sèvi ak pwodui netwayaj abrazif oswa pwodui chimik ki agresif, paske sa yo ka domaje fini an.
• Immediately wipe up any water spills to prevent water spots or damage to the wood.
• Evite mete objè cho dirèkteman sou sifas bwa a.
• Periodically check and tighten any loose hardware.

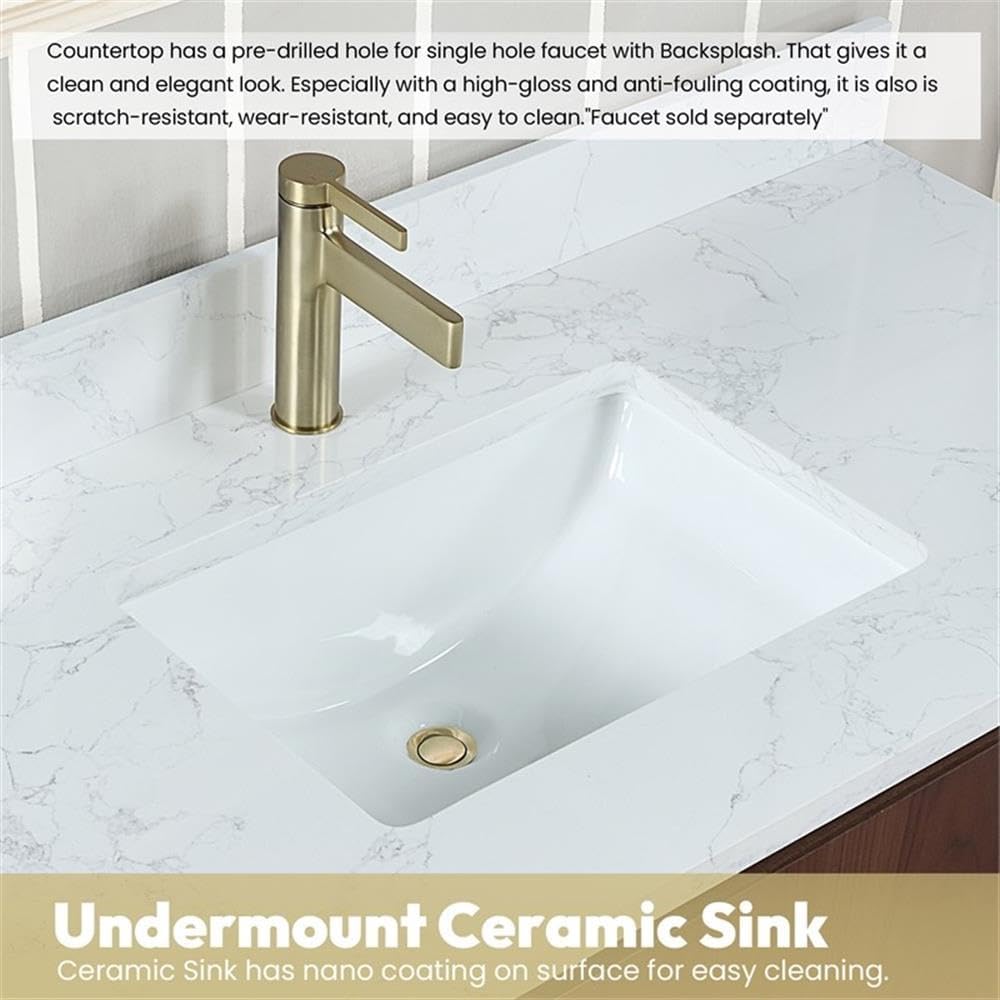

6.2 Stone Countertop and Ceramic Sink Care

• Clean the stone countertop and ceramic sinks with a mild, non-abrasive cleaner and a soft cloth or sponge.
• Avoid using acidic cleaners (e.g., lemon juice, vinegar) or abrasive scrubbing pads, as these can etch or scratch the surface.
• Wipe down the countertop after each use to prevent water spots and mineral buildup.
• The ceramic sink has a nano coating for easy cleaning, but regular wiping is still recommended.

NAN. Depanaj

This section addresses common issues you might encounter with your Vinnova San Bathroom Vanity.

8. Espesifikasyon

Detailed specifications for the Vinnova San Bathroom Vanity:

9. Garanti ak sipò

For specific warranty information regarding your Vinnova San Bathroom Vanity, please refer to the documentation provided at the time of purchase or contact Vinnova Inc. directly.

General support information:

• Sipò Kliyan: For assistance with product inquiries, installation questions, or troubleshooting, please contact Vinnova customer support.
• Retounen: This product typically offers a 30-day easy returns policy. Please check with your retailer for specific return procedures.
• Plan Pwoteksyon: Plan pwoteksyon pwolonje yo ka disponib pou achte.

You can visit the official VINNOVA Store for more information: VINNOVA Store on Amazon
