TAXNELE SUL180a Analog Mechanical Timer Switch User Manual

1. Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of the TAXNELE SUL180a Analog Mechanical Timer Switch. Please read this manual thoroughly before installation and use to ensure proper function and safety.

The SUL180a is a programmable mechanical timer designed for controlling electrical appliances based on a 24-hour cycle. It features a DIN rail mounting design, making it suitable for various industrial and household applications.

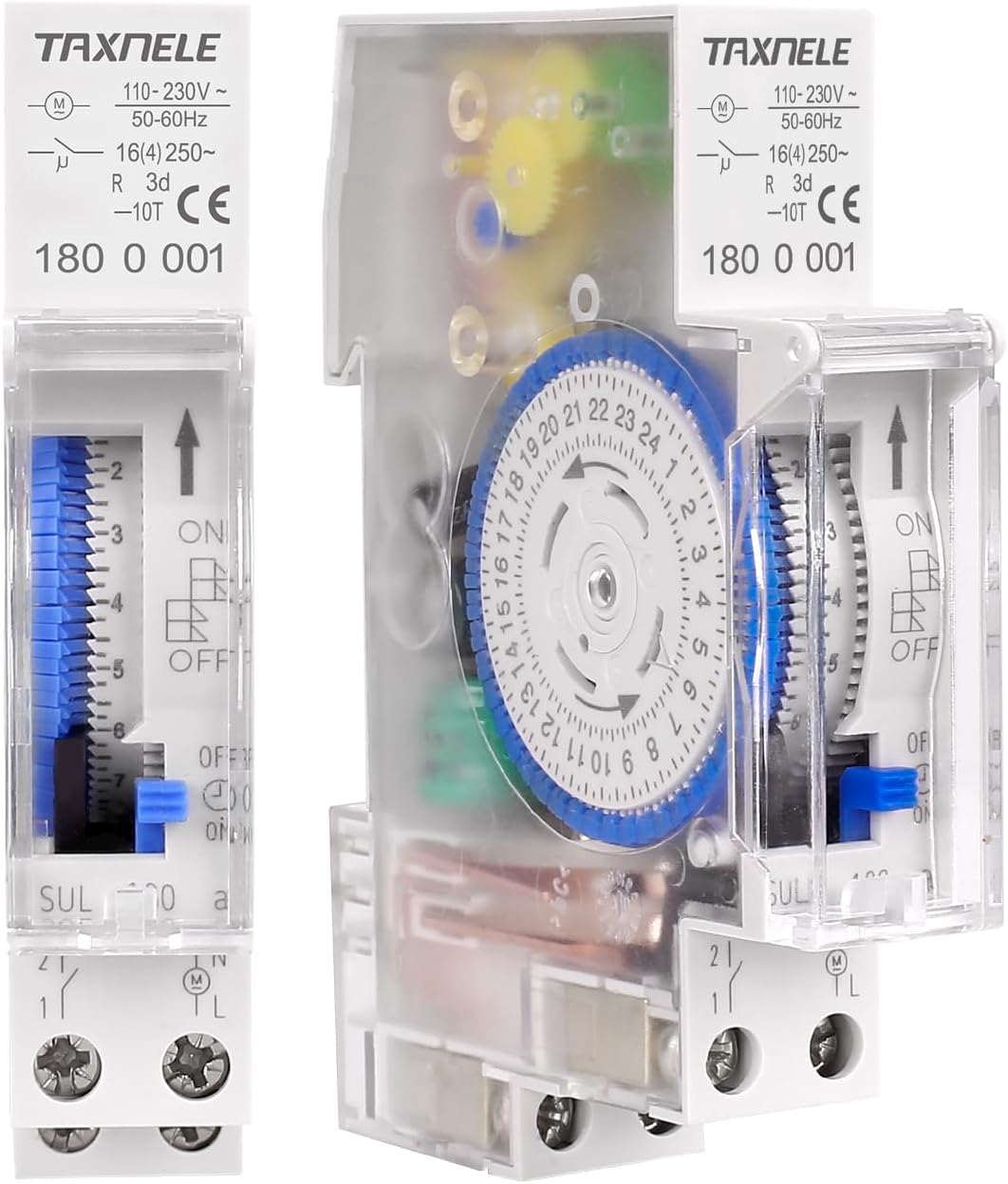

Figure 1: TAXNELE SUL180a Analog Mechanical Timer Switch, showing the front panel with time dial and manual override switch, and a side view revealing internal components.

2. Enfòmasyon sou Sekirite

WARNING: Electrical shock hazard. Installation and servicing should only be performed by qualified personnel. Disconnect power before installation or maintenance.

• Ensure the power supply is disconnected before attempting any installation or wiring.
• Verifye ke voltage and current ratings of the timer match your application requirements.
• Do not expose the device to moisture or extreme temperatures outside its operating range.
• The timer housing is made of flame-retardant PC material for enhanced safety.

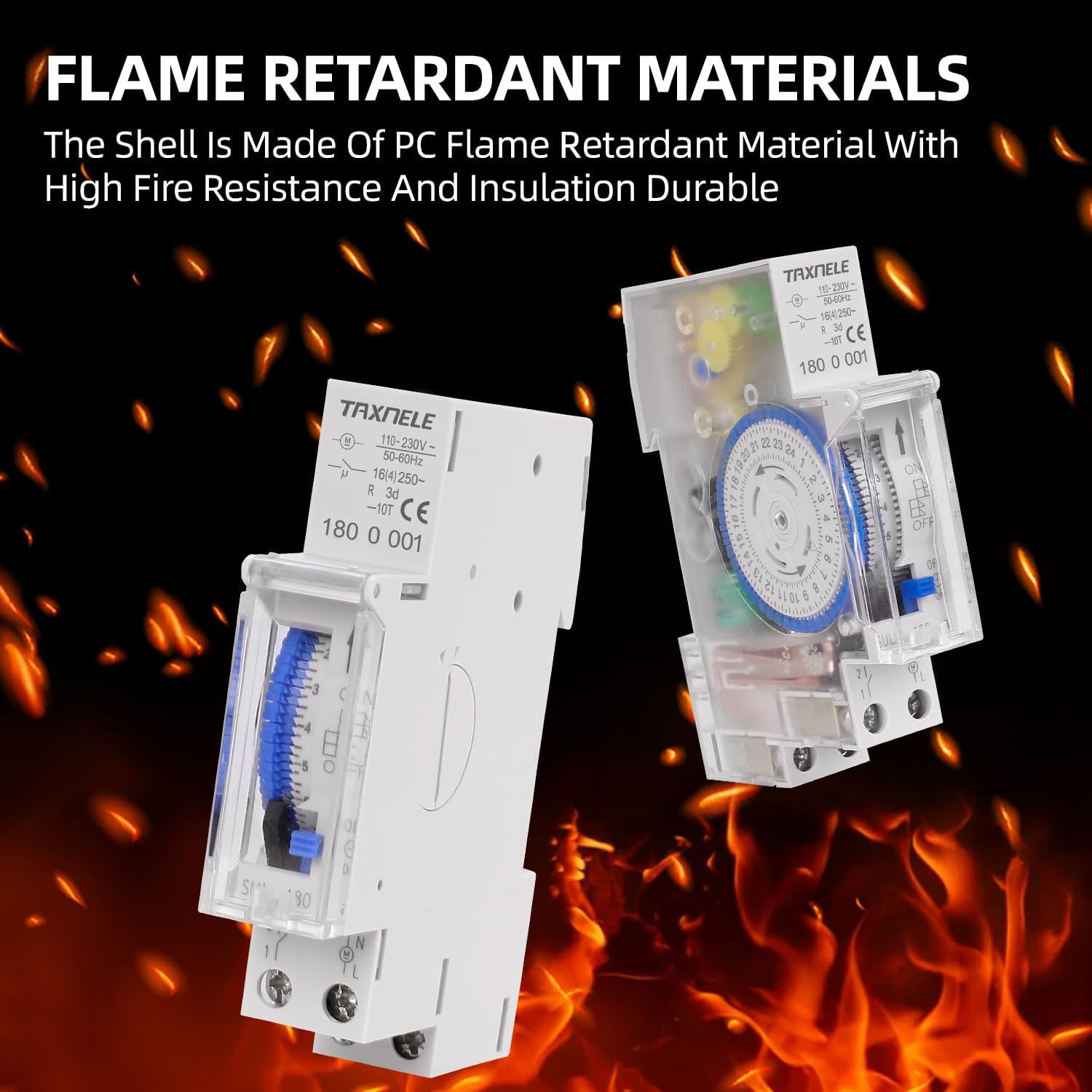

Figure 2: The timer's construction utilizes flame-retardant materials for safety.

3. Pwodwi Features

The TAXNELE SUL180a Analog Mechanical Timer Switch offers the following key features:

• Programmable Control: Set up to 48 ON/OFF programs within a 24-hour cycle.
• Efikasite enèji: Optimize power consumption by scheduling appliance operation.
• Montaj DIN Rail: Easy installation in standard electrical panels.
• Batri entegre: Provides power outage compensation, maintaining time settings for up to 150 hours.
• Manual/Auto Control: Override programmed settings as needed.
• Aplikasyon lajè: Suitable for controlling lighting, pumps, household appliances, and industrial equipment.

Figure 3: Visual representation of key features including built-in battery, 24-hour control, and power outage konpansasyon.

Figi 4: Egzamples of common applications for the timer switch, such as controlling streetlights, industrial equipment, and home appliances.

4. Espesifikasyon

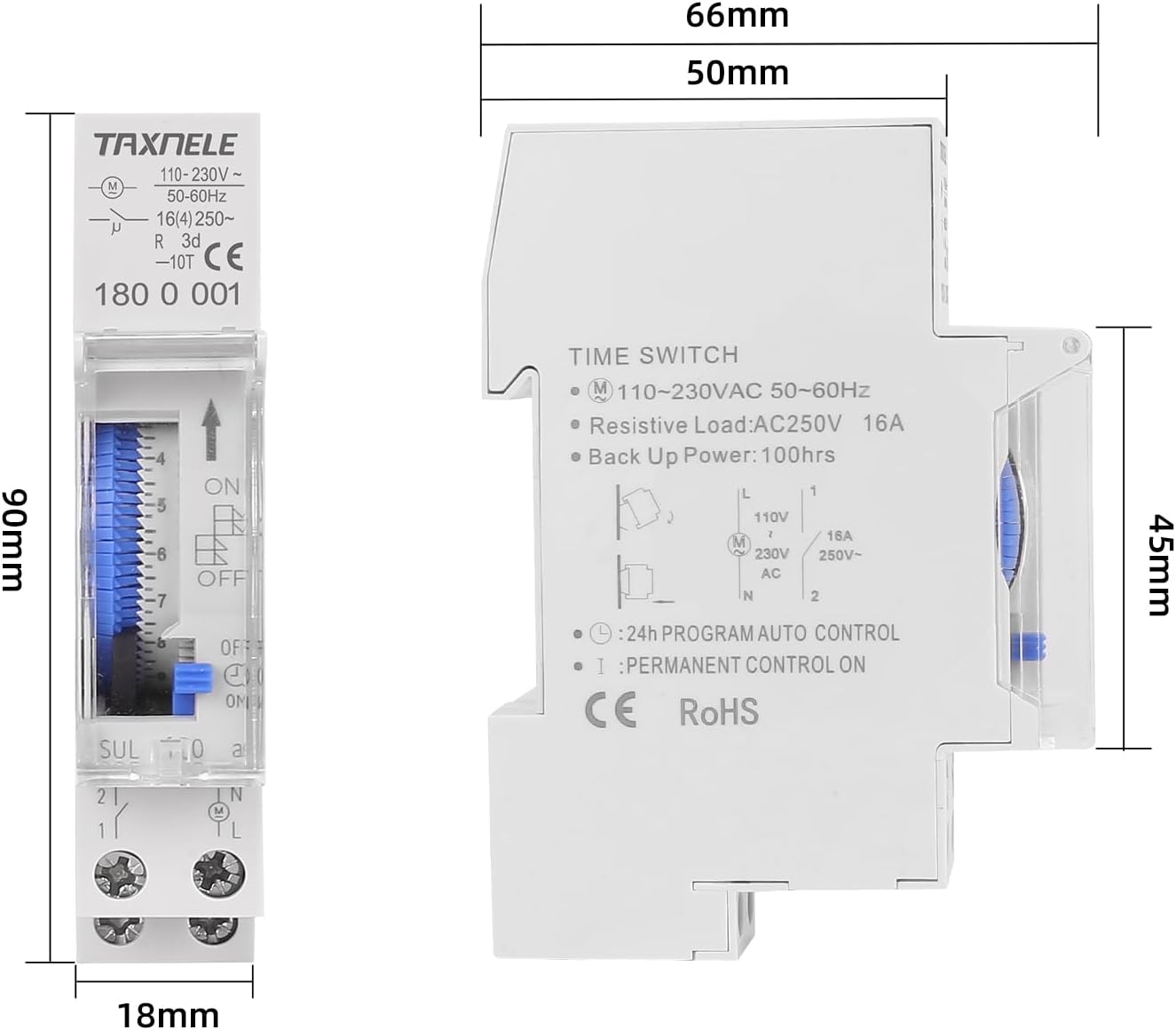

Figure 5: Dimensional drawing of the SUL180a timer switch.

5. Enstalasyon (Enstalasyon)

The SUL180a timer switch is designed for DIN rail mounting. Follow these steps for safe and correct installation:

1. Dekoneksyon pouvwa: Before starting, ensure that the main power supply to the circuit where the timer will be installed is completely disconnected.
2. Montaj: Snap the timer onto a standard 35mm DIN rail. Ensure it is securely fastened.
3. Fil elektrik:
   • Connect the live (L) and neutral (N) wires of the power supply to the corresponding input terminals (typically marked '1' and '2' or 'L' and 'N' on the timer).
   • Connect the load (appliance) to the output terminals. The timer acts as a switch for the live wire to the load. Refer to the wiring diagram on the device or in Figure 6.
4. Verifikasyon: Double-check all connections for tightness and correctness before restoring power.

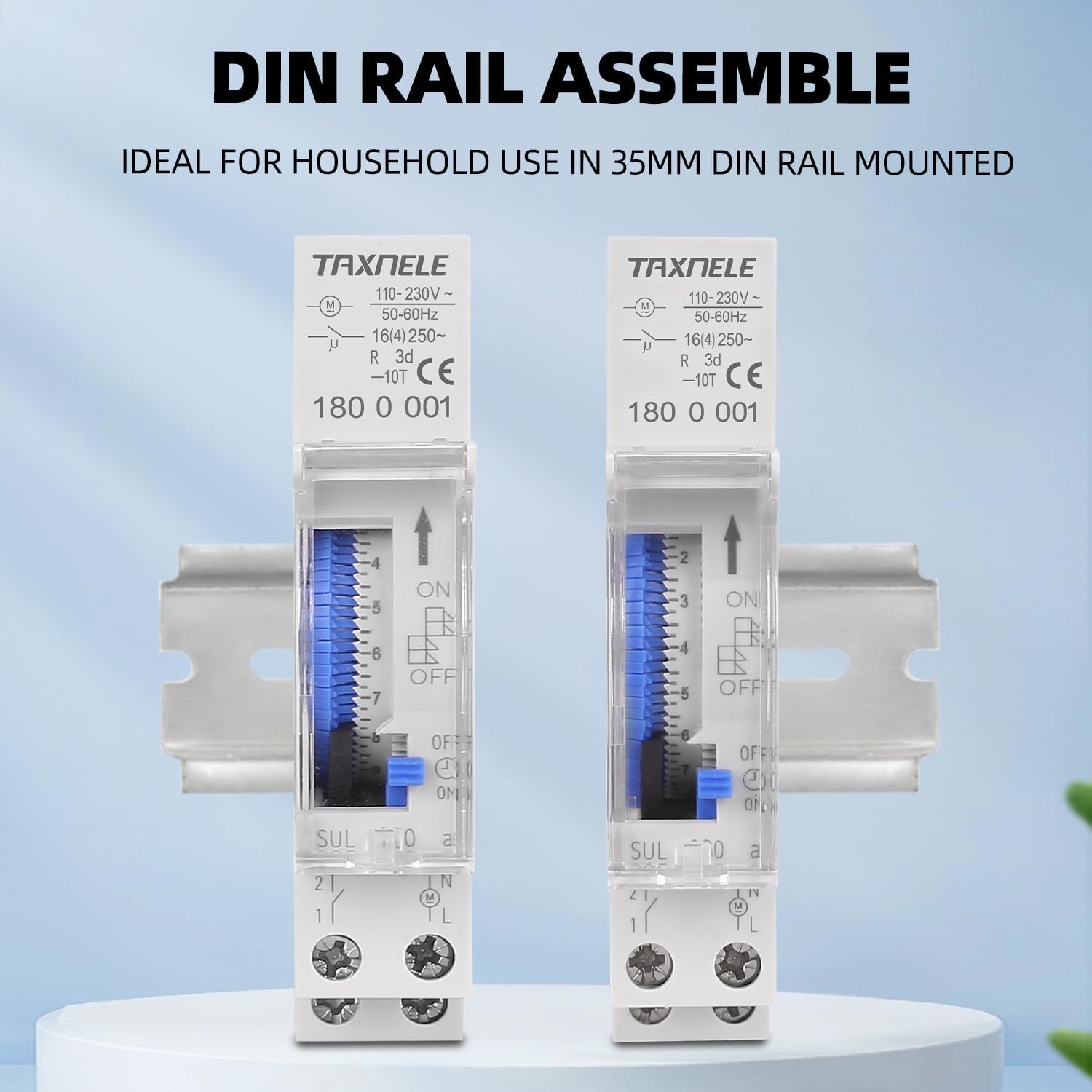

Figure 6: The timer switch easily mounts onto a standard DIN rail.

Note: A basic wiring diagram is often printed on the side of the timer. Ensure proper grounding if required by local electrical codes.

6. Operation and Programming

The SUL180a timer allows for both manual control and automatic programming.

6.1 Mete lè aktyèl la

1. Rotate the central dial (marked with 24 hours) clockwise until the current time aligns with the small arrow indicator on the timer's face.
2. Ensure the AM/PM distinction is correctly observed (e.g., 1 PM is 13:00).

Figure 7: The 24-hour dial and programming pins on the timer's front panel.

6.2 Programming ON/OFF Intervals

The timer dial has small segments around its perimeter. Each segment typically represents 15 minutes.

1. Fikse Peryòd ON: Push the small pins outwards for the time periods you want the connected appliance to be ON.
2. Peryòd Okenn yo: Leave the small pins inwards for the time periods you want the connected appliance to be OFF.
3. The timer will cycle through these settings every 24 hours.

6.3 Manual Override Switch

The timer features a manual override switch, usually a small lever or slider on the front panel. This switch allows you to temporarily bypass the programmed settings.

• "ON" Position: The appliance will remain ON continuously, regardless of programmed settings.
• "OFF" Position: The appliance will remain OFF continuously, regardless of programmed settings.
• "AUTO" Position: The timer will follow the programmed ON/OFF schedule.

Always return the switch to the "AUTO" position for programmed operation.

7. Antretyen

The TAXNELE SUL180a timer switch requires minimal maintenance.

• Netwayaj: Wipe the exterior with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Batri: The timer includes a built-in battery for power outage compensation. This battery recharges automatically when the timer is powered. If the timer consistently loses time or programming during power outages, the internal battery may need replacement. This should be performed by a qualified technician.

Figure 8: The internal battery provides power outage compensation, ensuring time accuracy even during power interruptions.

NAN. Depanaj

9. Garanti ak sipò

TAXNELE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the product packaging or contact your retailer. Keep your purchase receipt as proof of purchase.

For further assistance, please contact TAXNELE customer service through their official channels.
