1. Entwodiksyon
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ledvion Universal LED Dimmer, model LV10002-compleet. This dimmer is designed to adjust the light intensity of compatible LED lamps from 0% to 100%. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
2. Enstriksyon Sekirite
AVÈTISMAN: Electrical installation should only be performed by a qualified electrician. Incorrect installation can lead to electric shock, fire, or damage to the device.
- Always disconnect power at the main circuit breaker before installing or servicing the dimmer.
- Ensure the dimmer's voltage and load specifications match your electrical system and connected lamps.
- Do not exceed the maximum load rating of 5-600W/VA for LED lamps.
- This dimmer is designed for indoor use only.
- Kenbe aparèy la lwen dlo ak imidite.
- Do not attempt to repair or modify the dimmer. Contact qualified personnel for service.
- The dimmer does not work with Hue, WarmGlow, and DimTone systems.
3. Pwodwi souview
The Ledvion Universal LED Dimmer is a high-quality, trailing edge dimmer designed for seamless integration into most standard electrical systems. It offers flicker-free and noise-free dimming for a wide range of LED lamps.

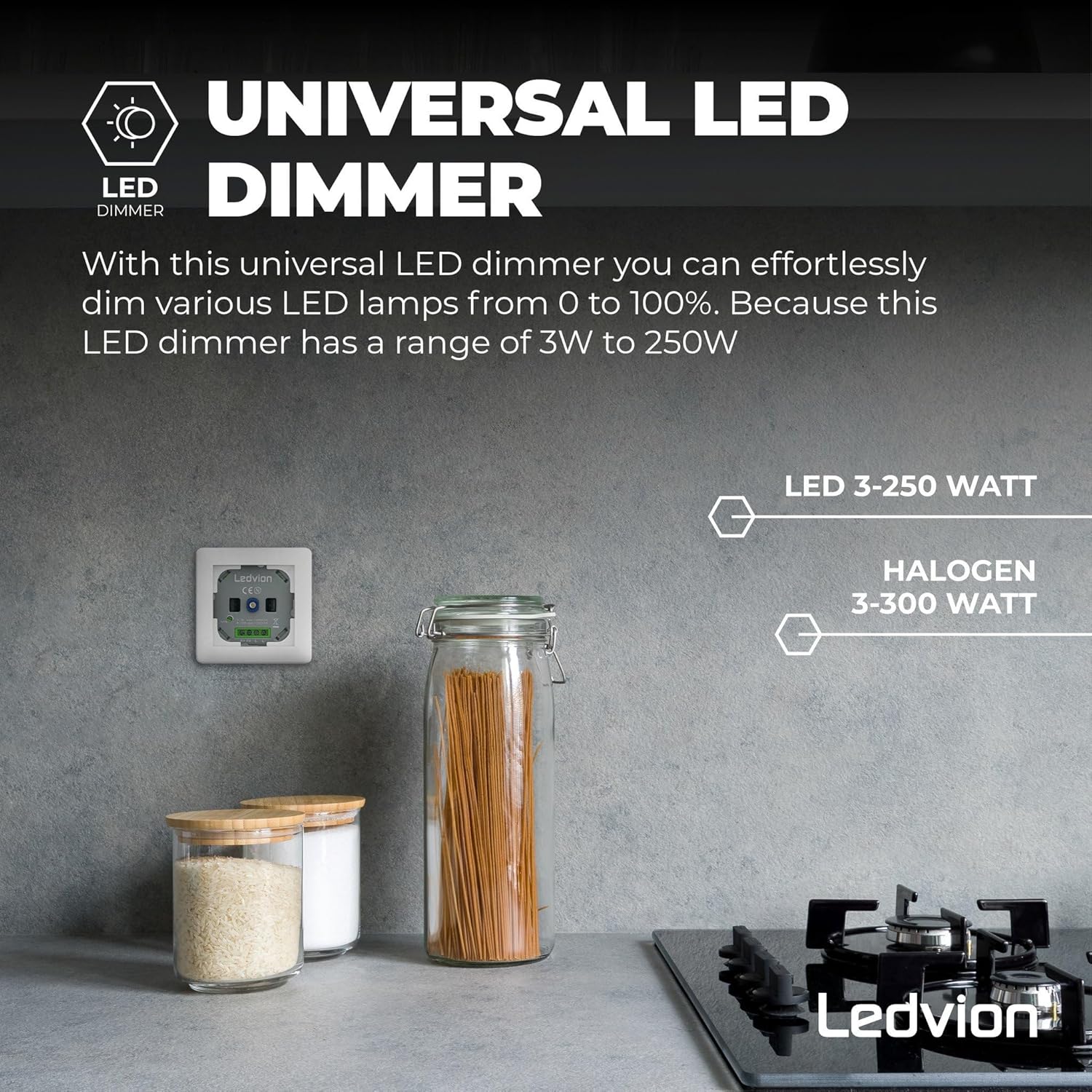

Image: The Ledvion Universal LED Dimmer highlighting its compatibility with LED lamps (3-250W) ak alojèn lamps (3-300W), and its universal nature.
Imaj: Dèyè view of the Ledvion LED Dimmer, illustrating its "NOISE & FLICKER FREE" design and showing the connection terminals and technical specifications like 50Hz, 220-240V, and Trailing Edge dimmer type.
Karakteristik kle:
- Universal compatibility with most dimmable LED lamps (5-600W/VA).
- Trailing edge dimming technology for smooth, flicker-free operation.
- Noise-free performance due to built-in electronics.
- Compatible with various cover frames from brands like GIRA, Berker, Jung, and Busch Jager.
- High-quality construction meeting Intertek, CE, RoHS, and REACH standards.
- Two-way switch function for dimming from multiple locations.
4. Enstalasyon (Enstalasyon)
Follow these steps carefully for proper installation. Ensure power is disconnected before proceeding.
- Prepare sit enstalasyon an: Turn off the main power supply at the circuit breaker. Remove the existing switch or dimmer from the wall box.
- Konekte fil elektrik: Identify the live (L), neutral (N), and switched live (L1, L2) wires. Connect them to the corresponding terminals on the Ledvion dimmer as shown in the wiring diagrams below. The dimmer uses screw terminals for secure connections.
- Monte gradateur a: Carefully place the dimmer into the wall box. Secure it using the provided screws.
- Tache plak kouvèti a: The Ledvion dimmer is compatible with various standard cover frames. Attach your chosen cover plate over the dimmer.
- Retabli pouvwa: Once the installation is complete and secure, restore power at the main circuit breaker.

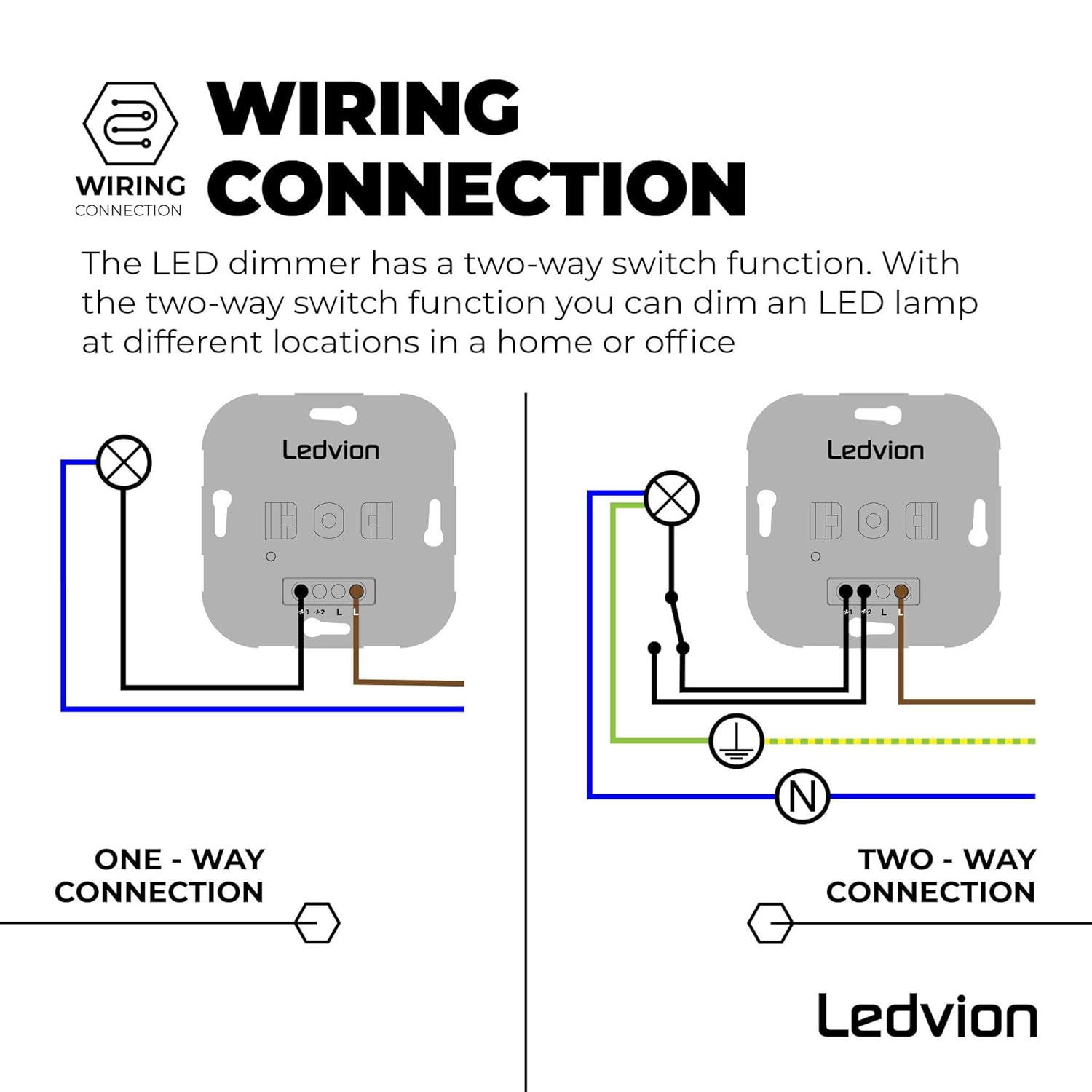

Image: Wiring diagrams illustrating both one-way and two-way connection methods for the Ledvion LED Dimmer, showing connections for live, neutral, and switched wires to a light fixture.
Image: A hand using a screwdriver to install the Ledvion LED Dimmer module into a standard wall electrical box, demonstrating the flush mount installation process.
Image: The Ledvion LED Dimmer module shown alongside a white, compatible cover plate, illustrating how the dimmer integrates with standard switch covers from brands like GIRA, Berker, Jung, Busch Jager, Kopp, Merten, and PEHA.

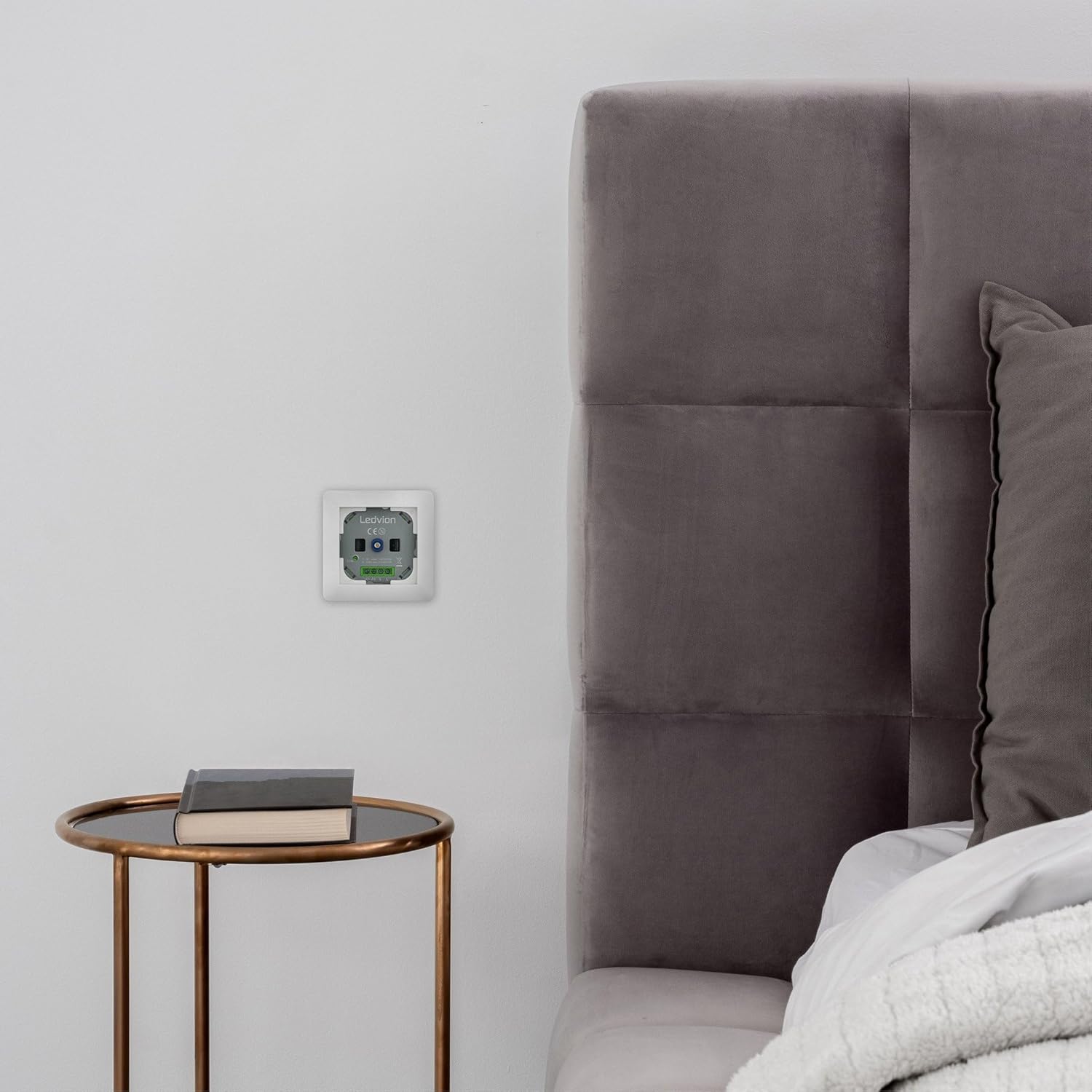

Image: The Ledvion LED Dimmer fully installed in a wall, next to a bedside table and bed, showing its discreet and integrated appearance.
5. Operasyon Enstriksyon
The Ledvion Universal LED Dimmer features a touch-sensitive control for easy operation.
- Limen/Etenyen: Press the dimmer knob to turn the connected lights on or off.
- Dimming: Rotate the dimmer knob clockwise to increase light intensity and counter-clockwise to decrease light intensity. The dimmer allows adjustment from 0% to 100%.
- Ajisteman minimòm klète: The dimmer may have a small adjustment screw (often labeled 'MIN') to set the minimum dimming level for optimal performance with specific LED lamps. Use a small screwdriver to adjust this if flickering occurs at low brightness.
Nòt enpòtan: This dimmer is not compatible with Philips Hue, WarmGlow, or DimTone lighting systems.
6. Antretyen
The Ledvion Universal LED Dimmer requires minimal maintenance.
- Netwayaj: Disconnect power before cleaning. Wipe the surface of the dimmer and cover plate with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Enspeksyon: Tcheke regilyèman pou wè si gen koneksyon ki lach oswa si gen siy domaj. Si ou jwenn nenpòt pwoblèm, dekonekte kouran an epi konsilte yon elektrisyen kalifye.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Limyè pa limen. | No power, incorrect wiring, faulty bulb, dimmer not compatible. | Check circuit breaker. Verify wiring connections. Test with a known working bulb. Ensure bulbs are dimmable and compatible with a trailing edge dimmer. |
| Limyè yo ap tranble oubyen yo ap ronronne. | Incompatible LED lamps, minimum brightness set too low, loose connection, load too low/high. | Asire ki ap dirije lamps are dimmable and compatible. Adjust the 'MIN' setting on the dimmer. Check wiring. Verify total load is within 5-600W/VA range. |
| Dimmer does not respond. | No power, internal fault. | Check power supply. If power is present and dimmer still unresponsive, contact support. |
| Dimming range is limited. | Minimum brightness setting, lamp konpatibilite. | Adjust the 'MIN' setting. Ensure lamps are fully dimmable. |
8. Espesifikasyon teknik
| Nimewo Modèl: | LV10002-konplè |
| Manifakti: | Ledvion |
| Antre Voltage: | 220-240 Volts AC |
| Frekans: | 50 Hz |
| Kalite chaj: | Bò dèyè (Koupe faz) |
| Kapasite chaj ki ap dirije: | 5-600W/VA |
| Halogen Load Capacity: | 3-300W |
| Dimansyon (L x W x H): | 8 x 8 x 3 cm (60 gram) |
| Materyèl: | Copper (contact material) |
| Kalite enstalasyon: | Flush mòn |
| Chanje Style: | Touch sensitivity / Push button |
| Sètifikasyon: | Intertek, CE, RoHS, REACH |
Image: A technical drawing of the Ledvion LED Dimmer, indicating its physical dimensions of 70mm by 70mm.
9. Garanti
The Ledvion Universal LED Dimmer comes with a 2-ane garanti apati dat acha a. Garanti sa a kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon nòmal. Li pa kouvri domaj ki koze pa move enstalasyon, move itilizasyon, aksidan, oswa modifikasyon san otorizasyon.
Image: The Ledvion LED Dimmer module displayed with a prominent "2 YEAR WARRANTY" badge, emphasizing the product's quality and manufacturer support.
For warranty claims, please retain your proof of purchase and contact Ledvion customer support.
10. Sipò
If you have any questions, require technical assistance, or need to report an issue, please contact Ledvion customer support through their official website or the retailer where you purchased the product. Please have your model number (LV10002-compleet) and purchase details ready.
