TROND Multi Plug Outlet Extender User Manual

Entwodiksyon

Thank you for choosing the TROND Multi Plug Outlet Extender. This compact and versatile device is designed to expand your power options, converting a single wall outlet into three grounded AC sockets. Its innovative design allows for efficient use of space, making it ideal for various environments including homes, offices, and travel. Please read this manual carefully to ensure safe and optimal use of your product.

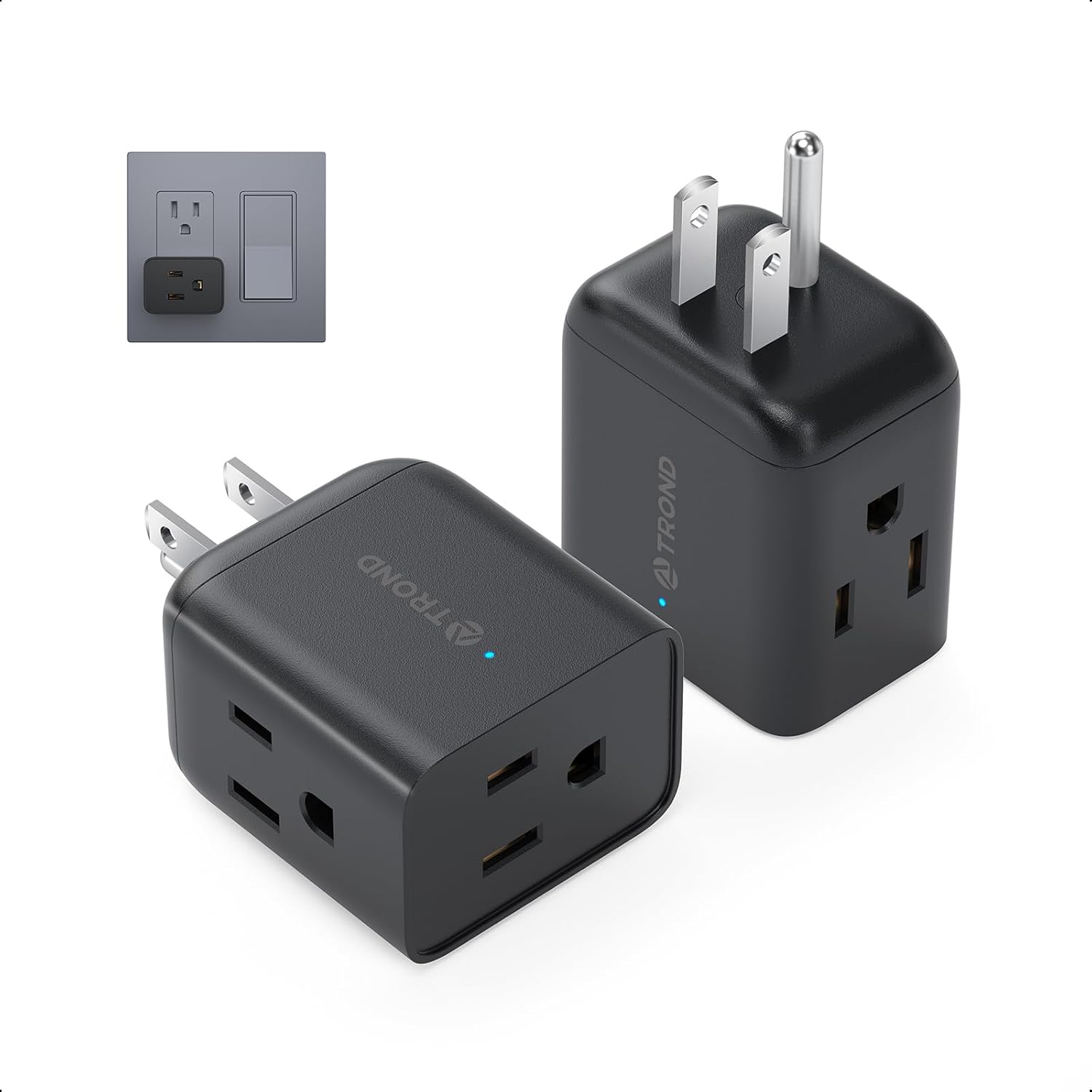

Image: The TROND Multi Plug Outlet Extender in black, showing its compact design and three-prong plug.

Karakteristik kle

• Easy Accessed 3 Way Plug Splitter: Outlets on 3 different sides allow for 3 large plugs to be used simultaneously without blocking neighboring outlets. Ideal for charging daily used devices like laptops, phones, toothbrushes, makeup mirrors, etc. An LED light indicates active power at the outlet. Max 1875W (125V/15A).
• Horizontal Wall Plug Adapter: Measured at 1.97 x 1.77 x 1.26 inches, the multi-plug outlet extender fits all GFCI/duplex/decor/USB receptacles without blocking the other socket (Not for recessed outlet). Super compact and lightweight design helps to save precious luggage space and makes this portable outlet extender a great companion for travel.
• Black Wall Outlet Extender 2 Pack: The multi plug outlet splitter turns a regular wall outlet into 3 grounded AC sockets, creating a handy charging station for your various electronic devices. The black color is sleek and unobtrusive, easily blending into any dark decor. Ideal for use in garages, homes, bathrooms, kitchens, bedrooms, living rooms, offices, hotels, and college dorm rooms.
• Correct Outlet Orientation: The plug extension outlet can "correct" outlet orientation for sideway-mounted outlets, allowing you to plug nightlights or air fresheners into them. If plugged into a vertical wall outlet, the electrical outlet adapter splits into 3 horizontal outlets.
• Safety Assurance Wall Outlet Expander: Certified by FCC & ROHS, and made of top-grade UL94 V-0 flame-retardant PC & ABS, the small plug extender is safe to use. No surge protection and no power cord, fully compliant with the restriction rules of all cruise lines.

Enstriksyon Enstalasyon

The TROND Multi Plug Outlet Extender is designed for simple, plug-and-play setup. No complex installation is required.

1. Identify a suitable wall outlet: Choose a standard 3-prong wall outlet (125V/15A) that is easily accessible and not recessed.
2. Plug in the extender: Insert the TROND Multi Plug Outlet Extender directly into the chosen wall outlet. Ensure it is firmly seated. The compact design ensures it will not block the second outlet on a standard duplex receptacle.
3. Obsève endikatè LED la: A small LED light on the extender will illuminate, indicating that the unit is receiving power and is ready for use.
4. Konekte aparèy ou yo: You can now plug up to three devices into the available AC outlets on the extender. The side-facing outlets are particularly useful for accommodating bulky power adapters without obstructing other ports.

Image: The TROND Multi Plug Outlet Extender plugged into a wall outlet, demonstrating its compact fit and multiple accessible outlets.

Image: A visual comparison showing how the TROND extender avoids blocking adjacent outlets and switches, unlike some other designs.

Enstriksyon Operasyon

Using the TROND Multi Plug Outlet Extender is straightforward:

• Distribisyon pouvwa: Once plugged in, the extender provides power to all three AC outlets simultaneously.
• Plasman Optimal Plòg: Utilize the three distinct sides to plug in various devices, especially those with large power bricks, to prevent them from interfering with each other.
• Endikatè ki ap dirije: The blue LED light on the extender indicates that power is flowing through the unit. If the light is off, check the wall outlet's power supply.
• Kapasite chaj: Do not exceed the maximum rated power of 1875W (125V/15A) for the entire unit to prevent overheating and potential damage.

Image: The TROND Multi Plug Outlet Extender accommodating multiple bulky power adapters due to its 3-sided design.

Image: The TROND Multi Plug Outlet Extender used to reorient an outlet, allowing a nightlight to be plugged in conveniently.

Antretyen

The TROND Multi Plug Outlet Extender requires minimal maintenance to ensure long-lasting performance:

• Netwayaj: Disconnect the extender from the wall outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or aerosols.
• Depo: When not in use, store the extender in a cool, dry place away from direct sunlight and moisture.
• Enspeksyon: Periodically inspect the extender for any signs of damage, such as cracks, frayed wires, or loose prongs. If any damage is found, discontinue use immediately.

Depanaj

If you encounter issues with your TROND Multi Plug Outlet Extender, please refer to the following common solutions:

• Pa gen kouran/LED etenn:
  • Ensure the extender is fully and securely plugged into the wall outlet.
  • Check if the wall outlet itself is functioning by plugging in another device.
  • Verify that the circuit breaker for the outlet has not tripped.
• Devices Not Charging/Working:
  • Confirm that the total wattage of all connected devices does not exceed the extender's maximum capacity (1875W).
  • Ensure the devices themselves are functioning correctly by plugging them directly into a known working wall outlet.
  • Check the connection of the device's plug into the extender's outlet.
• Surchof:
  • Immediately unplug all devices and the extender from the wall.
  • Reduce the number of devices or the power draw of connected devices.
  • Ensure proper ventilation around the extender.

If the problem persists after trying these steps, please contact TROND customer support.

Espesifikasyon

Garanti ak sipò

TROND stands behind the quality of its products.

• Garanti: This product comes with an 18-Month Product Warranty and a 30-Day Money Back Guarantee.
• Manyèl Itilizatè (PDF): For a detailed PDF version of the user manual, please refer to the official document provided by TROND.
• Sipò Kliyan: If you have any questions, concerns, or require technical assistance, please contact TROND Official customer support.
