Meister Transport Truck 150 kg, Foldable Compact

1. Entwodiksyon

This instruction manual provides essential information for the safe and effective use of your Meister Transport Truck. Please read this manual thoroughly before assembly and operation to ensure proper handling, maximize product lifespan, and prevent injury or damage. Keep this manual for future reference.

2. Enfòmasyon sou Sekirite

• Kapasite maksimòm chaj: Do not exceed the maximum load capacity of 150 kg (330 lbs). Overloading can cause damage to the truck and lead to injury.
• Chaj an sekirite: Always ensure that items placed on the truck are stable and securely fastened. Use bungee cords or straps if necessary to prevent shifting or falling during transport.
• Menm distribisyon pwa: Distribute the load evenly across the loading area to maintain stability.
• Kondisyon Sifas: Operate the truck on flat, stable, and clear surfaces. Avoid uneven terrain, stairs, or inclines that could cause the truck to tip over.
• Itilizasyon fren: Always engage the parking brakes on the swivel castors when loading, unloading, or leaving the truck stationary.
• Manch lan: Kenbe yon priz fèm sou manch lan pandan operasyon an.
• Timoun ak bèt kay: Keep children and pets away from the truck during operation and storage. This is not a toy.
• Enspeksyon: Before each use, inspect the truck for any signs of damage, loose parts, or wear. Do not use if damaged.

3. Pwodwi souview & Eleman

The Meister Transport Truck is a versatile, foldable platform truck designed for easy transport of goods up to 150 kg. Its compact design allows for convenient storage.

Figi 3.1: Plis paseview of the Meister Transport Truck in its unfolded, ready-to-use configuration.

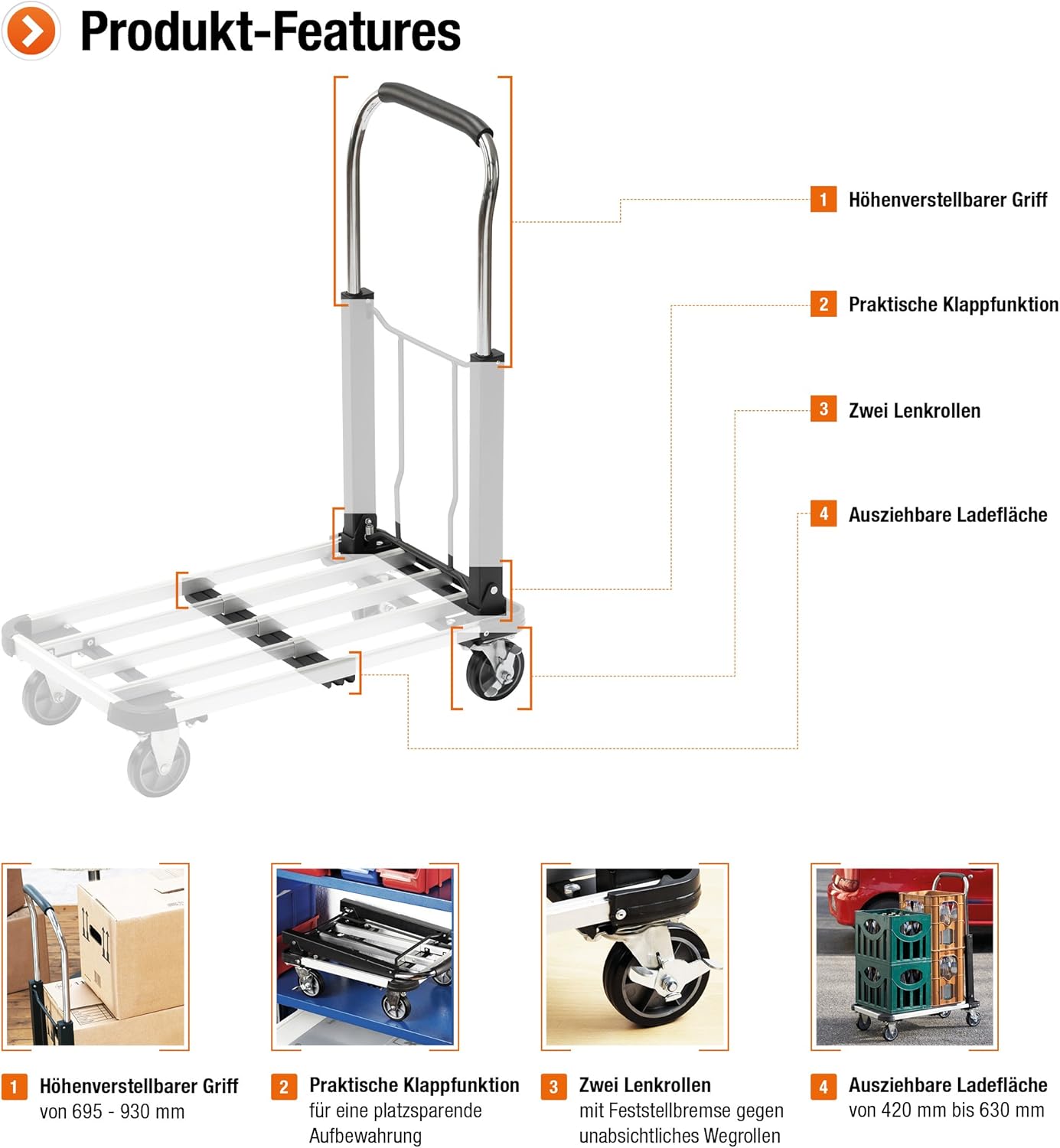

Figure 3.2: Key features of the transport truck, highlighting the adjustable handle, practical folding function, two swivel casters with parking brake, and the extendable loading area.

Konpozan kle:

• Manch reglabl
• Extendable Loading Platform
• Fixed Castors (2)
• Swivel Castors with Parking Brake (2)
• Pliye mekanis

4. Asanble

The Meister Transport Truck requires minimal assembly, primarily attaching the wheels.

4.1 Mete wou yo

1. Depake tout konpozan yo ak anpil atansyon epi asire w ke tout pyès yo prezan.
2. Identify the two fixed castors and the two swivel castors with parking brakes. The swivel castors are typically installed at the handle end for easier steering.
3. Align each castor with its designated mounting point on the underside of the truck's platform.
4. Secure each castor using the provided nuts and bolts. Ensure all fasteners are tightened securely to prevent wobbling during use. Do not overtighten.

Figure 4.1: Detail of a swivel castor with its integrated parking brake. Ensure these are correctly installed and functional.

4.2 Ajiste Wotè Manch la

The handle height is adjustable to suit user preference and for compact storage. To adjust, locate the locking pins or levers on the handle supports. Release them, slide the handle to the desired height (between 695 mm and 950 mm), and then securely re-engage the locking mechanism. Ensure both sides are locked at the same height before use.

5. Operasyon

5.1 Unfolding the Truck

1. Place the folded truck on a flat, stable surface.
2. Gently pull the handle upwards until the platform fully extends and locks into place.
3. Ensure all locking mechanisms are engaged before loading.

5.2 Folding the Truck for Storage

1. Ensure the truck is empty and clean.
2. Release the locking mechanism for the handle and push the handle downwards until the platform folds compactly.
3. Secure the handle in its folded position if a latch is present.

Figure 5.1: The transport truck in its compact, folded configuration, demonstrating its space-saving storage capability.

5.3 Extending the Loading Area

The loading area is variable, extending from 420x410 mm to 420x630 mm. To extend, locate the release mechanism (often a lever or button) on the platform. Engage the mechanism and pull the extendable section outwards until it locks into the desired position. Ensure it is fully locked before placing items on it.

Figure 5.2: Dimensional diagram illustrating the adjustable handle height and the variable loading area of the truck.

5.4 Using the Parking Brake

The two swivel castors are equipped with parking brakes. To engage, press down on the lever located on the castor until it clicks into place. To release, lift the lever. Always engage the brakes when the truck is stationary, especially on inclines or when loading/unloading.

5.5 Loading and Transporting Goods

• Place items centrally on the loading platform.
• For tall or unstable items, use straps or bungee cords to secure them to the handle frame.
• Push the truck using the handle. Avoid pulling heavy loads, as pushing offers better control and stability.
• Navigate carefully around obstacles and over thresholds.

Figure 5.3: The transport truck effectively moving heavy engine components and a toolbox, demonstrating its robust carrying capacity.

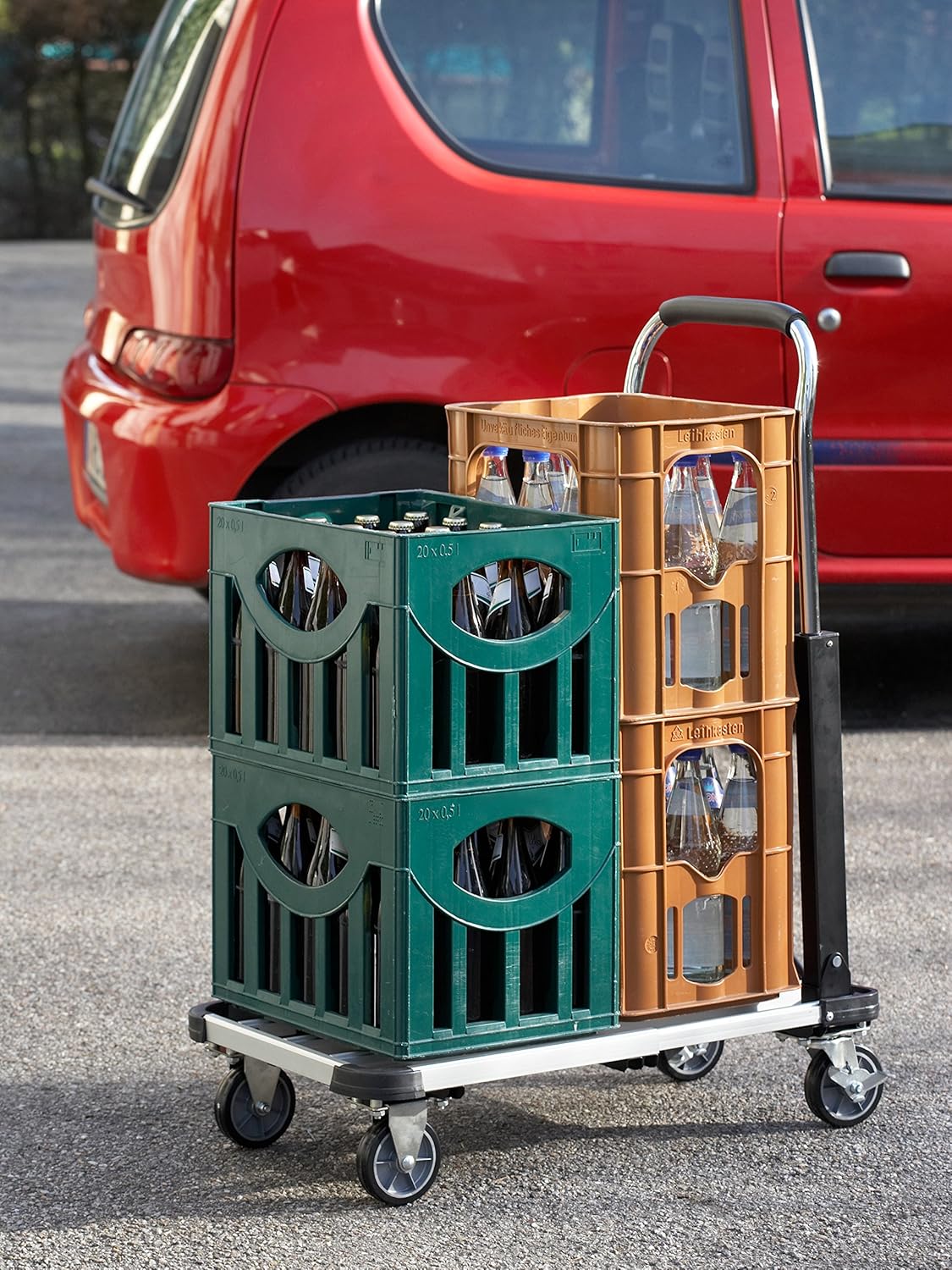

Figure 5.4: The transport truck loaded with several crates of bottles, showcasing its utility for bulk item transport.

Figure 5.5: The transport truck with stacked cardboard boxes, illustrating its suitability for moving various packaged goods.

6. Swen ak Antretyen

• Netwayaj: Wipe down the truck with a damp cloth after use. Avoid abrasive cleaners or solvents that could damage the finish.
• Lubrifikasyon: Periodically apply a small amount of lubricant to the castor axles and swivel mechanisms to ensure smooth operation.
• Tcheke Fastener: Regularly check all bolts, nuts, and screws for tightness. Retighten any loose fasteners to maintain structural integrity.
• Depo: Store the truck in a dry, clean place, preferably in its folded state to save space.

NAN. Depanaj

7.1 Wou yo pa woule byen

• Check for debris (e.g., hair, string) wrapped around the axles. Clean as necessary.
• Apply lubricant to the wheel bearings and swivel points.
• Ensure the wheel bolts are not overtightened, which can restrict movement.

7.2 Handle Difficult to Adjust or Lock

• Ensure the locking pins/levers are fully disengaged before attempting to adjust the handle.
• Check for any obstructions or bent components in the handle mechanism.
• Clean and lubricate the sliding parts of the handle.

7.3 Truck Wobbles During Use

• Verify that all wheel assembly bolts are securely tightened.
• Ensure the loading platform is fully extended and locked into place.
• Check for any bent or damaged frame components. If significant damage is present, discontinue use.

8. Espesifikasyon teknik

9. Garanti ak Sipò Kliyan

For warranty information or if you encounter any issues not covered in this manual, please contact Meister customer support. Refer to the product packaging or the official Meister websit la pou jwenn dènye enfòmasyon kontak yo ak kondisyon garanti a.

Tanpri konsève prèv acha ou a pou nenpòt reklamasyon garanti.
