Leon 48" Vanity Instruction Manual

1. Entwodiksyon

This manual provides detailed instructions for the VINNOVA Leon 48" Vanity. It covers essential information regarding its features, setup, operation, maintenance, and troubleshooting. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your vanity.

Karakteristik kle:

• Constructed of imported solid oak wood and plywood for superior durability and long-lasting beauty.
• Available in Fir Wood Brown finish, complementing various décor styles.
• One soft-closing door and six sturdy, soft-closing dovetail drawers offer ample space for toiletries.
• Adjustable wooden drawer inserts allow for organized storage.
• Brushed Gold or Matte Black hardware adds a touch of style and contrast.
• 3.9"-thick, Lightning White composite stone top with 45-degree chamfered water retaining edges.
• Bright white ceramic undermount sink with overflow.
• Single, circular, aluminum-framed mirror included (Mirror Option).
• Countertop has a pre-drilled, standard 1-3/8" faucet hole.
• Built-in UL-listed power and USB outlets for convenience.
• Includes a convenient hair dryer organizer.

2. Pwodwi konpozan

The Leon 48" Vanity comes fully assembled and includes the following main components:

• Leon 48" Vanity Cabinet (Fir Wood Brown)
• Lightning White Composite Top with Integrated Sink
• Circular Aluminum-Framed Mirror (if included with your specific model)
• Drawer Inserts

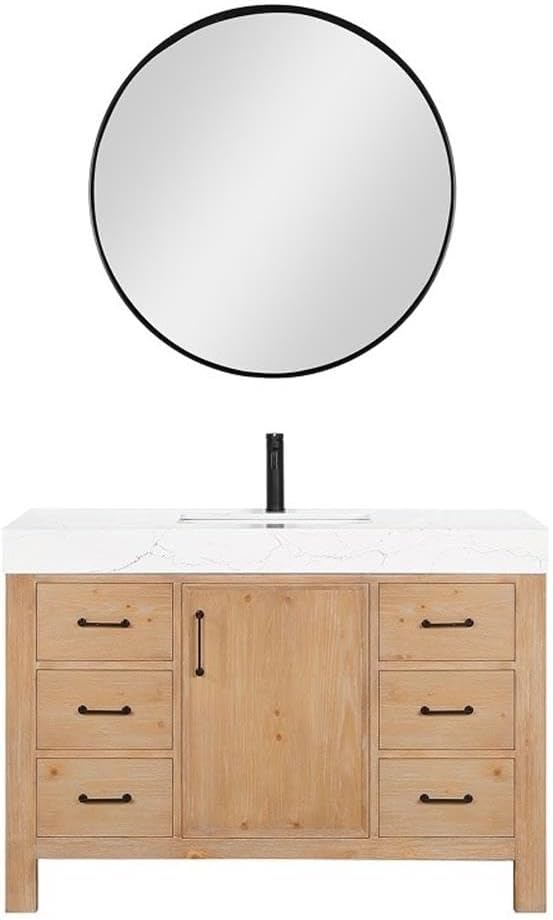

Imaj 2.1: Plis paseview of the Leon 48" Vanity with mirror.

3. Enstalasyon ak Enstalasyon

The Leon 48" Vanity is designed for freestanding installation and comes fully assembled, simplifying the setup process. While the main cabinet is pre-assembled, plumbing and faucet installation will be required.

3.1 Lis Verifikasyon Pre-Enstalasyon:

• Ensure adequate space in your bathroom for the 48" vanity (Product Dimensions: 1"D x 1"W x 1"H).
• Verify that existing plumbing lines (hot/cold water supply, drain) are correctly positioned for connection.
• Gather necessary tools for plumbing connections (e.g., wrenches, sealant tape).
• Note that faucet, drain assembly, backsplash, and P-trap are not included and must be purchased separately.

3.2 Plasman:

Position the freestanding vanity in your desired bathroom location. Ensure it is level and stable on the floor. The vanity is designed without a back panel for easy plumbing access.

3.3 Plumbing Connections:

1. Install your chosen faucet onto the pre-drilled 1-3/8" faucet hole on the composite top. Follow the faucet manufacturer's instructions.
2. Konekte tiyo dlo cho ak frèt yo nan wobinèt la.
3. Install the drain assembly into the sink.
4. Connect the P-trap and drain pipe to your home's drainage system. Ensure all connections are secure and watertight to prevent leaks.

Imaj 3.1: Anlè view of the vanity, highlighting the sink and faucet hole.

4. Operasyon

The Leon 48" Vanity is designed for daily use in a bathroom environment, providing functional storage and a durable countertop surface.

4.1 Drawer and Door Usage:

The vanity features one soft-closing door and six soft-closing dovetail drawers. These mechanisms ensure quiet and smooth operation, preventing slamming and extending the lifespan of the hardware.

• To open, gently pull the handles. The soft-closing feature will engage as you push them back, allowing them to close slowly and silently.
• Utilize the adjustable wooden drawer inserts to customize storage compartments for various toiletries and personal items.

Image 4.1: Vanity with door and drawers open, showcasinkapasite depo g.

Image 4.2: Detail of a drawer with adjustable wooden inserts for organization.

4.2 Power and USB Outlets:

The vanity includes built-in UL-listed power and USB outlets, providing convenient access to power for beauty and grooming appliances. A dedicated hair dryer organizer is also integrated for easy access.

• Plug in your devices directly into the integrated outlets.
• Ensure the vanity is properly connected to a power source for the outlets to function.

5. Antretyen ak Swen

Proper care and maintenance will preserve the beauty and functionality of your VINNOVA Leon Vanity for years to come.

5.1 Cleaning Wood Surfaces:

• Siye sifas bwa yo ak yon twal mou,amp twal.
• For deeper cleaning, use a mild, non-abrasive wood cleaner. Always test in an inconspicuous area first.
• Avoid harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the wood finish.
• Siye nenpòt debòdman imedyatman pou anpeche domaj dlo oswa tach.

5.2 Cleaning Composite Top and Sink:

• Clean the composite stone top and ceramic sink with a soft cloth and a mild, non-abrasive household cleaner.
• Rinse thoroughly with water and dry with a clean cloth to prevent water spots.
• Avoid using abrasive pads, harsh chemicals, or acidic cleaners (e.g., drain cleaners, rust removers) as they can damage the surface.

5.3 Mirror Care:

• Clean the mirror surface with a standard glass cleaner and a soft, lint-free cloth.
• Avoid spraying cleaner directly onto the mirror; instead, spray it onto the cloth first.

NAN. Depanaj

Seksyon sa a adrese pwoblèm komen ou ka rankontre ak meb twalèt ou a.

Issue: Drawers or door do not close smoothly or are sticking.

Kòz posib: Obstruction in the drawer glides or hinges, or uneven installation.
Solisyon: Check for any objects blocking the drawer glides. Ensure the vanity is level on the floor. If issues persist, inspect the soft-closing mechanisms for damage.

Issue: Water leaks from plumbing connections.

Kòz posib: Loose connections, worn seals, or improper installation of faucet/drain.
Solisyon: Turn off water supply. Check all plumbing connections (faucet, drain, P-trap) for tightness. Ensure all washers and seals are correctly seated. Apply plumber's tape if necessary. If unsure, consult a qualified plumber.

Issue: Integrated power/USB outlets are not working.

Kòz posib: Vanity not connected to power, tripped circuit breaker, or internal wiring issue.
Solisyon: Ensure the vanity's power cord (if applicable) is securely plugged into a working wall outlet. Check your home's circuit breaker panel to see if a breaker has tripped. If the issue persists, contact a qualified electrician or VINNOVA customer support.

7. Espesifikasyon

8. Garanti ak sipò

8.1 Manufacturer Warranty:

The VINNOVA Leon 48" Vanity is backed by a 1-ane garanti manifaktiGaranti sa a kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon ak sèvis nòmal. Tanpri konsève prèv acha ou pou reklamasyon garanti.

8.2 Sipò Kliyantèl:

For any questions, technical assistance, or warranty claims, please contact VINNOVA customer support. You can find more information and contact details by visiting the official VINNOVA store page:
