1. Entwodiksyon ak Enfòmasyon sou Sekirite
Thank you for choosing the Silvercrest SSMA 67 A Portable Smoothie Blender. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before first use and keep it for future reference.
Enstriksyon Sekirite Enpòtan
- Always ensure the blender cup is correctly assembled and securely locked onto the base before operation.
- Keep hands and utensils out of the blender cup while blending to prevent injury.
- Do not operate the blender without ingredients or with an empty cup.
- Avoid blending hot liquids, as pressure buildup can cause the cup to burst.
- Kenbe aparèy la pa rive jwenn timoun yo.
- Sèlman sèvi ak kab USB yo bay la pou chaje.
- Pa plonje baz motè a nan dlo oswa lòt likid.
- Unplug the blender from the power source when not in use, before cleaning, or if any malfunction occurs.
2. Pwodwi konpozan
Your Silvercrest SSMA 67 A Portable Smoothie Blender includes the following parts:
- Rechargeable Motor Base
- High-Quality Borosilicate Glass Cup (approx. 370 ml capacity, 300 ml usable volume)
- Stainless Steel Cross Blade Assembly
- Lid with Drinking Spout
- USB Charging Cable (approx. 60 cm)
Figi 2.1: Plis paseview nan tout konpozan ki enkli yo.

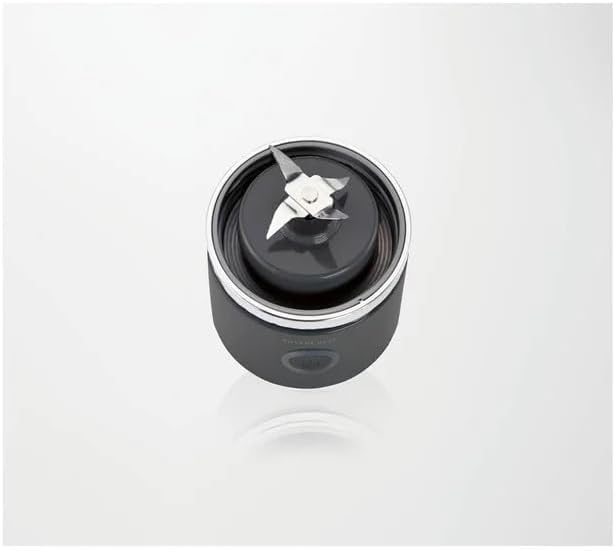

Figi 2.2: Detaye view of the stainless steel cross blade.
3. Enstalasyon ak Premye Itilizasyon
3.1 Debalaj ak Netwayaj Premyè
- Ak anpil atansyon retire tout eleman nan anbalaj la.
- Wash the borosilicate glass cup, blade assembly, and lid with warm soapy water. Rinse thoroughly and dry.
- Siye baz motè a ak anonsamp twal. Pa plonje baz motè a nan dlo.
3.2 Chaje batri a
Before first use, fully charge the blender's internal battery.
- Connect the USB charging cable to the charging port on the motor base.
- Branche lòt bout kab USB a nan yon adaptè kouran USB konpatib (pa enkli) oubyen nan yon pò USB òdinatè.
- The indicator light on the base will show the charging status. Refer to the indicator light section (if available in a physical manual) for specific details.
- Yon fwa li chaje nèt, dekonekte kab USB a.
4. Operasyon Enstriksyon
4.1 Preparasyon Engredyan yo
- Cut fruits and vegetables into small pieces (approximately 1-2 cm) to ensure optimal blending.
- Add liquids (water, milk, yogurt) first, then softer ingredients, and finally harder ingredients or ice.
- Do not exceed the maximum fill line marked on the glass cup (approx. 300 ml usable volume).
Figure 4.1: Preparing ingredients in the blender cup.
4.2 Assembling and Blending
- Place the blade assembly onto the open end of the glass cup and twist clockwise until securely tightened.
- Invert the cup so the blade assembly is at the bottom.
- Align the cup with the motor base and twist clockwise to lock it into place. The blender features a safety switch, ensuring operation only when the cup is correctly positioned.
- Press and hold the power button (pressure switch) to start blending. Release to stop. For optimal results, use short pulses.
- Blend until desired consistency is achieved.
Figure 4.2: Operating the blender to create a smoothie.
4.3 Enjoying Your Drink
- Once blending is complete, twist the cup counter-clockwise to unlock it from the motor base.
- Remove the blade assembly by twisting counter-clockwise.
- Attach the drinking lid to the cup. Your fresh drink is ready to enjoy on the go.
Figure 4.3: The blender cup with the drinking lid, ready for transport.
5. Netwayaj ak antretyen
Proper cleaning and maintenance will extend the life of your blender.
5.1 Cleaning the Cup and Blade
- The borosilicate glass cup is dishwasher safe.
- For manual cleaning, wash the cup, blade assembly, and lid with warm, soapy water immediately after use. Use a brush to clean around the blades carefully.
- Rinse all parts thoroughly and allow them to air dry.
5.2 Netwayaj Baz Motè a
- Siye baz motè a avèk yon mou, damp twal.
- Pa janm plonje baz motè a nan dlo oswa nan okenn lòt likid.
- Asire w ke baz motè a sèk nèt anvan ou sere l oswa anvan ou itilize l pwochen fwa a.
NAN. Depanaj
If you encounter any issues with your blender, refer to the following common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Blenndè a pa limen. | Cup not correctly assembled or locked. | Ensure the cup is securely twisted onto the motor base. |
| Batri a fèb oswa li vid. | Charge the blender using the USB cable. | |
| Engredyan yo pa melanje byen. | Too little liquid or ingredients are too large. | Add more liquid or cut ingredients into smaller pieces. |
| Twòp ranpli gode a. | Pa depase liy maksimòm ranpli a. | |
| Blenndè a sispann pandan l ap fonksyone. | Overheating or motor overload. | Turn off, unplug, and let cool for 15-20 minutes. Reduce ingredients or add more liquid. |
7. Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Mak | krivit |
| Modèl | SSMA 67 A |
| Pouvwa | Max. 67 W |
| Kapasite Cup | Apeprè. 370 ml |
| Volim ka itilize | Apeprè. 300 ml |
| Longè kab USB | Apeprè. 60 cm |
| Materyèl | Housing: ABS, Blades: SUS 304 Stainless Steel, Cup: Borosilicate Glass |
| Dimensions (Housing) | Approx. Ø 7.3 x 11.6 cm |
| Dimensions (Cup) | Approx. Ø 7 x 13.6 cm |
| Dimensions (Lid) | Approx. Ø 7 x 2.1 cm |
| Pwa (Lojman) | Apeprè. 324 g |
| Weight (Cup) | Apeprè. 200 g |
| Weight (Lid) | Apeprè. 23 g |
| Karakteristik espesyal | Rechargeable battery, Dishwasher-safe cup, Safety switch |
8. Garanti ak sipò
For warranty information, technical support, or replacement parts, please refer to the warranty card included with your product or visit the official crivit websit la. Kenbe prèv acha ou a pou nenpòt reklamasyon garanti.
9. Videyo pwodwi yo
No official product videos specifically for the Silvercrest SSMA 67 A model were found from the seller in the provided data. For general usage demonstrations of similar portable blenders, please refer to the manufacturer's website or other product resources.
