Toorx SRX EVOLVE Exercise Bike User Manual

1. Entwodiksyon

This manual provides essential information for the safe and effective use of your Toorx SRX EVOLVE exercise bike. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.

1.1 Enfòmasyon sou Sekirite

• Toujou konsilte ak yon doktè anvan ou kòmanse nenpòt pwogram egzèsis.
• Asire w ke tout boulon ak nwa yo byen sere anvan chak itilizasyon.
• Mete bisiklèt egzèsis la sou yon sifas plat epi ki estab.
• Kenbe timoun ak bèt kay lwen ekipman an pandan operasyon an.
• Mete rad ak soulye egzèsis ki apwopriye.
• Sispann fè egzèsis imedyatman si ou santi ou ap fèb, ou gen vètij, oswa ou gen doulè.
• The maximum user weight for this equipment is specified in the 'Specifications' section.

2. Pwodwi souview

The Toorx SRX EVOLVE is a high-performance exercise bike designed for indoor training, featuring a magnetic resistance system and electronic control for a smooth and customizable workout experience.

2.1 Karakteristik kle

• Belt drive with fixed gear for smooth operation.
• Magnetic braking system with electronic power control in 24 levels.
• Balanced 22 kg flywheel for consistent momentum.
• HRC (Heart Rate Control) functionality.
• Integrated wireless receiver and chest strap included.
• APP READY: iConsole+ (included), Kinomap (compatible), Zwift (compatible), BKOOL certified.
• Console with multi-color backlit LCD display and smartphone holder.
• Two-tone saddle with vertical and micrometric horizontal adjustment.
• Handlebar with vertical and micrometric horizontal adjustment.
• SPD quick-release pedals.

2.2 Eleman

Familiarize yourself with the main components of your Toorx SRX EVOLVE exercise bike:

3. Enstalasyon

3.1 Debake

1. Ak anpil atansyon retire tout eleman nan anbalaj la.
2. Check the contents against the parts list (refer to the separate assembly guide for a complete list).
3. Retire tout materyèl anbalaj epi jete yo yon fason responsab.

3.2 Asanble

Refer to the dedicated assembly manual provided with your Toorx SRX EVOLVE for detailed, step-by-step instructions. Ensure all connections are secure and stable before proceeding.

3.3 Ajisteman Inisyal yo

• Ajisteman Sel: Adjust the saddle vertically and horizontally to achieve a comfortable and ergonomically correct riding position. Your knee should have a slight bend at the bottom of the pedal stroke.
• Ajisteman gidon: Adjust the handlebars vertically and horizontally to a position that allows for a comfortable upper body posture without excessive strain.

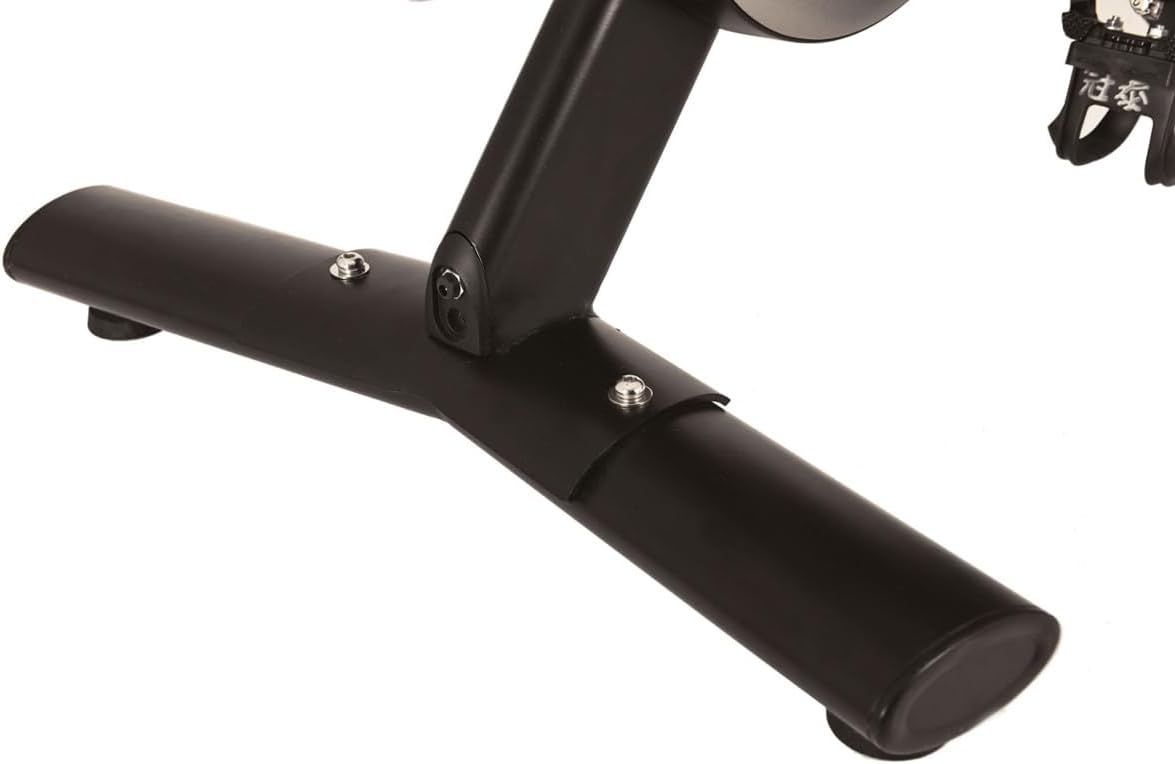

• Pye estabilizatè: If the bike wobbles, adjust the stabilizer feet located on the base until the bike is level and stable.

4. Operasyon Enstriksyon

4.1 Operasyon konsole

The multi-color backlit LCD console displays various workout metrics and allows for program selection and resistance adjustment.

• Limen/Etenyen: The console typically powers on automatically when you start pedaling or press any button. It will power off after a period of inactivity.
• Metrik ekspozisyon: The console shows data such as Speed, Distance, Time, Calories, RPM, and Resistance Level.
• Bouton:
  • LEVE / DESANN: Adjust resistance levels or navigate menu options.
  • Reyajiste: Clear current workout data or return to the main menu.
  • K STARTMANSE / SISPANN: Begin or end a workout program.
  • MOD: Toggle between display modes or confirm selections.
  • RECOVERY: Initiate the recovery heart rate test.

4.2 Ajisteman Rezistans

The Toorx SRX EVOLVE features an electronic magnetic resistance system with 24 levels. Use the UP and DOWN buttons on the console to increase or decrease the resistance during your workout. Higher numbers indicate greater resistance.

4.3 Heart Rate Control (HRC)

The bike includes an integrated wireless receiver and a chest strap for heart rate monitoring. To use HRC programs, wear the chest strap as instructed and select an HRC program from the console. The bike will automatically adjust resistance to keep your heart rate within a target zone.

4.4 APP READY Connectivity

Your Toorx SRX EVOLVE is APP READY, allowing connection to various fitness applications for enhanced training experiences:

• iConsole+: An included application that provides additional workout programs, data tracking, and virtual routes.
• Kinomap (compatible): Offers interactive video workouts and scenic routes.
• Zwift (compatible): A virtual cycling world for competitive and social training.
• BKOOL (certified): Provides realistic indoor cycling experiences.

Refer to the specific app instructions for pairing and usage details.

5. Antretyen

Antretyen regilye asire lonjevite ak pèfòmans optimal bisiklèt egzèsis ou a.

• Netwayaj: Siye bisiklèt la ak anonsamp Siye twal la apre chak itilizasyon pou retire swe ak pousyè. Evite pwodui netwayaj abrazif.
• Enspeksyon: Tcheke tout boulon, nwa, ak pati k ap deplase yo detanzantan pou wè si yo byen sere epi si yo mete. Sere nenpòt eleman ki lach.
• Lubrifikasyon: The belt drive system is generally low-maintenance. Consult the assembly manual for any specific lubrication requirements for other moving parts.
• Depo: Sere bisiklèt la nan yon kote ki sèk epi fre, lwen limyè solèy dirèk ak tanperati ekstrèm.

NAN. Depanaj

This section addresses common issues you might encounter with your Toorx SRX EVOLVE exercise bike.

7. Espesifikasyon

8. Garanti ak sipò

For warranty information, please refer to the warranty card included with your product or visit the official Toorx website. If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Toorx customer support through their official channels.
