Manyèl Enstriksyon

1. Entwodiksyon

Thank you for choosing SNIXWOO Running Boards. This manual provides essential information for the proper installation, operation, and maintenance of your new side steps. These heavy-duty running boards are designed to provide a secure and convenient step into your vehicle, enhancing both accessibility and appearance.

These running boards are specifically compatible with:

• 2023, 2024, 2025 Mercedes-Benz GLC 300
• 2024, 2025 Mercedes-Benz GLC Coupe

Figure 1: SNIXWOO Running Boards installed on a Mercedes-Benz GLC, with a view nan eleman endividyèl yo.

2. Enfòmasyon sou Sekirite

Please read and understand all safety warnings and instructions before installation and use. Failure to do so may result in injury or damage to the product or vehicle.

• Always ensure the running boards are securely fastened before use.
• Do not exceed the maximum weight capacity of 600 lbs per side.
• Keep hands and feet clear of moving parts during installation.
• Sèvi ak ekipman pwoteksyon pèsonèl (PPE) ki apwopriye pandan enstalasyon an.

3. Pake kontni

Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an. Si gen nenpòt pyès ki manke oswa ki domaje, tanpri kontakte sèvis kliyan.

• 2x Side Steps (Running Boards)
• Manyèl enstalasyon (dokiman sa a)
• All Necessary Mounting Hardware (brackets, bolts, washers, etc.)

4. Espesifikasyon

Figure 2: Confirmed vehicle compatibility for SNIXWOO Running Boards.

5. Enstalasyon ak Enstalasyon

The SNIXWOO Running Boards are designed for easy, no-drilling installation, utilizing original vehicle mounting points. While installation is straightforward, professional installation is highly recommended for optimal results and safety.

5.1 Anvan w kòmanse

• Park your vehicle on a flat, level surface.
• Angaje fren an pakin.
• Gather all necessary tools (e.g., wrenches, sockets).
• Inspect the vehicle's undercarriage for existing mounting points.

5.2 Etap enstalasyon yo

1. Idantifye pwen montaj yo: Locate the factory mounting holes on the vehicle's chassis beneath the rocker panels. These boards are designed for 1:1 original car mold opening.


Figi 3: Egzample of original hole mounting point.

2. Tache parantèz: Secure the provided iron brackets to the vehicle's frame using the supplied stainless steel bolts and washers. Ensure all bolts are hand-tightened initially. The system features 12 fixing mounting points on one side for robustness.

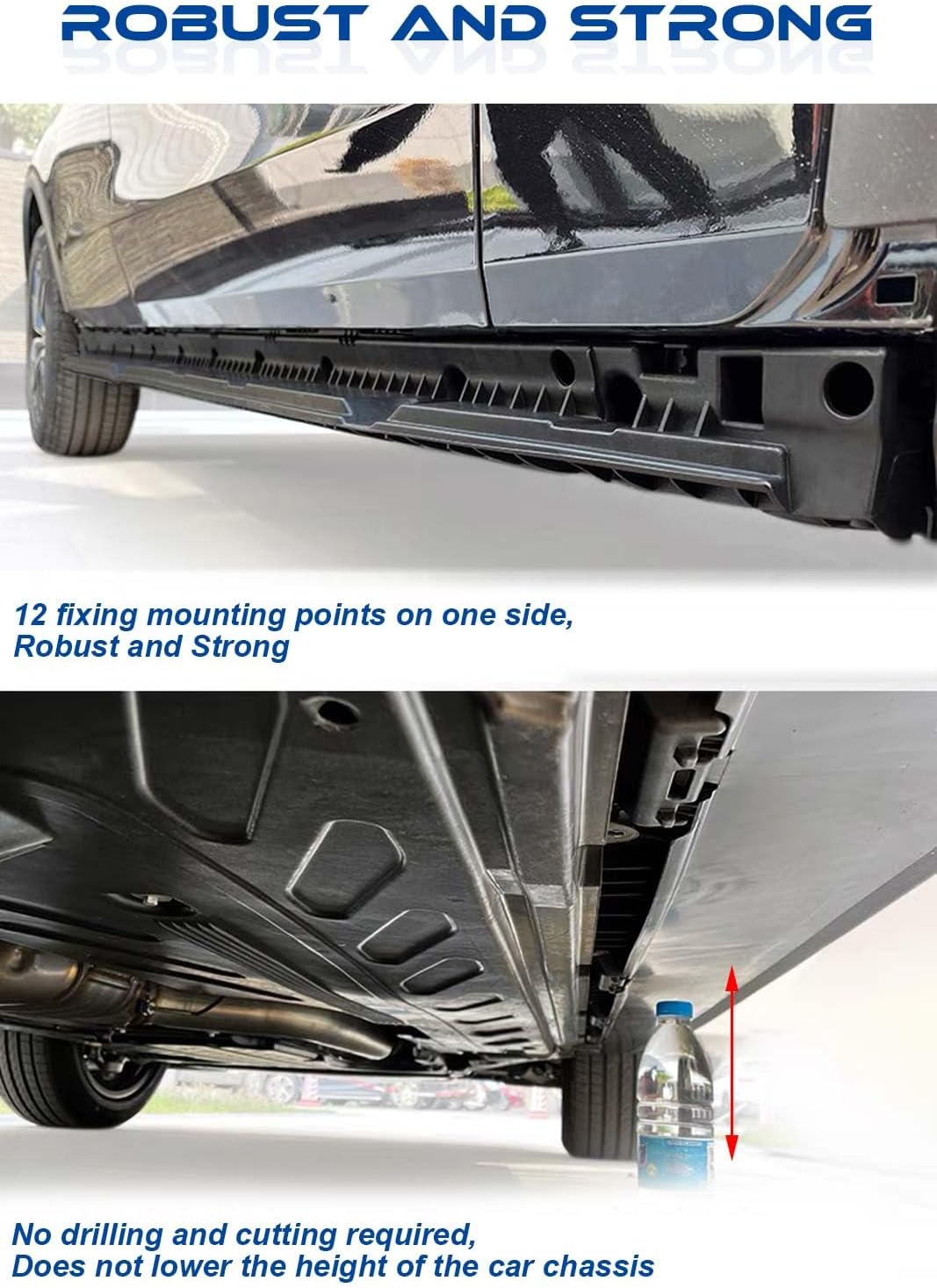

Figure 4: Undercarriage view illustrating the robust mounting system.

3. Planch pou monte: Carefully lift each running board and align it with the installed brackets. Attach the running boards to the brackets using the remaining hardware.
4. Ajiste epi sere boulon: Once both running boards are loosely attached, adjust their position to ensure proper alignment and clearance. Once satisfied with the positioning, fully tighten all bolts to the manufacturer's recommended torque specifications (if available, otherwise ensure they are very secure).
5. Tcheke final la: Double-check all connections to ensure they are tight and secure. Gently test the stability of the running boards before regular use.

Figure 5: Visual comparison of the vehicle before and after running board installation.

6. Operasyon ak Itilizasyon

The SNIXWOO Running Boards provide a stable and wide stepping area for easy entry and exit from your vehicle.

• Stepping Area: The 4-inch wide boards offer ample stepping area, designed to accommodate various foot sizes.
• Non-slip Surface: The nerf bars feature a non-slip surface engineered to maintain grip even in harsh weather conditions, ensuring secure footing.
• Kapasite pwa: Each side step is capable of supporting up to 600 lbs, providing robust support for users.

Figure 6: Illustration of the running board's heavy-duty 600 lbs capacity.

7. Antretyen

Regular maintenance will help prolong the life and appearance of your running boards.

• Netwayaj: Clean the running boards regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Enspeksyon: Periodically inspect all mounting hardware for tightness. Re-tighten any loose bolts to ensure continued safety and stability.
• Tcheke domaj: Check for any signs of damage, corrosion, or wear on the boards and brackets. Address any issues promptly.

NAN. Depanaj

If you encounter any issues during installation or use, refer to the following common solutions.

8.1 Installation Difficulties

If you find the installation challenging or encounter unexpected issues:

• Konsilte yon pwofesyonèl: Professional installation is highly recommended. If you are struggling, consider seeking assistance from a qualified automotive technician.
• Kontakte Vandè a: For a PDF or video installation manual, or if you require further guidance, please contact the seller directly.

8.2 Pyès ki domaje oswa ki manke

If parts are damaged during installation or found to be missing upon arrival:

• Kontakte Vandè a: Click or tap the seller's name on the product page to send a message, or go to "Your Orders" and choose "Get help" or "Get product support." The seller aims to respond with a solution within 24 hours.

9. Garanti ak sipò

For any product-related inquiries, technical support, or warranty claims, please contact SNIXWOO customer service through the platform where the product was purchased. Provide your order details and a clear description of the issue to facilitate a quick resolution.

SNIXWOO is committed to providing quality products and support. We recommend retaining your purchase receipt for warranty purposes.
