1. Entwodiksyon
Thank you for choosing the XTERRA Fitness Indoor Cycle Trainer Bike MB550. This manual provides essential information for the safe and effective use, assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before operating the bike and retain it for future reference.
Figure 1: XTERRA Fitness Indoor Cycle Trainer Bike MB550. This image shows the complete indoor cycle trainer bike from a side angle, highlighting its compact design and sturdy frame.
2. Enfòmasyon enpòtan sou sekirite
- Toujou konsilte ak yon doktè anvan ou kòmanse nenpòt pwogram egzèsis.
- Kenbe timoun ak bèt kay lwen ekipman an pandan w ap itilize.
- Asire w ke tout boulon ak nwa yo byen sere anvan chak itilizasyon.
- Place the bike on a level surface with adequate clearance around it.
- Mete rad ak soulye ki apwopriye pou fè egzèsis.
- If you experience dizziness, pain, or shortness of breath, stop exercising immediately.
- The maximum user weight for this product is 250 pounds.
- Pwodwi sa a fèt pou itilize andedan kay la sèlman.
3. Enstalasyon ak Asanble
The XTERRA Fitness MB550 Indoor Cycle Trainer Bike requires some assembly. Follow the instructions provided in the included hardware and owner's manual for detailed steps. Ensure all components are present before beginning assembly.
3.1 Debalaj ak Verifikasyon Konpozan
Carefully remove all components from the packaging. Verify that all parts listed in the owner's manual are present and undamaged. It is recommended to assemble the bike in the area where it will be used.
3.2 Asanble finiview
Assembly typically involves attaching the stabilizers, pedals, seat post, seat, handlebar post, handlebars, and the console. Use the provided tools and hardware, ensuring all connections are secure.

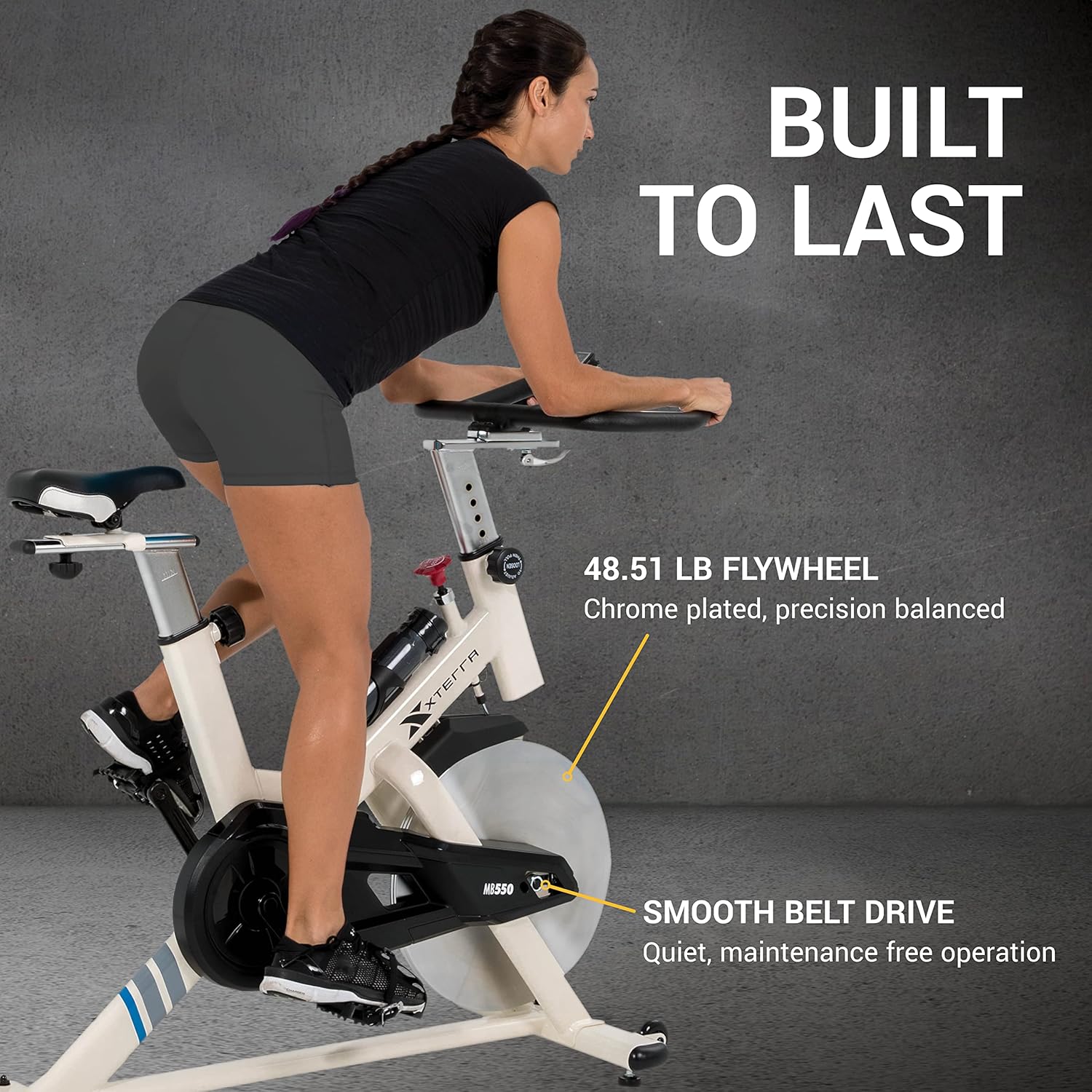

Figure 2: The 48.51 lb precision balanced flywheel and smooth belt drive system of the XTERRA Fitness MB550, designed for quiet and maintenance-free operation.
3.3 Transporting the Bike
The MB550 is equipped with large transport wheels for easy relocation. To move the bike, carefully tilt it forward onto the transport wheels and push it to your desired location. Ensure the area is clear of obstacles.
Figure 3: The XTERRA Fitness MB550 featuring built-in transport wheels for convenient movement and storage within any space.
4. Operasyon Enstriksyon
4.1 Ajisteman Syèj ak Gidon
For a comfortable and effective workout, adjust the seat and handlebars to fit your body. The seat is fully adjustable both horizontally (forward/back) and vertically (up/down). The multi-position handlebars are also adjustable for height and position, allowing for various riding styles.

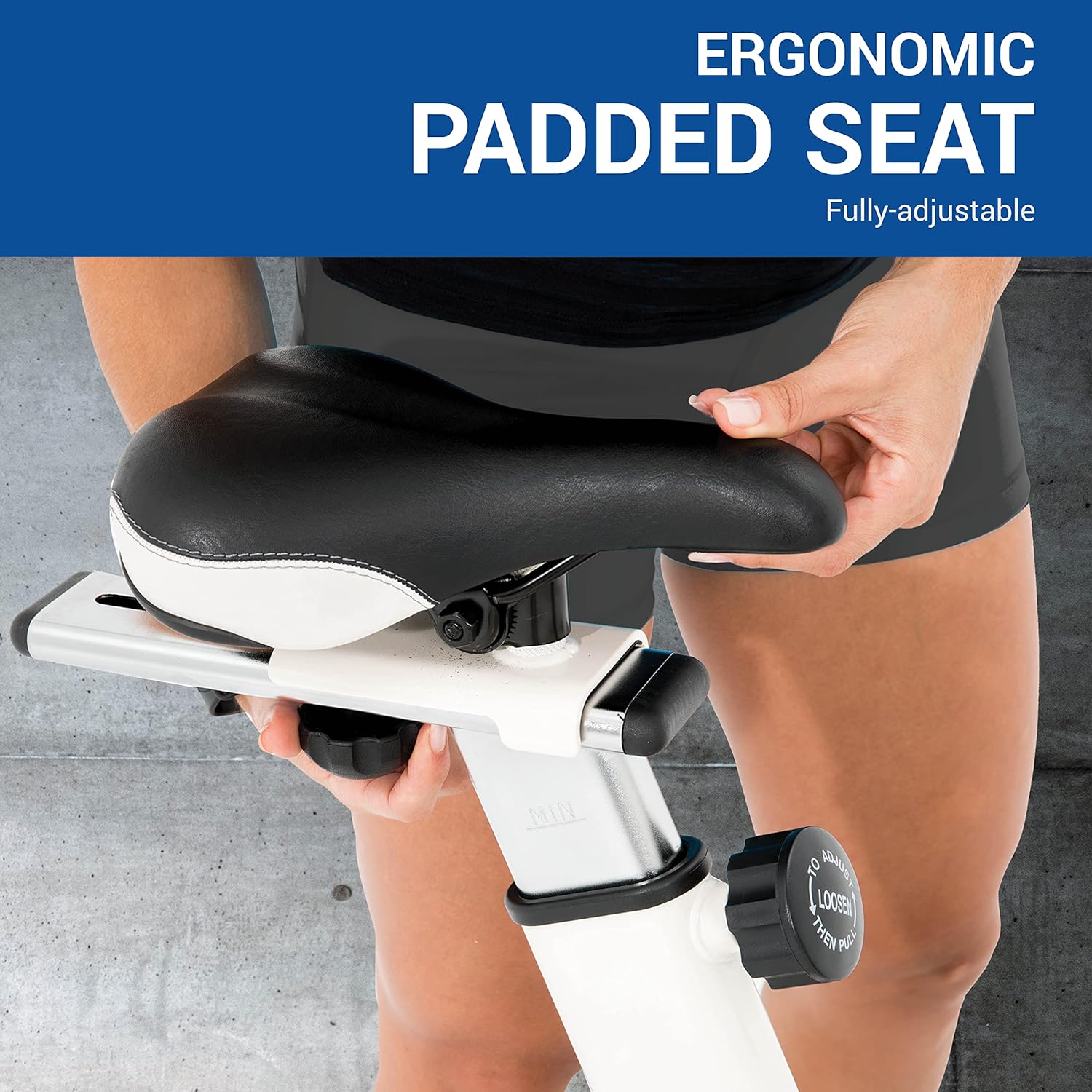

Figure 4: The fully adjustable ergonomic padded seat of the MB550, demonstrating how to adjust its position for optimal comfort.
Figure 5: The adjustable handlebars of the MB550, showing the mechanism for setting height and position to accommodate different riding postures.
4.2 Kontwòl Rezistans
The MB550 features a felt pad push brake resistance system with unlimited levels of micro-adjustments. Turn the knob located below the console clockwise to increase resistance and counter-clockwise to decrease it. To activate the emergency brake, press the knob down firmly.
Figure 6: Close-up of the dial knob resistance on the MB550, indicating its function for adjusting resistance and acting as an emergency stop.
4.3 Pedal Toe Cages
The pedals are equipped with toe cages to keep your feet securely locked in place during your workout, enhancing safety and efficiency.
Figure 7: Detail of the pedal toe cage on the MB550, designed to secure the user's foot during exercise.
4.4 LCD Console
The easy-to-read LCD screen displays essential workout data including Time, Speed, Distance, and Mode. This battery-operated console helps you track your progress. Refer to the console's specific instructions for detailed operation and mode selection.

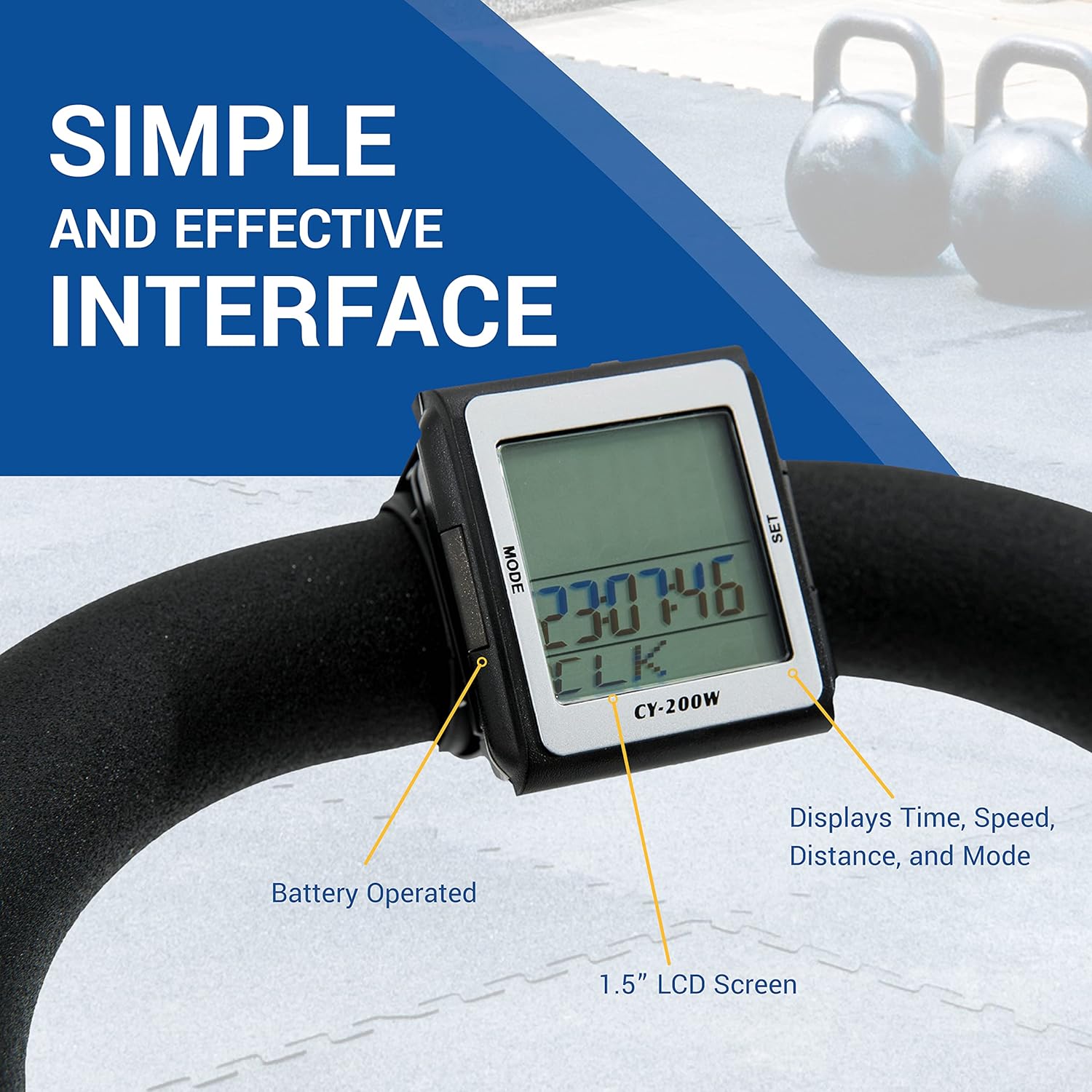

Figure 8: The simple and effective LCD interface of the MB550, showing its display of time, speed, distance, and mode, powered by battery.
5. Antretyen
Regular maintenance ensures the longevity and optimal performance of your XTERRA Fitness MB550 Indoor Cycle Trainer Bike.
- Netwayaj: Siye bisiklèt la apre chak itilizasyon avèk yon piblisite.amp twal pou retire swe ak pousyè. Evite pwodui netwayaj abrazif.
- Lubrifikasyon: The smooth belt drive system operates as a fixed gear and does not require oiling like a chain drive system. However, periodically check and lubricate the crank arms and pedal ball bearings as needed to prevent squeaking, as suggested by some users.
- Pad fren: The durable felt pad push brake supplies resistance from the top of the flywheel. Inspect the brake pad periodically for wear and replace if necessary to maintain effective resistance and braking.
- Tcheke Materyèl: Regularly inspect all nuts and bolts for tightness. Tighten any loose fasteners to ensure stability and safety.
NAN. Depanaj
This section addresses common issues you might encounter with your XTERRA Fitness MB550 Indoor Cycle Trainer Bike.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Squeaking or Noise during operation | Loose crank arms, dry bearings in pedals or crank, loose seat/handlebars. | Tighten crank arm nuts. Lubricate pedal ball bearings and main bearings if accessible. Ensure seat and handlebar posts are fully locked down. |
| LCD Monitor not displaying correctly or not working | Low battery, loose connection, faulty unit. | Replace the battery. Check connections to the console. If issues persist, contact customer support. |
| Seat swivels or creaks | Loose seat screws or adjustment mechanism. | Ensure all seat mounting screws and adjustment knobs are tightened securely. Avoid over-tightening to prevent stripping. |
7. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | XTERRA |
| Non modèl | XTERRA MB550 Indoor Cycle Trainer |
| Dimansyon pwodwi (LxWxH) | 45.7"D x 22.4"W x 38.6"H |
| Pwa atik | 107.1 liv |
| Rekòmandasyon pwa maksimòm | 250 liv |
| Pwa volan | 48.51 lb (precision balanced, chrome plated) |
| Mekanis rezistans | Felt pad push brake with unlimited micro-adjustments |
| Sistèm kondwi | Smooth Belt Drive |
| Ekspozisyon konsole | Wireless LCD (Time, Speed, Distance, Mode) |
| Ajistebilite | Fully adjustable padded seat (forward/back, up/down), multi-position handlebars (height/position) |
| Materyèl | Alloy Steel |
| Karakteristik espesyal | Adjustable Seat, Transport Wheels, 3-piece quality pedal crank |
Figure 9: Visual representation of the XTERRA Fitness MB550's key dimensions: 45.7" depth, 22.4" width, and 38.6" height.
8. Garanti & Sipò
Deskripsyon garanti: The XTERRA Fitness Indoor Cycle Trainer Bike MB550 comes with a 1-Year warranty for Parts & Labor, and a Lifetime warranty for the Frame.
For technical assistance, parts replacement, or any inquiries not covered in this manual, please contact XTERRA Fitness customer support. Refer to your purchase documentation or the official XTERRA Fitness websit la pou jwenn enfòmasyon kontak ki pi resan yo.
You can visit the official XTERRA Store for more information: XTERRA Fitness Store
