VILTROX DC-70 II 7-inch 4K HDMI Field Monitor User Manual

1. Entwodiksyon

The VILTROX DC-70 II is a 7-inch camera field monitor designed to enhance your filming experience. It features a 178° wide-view angle IPS panel with a 1024 x 600 HD resolution, 450cd/m² brightness, and a 1200:1 contrast ratio, providing clear and accurate visual feedback. Its ultra-thin 21.5mm design makes it portable for various shooting environments. Equipped with HDMI input/output, AV input, headphone jack, and a USB upgrade port, this monitor serves as an external display for transmitting real-time 4K video signals from mirrorless cameras, digital video cameras, and camcorders.

2. Pake kontni

Tanpri verifye ke tout atik yo prezan nan pakè ou a:

• VILTROX DC-70 II Camera Video Monitor x1
• VILTROX NP-F550 Battery x1
• Battery Charging Cable x1
• Sunshade Hood x1
• Hot Shoe Mount x1
• HDMI kab x2
• Sak twal x1

Image: The VILTROX DC-70 II monitor shown with all included accessories: two HDMI cables, a cloth bag, an NP-F550 battery, a battery charging cable, a sunshade hood, and a hot shoe mount.

3. Pwodwi souview

Familiarize yourself with the monitor's ports and controls:

Image: A detailed diagram illustrating the VILTROX DC-70 II monitor's front, back, and side views, with dimensions and labels for all ports and buttons.

• Pouvwa switch: Limen oswa etenn monitè a.
• Twou Vis 1/4: For mounting the monitor to various accessories.
• Entèfas USB: Pou amelyorasyon firmwèr.
• Menu Function Keys: For navigating and selecting menu options.
• HDMI Input Interface: Connects to camera for video input.
• HDMI Output Interface: For looping out video signal to another display.
• DC Power Interface: Konekte ak adaptè pouvwa AC.
• Kòn: Internal speaker for audio output.
• Battery Trough: Slot for NP-F series batteries.
• Bouton pou libere pil la: Releases the battery from the trough.
• Entèfas AV: Pou antre videyo analòg.
• Kas ekoutè Jack: Pou siveyans odyo.

4. Enstalasyon

4.1 Pwovizyon pou pouvwa

The DC-70 II monitor supports dual power supply modes:

• Pouvwa batri: Insert a compatible NP-F series battery (NP-F550, NP-F570, NP-F750, NP-F770, NP-F960, NP-F970) into the battery trough on the back of the monitor. The included NP-F550 battery can be charged using the provided charging cable.
• AC adaptè pouvwa: Connect the included AC power adapter to the DC Power Interface on the monitor and plug it into a wall outlet.

Image: The back of the VILTROX DC-70 II monitor with an NP-F series battery inserted, alongside an image of the AC power adapter and various battery charging methods (adapter, car, power bank, computer).

4.2 Enstalasyon Monitè a

Attach the monitor to your camera rig or hot shoe using the standard cold shoe adapter. The adapter allows for multi-directional adjustment for optimal viewing angles. The monitor is compatible with DSLRs, camcorders, and handheld stabilizers.

Image: The VILTROX DC-70 II monitor, with its detachable sunshade, mounted on top of a DSLR camera via a cold shoe adapter, ready for outdoor use.

4.3 Konekte ak yon Kamera

Use one of the provided HDMI cables to connect your camera's HDMI output to the HDMI Input Interface on the DC-70 II monitor. If your camera uses AV output, connect it to the AV Interface. The monitor can receive and display real-time 4K video signals.

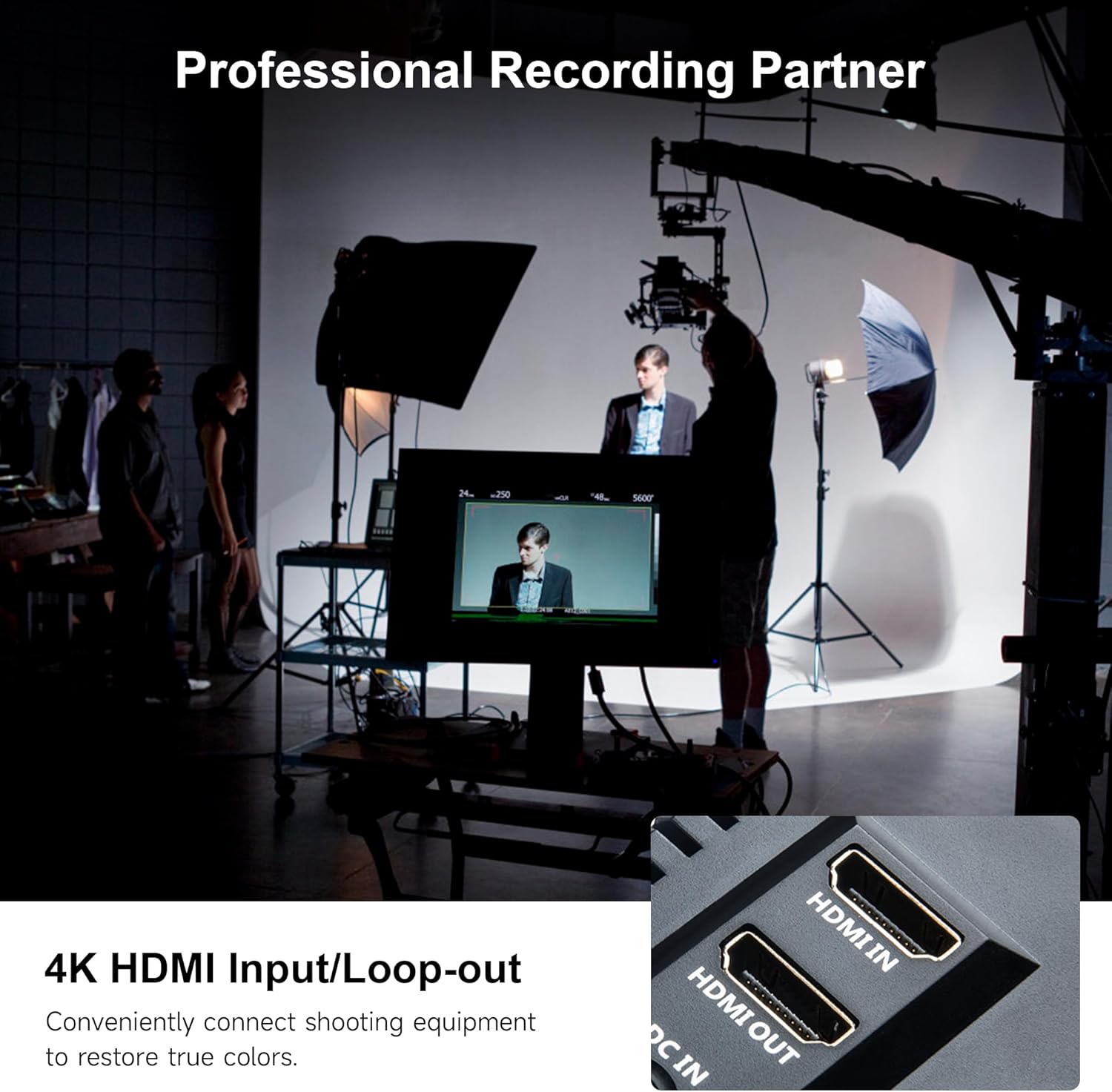

Imaj: Yon gwo plan view of the VILTROX DC-70 II monitor's side panel, clearly showing the HDMI IN and HDMI OUT ports, along with the DC IN port.

5. Operasyon Enstriksyon

5.1 Power On/Off

Press the Power Switch located on the side of the monitor to turn it on. Press and hold the Power Switch to turn it off.

5.2 Navigasyon meni

Use the Menu Function Keys to navigate through the monitor's settings. Typically, there are buttons for 'Menu', 'Up', 'Down', 'Left', 'Right', and 'Enter' or similar functions. Refer to the on-screen display for specific button assignments.

5.3 Monitoring Tools and Features

The DC-70 II includes several professional monitoring tools to assist with focus, exposure, and color accuracy:

• Asistans pou Konsantrasyon Maksimòm: Highlights in-focus areas to aid manual focusing.
• Koulè fo: Montre nivo ekspozisyon yo lè l sèvi avèk yon spectre koulè.
• Istogram: Graphical representation of tonal distribution in the image.
• Monokrom: Displays the image in black and white.
• Zooming Pixel: Magnifies a portion of the image for detailed inspection.
• Ankadreman ki an sekirite: Overlays guides for safe areas for broadcast or specific aspect ratios.
• Image Flip (H/V): Ranvèse imaj la orizontalman oswa vètikalman.
• Friz imaj: Pauses the live video feed.
• Tcheke jaden: Displays only red, green, or blue channels, or turns off all channels.
• Piksèl a piksèl: Montre imaj la nan rezolisyon natif natal li san li pa chanje echèl la.
• Anviwònman Tanperati Koulè: Adjusts the white balance of the display (e.g., 6500K, 7200K, 9300K).

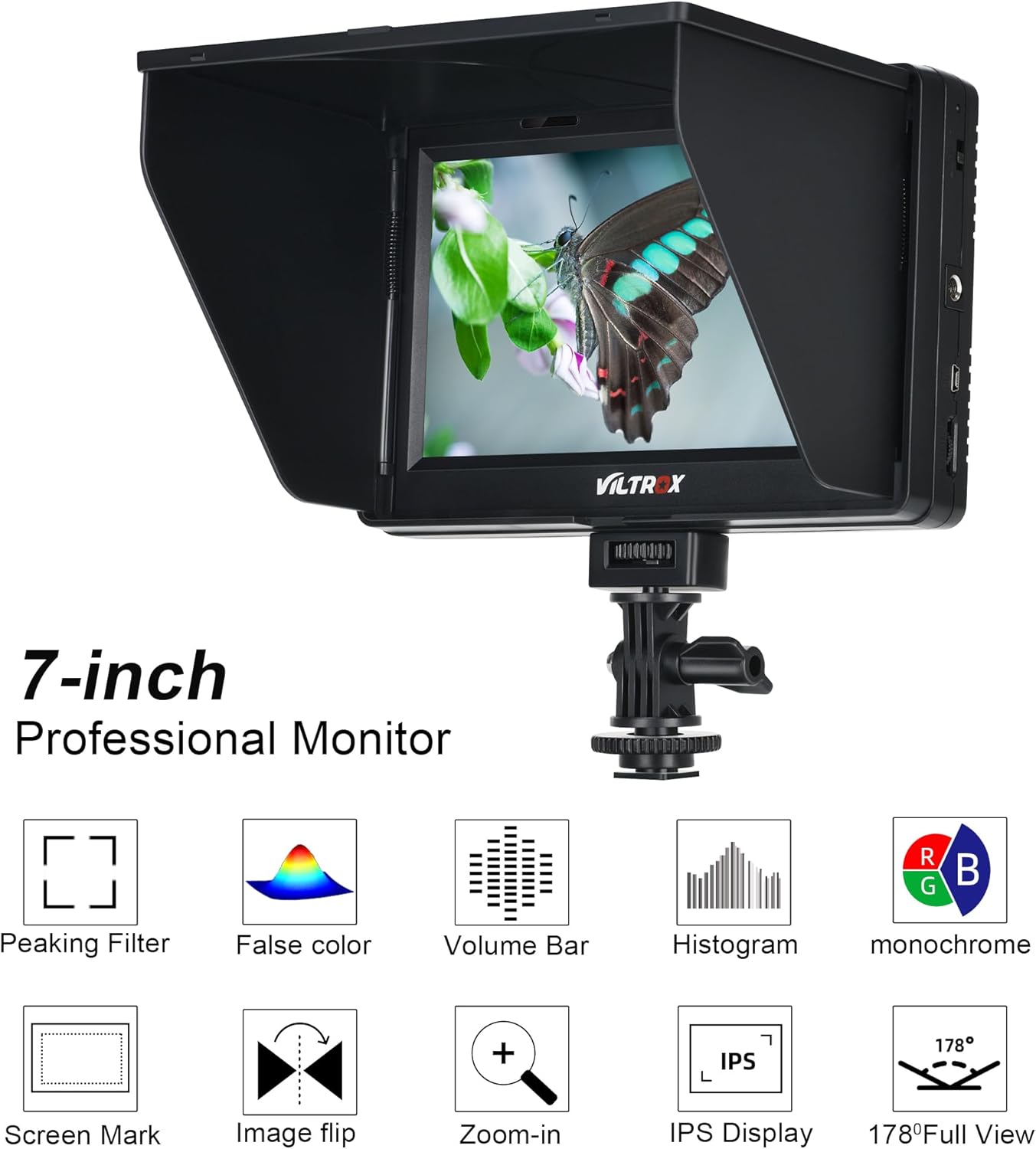

Image: The VILTROX DC-70 II monitor screen showing icons representing various professional monitoring features such as Peaking Filter, False Color, Volume Bar, Histogram, Monochrome, Screen Mark, Image Flip, Zoom-in, IPS Display, and 178° Full View.

Image: The VILTROX DC-70 II monitor displaying a scene with auxiliary monitoring tools, including icons for Peaking Color, False Color, Volume Bar, Brightness, Monochrome, Screen Mark, Flip-H, and Zoom.

Image: The VILTROX DC-70 II monitor illustrating color correction capabilities, showing a scene with different color temperature settings (6500K, 7200K, 9300K).

Image: Two VILTROX DC-70 II monitors side-by-side, one displaying a normal image and the other showing the same image with the False Color monitoring feature activated, highlighting exposure levels.

6. Antretyen

To ensure the longevity and optimal performance of your VILTROX DC-70 II monitor, follow these maintenance guidelines:

• Netwayaj: Use a soft, dry cloth to clean the monitor's exterior. For the screen, use a specialized screen cleaning solution and a microfiber cloth. Avoid abrasive materials or harsh chemicals.
• Depo: When not in use, store the monitor in the provided cloth bag or a protective case to prevent dust and scratches. Keep it in a cool, dry place away from direct sunlight and extreme temperatures.
• Swen batri: If using battery power, ensure batteries are charged regularly and stored properly. Remove batteries if the monitor will not be used for an extended period.
• Parasol: The detachable sunshade helps protect the screen and improve visibility in bright conditions. Attach it when needed and remove it for storage to prevent damage.

NAN. Depanaj

If you encounter issues with your VILTROX DC-70 II monitor, refer to the following common problems and solutions:

8. Espesifikasyon

9. Garanti ak sipò

For warranty information, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. For technical support or further assistance, please visit the official VILTROX websit oswa kontakte depatman sèvis kliyan yo.
