Manyèl Enstriksyon pou Twous Oratè Konpozan Alpine S2-S80C Next-Generation S-Series 8"

Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your Alpine S2-S80C Next-Generation S-Series 8" Component Speaker Set. Designed for high-fidelity audio reproduction, these speakers feature Hi-Res Audio certification and Alpine's exclusive High Amplitude Multi-Roll (HAMR) surround technology for enhanced bass response. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

Enfòmasyon enpòtan sou sekirite

Toujou obsève prekosyon sekirite sa yo pou evite blesi oswa domaj nan pwodwi a ak machin nan:

Enstalasyon pwofesyonèl rekòmande: Akòz konpleksite sistèm odyo machin yo, li rekòmande anpil pou enstalasyon pa yon pwofesyonèl.
Dekonekte batri: Anvan ou kòmanse nenpòt travay elektrik, dekonekte tèminal negatif batri machin nan pou evite kous kout.
Fil elektrik: Ensure all wiring is correctly connected and insulated to prevent electrical shorts and fire hazards. Use appropriate gauge wire.
Montaj: Monte tout konpozan yo byen fèm pou anpeche yo vin lach pandan machin nan ap fonksyone, sa ki ka lakòz blesi oswa domaj.
Nivo volim: Avoid operating your audio system at excessively high volume levels for prolonged periods, as this can cause hearing damage.
Vantilasyon: Asire bon vantilasyon toutotou amplifiers and other heat-generating components.

Kontni pake

Verifye ke tout atik yo prezan nan pakè a:

Alpine S2-S80C Component Speaker Set (includes 8" woofers, 1" tweeters, and in-line crossovers)
Mounting hardware (screws, clips, etc.)
Manyèl Enstriksyon (dokiman sa a)

Alpine S2-S80C Component Speaker Set showing two 8-inch woofers and two tweeters

Image: The complete Alpine S2-S80C component speaker set, featuring two 8-inch woofers and two separate tweeters.

Enstalasyon ak Enstalasyon

Proper installation is crucial for optimal sound quality and system longevity. If you are unsure about any step, consult a professional installer.

1. Planifikasyon enstalasyon an

Before beginning, plan the placement of your woofers and tweeters. Consider the vehicle's existing speaker locations and available space. The S2-S80C is designed for OEM fitment in many vehicles.

2. Enstalasyon Woofer

Prepare Kote pou Monte a: Carefully remove the existing speakers and any trim panels. Ensure the mounting surface is clean and free of obstructions.
Mount the Woofer: Place the 8-inch woofer into the designated opening. Use the provided mounting screws to secure it firmly. Do not overtighten.
Konekte fil elektrik: Konekte fil yo oratè soti nan ou amplifier or head unit to the woofer terminals, observing correct polarity (+ to + and - to -).

Side view of an Alpine S2-S80C 8-inch woofer

Imaj: Bò kote view of the 8-inch woofer, showing its cone and surround.

Angle view of an Alpine S2-S80C 8-inch woofer

Imaj: Angle view of the 8-inch woofer, highlighting the cone material.

Dèyè view of an Alpine S2-S80C 8-inch woofer showing the magnet and terminals

Imaj: Dèyè view of the 8-inch woofer, displaying the magnet structure and wiring terminals.

3. Enstalasyon Tweeter

The 1-inch tweeters feature threaded removable housing for flexible placement. Consider mounting them in locations that provide optimal sound staging, such as dashboard corners or A-pillars.

Chwazi Kote: Select a suitable, secure location for the tweeters.
Mount the Tweeter: Use the appropriate mounting method (flush mount, surface mount, etc.) for your chosen location. The threaded housing allows for various installation options.
Konekte fil elektrik: Connect the tweeter wires to the in-line crossovers, and then connect the crossovers to the amplifier/head unit, observing correct polarity.

Imaj: Bò kote view of a single tweeter, showing its compact design.

Imaj: Angle view of a single tweeter, highlighting its grille pattern.

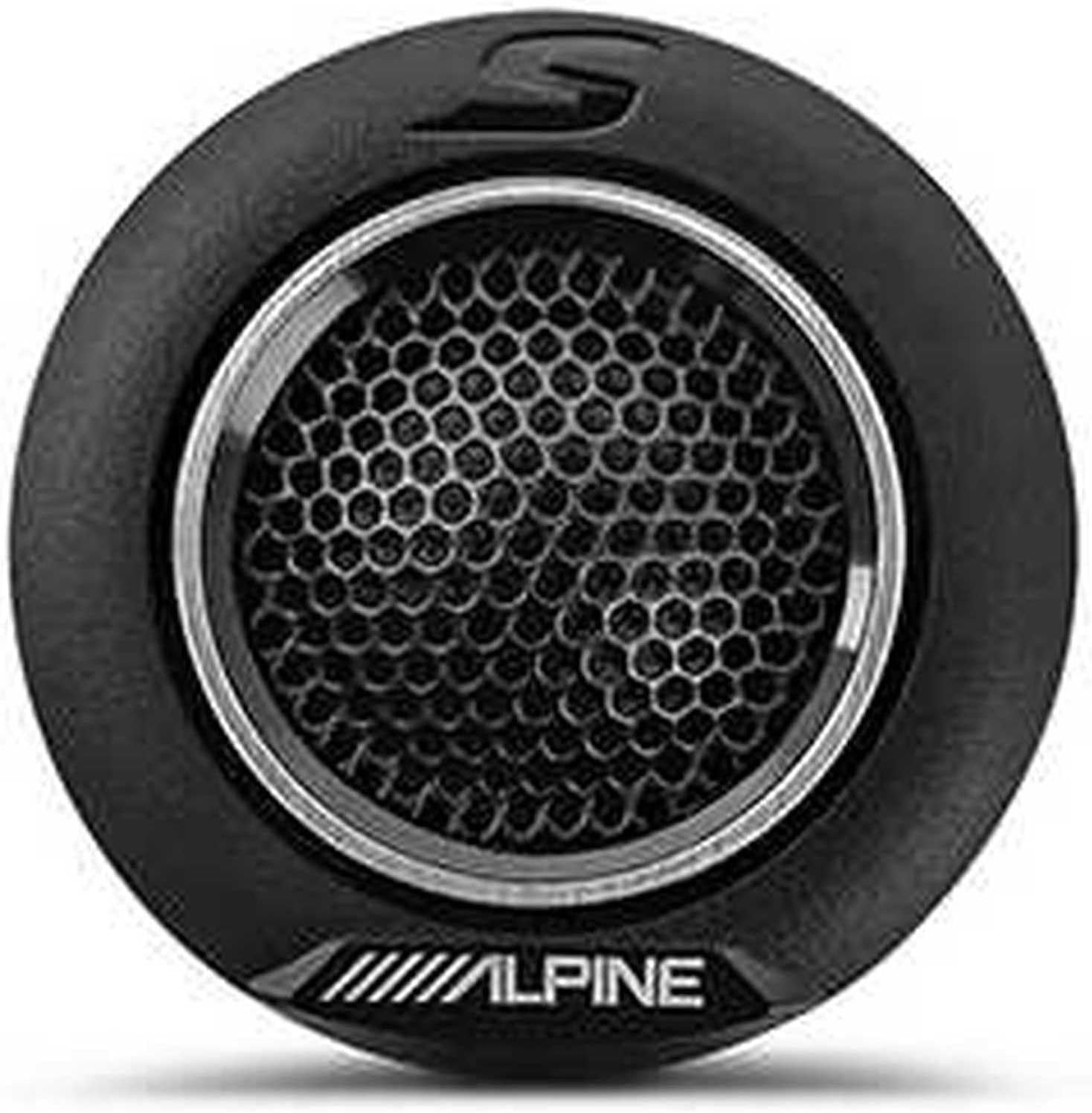

Imaj: Anlè view of a single tweeter, showing the Alpine logo and protective grille.

4. Crossover Integration

The S2-S80C includes in-line crossovers. These are essential for directing the correct frequency ranges to the woofers and tweeters, ensuring optimal sound separation and protection for the speakers. Install them in a secure, dry location, typically near the speakers or amplifier.

Enstriksyon Operasyon

Once installed, your Alpine S2-S80C component speakers are ready for use. Follow these guidelines for optimal audio experience:

Premye pouvwa-up: After installation, turn on your vehicle's audio system at a low volume. Gradually increase the volume to check for proper operation and sound quality.
Sous odyo: Utilize high-quality audio sources (e.g., Hi-Res Audio files, high-bitrate streaming) to fully appreciate the capabilities of these speakers.
Akor sistèm: Adjust your head unit's or amplifier's equalizer and sound settings to fine-tune the audio to your personal preference.
Repons Bas: Segondè a Amplitude Multi-Roll (HAMR) surround technology provides enhanced bass. Experiment with subwoofer levels (if applicable) and bass boost settings for desired low-frequency impact.
Ajisteman tweeter: If your tweeters allow for angle adjustment, experiment with different orientations to optimize sound staging and imaging within your vehicle's cabin.

Antretyen

Your Alpine S2-S80C speakers are designed for durability and require minimal maintenance. Follow these simple steps to keep them in optimal condition:

Netwayaj: Gently wipe the speaker grilles and surrounds with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the materials.
Enspeksyon: Periodically inspect the speaker cones and surrounds for any signs of damage or wear. Ensure all mounting screws remain tight.
Faktè anviwònman: While designed for automotive use, avoid exposing the speakers to extreme moisture or direct sunlight for prolonged periods, as this can degrade performance and lifespan.

Depanaj

If you encounter issues with your Alpine S2-S80C speaker set, refer to the following common problems and solutions:

Pwoblèm	Kòz posib	Solisyon
Pa gen son ki soti nan moun kap pale	Fil elektrik ki lach oswa kòrèk Amplifier/head unit off or faulty Kònen fuse	Check all speaker and power connections. Verifye amplifier/head unit power and settings. Enspekte epi ranplase nenpòt fizib ki boule.
Son defòme oswa ki pa klè	Anrejistreman gen ki pa kòrèk sou amplifier Sous odyo bon jan kalite pòv Monte oratè ki lach Kòn/antouraj oratè domaje	Ajiste amplifier gain settings to match head unit output. Use higher quality audio files. Asire w ke oratè yo byen monte. Enspekte oratè yo pou wè si gen domaj fizik.
Yon oratè pa travay	Loose connection to that speaker Faulty speaker or crossover	Check wiring for the affected speaker. Swap speakers or crossovers (if possible) to isolate the faulty component.

If the problem persists after attempting these solutions, contact Alpine customer support or a qualified car audio technician.

Espesifikasyon

Key technical specifications for the Alpine S2-S80C Component Speaker Set:

Non modèl: S2-S80C
Kalite oratè: Eleman
Woofer Dyamèt: 8 Inches (210 Millimeters)
Gwosè tweeter: 1 pous
Oratè maksimòm pwodiksyon pouvwa: 170 Watts
Repons frekans: 50 Hz (up to 40kHz for Hi-Res Audio)
Koneksyon Teknoloji: Coaxial (internal wiring), Wired (system connection)
Audio Sòti Mode: Stereo
Karakteristik espesyal: Hi-Res Audio Certified, High Amplitude Multi-Roll (HAMR) Surround
Kalite montaj: Flush Mount (tweeter)
Dimansyon pwodwi: 6.3"D x 9.8"W x 20.7"H (overall package/product dimensions)
Pwa atik: 8.63 liv
Eleman ki enkli: S2-S80C (woofers, tweeters, in-line crossovers)
Manifakti: Alpine

Enfòmasyon sou Garanti

The Alpine S2-S80C Component Speaker Set comes with a Garanti limite. For specific details regarding warranty coverage, duration, and claims process, please refer to the warranty card included with your product or visit the official Alpine websit la. Kenbe prèv acha ou a pou validasyon garanti a.

Sipò pou Kliyan

For further assistance, technical support, or inquiries regarding your Alpine S2-S80C speakers, please contact Alpine customer service. You can find contact information on the official Alpine websit la oubyen atravè dokiman ki vini ak pwodwi w la.

Ofisyèl Alpin Websit: www.alpine-usa.com
