VEVOR BF163-2 Dual Tap Digital Kegerator Instruction Manual

1. Pwodwi souview

The VEVOR BF163-2 Dual Tap Digital Kegerator is designed to keep your draft beverages perfectly chilled and ready for dispensing. This unit features a fan cooling system for efficient temperature regulation and an auto-defrosting function for consistent performance. It includes an extended beer hose to ensure optimal foam and flavor. The kegerator offers versatile storage, accommodating various keg sizes and can also function as a standard refrigerator with the included shelves.

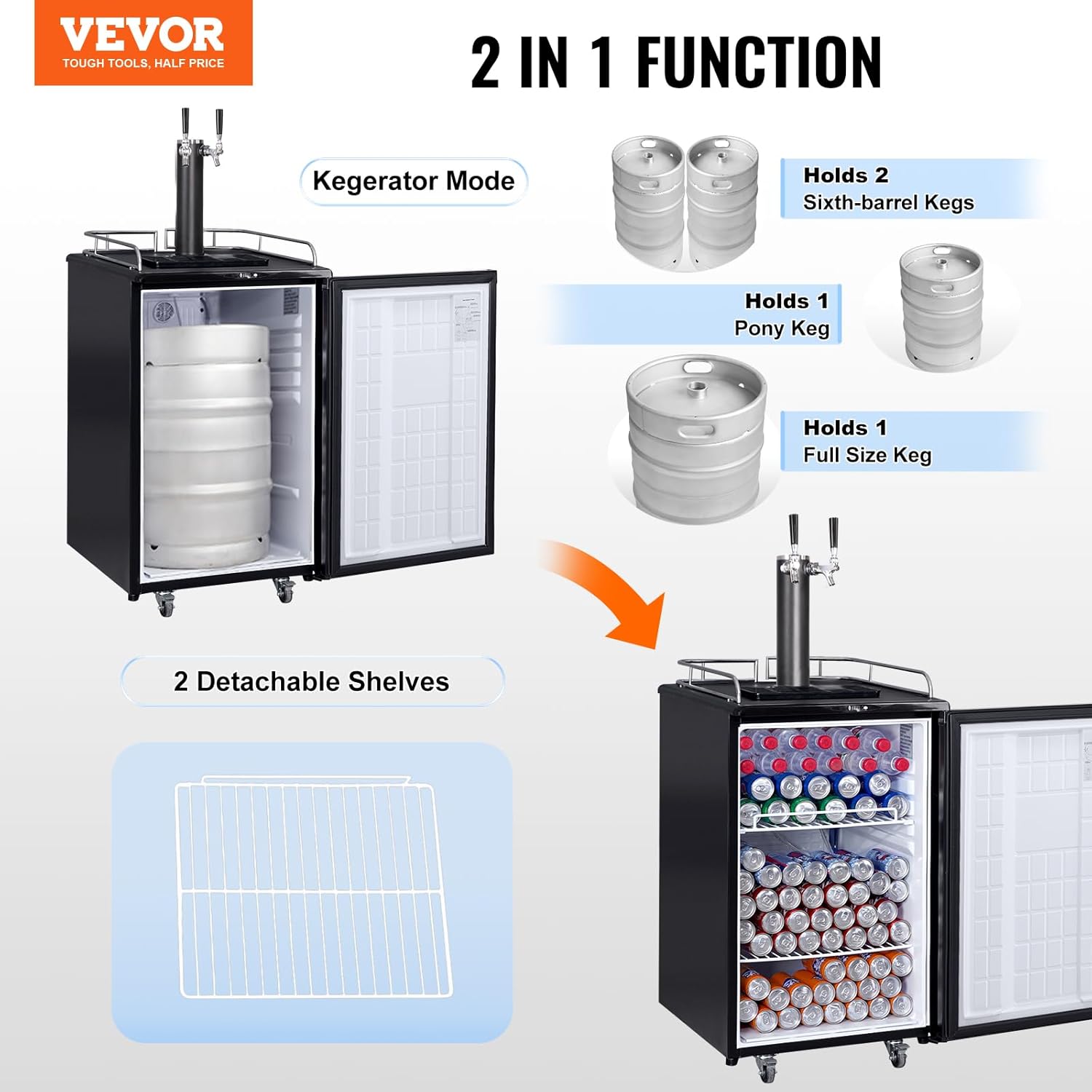

Figure 1: Kegerator demonstrating its 2-in-1 functionality, capable of holding multiple kegs or converting to a beverage refrigerator with shelves.

Figure 2: Digital control panel highlighting powerful cooling features including auto defrost, temperature memory, low noise operation, and energy saving.

2. Enstriksyon Sekirite

• Li tout enstriksyon yo anvan ou sèvi ak aparèy la.
• Ensure the kegerator is placed on a stable, level surface.
• Do not obstruct ventilation openings in the appliance enclosure or in the built-in structure.
• Pa sèvi ak aparèy mekanik oswa lòt mwayen pou akselere pwosesis dekonjle a, lòt pase sa yo rekòmande pa manifakti a.
• Pa domaje kous febrifuj la.
• Pa sèvi ak aparèy elektrik andedan konpatiman depo manje nan aparèy la, sof si yo se nan kalite manifakti a rekòmande.
• Toujou dekonekte aparèy la nan kouran an anvan ou netwaye li oswa fè antretyen.
• Keep children away from packaging materials to prevent suffocation.
• Handle CO2 tanks with care. Ensure proper ventilation when connecting or disconnecting the CO2 tank.

3. Ki sa ki nan bwat la

Your VEVOR BF163-2 Kegerator package includes the following components:

• 1 x Beer Kegerator Unit
• 2 x Shelves (for refrigerator mode)
• 1 x CO₂ Tank Regulator
• 1 x 5 lbs CO₂ Tank (empty)
• 1 x kle
• 1 x Dual Tap Beer Tower with Faucets
• Beer Lines and Gas Lines
• D-System Couplers
• Plato degoute
• Stainless Steel Guard Rail
• 4 x Casters (wheels)
• Kawoutchou Clamps and Gaskets

Figure 3: All included accessories for the VEVOR Kegerator, ready for assembly.

4. Enstriksyon Enstalasyon

4.1 Debalaj ak plasman

1. Retire tout materyèl anbalaj yo avèk prekosyon.
2. Place the kegerator on a flat, stable surface. Ensure there is adequate ventilation around the unit (at least 4 inches from walls).
3. Attach the four casters (wheels) to the bottom of the unit for easy mobility. Lock the front two wheels to secure the unit in place.
4. Kite aparèy la kanpe dwat pou omwen 24 èdtan anvan ou branche li pou pèmèt frijidè a depoze.

4.2 Attaching the Beer Tower

1. Locate the pre-drilled hole on the top surface of the kegerator.
2. Feed the beer lines and gas lines from the dual tap beer tower through this hole.
3. Secure the beer tower to the top of the unit using the provided hardware.
4. Place the drip tray below the faucets on the top surface.
5. Install the stainless steel guard rail around the top edge of the kegerator.

Figure 4: The premium stainless steel tap tower with extended beer lines for optimal dispensing.

4.3 Connecting CO2 Tank and Regulator

1. Have your 5 lbs CO₂ tank filled at a local supplier.
2. Attach the CO₂ tank regulator to the filled CO₂ tank, ensuring a tight seal with the provided gaskets.
3. Mount the CO₂ tank to the external bracket provided, which attaches to the back of the kegerator.
4. Connect the gas lines from the beer tower to the CO₂ regulator using the hose clamps.

4.4 Loading Kegs and Connecting Couplers

1. Open the kegerator door.
2. Place your desired kegs (up to two sixth-barrel or one full-size D-system keg) inside the unit.
3. Attach the D-system couplers to the kegs.
4. Connect the beer lines from the beer tower to the liquid out posts on the couplers.
5. Connect the gas lines from the CO₂ regulator to the gas in posts on the couplers. Ensure all connections are secure with hose clamps pou anpeche fuites.

5. Operasyon Enstriksyon

5.1 Kontwòl Tanperati

1. Plug in the kegerator. The digital display on the front will show the current internal temperature.
2. Use the digital temperature control panel to adjust the internal temperature between 32°F and 75.2°F (0°C and 24°C).
3. For optimal beer temperature, set the unit between 34°F and 38°F.
4. Nan ka yon pouvwa outage, the unit will automatically restore the last set temperature once power is restored.

5.2 Dispensing Beer

1. Ensure the CO₂ tank valve is open and the regulator is set to the appropriate pressure (typically 10-12 PSI for most beers).
2. Place a glass under one of the faucets.
3. Pull the faucet handle forward to dispense beer. Push it back to stop the flow.
4. Adjust CO₂ pressure as needed to achieve desired carbonation and minimize foam.

5.3 Using as a Refrigerator

1. If not using kegs, disconnect and remove all beer lines, gas lines, and couplers.
2. Remove the beer tower from the top surface and cover the hole if desired.
3. Insert the two provided shelves into the internal slots to convert the unit into a standard beverage refrigerator.

6. Antretyen

6.1 Cleaning Beer Lines and Couplers

Regular cleaning of beer lines and couplers is crucial for maintaining beer quality and preventing bacterial growth. Use a specialized beer line cleaning solution and follow the manufacturer's instructions for the cleaning kit.

1. Disconnect the kegs and remove the couplers.
2. Connect the beer lines to a cleaning kit.
3. Pump cleaning solution through the lines until they are thoroughly flushed.
4. Rinse with clean water until all cleaning solution is removed.
5. Clean couplers and faucets separately with warm, soapy water and a brush.

6.2 Cleaning Drip Tray and Exterior

1. Remove the drip tray from the top surface and empty any spills.
2. Wash the drip tray with warm, soapy water and rinse thoroughly.
3. Wipe down the exterior of the kegerator with a soft cloth and mild detergent. Avoid abrasive cleaners.
4. The stainless steel guard rail can be removed for easier cleaning of the top surface.

NAN. Depanaj

8. Espesifikasyon

• Non mak: VEVOR
• Enfòmasyon sou modèl: BF163-2
• Pwa atik: 116.6 liv
• Dimansyon pwodwi: 24.3 x 21.7 x 35.9 pous
• Kapasite: 43 galon (163 lit)
• Koulè: Ajan
• Voltage: 115 Vòlt (AC)
• Ranje Tanperati Reglabl: 32 ° F a 75.2 ° F (0 ° C a 24 ° C)
• Eleman ki enkli: 1 x 5 lbs CO₂ Tank (empty), 1 x Beer Kegerator, 1 x CO₂ Tank Regulator, 1 x Wrench, 2 x Shelves

Figure 5: Detailed dimensions and technical specifications of the VEVOR Kegerator.

9. Garanti ak sipò

This VEVOR Kegerator comes with a manufacturer's warranty. For specific warranty details, registration, or technical support, please refer to the warranty card included in your package or visit the official VEVOR websit. Kenbe resi acha ou pou reklamasyon garanti.

For additional assistance, you may contact VEVOR customer service through their official channels.
