TAXNELE THC30A Digital Programmable Timer Switch User Manual

1. Entwodiksyon

The TAXNELE THC30A is a digital electronic timer switch designed for automated control of various electrical equipment. It features daily and weekly programming capabilities, allowing for up to 20 ON/OFF settings. This device is suitable for DIN rail mounting and includes a 3V Lithium battery for power reserve, ensuring time and program data are maintained during power interruptions.

2. Pwodwi Features

• Programmable Control: Up to 20 ON/OFF settings per day or week.
• Manyèl Override: Allows for temporary manual control (ON/AUTO/OFF).
• Memwa Power-Off: Built-in 3V Lithium battery (CR2032) maintains timing, display, and program data for up to 3 years during power outages.
• Segondè Precision: Industrial-grade chip for accurate timing.
• Ekspozisyon LCD: Clear digital display for easy programming and monitoring.
• Mòn sou ray DIN: Ki fèt pou enstalasyon fasil sou ray DIN estanda.
• Aplikasyon lajè: Suitable for street lights, neon lamps, advertising signs, production equipment, broadcast devices, and other power control applications.

Imaj 2.1: The THC30A timer features a power-off memory function, supported by an internal CR2032 lithium battery, which retains settings and time for extended periods without external power.

3. Enfòmasyon sou Sekirite

Tanpri li epi konprann tout enstriksyon sekirite yo anvan enstalasyon ak itilizasyon. Si ou pa swiv enstriksyon sa yo, ou ka pran chòk elektrik, pran dife oswa pran gwo blesi.

• Always disconnect power at the circuit breaker or fuse box before installing or servicing the timer switch.
• Installation should be performed by a qualified electrician or knowledgeable individual.
• Asire voltage and current ratings of the timer match your application requirements.
• Do not exceed the maximum load capacity of 30A or 5000W.
• Pa itilize nan mouye oswa damp environments unless specifically rated for such conditions.
• Kenbe timoun yo lwen aparèy elektrik yo.

4. Enstalasyon

4.1 Dyagram fil elektrik

The THC30A timer is designed for easy wiring. Connect the input power (Live 'L' and Neutral 'N') to the 'IN' terminals and the load (e.g., light, appliance) to the 'OUT' terminals. Ensure correct polarity.

Imaj 4.1: Simplified wiring diagram for the THC30A timer, illustrating connections for input power (IN) and output to the load (OUT).

4.2 Initial Power-up and Reset

Upon initial power-up or after a prolonged power outage, the LCD display may be blank. The internal battery will charge, and the display should activate. If the display is erratic or unresponsive, press the RESET button using a pointed object (e.g., a pen tip) to clear all settings and restore default values.

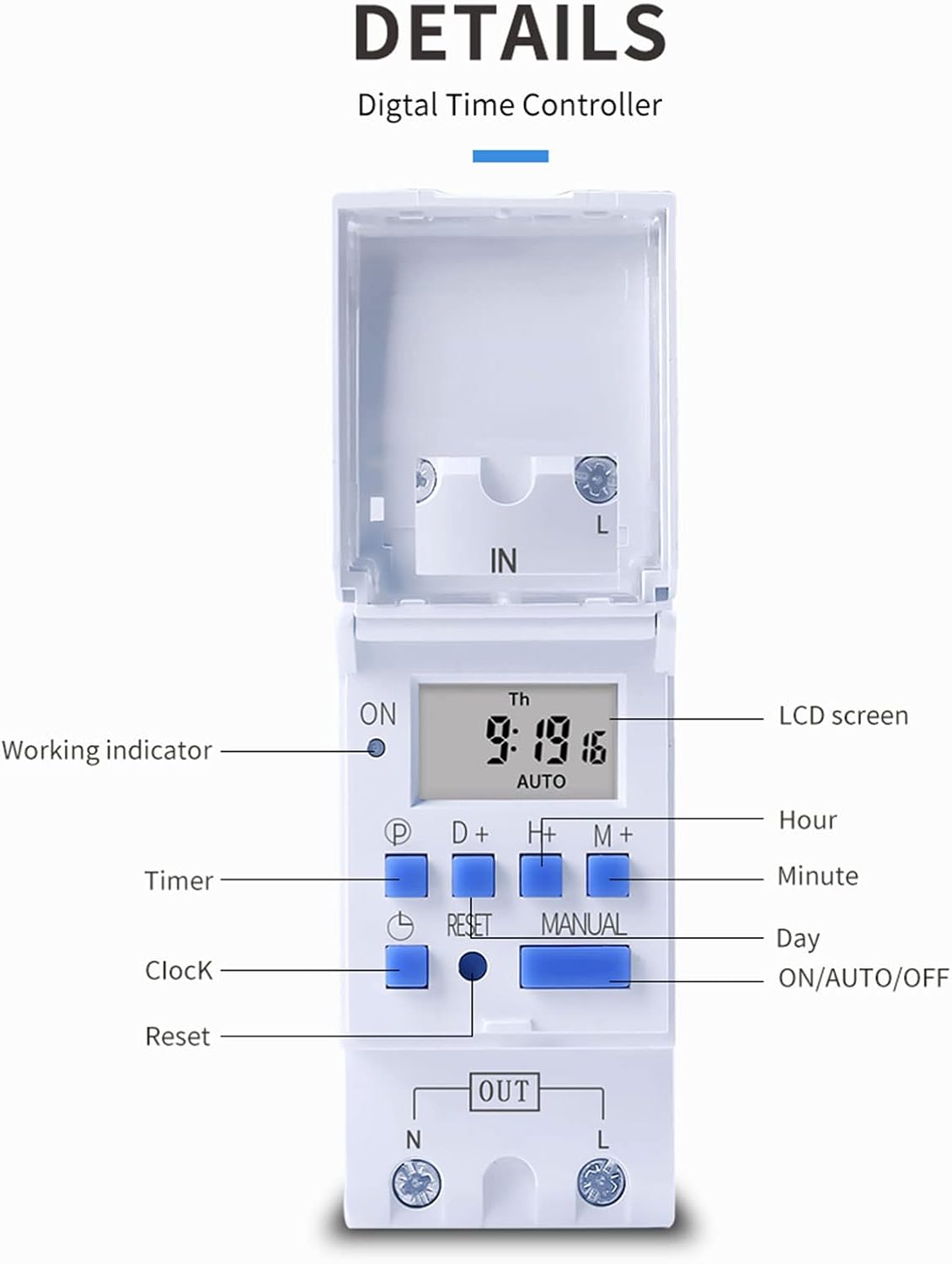

Imaj 4.2: Detaye view of the THC30A timer's LCD screen, control buttons (P, D+, H+, M+, RESET, MANUAL), and working indicator.

4.3 Mete Lè Aktyèl la

1. Peze a LÒJ button (P) and hold it.
2. Pandan w ap kenbe LÒJ, peze D+ to set the current day of the week (MON, TUE, WED, THU, FRI, SAT, SUN).
3. Pandan w ap kenbe LÒJ, peze H+ pou mete lè aktyèl la (0-23).
4. Pandan w ap kenbe LÒJ, peze M+ pou mete minit aktyèl la (0-59).
5. Lage a LÒJ bouton pou konsève pou anviwònman yo.

5. Operasyon Enstriksyon

5.1 Pwogramasyon Lè ON/OFF

The THC30A allows for up to 20 ON/OFF program settings. Each program consists of an ON time and an OFF time.

Imaj 5.1: The THC30A timer's programming interface, highlighting its capacity for 20 ON/OFF settings, daily/weekly cycling, auto ON/OFF status, and a minimum setting time of 1 minute.

1. Peze a P button (Program) once. The display will show '1 ON'.
2. Peze D+ to select the day(s) for this ON setting. You can choose a single day, a block of days (e.g., MON-FRI), or all 7 days.
3. Peze H+ to set the desired hour for the '1 ON' time.
4. Peze M+ to set the desired minute for the '1 ON' time.
5. Peze P ankò. Ekran an ap montre '1 OFF'.
6. Repeat steps 2-4 to set the day(s), hour, and minute for the '1 OFF' time.
7. Kontinye peze P to cycle through '2 ON', '2 OFF', up to '20 ON', '20 OFF', setting each program as needed.
8. Apre ou fin mete tout pwogram ou vle yo, peze bouton an LÒJ button (P) to exit programming mode and return to the current time display.

5.2 Manyèl Override

La MANYÈL button allows you to override the programmed settings temporarily.

• Peze MANYÈL once: Switches from AUTO to ON (output is continuously ON).
• Peze MANYÈL again: Switches from ON to OFF (output is continuously OFF).
• Peze MANYÈL a third time: Switches from OFF to AUTO (timer resumes programmed operation).

6. Antretyen

6.1 Ranplasman batri

The THC30A timer includes a built-in CR2032 lithium battery for power-off memory. This battery typically lasts for several years. If the display becomes dim or the time/settings are lost frequently during power outages, the battery may need replacement. Consult a qualified technician for battery replacement.

6.2 Netwayaj

Wipe the timer's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the casing oswa ekspozisyon.

NAN. Depanaj

• Ekspozisyon an vid: Check power supply. If power is present, the internal battery might be fully discharged; allow time for it to charge. If still blank, press the RESET bouton.
• Timer not switching ON/OFF as programmed:
  • Asire w ke revèy la nan OTO mode (not ON or OFF via manual override).
  • Verifye ke jou ak lè aktyèl la byen fikse.
  • Check that the programmed ON/OFF times and days are correct and active.
  • Confirm wiring connections are secure and correct.
• Chaj la pa resevwa kouran: Check the load device (e.g., bulb, motor) for functionality. Verify input power to the timer. Ensure the timer is in an ON state (either programmed ON or manually ON).
• Paramèt yo pèdi apre kouran an fin koupe.tage: The internal battery may be depleted. Consider replacing the CR2032 battery.

8. Espesifikasyon

Imaj 8.1: Dimensions of the TAXNELE THC30A Digital Programmable Timer Switch.

9. Enfòmasyon sou Garanti

TAXNELE products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship for a period specified by the retailer at the time of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, unauthorized modification, or natural disasters.

10. Sipò

For technical assistance, troubleshooting, or further inquiries regarding your TAXNELE THC30A Digital Programmable Timer Switch, please contact your retailer or the TAXNELE customer support channel provided with your purchase. When contacting support, please have your product model number (THC30A) and purchase information ready.
