Jectse Voice Recorder Watch User Manual

1. Entwodiksyon

This manual provides detailed instructions for the operation and maintenance of your Jectse Voice Recorder Watch. This device combines a digital voice recorder, MP3 player, and pedometer into a compact, wearable design. Please read this manual thoroughly to ensure proper use and to maximize the device's functionality.

2. Pake kontni

Tanpri verifye ke tout atik ki nan lis anba a yo enkli nan pakè ou a:

• Jectse Voice Recorder Watch (32GB)
• USB Chaje / Done Kab
• Ekoutè
• Manyèl Itilizatè (dokiman sa a)

Image 2.1: The Jectse Voice Recorder Watch, including the watch unit, USB cable, and headphones.

3. Pwodwi souview

The Jectse Voice Recorder Watch features a durable zinc alloy body and a digital display. It is equipped with a large diameter dual microphone for 360-degree recording.

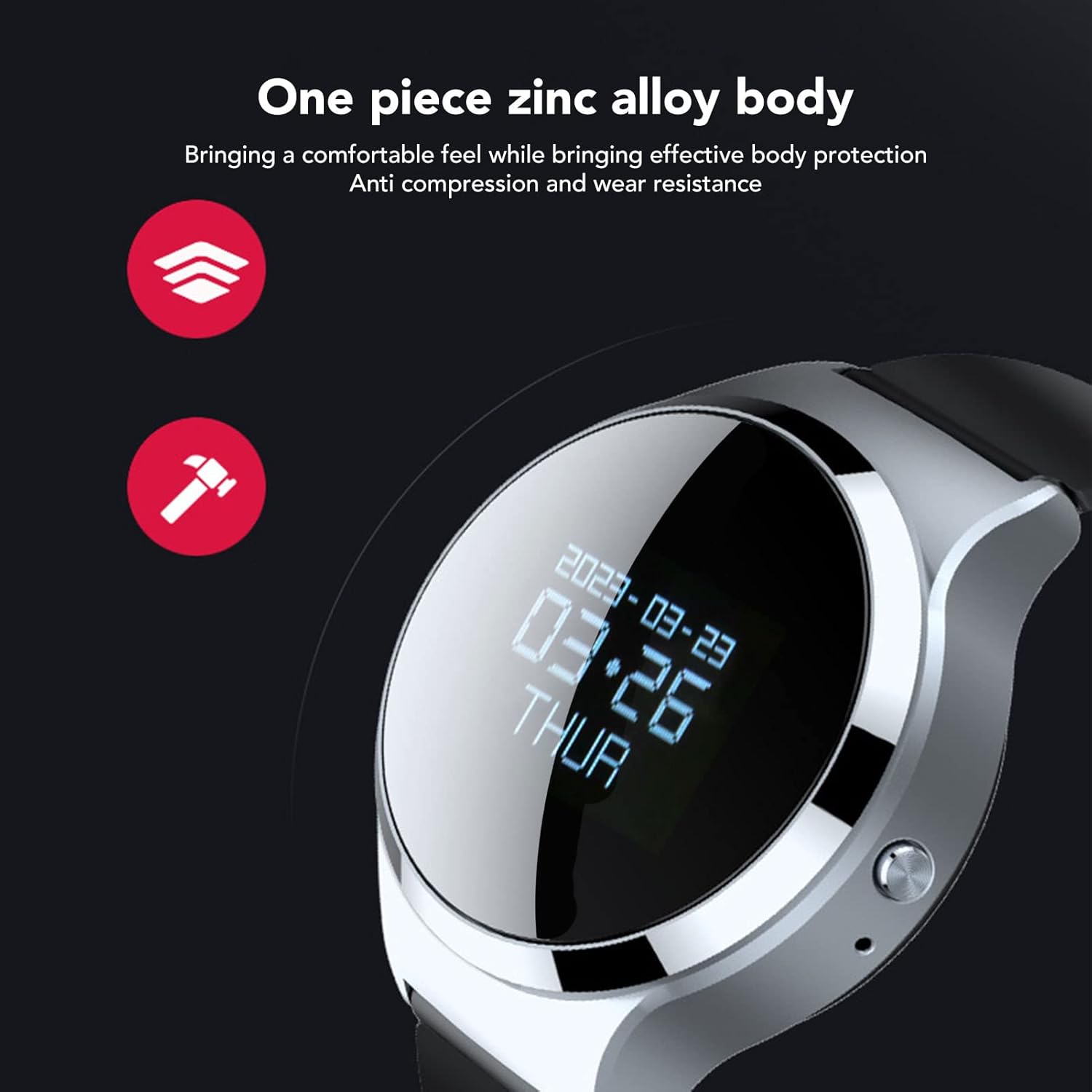

Imaj 3.1: Gwo plan view of the watch highlighting its zinc alloy body.

Image 3.2: The watch with an illustration of sound waves, demonstrating its 360-degree recording capability.

4. Enstalasyon

4.1 Chaje Aparèy la

Before first use, fully charge the watch. Connect the USB charging cable to the watch's charging port and to a USB power adapter or computer USB port. The device takes approximately 1 hour to fully charge and provides up to 30 hours of continuous recording time.

4.2 Power On/Off

• Pou limen: Peze epi kenbe bouton pouvwa a jiskaske ekran an limen.
• Pou etenn: Peze epi kenbe bouton pouvwa a jiskaske ekran an etenn.

5. Operasyon Enstriksyon

5.1 One-Touch Recording

To quickly start recording, long press the dedicated record button while the device is powered on. The device will immediately enter recording mode.

Image 5.1: Icons illustrating key features, including one-touch recording.

5.2 Voice Activated Recording (VAR)

The watch supports intelligent voice control. When this feature is enabled, the device will record only when sound is detected and pause when there is no sound, optimizing memory usage and battery life.

• Refer to the on-screen menu for enabling/disabling Voice Activated Recording.
• When VAR is active, the recording indicator will show its status.

Image 5.2: The watch display showing the recording interface with a microphone icon and sound level visualization, indicating active voice control.

5.3 MP3 Music Playback

The device can function as an MP3 player. Connect the provided headphones to the 3.5mm jack to listen to music fileyo estoke sou aparèy la.

• Navigate to the music playback menu on the watch.
• Select your desired audio file pou lèktur.
• The watch supports synchronized display of lyrics (if available in the file metadata) and allows switching between songs.

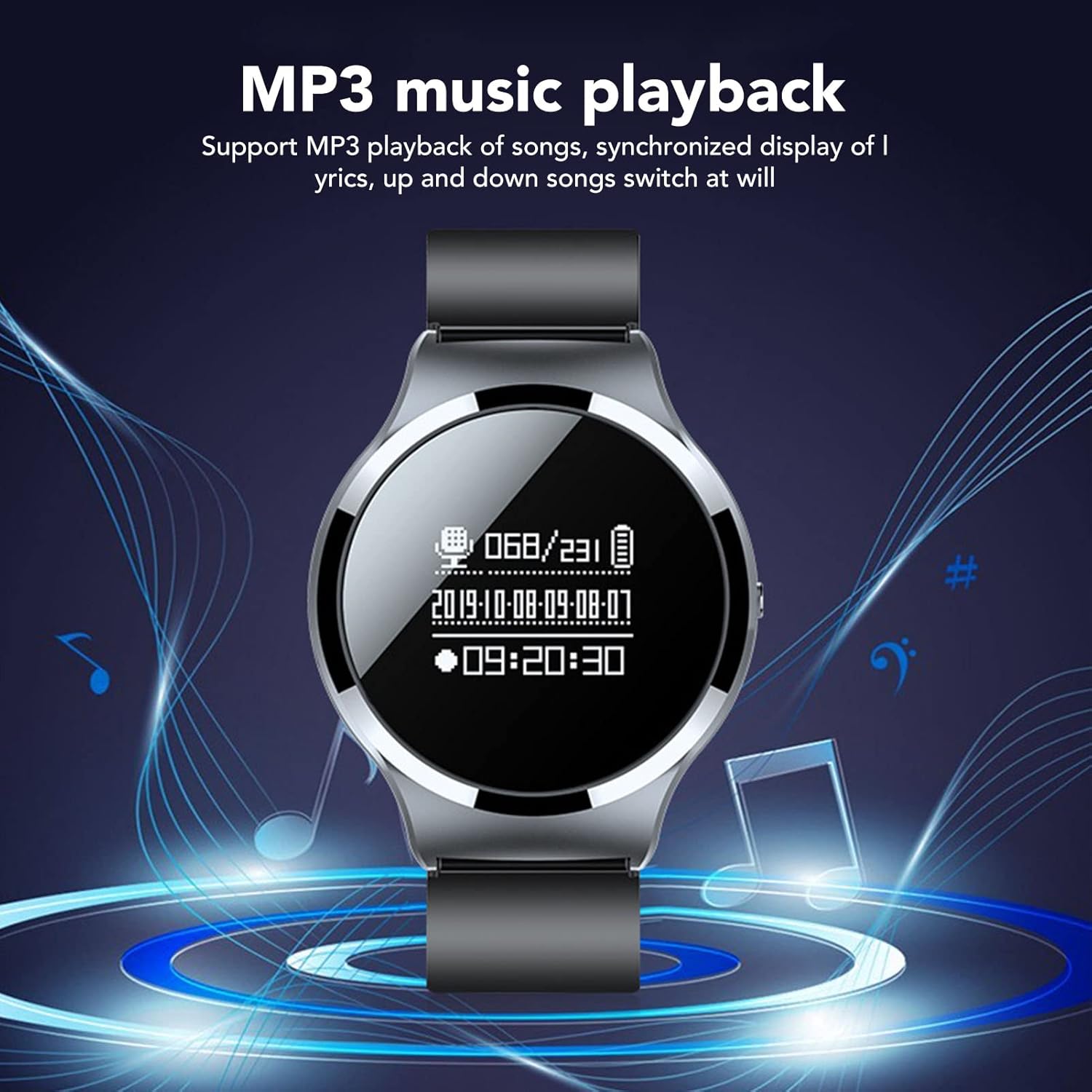

Image 5.3: The watch display showing the music playback interface with musical notes in the background.

5.4 File Jesyon

5.4.1 Otomatik File Ekonomize

The watch is designed to automatically save the current recording file when the system detects a low battery level. This prevents loss of recording data before the device powers off.

Image 5.4: An illustration showing a low battery icon next to the watch, indicating the auto-save feature during power failure.

5.4.2 File Naming and Time Synchronization

The watch has a built-in time chip. After synchronizing the watch with a computer, all recording files will be automatically named according to the date and time of creation, facilitating easy organization.

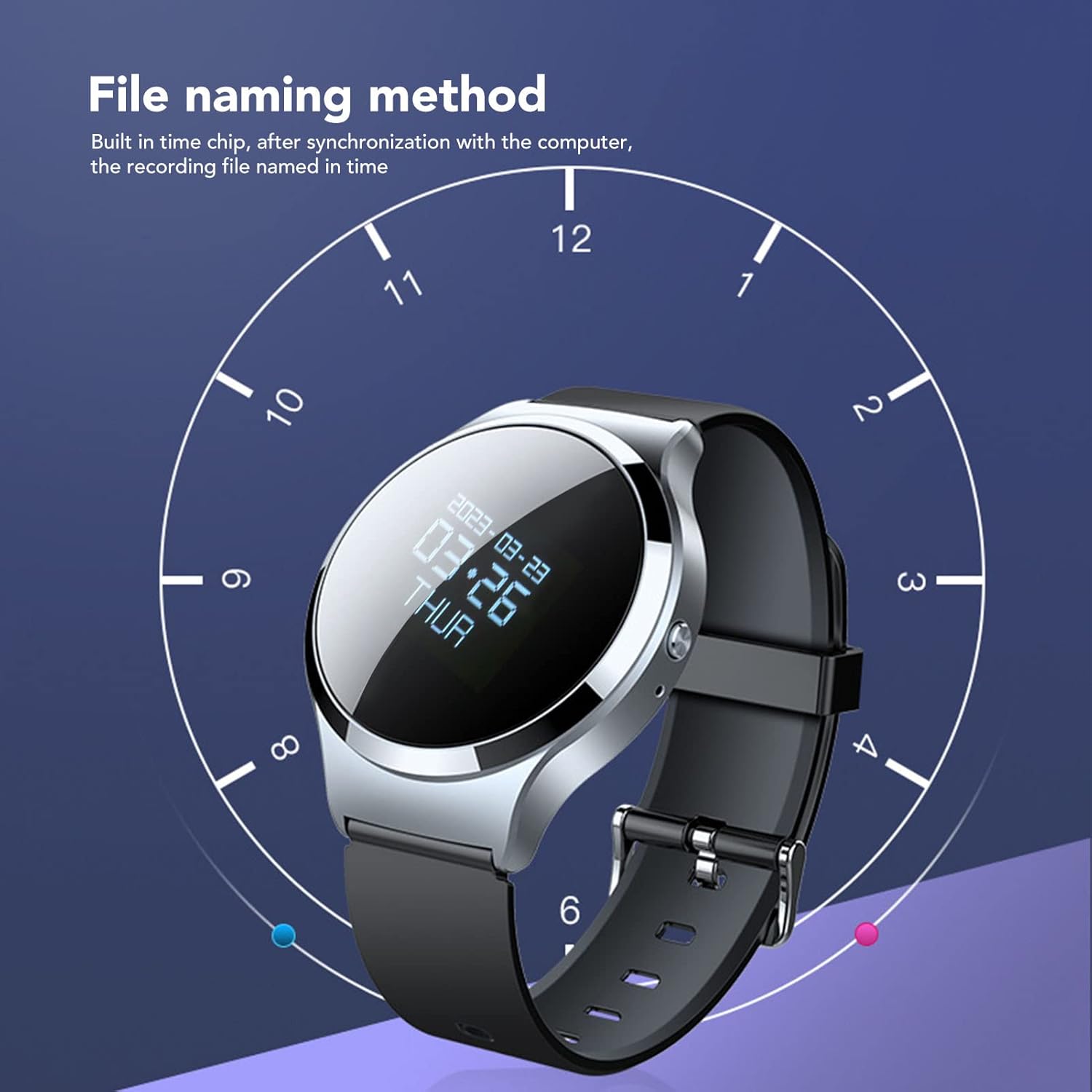

Image 5.5: The watch display overlaid with a clock face, illustrating how recording files are named based on the synchronized time.

5.4.3 Efase Files

To delete recordings or other files:

1. Connect the watch to a computer using the USB cable.
2. Access the watch's storage drive on your computer.
3. Jwenn vle a files in the appropriate folder (e.g., 'RECORD' for recordings).
4. Chwazi la files you wish to delete and remove them using your computer's file sistèm jesyon.
5. Safely eject the device from your computer.

Alternatively, some models may offer a local delete function through the watch's menu. Consult the on-screen options for this functionality.

5.5 File Ankripteman

The watch includes an encryption function to protect your recorded data. Once a password is set, you will need to enter it when the recorder is turned on or connected to a computer to access the files.

• Access the security settings menu on the watch to set or change your encryption password.
• Remember your password, as lost passwords may result in inaccessible data.

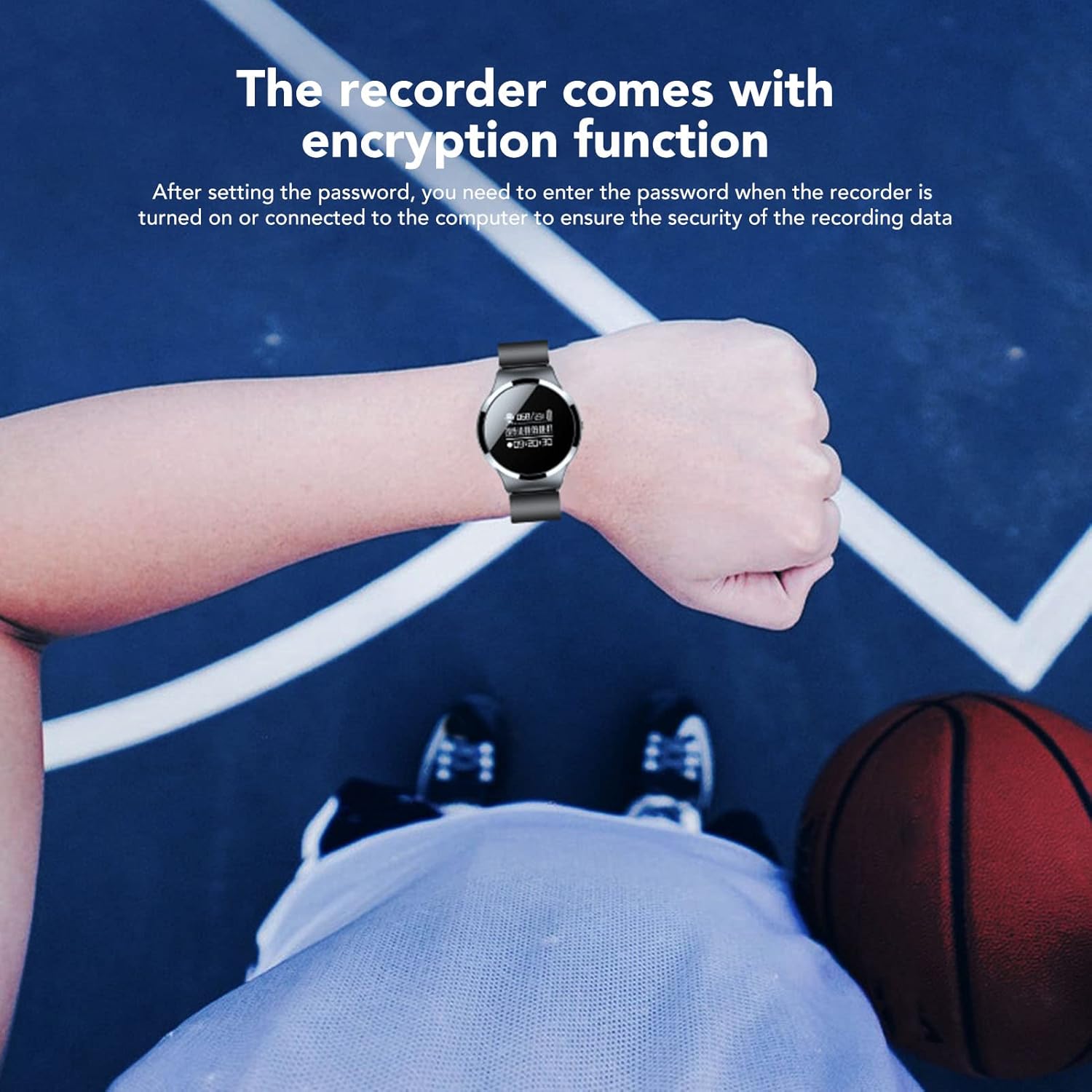

Image 5.6: The watch worn on a wrist, with text indicating the file encryption function for data security.

5.6 Fonksyon Pedomèt

The watch integrates a pedometer to track your steps. This feature operates automatically or can be activated via the watch's menu. Refer to the on-screen display for step count and other related data.

6. Antretyen

• Netwayaj: Use a soft, dry cloth to clean the watch. Avoid using harsh chemicals or abrasive materials.
• Depo: Sere aparèy la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
• Rezistans dlo: Aparèy la pa enpèmeyab. Evite ekspoze li nan dlo oswa imidite ki wo.
• Swen batri: Pou pwolonje lavi batri a, evite dechaje batri a nèt souvan. Chaje aparèy la regilyèman.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak sipò

For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact Jectse customer service through their official channels. Keep your purchase receipt as proof of purchase.
