Entwodiksyon
This manual provides instructions for the assembly, operation, maintenance, and troubleshooting of your COSTWAY Double Portable Picnic Chairs with Detachable Umbrella. This product is designed for outdoor use, offering comfortable seating for two individuals, shade from the sun, and convenient storage features for various outdoor activities such as picnics, camping, and beach outings.
Image: The double picnic chairs in use by a lake, demonstrating their application for outdoor leisure.
Enstriksyon Enstalasyon
- Unfolding the Chairs: Remove the chairs from the carrying bag. Place the folded chairs on a flat, stable surface. Gently pull the two chair sections apart until the frame fully extends and locks into place. Ensure all four legs are firmly on the ground.
- Attaching the Umbrella: The umbrella comes in two pieces. Connect the two umbrella pole sections by twisting them together. Insert the bottom end of the assembled umbrella pole into the designated hole located between the two chairs.
- Adjusting the Umbrella: The umbrella height can be adjusted from 46.5 inches to 70 inches. Use the adjusting handle on the umbrella pole to set the desired height. Ensure the umbrella is securely locked at the chosen height to prevent accidental collapse. For added stability, especially in windy conditions, utilize the convenient sand anchor by pushing it into soft ground.
Image: Visual guide for folding and unfolding the chairs, and storing them in the carrying bag.
Image: Illustration of the umbrella's adjustable height feature and the adjusting handle.
Enstriksyon Operasyon
- Syèj: The chairs are designed for two adults, with a weight capacity of 250 lbs per chair. Sit gently to distribute weight evenly.
- Cooler Bag: The integrated cooler bag is located between the two chairs. Use it to store beverages and small perishable items to keep them cool. Close the zipper to maintain temperature.
- Titulè tas: Each chair is equipped with a cup holder on the armrest. These are suitable for standard-sized bottles and cans.
- Pòch bò kote: A mesh side pocket is available for storing small items such as magazines, books, or personal accessories.
Imaj: Detaye view of the integrated storage features: cup holders, cooler bag, and side pocket.
Antretyen
- Netwayaj: The 600D PVC Oxford cloth and steel frame can be cleaned with a damp cloth and mild soap. Wipe clean and allow to air dry completely before folding and storing. Do not use harsh chemicals or abrasive cleaners.
- Depo: When not in use, fold the chairs and store them in the provided carrying bag. Store in a dry, cool place away from direct sunlight to prolong the product's lifespan.
- Enspeksyon: Periodically inspect the steel frame, fabric, and umbrella mechanism for any signs of wear, damage, or loose components. Address any issues promptly to ensure safe operation.
Image: Details of the durable 600D PVC Oxford cloth and sturdy steel frame, emphasizing material quality for maintenance.
Depanaj
- Enstabilite parapli: If the umbrella feels unstable, ensure it is fully inserted into the designated hole and the adjusting handle is tightened. For use on soft ground, utilize the sand anchor for additional stability. Avoid using the umbrella in strong winds.
- Chair Not Opening/Folding Smoothly: Check for any obstructions in the folding mechanism. Ensure the frame joints are clean and free of debris. Apply a silicone-based lubricant if necessary to hinges.
- Fabric Tearing: To prevent fabric tearing, avoid overloading the chairs beyond the stated weight capacity (250 lbs per chair). Ensure no sharp objects are placed on the fabric. Store the chairs properly to prevent damage from prolonged exposure to harsh elements.
- Cup Holders Too Small: The cup holders are designed to accommodate standard beverage cans and bottles. Larger cups or mugs may not fit securely.
Image: Close-up of anti-slip footpads, reinforced steel ribs, and sand anchor, relevant for stability and durability troubleshooting.
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Gwosè an jeneral (L x W x H) | 59" x 20" x 33.5" (Chairs without umbrella) |
| Dimansyon pwodwi (D x W x H) | 63" x 22" x 46.5" (Chairs with umbrella at lowest height) |
| Pwa nèt | 13 lbs (Product description) / 15 lbs (Product Size image) |
| Weight Capacity (Each Chair) | 250 lbs (Product description) / 270 lbs (Product Size image) |
| Materyèl | Steel frame, 600D PVC Oxford cloth |
| Umbrella Height Adjustment | 46.5" a 70" |
| Koulè | Gri |
| Nimewo Modèl | OP70621GR |
| UPC | 608564907294 |
Note: Slight variations in weight and capacity may occur between product descriptions and diagrams. Refer to the higher value for safety.

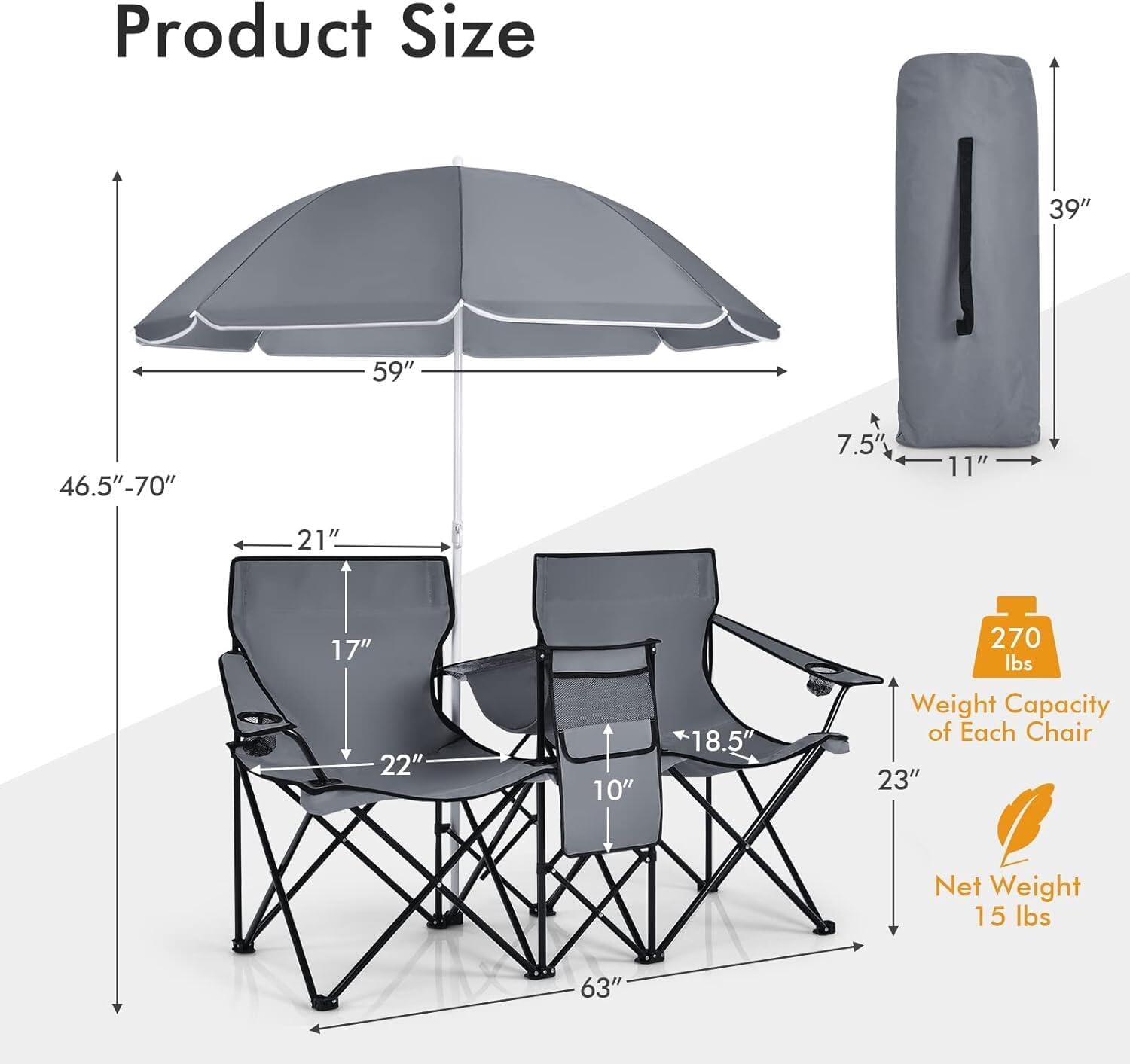

Image: Product dimensions and key specifications diagram.
Enfòmasyon sou Garanti
Specific warranty details for this product are not provided in the available information. For warranty claims or inquiries, please retain your proof of purchase and contact the manufacturer directly. Warranty terms typically cover manufacturing defects for a limited period from the date of purchase.
Sipò pou Kliyan
For further assistance, technical support, or to inquire about replacement parts, please contact COSTWAY customer service. Refer to the contact information provided with your product packaging or visit the official COSTWAY websit pou opsyon sipò.
