Manyèl Itilizatè Flach WUBEN X2

Entwodiksyon

The WUBEN X2 is an innovative and portable flashlight designed for daily use, outdoor activities, and emergency situations. It features a compact design, high lumen output, and multiple lighting modes, making it a versatile tool for various needs. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your WUBEN X2 flashlight.

Image: The WUBEN X2 Flashlight in camouflage blue, demonstrating its compact size relative to a human hand.

Ki sa ki nan bwat la

• WUBEN X2 Flashlight (Battery included)
• Type-C Charging Cable Lanyard
• Red Diffuser
• Manyèl itilizatè

Enstalasyon

Inisyal chaje

Before first use, it is recommended to fully charge your WUBEN X2 flashlight. The device features a Type-C charging port and comes with an innovative charging lanyard that doubles as a charging cable.

1. Locate the Type-C charging port on the flashlight, typically protected by a metal flap button.
2. Unfold the Type-C charging lanyard to reveal the USB-A and Type-C connectors.
3. Connect the Type-C end of the lanyard to the flashlight's charging port.
4. Connect the USB-A end of the lanyard to a compatible 5V1A USB power adapter (not included) or a computer USB port.
5. The LED battery indicator will show charging status (blue or red, flashing or constant). A full charge typically takes approximately 2.5 hours.

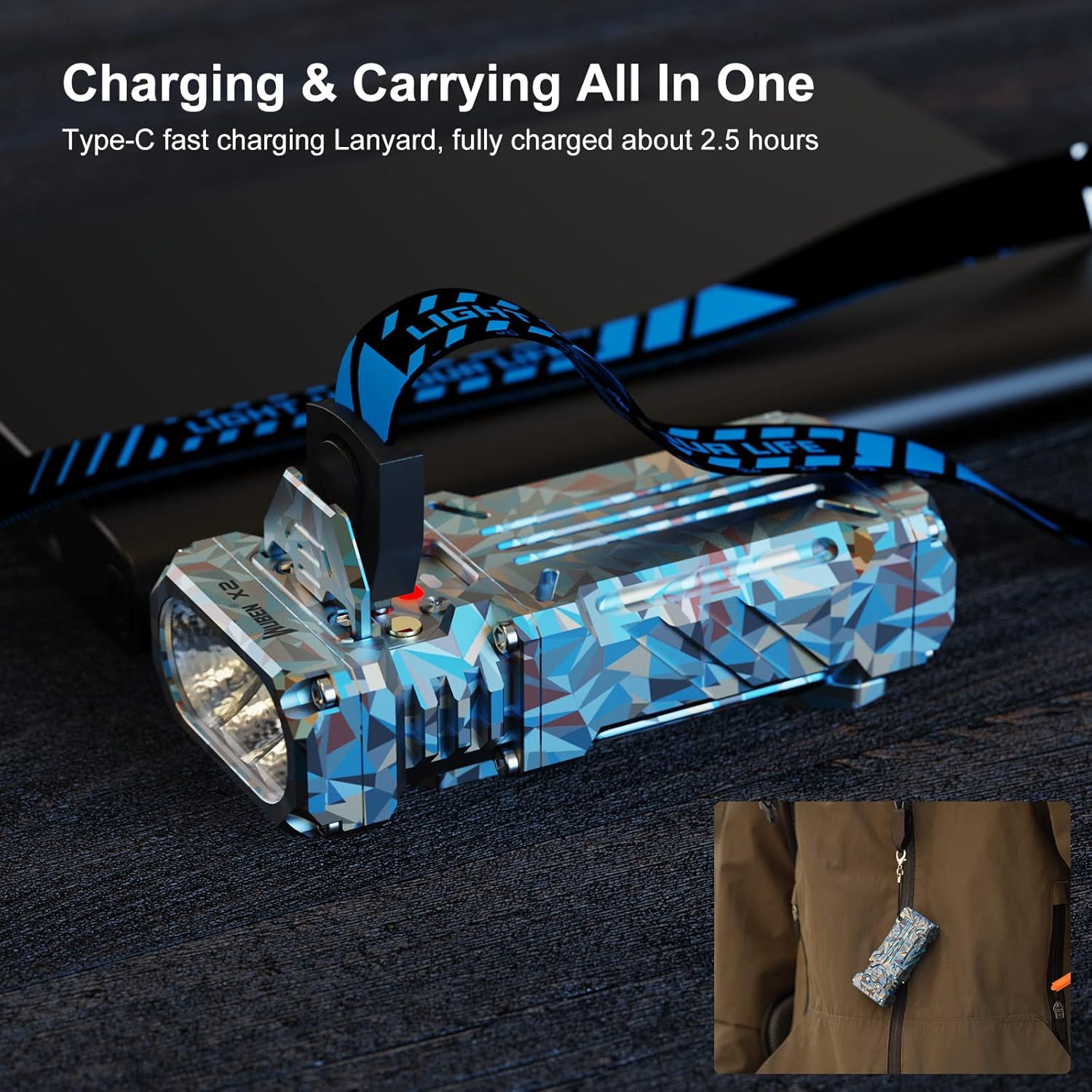

Image: The WUBEN X2 Flashlight connected to its Type-C charging lanyard, illustrating the charging process and the lanyard's dual function.

Unlocking the Flashlight

The WUBEN X2 flashlight is locked by default for safety during shipping and to prevent accidental activation. To unlock it:

• When the flashlight is off, press the switch 4 times rapidly to unlock it. The indicator light will flash blue to confirm.

To lock the flashlight, perform the same action (4 rapid presses) when the flashlight is off.

Imaj: Yon gwo plan view of the WUBEN X2's metal flap button, highlighting its function as both a power switch and a protective cover for the charging port.

Enstriksyon Operasyon

Power On/Off

• Pouvwa sou: Press the main switch button once.
• Pouvwa Off: Press and hold the main switch button for approximately 1 second.

Chanje mòd limyè

The WUBEN X2 features 6 lighting modes: Low, Med, High, Turbo, Strobe, and SOS. The flashlight can memorize the last used common lighting mode (Low, Med, High, Turbo).

• Cycle Modes (Low, Med, High): With the flashlight on, single-press the main switch button to cycle through Low → Med → High.
• Mòd turbo: Double-press the main switch button from any state (on or off) to activate Turbo mode.
• Strobe mòd: Triple-press the main switch button from any state (on or off) to activate Strobe mode.
• Mòd SOS: From Strobe mode, single-press the main switch button to switch to SOS mode.

Image: Visual representation of the WUBEN X2's 175-degree floodlighting capability and its six distinct light modes.

Endikatè batri

The LED indicator on the flashlight provides real-time battery status:

• Constant Blue: Nivo batri a ase.
• Flache ble: Battery level is moderate.
• Constant Red: Battery level is low, charging is recommended.
• Flache wouj: Battery level is critically low, recharge immediately.

Using the Red Diffuser

The included red diffuser can be attached to the flashlight to convert its output into a red warning light, useful for emergencies or signaling.

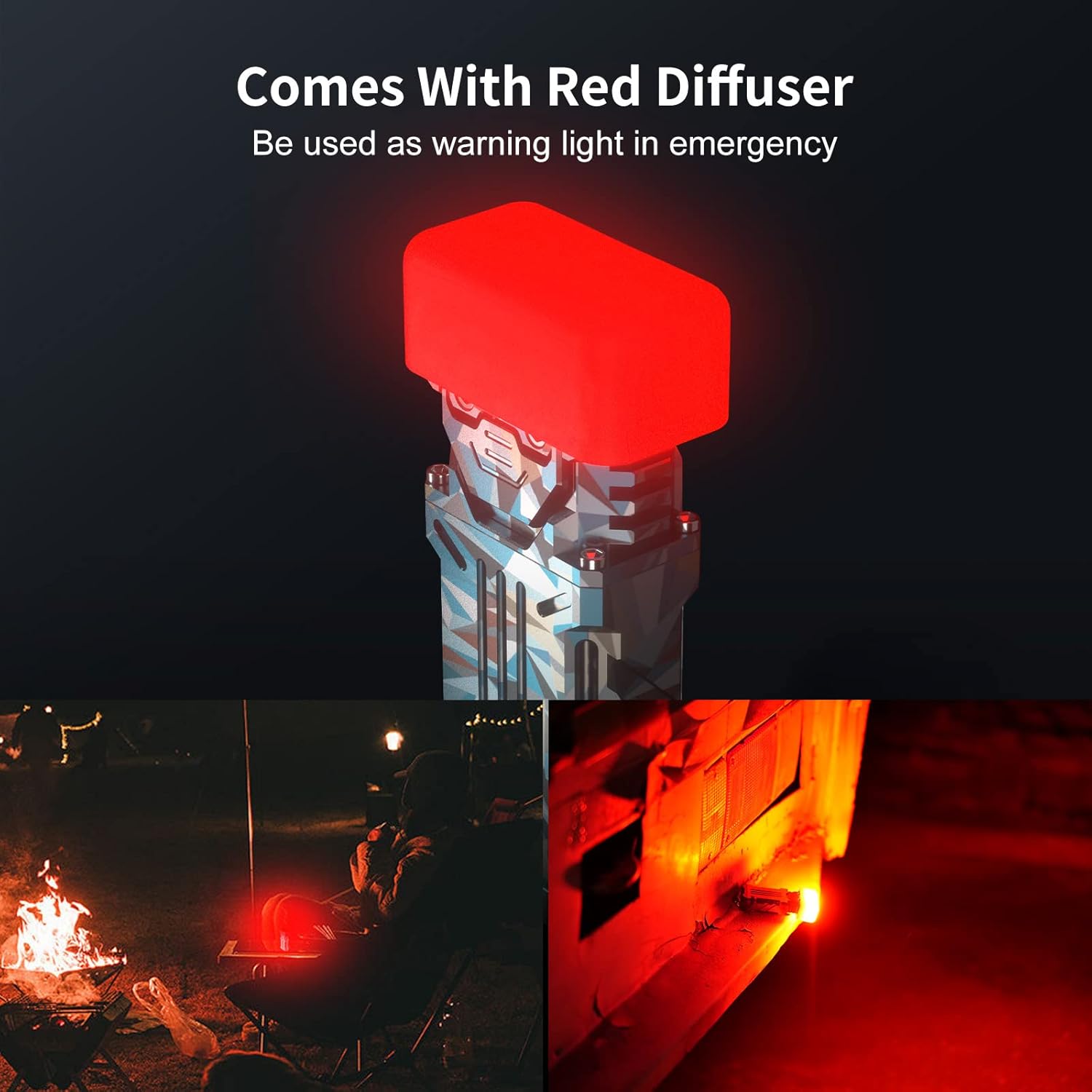

Image: The WUBEN X2 with its red diffuser attached, demonstrating its function as an emergency warning light.

Antretyen

Swen Jeneral

• Keep the flashlight clean from dirt and debris. Use a soft, damp twal pou netwaye.
• Avoid dropping the flashlight from excessive heights, though it has an impact resistance of 1 meter.
• Sere flach la nan yon kote ki fre epi sèk lè w pa itilize li pou yon bon bout tan.

Karakteristik ki enpèmeyab

The WUBEN X2 is IP68 rated, meaning it is dust-tight and protected against continuous immersion in water up to 2 meters for 1 hour. Ensure the Type-C charging port's metal flap is securely closed to maintain its waterproof integrity.

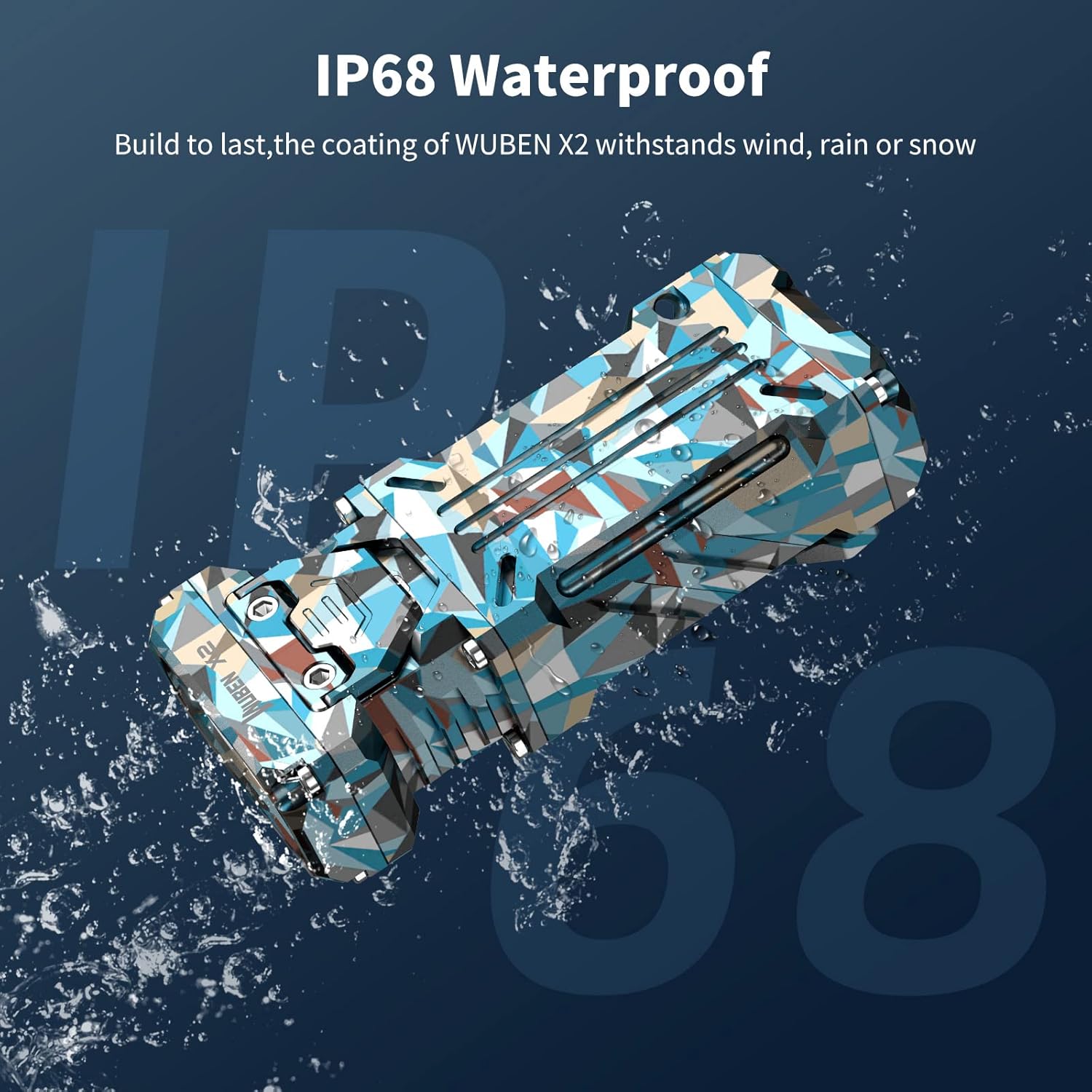

Image: The WUBEN X2 Flashlight undergoing a water splash test, visually confirming its IP68 waterproof capabilities.

Depanaj

• Flach pa limen:
  • Check if the flashlight is locked. Press the switch 4 times rapidly to unlock.
  • Ensure the battery is charged. Refer to the "Initial Charging" section.
• Limyè ki soti a fèb oswa li pa konsistan:
  • Rechaje batri a konplètman.
  • Netwaye lantiy la ak yon twal mou.
• Pwoblèm chaj:
  • Ensure the Type-C cable is properly connected to both the flashlight and the power source.
  • Eseye yon diferan adaptè pouvwa USB oswa pò.
  • Verify the charging lanyard is not damaged.

Espesifikasyon

Image: Comprehensive specifications table for the WUBEN X2, detailing performance metrics and physical characteristics.

Performance Table (Approximate)

Note: Performance data is approximate and may vary based on environmental conditions and specific LED type (OSRAM P9 or SAMSUNG LH351D). Turbo mode output will step down after approximately 1 minute to prevent overheating.
