Manyèl Itilizatè Machin Koud Elektrik SINGER M3305

Entwodiksyon

This manual provides detailed instructions for the safe and efficient use of your SINGER M3305 Motorised Automatic Zig-Zag Electric Sewing Machine. Please read all instructions carefully before operating the machine to ensure proper function and longevity.

Imaj: Devan view of the SINGER M3305 Electric Sewing Machine, showcasing its white body with a teal accent and stitch selector dial.

Enstriksyon Sekirite Enpòtan

Lè w ap itilize yon aparèy elektrik, yo ta dwe toujou swiv prekosyon sekirite debaz yo, tankou sa ki annapre yo:

• Li tout enstriksyon anvan ou itilize machin koud sa a.
• Kenbe enstriksyon sa yo nan yon kote ki an sekirite.
• Always unplug the machine from the electrical outlet immediately after using and before cleaning, removing covers, lubricating, or making any other user servicing adjustments.
• Pa kite timoun yo jwe ak machin nan.
• Sèvi ak pwodui sa a sèlman pou itilizasyon li yo, jan sa dekri nan manyèl sa a.
• Pa janm opere machin koud sa a si li gen yon kòd oswa yon ploge domaje, si li pa fonksyone byen, si li te tonbe oswa domaje, oswa tonbe nan dlo.
• Pa janm lage oswa mete nenpòt objè nan nenpòt ouvèti.
• Pa sèvi ak deyò.
• Pa opere kote yo ap itilize pwodwi aerosol (espre) oswa kote yo administre oksijèn.
• Pou dekonekte, vire tout kontwòl yo nan pozisyon koupe, apresa retire ploge nan priz.

Ki sa ki nan bwat la

The SINGER M3305 sewing machine comes with the following accessories:

• All-Purpose Foot
• Zip pye
• Bouton koud pye
• Pico Foot
• Pye bouton
• Plak reprize
• Bobbins
• Zegwi
• Seam Ripper/Lint Brush
• Bobin Cap
• Edge / Quilting Guide
• L-Type Screw Driver

Imaj: Angle view of the SINGER M3305 Electric Sewing Machine, showing the main body and the accessory storage area.

Enstalasyon

1. Koneksyon pouvwa

Connect the power cord to the machine and then to a suitable electrical outlet. Ensure the machine is switched off before connecting.

Imaj: Dèyè view of the SINGER M3305 Electric Sewing Machine, highlighting the power input and foot pedal connection ports.

2. Anfile machin nan

Proper threading is crucial for optimal stitch quality. Follow these steps:

1. Place the spool of thread on the spool pin.
2. Guide the thread through the upper thread guides.
3. Pase fil la nan disk tansyon yo.
4. Thread the take-up lever.
5. Guide the thread down to the needle bar.
6. Use the built-in needle threader for convenience, or manually thread the needle from front to back.

Image: Close-up of the SINGER M3305 showing the tension dial and the upper thread path, indicating where the thread should be guided.

Image: Close-up of the needle area on the SINGER M3305, showing the needle, presser foot, and the integrated needle threader mechanism.

3. Winding and Inserting the Bobbin

The SINGER M3305 features a front-loading bobbin for easy winding and insertion.

1. Mete yon bobin vid sou aks bobinè a.
2. Gide fil la soti nan bobin lan nan disk tansyon bobin lan.
3. Wind the thread a few times manually around the bobbin.
4. Pouse file bobin bobin an sou bò dwat la.
5. Peze pedal pye a pou kòmanse bobin lan. Rete lè bobin lan plen.
6. Remove the bobbin and insert it into the bobbin case, ensuring the thread feeds correctly.

Imaj: Bò kote view of the SINGER M3305 Electric Sewing Machine, illustrating the free arm feature for sewing cuffs and sleeves.

Enstriksyon Operasyon

1. Selecting Stitches

The SINGER M3305 offers 23 essential and decorative stitches. Use the stitch selector dial to choose your desired stitch pattern.

Image: Close-up of the SINGER M3305 stitch selector dial, displaying various stitch patterns and settings.

2. Ajiste longè ak lajè pwen an

Stitch width and length can be adjusted to customize stitches. Refer to the markings on the machine for specific adjustments.

3. Using the 1-Step Buttonhole

The 1-step buttonhole feature provides convenience and consistent results. Attach the buttonhole foot and follow the machine's markings for precise buttonhole creation.

4. Changing Presser Feet

To change presser feet, raise the needle to its highest position and lift the presser foot lever. Press the release button on the back of the presser foot holder to detach the current foot. Snap the new foot into place.

Included presser feet:

• All-Purpose Foot: For general sewing on most fabrics.
• Zipper Foot: For inserting zippers and piping.
• Button Sewing Foot: For attaching two-hole and four-hole buttons.
• Pico Foot: For creating decorative edges.
• Buttonhole Foot: For creating buttonholes.

Antretyen

1. Netwayaj

Regular cleaning ensures smooth operation. Always unplug the machine before cleaning.

• Use the lint brush (included with the seam ripper) to remove lint and dust from the bobbin area and feed dogs.
• Siye deyò machin nan avèk yon twal mou epi sèk.
• Do not use liquid cleaners or harsh chemicals.

2. Ranplasman zegwi

Replace needles regularly, especially if they become bent, dull, or if you notice skipped stitches. Use SINGER brand needles appropriate for your fabric type.

1. Lage zegwi a clamp vis.
2. Remove the old needle.
3. Insert the new needle with the flat side facing the back of the machine.
4. Sere cl zegwi aamp vis byen.

Depanaj

Espesifikasyon

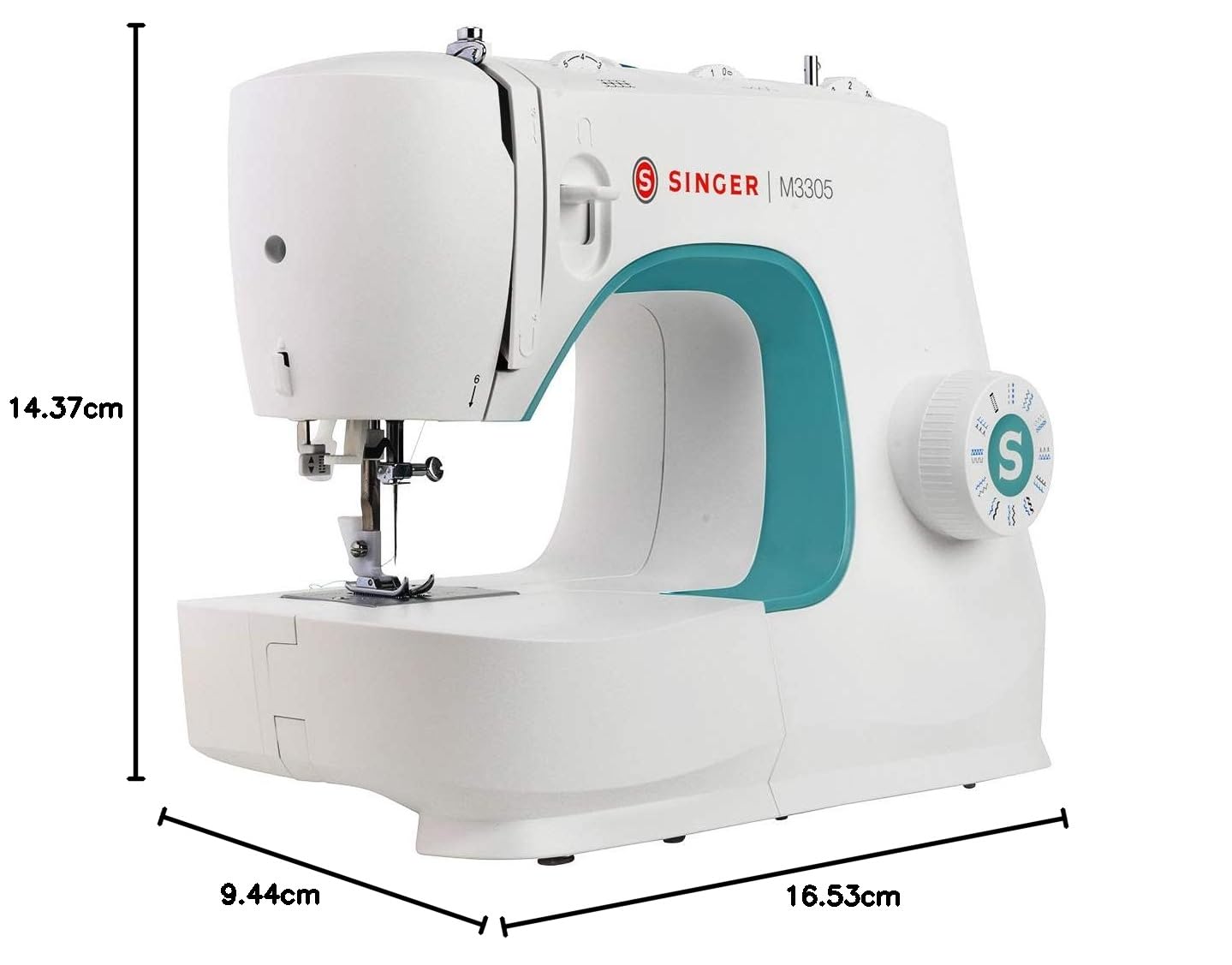

Image: The SINGER M3305 Electric Sewing Machine with key dimensions (length, width, height) indicated in centimeters.

Garanti ak sipò

For warranty information and customer support, please contact Singer India Ltd directly. Contact details are typically provided with your purchase documentation.

Enfòmasyon pou kontakte manifakti:

• Nimewo Swen Kliyan: 1800 103 3474
• Imèl: MAIL@SINGERINDIA.NET

A full instruction manual is also available online to view or download anytime from the official SINGER websit.
