1. Entwodiksyon
Thank you for choosing the MARK ADLER Expert 6.2 Ergonomic Office Chair. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new office chair. Please read this manual thoroughly before assembly and retain it for future reference.
Image: The MARK ADLER Expert 6.2 ergonomic office chair.
2. Enfòmasyon sou Sekirite
- Asire w tout pyès yo la epi yo pa domaje anvan w asanble l. Pa sèvi avè l si gen pyès ki manke oswa ki kase.
- Swiv enstriksyon asanblaj yo ak anpil atansyon. Si ou pa byen asanble, sa ka lakòz enstabilite ak blesi.
- Pa kanpe sou chèz la.
- Do not use the chair as a step stool.
- Kenbe timoun ak bèt kay lwen pandan asanblaj la. Ti pyès yo ka yon danje toufe.
- Pa depase kapasite pwa maksimòm 150 kg (330 lbs).
- Regularly check all bolts and screws to ensure they are tightened. Retighten if necessary.
- Evite ekspoze chèz la anba limyè solèy dirèk oswa tanperati ekstrèm pou anpeche materyèl la degrade.
3. Pake kontni
Tanpri verifye ke tout konpozan yo enkli nan pake ou a:
- Asanble dosye
- Asanble kousen chèz
- Gaz Lift Silenn
- Star Sèvi
- Rou (Rou)
- Akoudwa (Agòch ak Dwat)
- Tèt
- Mounting Hardware (Screws, Washers, Allen Key)

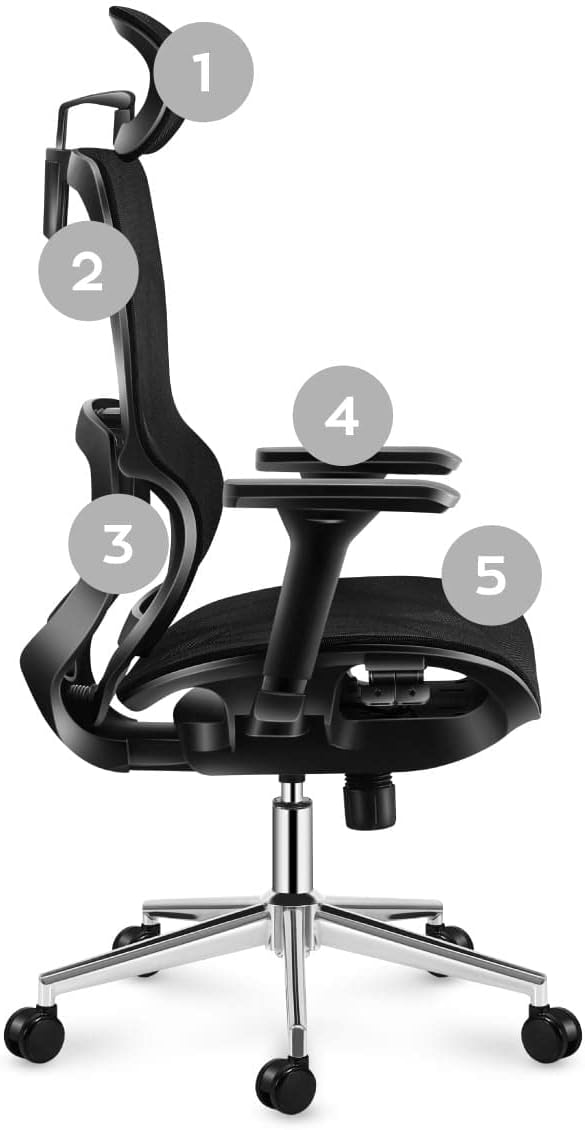

Imaj: Eksploze view konpozan chèz pou asanblaj.
4. Enstriksyon Asanble
Follow these steps to assemble your MARK ADLER Expert 6.2 office chair:
- Mete wou yo nan baz la: Insert the casters into the holes at the end of each leg of the star base. Push firmly until they click into place.
- Mete asansè gaz la: Mete silenn asansè gaz la nan twou santral baz zetwal la.
- Mete akoudwa yo nan chèz la: Fikse akoudwar yo anba kousen chèz la avèk vis yo bay yo. Asire w ke yo oryante kòrèkteman (agoch ak adwat).
- Mete dosye a nan chèz la: Align the backrest with the seat mechanism and secure it with screws.
- Mete apui tèt la: Glise apui-tèt la nan fant ki fèt pou sa anlè dosye a.
- Konekte Asanblaj Syèj la ak Asansè Gaz la: Carefully place the assembled seat and backrest onto the gas lift cylinder. Press down firmly to secure.
- Tcheke final la: Asire w tout vis yo sere byen epi chèz la stab anvan w itilize li.
5. Operasyon Enstriksyon
Your MARK ADLER Expert 6.2 chair offers several adjustment features for optimal comfort and ergonomics:
- Ajisteman wotè chèz: Locate the lever on the right side, under the seat. Pull the lever up to raise the chair (when no weight is on it) or lower it (when seated). Release the lever to lock the height.
- Backrest Recline and Lock (SeatRest Mulitlock-Funktion): The mechanism allows the backrest to tilt to any desired position. Pull the recline lever (typically on the left side, under the seat) to unlock the recline. Lean back to your desired angle, then push the lever down to lock the backrest in place.
- Apo tèt reglabl: The headrest can be adjusted vertically to provide proper support for your neck and head. Simply slide it up or down to your preferred height.
- Sipò lonbèr: The flexible, ergonomic lumbar support is designed to provide adequate support to your spine. This feature automatically adjusts with your posture to maintain spinal alignment.
- Ajisteman akoudwar: The armrests are adjustable. Look for a button or lever on the side of the armrest to adjust their height.
Image: Detail of the chair's recline and headrest adjustment.
6. Antretyen ak Swen
To ensure the longevity and optimal performance of your MARK ADLER Expert 6.2 office chair, follow these maintenance guidelines:
- Netwayaj: Pou pati may ak twal yo, sèvi ak yon twal mou.ampened with mild soap and water. Avoid harsh chemicals or abrasive cleaners. For the metal parts, wipe with a dry or slightly damp twal.
- Enspeksyon regilye: Periodically check all screws, bolts, and connections to ensure they are tight. Retighten any loose fasteners to maintain stability and safety.
- Swen Roulèt: Clean the casters regularly to remove hair, dust, and debris that can impede smooth movement.
- Evite Surcharge: Do not exceed the chair's maximum weight capacity.
- Kondisyon anviwònman: Keep the chair away from direct sunlight, excessive heat, or humidity, which can damage the materials.
NAN. Depanaj
Si ou rankontre nenpòt pwoblèm ak chèz ou a, gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Chèz la pa ajiste wotè a | Gas lift cylinder malfunction or lever issue. | Asire w levye a byen angaje. Si pwoblèm nan pèsiste, ou ka bezwen ranplase asansè gaz la. |
| Chèz la ap tranble oswa li pa estab | Vis ki lach oswa move asanblaj. | Tcheke epi sere tout vis asanblaj yo, sitou sa yo ki konekte chèz la, dosye a, ak akoudwa yo. |
| Rou yo pa woule san pwoblèm | Debri kole nan wou yo oubyen wou yo domaje. | Retire tout cheve oswa debri ki sou wou yo. Si yo domaje, ranplase wou yo. |
| Bri ki fè bri | Koneksyon ki lach oswa friksyon ant pati yo. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts if necessary, avoiding contact with mesh or fabric. |
8. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | MARK ADLER |
| Non modèl | Ekspè 6.2 |
| Dimansyon pwodwi (L x W x H) | 49 x 70 x 131 cm (apeprè 19.3 x 27.6 x 51.6 pous) |
| Pwa atik | 17 kilogram (apeprè 37.5 liv) |
| Koulè | Nwa |
| Materyèl | Air Mesh HD Material |
| Kapasite maksimòm pwa | 150 kg (apeprè 330 lbs) |
| Karakteristik espesyal | Adjustable Headrest, Lumbar Support, Reclining Backrest with Lock, Breathable Mesh |
Image: MARK ADLER Expert 6.2 chair with key dimensions.
9. Garanti ak sipò
For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official MARK ADLER websit la. Ou kapab kontakte vandè a dirèkteman tou pou jwenn asistans.
