ANNKE 8CH 3K Lite eSSD Digital Video Recorder User Manual

1. Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your ANNKE 8CH 3K Lite eSSD Digital Video Recorder (Model ASD810). Please read this manual thoroughly before using the product to ensure proper functionality and to maximize its lifespan. Keep this manual for future reference.

2. Ki sa ki nan bwat la

Verifye ke tout atik ki nan lis anba a yo enkli nan pakè ou a. Si gen nenpòt atik ki manke oswa ki domaje, tanpri kontakte sèvis kliyan ANNKE.

• 1x ANNKE 3K Lite eDVR with 1TB SSD
• 1x HDMI kab
• 1x Kab Rezo
• 1x 12V pouvwa adaptè
• 1x Sticker Miray
• 1x Manyèl Itilizatè (dokiman sa a)
• 1x USB sourit

Figi 2.1: Sa ki pakè
This image displays the ANNKE 3K Lite eDVR unit along with its accessories: a power adapter, a USB mouse, an HDMI cable, a network cable, and the user manual.

3. Pwodwi souview

3.1 Panèl devan

The front panel of the DVR features indicator lights that provide status information:

• Endikatè pouvwa: Illuminates yellow when the DVR is powered on. This light should always be yellow during operation.
• Data Transmission Indicator: Illuminates red when data is being transmitted. This indicates active recording or data transfer.
• Network Connection Indicator: Flickers yellow when the network connection is functioning properly. This light should flicker during normal network activity.

3.2 Panèl dèyè

The rear panel provides various ports for connecting cameras, displays, and network devices:

• Video Input Ports (BNC): Multiple ports for connecting analog security cameras.
• Sòti VGA: For connecting to a monitor or display via a VGA cable.
• Sòti HDMI: For connecting to a high-definition monitor or TV via an HDMI cable.
• Network Interface (RJ45): For connecting the DVR to your local network or the internet.
• Pò USB: For connecting the included USB mouse, external storage devices, or other USB peripherals.
• Antre pouvwa: For connecting the 12V power adapter.
• Tèminal tè: For grounding the device to prevent electrical surges.

4. Enstalasyon

Follow these steps to set up your ANNKE eSSD DVR:

1. Konekte Kamera yo: Connect your analog security cameras to the BNC video input ports on the rear panel.
2. Konekte Ekspozisyon: Connect a monitor or TV to the DVR using either the HDMI or VGA output port.
3. Konekte sourit: Plug the included USB mouse into one of the USB ports on the rear panel.
4. Konekte rezo: Connect the DVR to your router or network switch using the provided network cable.
5. Konekte pouvwa: Plug the 12V power adapter into the power input port on the rear panel, then plug the adapter into a power outlet. The power indicator on the front panel should turn yellow.
6. Premye konfigirasyon: Swiv enstriksyon ki parèt sou ekran an pou w konplete konfigirasyon inisyal la, tankou konfigirasyon yon modpas, yon zòn tan, ak paramèt rezo.

5. Opere DVR la

Once set up, you can operate your DVR using the connected mouse and monitor, or remotely via the ANNKE app on compatible devices (smartphone, tablet, laptop, desktop).

• Viv View: Access the live feed from all connected cameras on your display or through the ANNKE app.
• Anrejistreman: The DVR is configured for 24/7 recording. You can adjust recording schedules and settings through the system menu.
• Lektur: Sèvi ak fonksyon lekti a pou re-repwoduiview anrejistre footage. The 1TB eSSD provides ampdepo pou peryòd anrejistreman pwolonje.
• Deteksyon Mouvman: Configure AI Human/Vehicle Detection settings to receive alerts and trigger recordings only when relevant motion is detected.
• Aksè Remote: Download the ANNKE app to view live feeds, playback recordings, and manage settings from anywhere with an internet connection.

Figure 5.1: Multi-Platform Remote Access
This image illustrates the capability to monitor your security system remotely using various devices such as smartphones, tablets, and laptops.

6. Karakteristik kle

6.1 Embedded SSD (eSSD) Technology

The ANNKE DVR utilizes advanced eSSD technology, offering significant advantages over traditional Hard Disk Drives (HDDs):

• Dirab amelyore: eSSDs are less susceptible to shock and vibration, leading to a service life of over 10 years, compared to 4-5 years for HDDs.
• Pèfòmans amelyore: Designed NAND enhances read/write capacity for more efficient data handling.
• Efikasite enèji: eDVRs consume approximately 45% less energy than traditional DVRs, saving 40-45 KWh/year.
• Konsepsyon kontra enfòmèl ant: Chip-level eSSD technology allows for a smaller, lighter DVR unit.

Figure 6.1: eSSD vs. HDD Comparison
This image highlights the transition from traditional HDDs to embedded SSDs for improved performance and reliability.

Figure 6.2: Advanced eSSD Benefits
This image outlines the core advantages of advanced eSSD technology, including durability, shock resistance, energy efficiency, and ease of setup.

Figure 6.3: Energy Savings with eDVR
This image illustrates the environmental benefits of the eDVR, highlighting its reduced energy consumption compared to traditional DVRs.

6.2 AI Human/Vehicle Detection

The DVR features advanced AI detection capabilities to accurately identify humans and vehicles, minimizing false alarms caused by animals or environmental factors. This allows for more precise alerts via app push notifications, email, or buzzer.

Figure 6.4: AI Human/Vehicle Detection in Action
This image demonstrates the DVR's ability to accurately detect and highlight human and vehicle presence in a surveillance feed.

6.3 H.265 Smart Bitrate Control

The 8-channel DVR employs H.265 video compression and smart bitrate control algorithms. This technology adapts the bitrate based on scene complexity (e.g., presence of humans/vehicles), ensuring efficient storage and longer recording times on the 1TB eSSD without manual adjustments.

Figure 6.5: Smart Bitrate Control
This image illustrates how the DVR's SmartMind Classification and H.265 technology adapt bitrate based on scene activity, optimizing storage.

6.4 24/7 Continuous Recording

With the integrated 1TB eSSD, the DVR supports continuous 24/7 recording. For example, a 1TB eSSD can provide approximately 4 weeks of recording with 4 cameras, ensuring comprehensive surveillance coverage.

Figure 6.6: 24/7 Recording Capability
This image highlights the DVR's ability to record continuously around the clock, with remote viewing available via a smartphone.

6.5 Compact and Discreet Design

Thanks to its eSSD technology, the DVR is significantly smaller and lighter than traditional DVRs, making it easy to install discreetly on a shelf or even mounted on a wall without affecting your home's aesthetics.

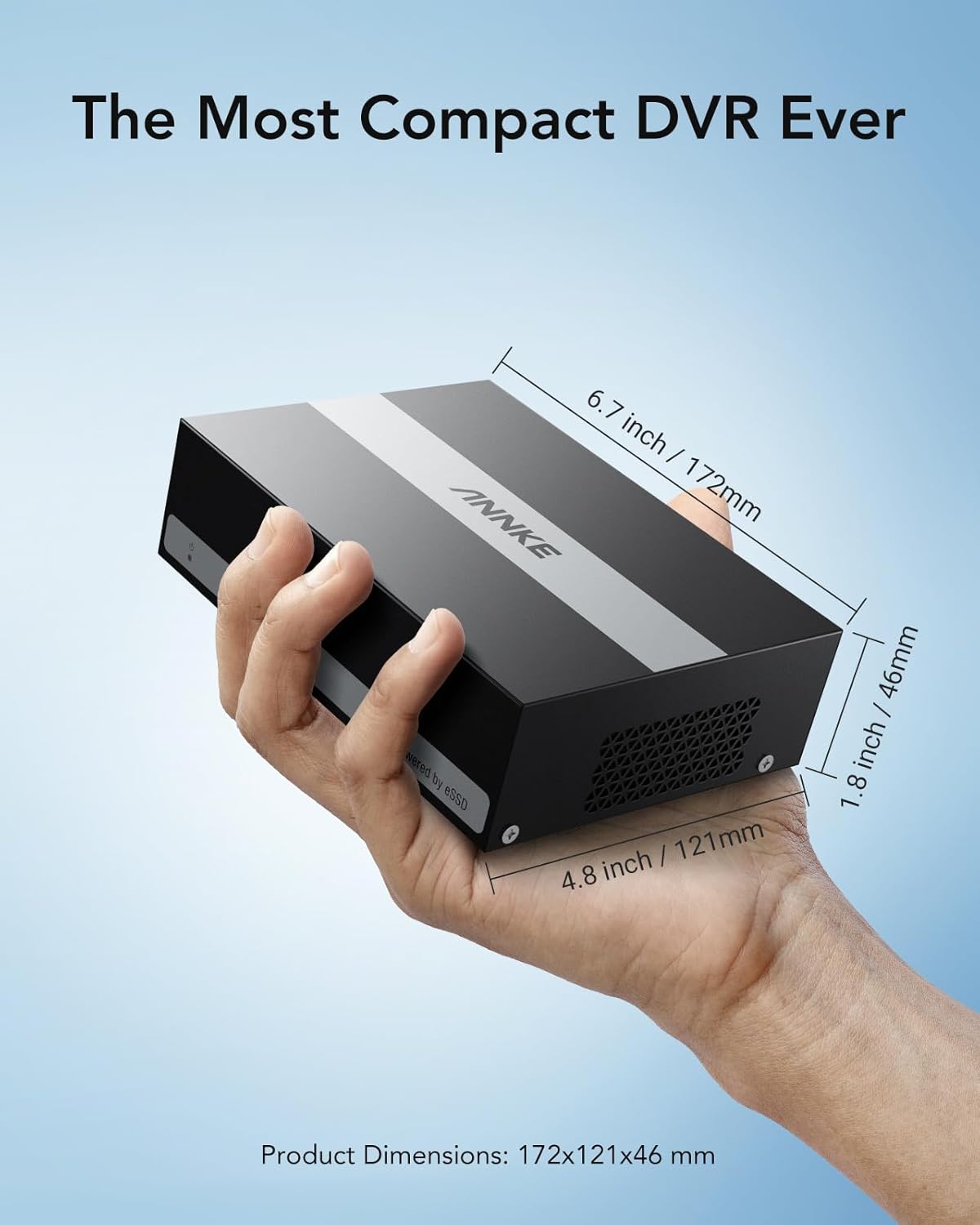

Figure 6.7: Compact DVR Dimensions
This image showcases the small, palm-sized design of the ANNKE DVR, making it easy to integrate into any environment.

7. Antretyen

Regular maintenance helps ensure the longevity and optimal performance of your DVR system:

• Kenbe pwòp: Periodically clean the exterior of the DVR with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions.
• Mizajou mikrolojisyèl: Tcheke ofisyèl ANNKE a website or app for available firmware updates. Keeping your firmware updated ensures the latest features and security patches.
• Sovgad done: Fè kopi done enpòtan yo regilyèmantage to an external storage device or cloud service to prevent data loss.
• Kondisyon anviwònman: Operate the DVR within recommended temperature and humidity ranges to prevent damage. Avoid direct sunlight or excessive heat.

NAN. Depanaj

If you encounter issues with your DVR, refer to the following common troubleshooting steps:

• Pa gen pouvwa: Ensure the power adapter is securely connected to the DVR and a working power outlet. Check if the power indicator light is yellow.
• Pa gen Sorti Videyo: Verify that the HDMI or VGA cable is securely connected to both the DVR and the display. Ensure the display input source is correctly selected.
• Pa gen koneksyon rezo: Check the network cable connection to the DVR and your router. Confirm the network indicator light is flickering yellow. Restart your router and DVR if necessary.
• Pwoblèm anrejistreman: Ensure cameras are properly connected and functioning. Check storage capacity on the 1TB eSSD. Review recording schedules and settings.
• Fo Alam: Adjust the sensitivity and detection zones for AI Human/Vehicle Detection in the DVR settings to reduce unwanted alerts.

For more complex issues, consult the comprehensive online FAQ on the ANNKE support websit la oubyen kontakte sipò teknik la.

9. Espesifikasyon

10. Garanti ak sipò

ANNKE products are designed for reliability and performance. Your ANNKE DVR comes with professional technical support to assist you with any questions or issues.

• Sipò teknik: ANNKE offers professional technical support. For assistance, please visit the official ANNKE support websit la oubyen kontakte ekip sèvis kliyan yo dirèkteman.
• Enfòmasyon sou garanti: Refer to the warranty card included in your package or the ANNKE official websit la pou wè tèm ak kondisyon garanti detaye yo.
• Sekirite Done: ANNKE ensures data security with local storage and bank-level encryption, complying with GDPR standards for safe data transfer.
