YARD FORCE 24V Cordless 3m High Branch Pruner LSC21P-JP Instruction Manual

1. Pwodwi souview ak Enfòmasyon sou Sekirite

This manual provides essential instructions for the safe and effective use of your YARD FORCE 24V Cordless 3m High Branch Pruner, model LSC21P-JP. Please read all instructions carefully before operation.

Avètisman Sekirite Jeneral

• Always wear appropriate personal protective equipment, including safety goggles, gloves, and sturdy footwear, when operating the pruner.
• Asire w ke zòn travay la pa gen moun ki la, timoun ak bèt kay.
• Do not operate the pruner in wet conditions or near flammable liquids or gases.
• Keep hands and feet away from the blade during operation.
• Before performing any maintenance or cleaning, ensure the battery is removed.
• The color of the product displayed may vary slightly from the actual product.

2. Pake kontni

Verifye ke tout atik ki nan lis anba a yo enkli nan pakè ou a:

• Main Pruner Unit
• Pruning Blade (Japanese-made)
• 24V ityòm-ion batri
• Adaptè chaje
• Belt zepòl
• Linèt sekirite
• Tool Shine Spray (may be included depending on seller)

Image 2.1: All components included with the YARD FORCE 24V Cordless 3m High Branch Pruner. This includes the main pruner unit, battery, charger, shoulder strap, safety goggles, and a bottle of tool cleaning spray.

3. Enstalasyon

Batri chaje

1. Connect the charging adapter to a power outlet.
2. Insert the 24V Lithium-ion battery into the charging adapter.
3. Allow approximately 80 minutes for a full charge. The indicator light on the charger will signal when charging is complete.

Asanble

The pruner requires simple, one-touch assembly. Refer to the diagrams in the physical manual for detailed steps. Ensure all connections are secure before use.

4. Operasyon Enstriksyon

Tache batri a

Slide the fully charged 24V Lithium-ion battery into the battery compartment on the pruner handle until it clicks securely into place.

Adjusting Length and Angle

The pruner's length is adjustable from 162cm to 305cm, allowing for versatile pruning of both high and low branches. To adjust, unlock the extension mechanism, extend or retract the pole to the desired length, and lock it securely. The handle angle can also be adjusted for optimal cutting at various angles.

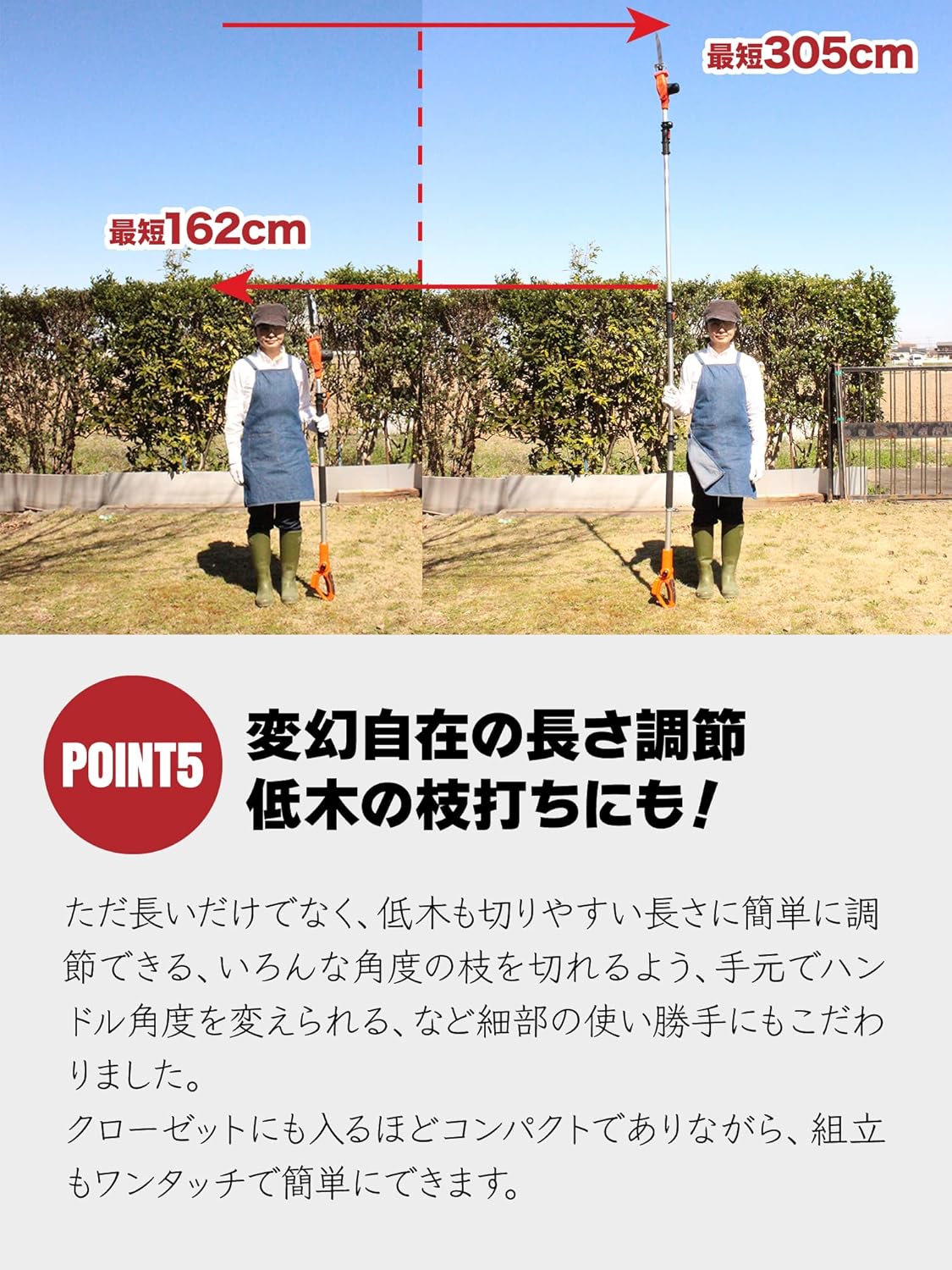

Image 4.1: The pruner shown at its minimum length of 162cm and maximum length of 305cm, demonstrating its adjustable reach.

Operating the Pruner

1. Chanjman doub sekirite: The pruner features a double switch mechanism to prevent accidental startup. To operate, you must engage both switches simultaneously.


Image 4.2: A user's hand demonstrating the operation of the double safety switch, ensuring safe activation.

2. Koupe teknik: Position the blade against the branch to be cut. Apply steady pressure and allow the blade to cut through the wood. The Japanese-made horizontal cutting blade is designed for efficient pruning of live wood, ensuring smooth cutting and effective chip removal.

Image 4.3: The pruner actively cutting a tree branch, showcasing its cutting capability.
3. Reach and Power: The 24V battery provides powerful cutting performance. The extended reach of up to 305cm allows access to high branches without the need for ladders.


Image 4.4: A person demonstrating the use of the extended pruner to reach and trim high branches.

5. Antretyen

Swen lam

• Regularly clean the blade after each use to remove sap and debris.
• For optimal performance and longevity, apply a rust-preventative oil or the included Tool Shine Spray to the blade.

Image 5.1: The Tool Shine Spray, designed for cleaning and maintaining garden tools, shown with examples of its effectiveness.
• Inspect the blade for any damage or dullness. Replace the blade if necessary.


Imaj 5.2: Yon imaj detaye view of the Japanese-made horizontal cutting blade, emphasizing its design for efficient pruning.

Depo batri

Sere batri a nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm. Pa sere batri ki fin dechaje nèt pou yon bon bout tan.

NAN. Depanaj

If you encounter issues with your YARD FORCE High Branch Pruner, refer to the following common troubleshooting steps:

• Pruner does not start: Ensure the battery is fully charged and correctly inserted. Verify that both safety switches are engaged simultaneously.
• Pèfòmans koupe ki pòv: Check the blade for sharpness and cleanliness. Remove any accumulated sap or debris. Ensure the blade is not damaged.
• Batri pa chaje: Confirm the charging adapter is properly connected to both the power outlet and the battery. Check for any damage to the charger or battery.

Pou plis asistans, tanpri kontakte sèvis kliyan.

7. Espesifikasyon

8. Garanti ak sipò

This YARD FORCE product comes with a 1-ane garanti bon jan kalite apati dat acha a. Tanpri konsève prèv acha ou pou reklamasyon garanti.

For technical support, warranty service, or replacement parts, please contact your retailer or the YARD FORCE customer service department.
