1. Pwodwi souview
The Techage 4K WiFi Security Camera (Model: TA-XM-PT825-80W-US) is an advanced 8MP pan-tilt wireless camera designed for comprehensive indoor and outdoor surveillance. It offers 24/7 recording capabilities, auto-tracking, color night vision, and smart home integration with Alexa. Equipped with two-way audio, a siren alarm, and a spotlight, this camera provides robust security features and real-time communication.

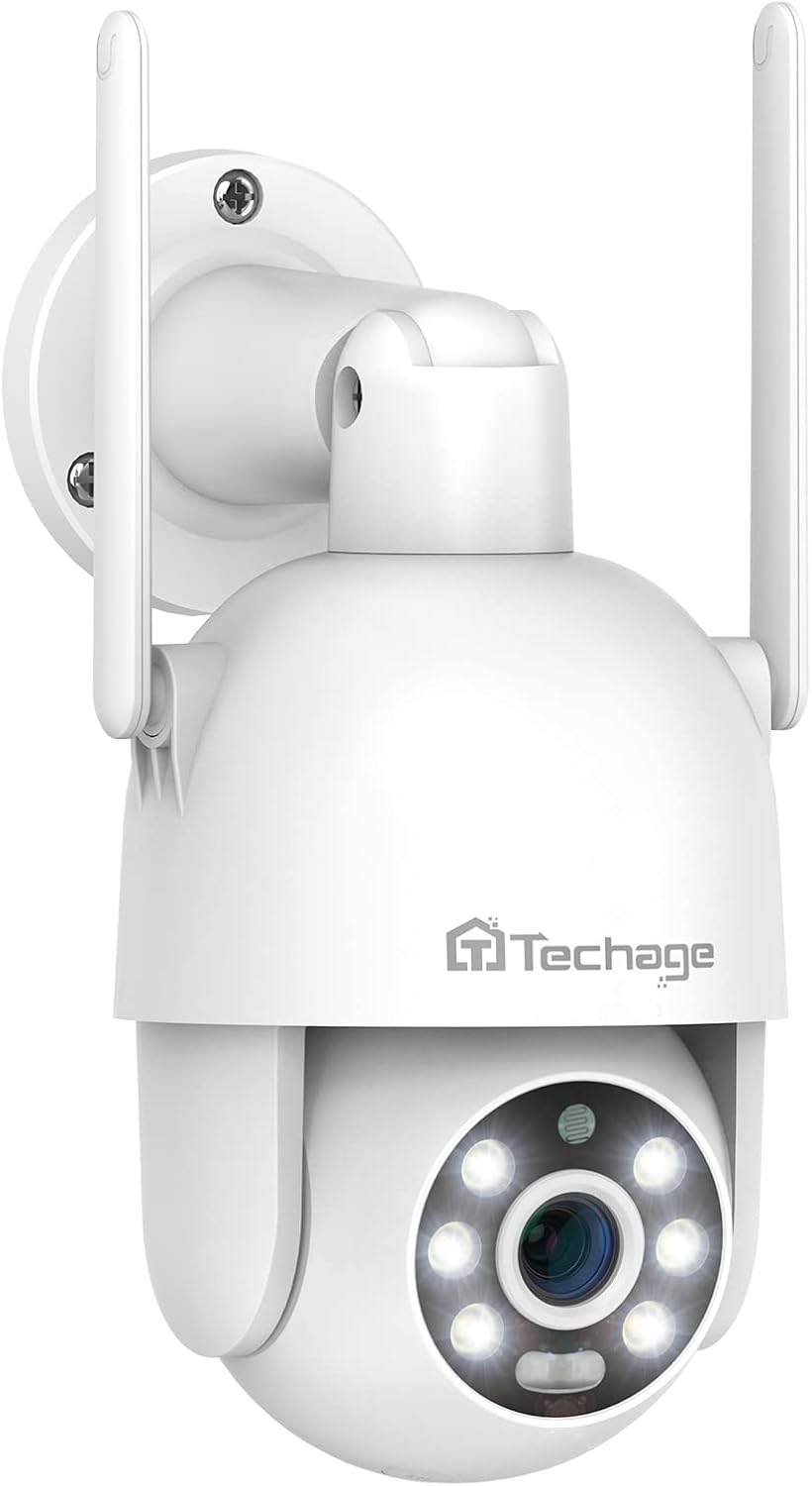

Figi 1.1: Devan view of the Techage 4K WiFi Security Camera, showcasing its dome design and dual antennas.
2. Pake kontni
Tanpri verifye sa ki nan pake a lè w ap debale l pou asire w tout bagay yo la:
- 1 x Techage WiFi Camera
- 1 x 3M Power Adapter
- 1 x Connector ki enpèmeyab
- 1 x pake Vis
- 1 x Manyèl Itilizatè (dokiman sa a)
- 1 x aliye modèl
- 1 x senti
Figure 2.1: Illustration of all items included in the product package.
3. Pwodwi konpozan
Familiarize yourself with the various parts of your security camera:
Figure 3.1: Labeled diagram of the camera's external features and ports.
- Oratè: For two-way audio communication and siren alarm.
- Bouton Reyajiste: Itilize pou retabli kamera a nan paramèt faktori yo.
- TF Kat plas: For local storage using a MicroSD card.
- Pò RJ45: Pò Ethernet pou koneksyon rezo filaire.
- DC 12V pò: Power input for the camera.
- Mikwofòn: Pou kominikasyon odyo de-fason.
- 2K Lens: High-definition optical lens.
- 6pcs White LEDs / 6pcs Array LEDs: Provide illumination for color night vision and spotlight function.
- Red & Blue lights: Indicator lights, also part of the alarm system.
- Smart IR-cut: Automatically switches between day and night modes.
- Plastic IP66 Waterproof: Ensures durability and weather resistance for outdoor use.
4. Gid Enstalasyon
4.1 Enstalasyon Fizik
The camera can be wall-mounted. Use the provided mounting template and screws for secure installation.
- Choose a suitable location for installation, ensuring good Wi-Fi signal coverage if using wireless connection.
- Use the mounting template to mark drill holes on the wall.
- Fè twou yo epi mete ploge miray yo si sa nesesè.
- Fikse baz kamera a sou miray la avèk vis yo bay yo.
- Connect the waterproof connector to protect the cables if installing outdoors.
4.2 Koneksyon pouvwa
Connect the provided 3M power adapter to the DC 12V port on the camera and plug it into a power outlet.
4.3 Enstalasyon ak koneksyon aplikasyon an
The camera primarily uses the ICSEE App for setup and control. It is compatible with both Tablet and Smartphone devices.
- Download the "ICSEE" app from your device's app store (Google Play Store for Android, Apple App Store for iOS).
- Anrejistre yon kont epi konekte.
- Follow the in-app instructions to add your camera. This typically involves scanning a QR code on the camera or connecting via Wi-Fi pairing.
4.4 Rezo Koneksyon
The camera supports Wi-Fi connectivity. For initial setup, a wired connection via the RJ45 port might be easier, then switch to Wi-Fi.
- Koneksyon Wi-Fi: During app pairing, select the Wi-Fi option and enter your network credentials. Ensure the camera is within range of your Wi-Fi router.
- Koneksyon filaire: Connect an Ethernet cable from your router to the camera's RJ45 port. The camera will automatically connect to the network.
5. Operasyon Enstriksyon
5.1 Kontwòl Panoramik ak Enklinasyon
The camera features 355° pan and 90° tilt capabilities, providing a 360° full view of the monitored area. You can remotely control the camera's movement via the ICSEE mobile application.
Figure 5.1: Remote pan and tilt control via mobile application.
5.2 Odyo De-fason
With a built-in speaker and microphone, the camera supports real-time two-way audio communication. This allows you to listen in on the camera's surroundings and speak through the camera from your mobile device.
Figi 5.2: Egzample nan kominikasyon odyo bidireksyonèl.
5.3 Mòd Vizyon Lannwit
The camera offers versatile night vision capabilities to ensure clear monitoring in various lighting conditions:
- Vizyon Lajounen: Full color, high-definition video during daylight hours.
- Vizyon lannwit koulè: Utilizes built-in white lights to provide full-color video even in low-light conditions.
- IR Vizyon lannwit: Infrared mode for clear black-and-white video in complete darkness.
Figure 5.3: Comparison of different night vision modes.
5.4 Humanoid Motion Auto Tracking
When the camera detects a moving person, it will automatically track the target across its 355° pan and 90° tilt range until the target is out of view or the set tracking duration ends. The camera will return to its preset position after tracking.
5.5 Smart Spotlight and Siren Alarm
For enhanced security, the camera can automatically activate its spotlight and siren alarm when motion is detected in the monitoring area. Accurate real-time notifications will be sent to your ICSEE App.
Figure 5.4: Spotlight and siren alarm in action.
5.6 Depo Videyo
Recorded video can be stored in two ways:
- Kat MicroSD: Insert a compatible MicroSD card (not included) into the TF card slot for local storage.
- Depo nwaj: The camera supports cloud storage services (subscription may be required). Refer to the ICSEE app for details on cloud storage options.
5.7 Smart Home Integration (Alexa)
The camera can work with Amazon Alexa, allowing for voice control and integration into your smart home system. You can ask Alexa to show you the camera feed on compatible devices.
Figure 5.5: Camera integration with Amazon Alexa.
5.8 Third-Party Software Compatibility
The camera supports RTSP, FTP, DHCP, NTP, and UPNP protocols, making it compatible with most NVR systems and third-party software such as Ispy, Blue Iris, and Tinycam. This allows for flexible integration into existing surveillance setups.
6. Antretyen
- Netwayaj: Siye lantiy kamera a ak kò a dousman avèk yon twal mou epi sèk. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
- Mizajou mikrolojisyèl: Regularly check for firmware updates via the ICSEE app to ensure optimal performance and security.
- Reyajiste kamera a: If you encounter persistent issues, you may need to reset the camera to factory settings using the reset button (refer to Section 3 for location). Note that this will erase all settings and require re-pairing.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Kamera a pa limen. | Pa gen kouran, adaptè ki defektye, koneksyon ki lach. | Check power outlet, ensure adapter is securely connected to camera and power source. |
| Pa ka konekte ak Wi-Fi. | Incorrect Wi-Fi password, camera too far from router, 5GHz network. | Verify Wi-Fi password, move camera closer to router, ensure router is broadcasting 2.4GHz Wi-Fi (camera does not support 5GHz). Reset camera and try pairing again. |
| No video feed. | Pwoblèm rezo, kamera pa konekte, pwoblèm aplikasyon an. | Check network connection, restart camera, restart ICSEE app. |
| Odyo bidireksyonèl la pa fonksyone. | Microphone/speaker blocked, app permissions, volume settings. | Ensure nothing is obstructing microphone/speaker, check app permissions for audio, adjust volume settings in app. |
| Motion detection not triggering. | Sensitivity settings, detection zone, environmental factors. | Adjust motion detection sensitivity and detection zones in the app. Ensure no obstructions in the field of view. |
8. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Non modèl | TA-XM-PT825-80W-US |
| Rezolisyon Capture Videyo | 4K (8MP) |
| Koneksyon Teknoloji | Wireless (Wi-Fi), Wired (RJ45) |
| Kominikasyon san fil | Wi-Fi (2.4GHz) |
| Pan / Panche Range | 355° Pan, 90° Panche |
| Viewing Ang | 360 Degrees (combined pan/tilt) |
| Vizyon lannwit | Color Night Vision (White LEDs), IR Night Vision (Infrared) |
| Karakteristik espesyal | Night Vision, Motion Sensor, Auto Tracking, Spotlight, Siren Alarm, Two-Way Audio |
| Opsyon Depo | MicroSD Card, Cloud Storage |
| Aparèy konpatib | Tablet, Smartphone, NVR, Amazon Alexa |
| Kalite kontwolè | Amazon Alexa, ICSEE App |
| Faktè fòm | Dome |
| Kalite enstalasyon | Wall Mount (Self Adhesive listed, but wall mount is more accurate for this type of camera) |
| Dimansyon (L x W x H) | 16.08 x 12.98 x 9.86 cm |
| Pwa | 712 g |
| Koulè | Blan |
| Sous pouvwa | DC 12V (No Batteries Required) |
| Operating Protocols | RTSP, FTP, DHCP, NTP, UPNP |
9. Garanti ak sipò
Techage provides a 1-ane garanti for this product. Additionally, lifetime support is available via US local phone call or Amazon email service.
If you have any questions, concerns, or require technical assistance, please do not hesitate to contact Techage customer support. Refer to your purchase documentation or the Techage official websit la pou jwenn enfòmasyon kontak ki pi resan yo.
