Entwodiksyon
This manual provides detailed instructions for the installation, operation, and maintenance of your Craftmade Chandler 52" Indoor Smart Ceiling Fan. This fan features an integrated dimmable LED light, reversible blades, and can be controlled via remote or integrated Wi-Fi for smart home compatibility. Please read this manual thoroughly before installation and use to ensure safe and proper operation.
Enfòmasyon sou Sekirite
Always follow basic safety precautions when installing and operating electrical appliances. Failure to do so may result in fire, electric shock, or personal injury.
- Asire w ke disjonktè a dekonekte kouran an anvan enstalasyon oswa antretyen.
- Tout fil elektrik yo dwe an akò ak kòd elektrik nasyonal ak lokal yo.
- Konsilte yon elektrisyen kalifye si ou pa sèten sou pwosedi fil elektrik yo.
- The fan must be mounted to a ceiling joist or support structure capable of supporting the fan's weight.
- Pa fè vantilatè a fonksyone si fil elektrik oswa konpozan yo domaje.
- Kenbe men, rad ak lòt objè lwen lam vantilatè a lè l ap fonksyone.
- Pwodui sa a gen pwodui chimik Eta Kalifòni konnen ki lakòz kansè ak domaj nesans oswa lòt domaj repwodiktif.
Kontni pake
Verify that all components listed below are present and undamaged before beginning installation.
- Asanble motè
- Lam fanatik (5)
- Blade Arms (5)
- Light Kit with Dimmable LED
- Fluted Clear Glass Bowl
- Remote Control (WIDC Handheld)
- Pake pyès ki nan konpitè (vis, rondelles, boulon fil, elatriye)
- Gid enstalasyon
Image: The Craftmade Chandler 52" Ceiling Fan, showcasing its satin brass motor housing, five dark wood reversible blades, and integrated fluted clear glass LED light kit.
Enstalasyon ak Enstalasyon
This section outlines the steps for assembling and installing your ceiling fan. It is recommended to have two people for installation.
1. Prepare pou Enstalasyon
- Koupe kouran an nan disjonktè prensipal la.
- Ensure the mounting location can support the fan's weight (approximately 14.9 pounds).
- Depake tout konpozan yo epi mete yo sou yon sifas mou epi pwòp pou evite reyur.
2. Monte Support a
- Secure the mounting bracket to the ceiling electrical box. Ensure the box is rated for ceiling fan support.
- The fan supports Doub mòn installation (Flat or Angled Ceiling up to 23°). Follow the specific instructions in the included installation guide for your chosen mounting type.
3. Rasanble fanatik la
- Attach the fan blades to the blade arms using the provided screws. The blades are reversible (Flat Black/Walnut).
- Secure the blade arms to the motor housing.
- Connect the light kit to the fan motor assembly.
- Install the fluted clear glass bowl onto the light kit.
4. Wiring the Fan
- Carefully follow the wiring diagram provided in the separate installation guide.
- Connect the fan's wires to the household wiring using the wire nuts. Ensure all connections are secure.
- Mete tout fil yo nètman nan bwat elektrik la.
5. Final Asanble
- Lift the fan assembly and hang it on the mounting bracket.
- Fikse kouvèti a sou sipò montaj la.
- Ensure all screws are tightened and the fan is stable.

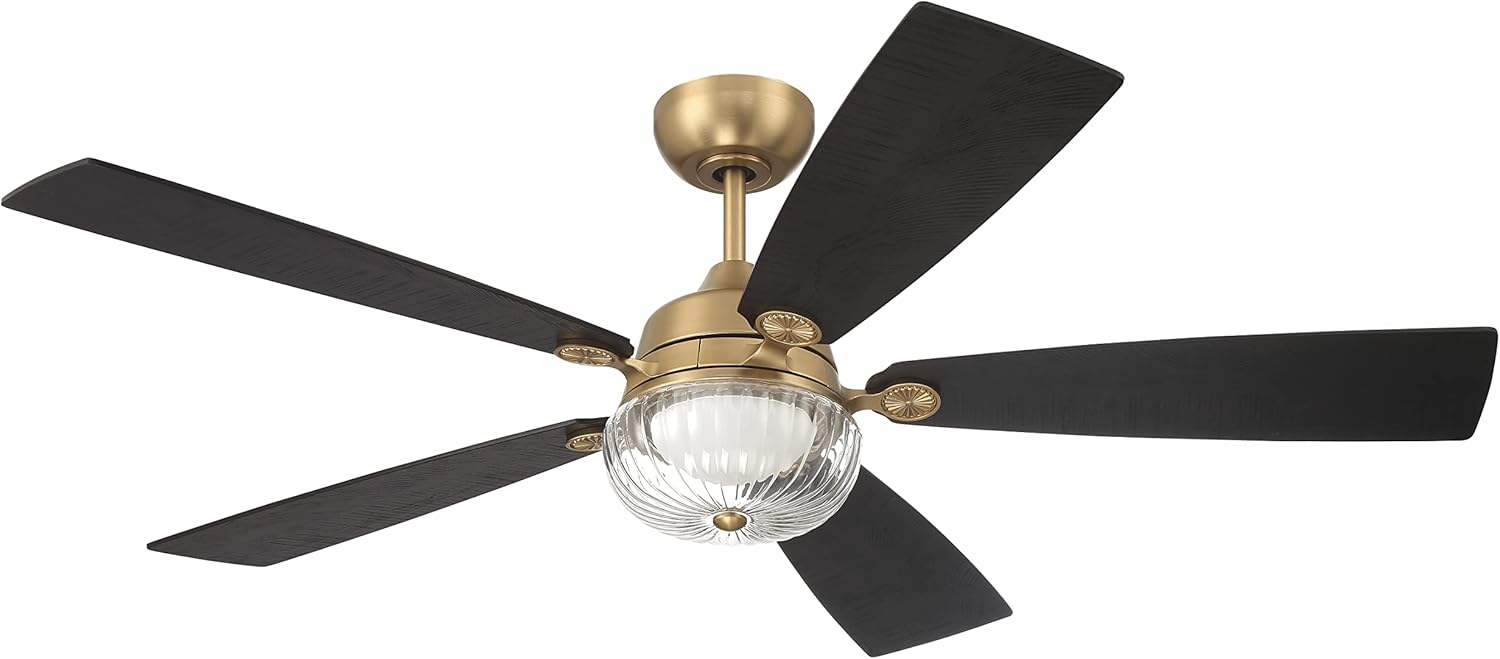

Imaj: Yon moun ki pi pre view of the Craftmade Chandler 52" Ceiling Fan, emphasizing the texture of the reversible blades and the decorative elements of the satin brass finish.
Enstriksyon Operasyon
Your Craftmade Chandler ceiling fan offers multiple control options for convenience.
Sèvi ak kontwòl remote la
The included WIDC Handheld Control allows full operation of the fan and light functions.
- Fan On / Off: Peze bouton vantilatè a pou limen oswa etenn vantilatè a.
- Vitès fanatik: Use the speed buttons to cycle through 6 available speeds.
- Light On/Off/Dim: Press the light button to turn the LED light on or off. Hold the button to dim or brighten the light.
- Fan Direction (Reversible DC Motor): Locate the reverse switch on the fan motor housing (usually near the downrod). Flip the switch to change the blade direction for summer (downward airflow) or winter (upward airflow) operation.
- Fonksyon revèy: The remote may include a timer button to set the fan to turn off automatically after a set period. Refer to the remote's specific instructions.
Smart Home Integration (Wi-Fi Enabled)
The fan is Smart by Bond Wi-Fi enabled, allowing control via most smart phones and devices without an additional hub.
- Download the appropriate smart home application (e.g., Bond Home app) to your smartphone or tablet.
- Follow the in-app instructions to connect your fan to your home Wi-Fi network.
- Once connected, you can control fan speed, light, and set schedules or integrate with voice assistants (e.g., Alexa, Google Assistant).
- Features like "breeze" mode and advanced timer functions are available through the smart home app.
Antretyen
Antretyen regilye asire lonjevite ak pèfòmans optimal fanatik plafon ou a.
- Netwayaj: Pou netwaye vantilatè a, siye l ak yon twal mou.amp cloth. Do not use abrasive cleaners or solvents as they may damage the finish or blades. Ensure power is off before cleaning.
- Swen lam: Periodically check blade screws for tightness. Loose blades can cause wobbling and noise.
- Twous limyè: The integrated LED light is designed for long life and typically does not require replacement. If issues arise, consult the troubleshooting section or contact customer support.
- Motè: The DC motor is designed for quiet operation and requires no lubrication.
Depanaj
If you experience issues with your fan, refer to the following common problems and solutions.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Fanatik pa kòmanse | Pa gen kouran nan vantilatè a; Koneksyon fil ki lach; Pil kontwòl remote la fèb/mòde. | Tcheke disjonktè a; Asire w ke tout koneksyon fil yo byen fèm; Ranplase pil kontwòl remote la. |
| Fanatik tranble | Vis lam ki lach; Lam dezekilibwe; Sipò montaj ki lach. | Tighten all blade screws; Check for bent blade arms; Ensure mounting bracket is securely fastened. |
| Limyè pa travay | Loose wire connection to light kit; LED driver issue; Remote control battery low/dead. | Check light kit wiring; Contact customer support if LED driver is suspected; Replace remote control battery. |
| Remote kontwòl pa travay | Battery dead; Remote not paired with fan. | Replace battery; Refer to the remote's instructions for pairing procedures. |
| Pwoblèm koneksyon Wi-Fi | Incorrect Wi-Fi password; Router too far; Network interference. | Verify Wi-Fi password; Move router closer or use a Wi-Fi extender; Check for other devices causing interference. |
Espesifikasyon
| Mak | Fèt atizanal |
| Non modèl | Chandler |
| Nimewo Modèl | CHS52SB5 |
| Konsepsyon fanatik elektrik | Vantilatè plafon |
| Koulè | Satin kwiv |
| Dimansyon pwodwi | 52"D x 52"W x 16.37"H |
| Kantite lam | 5 |
| Materyèl lam | Enjenieri bwa |
| Kalite limyè | LED entegre ki ka reglabl (20W) |
| Wattage | 18 watts (fan), 20 watts (LED) |
| Voltage | 120 Volts |
| Kapasite Flow Air | 4370 pye kib pou chak minit |
| Metòd kontwòl | App, Remote (WIDC Handheld Control) |
| Karakteristik espesyal | LED Light, Programmable, Remote Controlled, Timer, Wi-Fi Enabled (Smart by Bond) |
| Kalite aliye | Dual Mount (Flat or Angled Ceiling up to 23°) |
| Itilizasyon Andedan kay la / Deyò | Andedan kay la |
| Pwa atik | 14.9 liv |
| Konpozan ki enkli | Motor, Blades, Hardware Pack, Installation Guide, Remote |
Garanti ak sipò
Enfòmasyon sou Garanti
All products purchased have a 30-day replacement parts policy to ensure a fully working item. All products are covered under a 1-ane garanti when purchased on Amazon. The warranty period begins on the day the product is originally shipped. The warranty covers all of the items and conditions identified in the original manufacturer's warranty. Some of the items specifically not covered by the warranty are loss and theft, water damage, customer abuse, and finish deterioration due to UV or coastal exposure. The product also carries a Garanti pou tout lavi limite.
Sipò pou Kliyan
For technical assistance, troubleshooting, or warranty claims, please contact Craftmade Customer Support:
- Telefòn: (800) 486-4892
- Sou entènèt: Vizite la Craftmade Store on Amazon pou plis enfòmasyon ak resous sipò.
