MEBUS Model 19450 Radio-Controlled Wall Clock Instruction Manual

Entwodiksyon

This manual provides essential information for the setup, operation, and maintenance of your MEBUS Model 19450 Radio-Controlled Wall Clock. This clock is designed to reliably display the time, along with current ambient temperature and humidity, contributing to a comfortable indoor environment.

Karakteristik pwodwi

• Konsepsyon modèn: Features a white dial with fine black numerals and scales. The hour and minute hands are black and rectilinear, while the second hand provides a modern red accent. The thermometer and hygrometer displays are integrated seamlessly.
• High-Quality Radio-Controlled Movement: Ensures reliable and accurate time display, automatically adjusting for daylight saving and standard time changes.
• Integrated Thermometer and Hygrometer: Provides at-a-glance readings of current ambient temperature in °C and humidity in percentage (%). This helps in maintaining optimal indoor climate for improved well-being.
• Medium-Sized Wall Clock: The round wall clock has a diameter of 29 cm (approximately the size of a pizza plate). The depth from the wall to the front edge is 4.5 cm.

Enstalasyon

1. Debake: Carefully remove the clock from its packaging. Inspect for any damage.

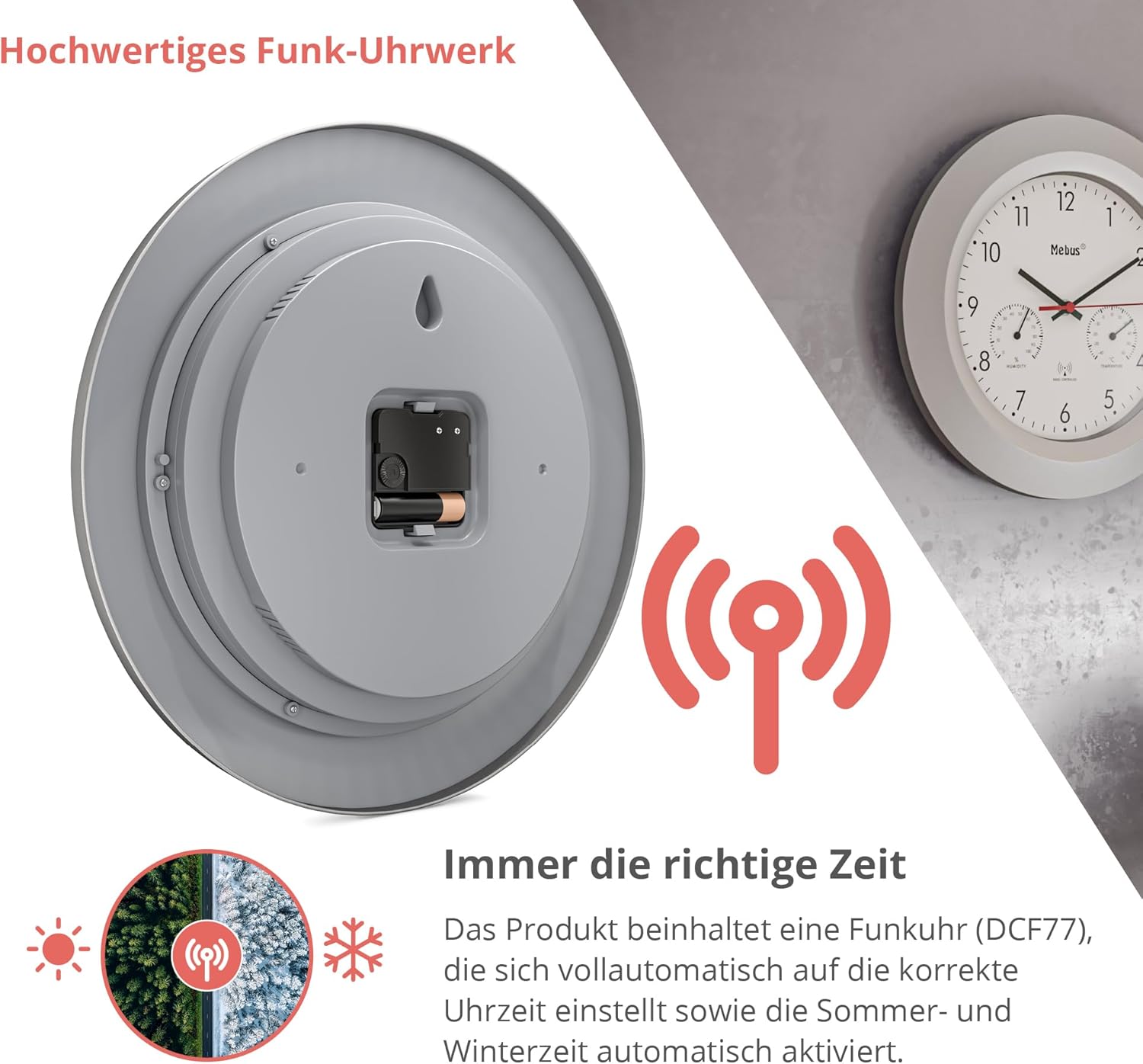

2. Enstalasyon batri: Locate the battery compartment on the back of the clock. Insert one (1) AA battery (not included), ensuring correct polarity (+/-).
3. Senkronizasyon inisyal: After inserting the battery, the clock will automatically set its hands to the 12 o'clock position and begin searching for the radio time signal (DCF77). This process can take several minutes to a few hours, depending on signal strength. Ensure the clock is placed in an area with good reception, away from electronic interference. Once the signal is received, the clock will automatically set to the correct time.

Enstriksyon Operasyon

Once the clock has successfully synchronized, it will continuously display the accurate time, temperature, and humidity.

• Li lè a: The large black hour and minute hands, along with the red second hand, clearly indicate the current time on the white dial.
• Lekti Tanperati: The lower right sub-dial displays the ambient temperature in degrees Celsius (°C).
• Reading Humidity: The lower left sub-dial displays the relative humidity in percentage (%).
• Automatic Time Adjustment: The radio-controlled movement automatically adjusts for daylight saving time (summer time) and standard time (winter time), eliminating the need for manual adjustments.

Antretyen

• Ranplasman batri: When the clock stops or the hands move erratically, it is time to replace the AA battery. Always use a fresh, high-quality battery.
• Netwayaj: Clean the clock's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
• Plasman: For optimal performance, place the clock indoors, away from direct sunlight, extreme temperatures, and strong electromagnetic fields.

Depanaj

• Clock Not Synchronizing / Incorrect Time:
  • Ensure the battery is fresh and correctly inserted.
  • Move the clock to a different location, preferably near a window, to improve radio signal reception.
  • Avoid placing the clock near large metal objects or electronic devices that may interfere with the signal.
  • If available, press the 'REC' button on the back of the clock to initiate a manual signal search.
  • Allow up to 24 hours for the clock to receive and process the time signal, especially during initial setup or after a battery change.
• Temperature/Humidity Not Displaying:
  • These are mechanical displays and do not require separate power. Ensure the clock is not exposed to extreme physical shock.
  • Allow some time for the sensors to adjust to the ambient conditions, especially after moving the clock to a new environment.

Espesifikasyon

• Mak: Mebus
• Nimewo Modèl: 19450
• Koulè: Silver frame, white dial
• Dyamèt: 29 cm
• Materyèl: Plastik
• Karakteristik: Humidity display, Temperature display, Large analog display
• Pwa atik: 515 g
• Dimansyon (L x W x H): 5 x 3.81 x 29.9 cm
• Sous pouvwa: 1x Pil AA (pa enkli)
• Kalite ekspozisyon: Analòg
• Fòm: Round
• Andedan kay la / Deyò Itilize: Andedan kay la sèlman
• Peyi orijin: Lachin

Garanti ak sipò

Specific warranty information and details regarding spare parts availability are not provided in the product documentation. For any issues or inquiries, please refer to your point of purchase or the official MEBUS website for potential support options.
