1. Enfòmasyon enpòtan sou sekirite
Please read and understand this entire instruction manual before attempting to assemble, operate, or install this electric fireplace. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
Prekosyon Sekirite Jeneral:
- This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
- Li nesesè anpil prekosyon lè yo itilize nenpòt aparèy chofaj pa oswa toupre timoun oswa envalid epi chak fwa yo kite chemine a fonksyone epi poukont li.
- Pa opere okenn aparèy chofaj ki gen yon kòd oswa ploge ki domaje, oswa apre aparèy chofaj la pa fonksyone byen, li te tonbe oswa domaje nan nenpòt fason.
- Pa pase kòd anba tapi. Pa kouvri kòd la ak tapi jete, kourè, oswa kouvri menm jan an. Fè aranjman pou kòd lwen zòn trafik la ak kote li pa pral tonbe sou li.
- Pou dekonekte aparèy chofaj la, etenn kontwòl yo, epi retire ploge a nan priz la.
- Pa mete oswa kite objè etranje antre nan nenpòt vantilasyon oswa ouvèti tiyo echapman paske sa ka lakòz yon chòk elektrik oswa dife, oswa domaje aparèy chofaj la.
- Pou anpeche yon dife posib, pa bloke admisyon lè oswa echapman nan okenn fason. Pa itilize sou sifas mou, tankou yon kabann, kote ouvèti yo ka bloke.
- This electric fireplace is equipped with an overheating protection feature that automatically shuts off the heater if the temperature exceeds 140°F (60°C). If this occurs, unplug the unit, wait 10 minutes, and then plug it back in.
Sekirite elektrik:
- This product is for use on 120 Volt, 60 Hz AC circuits. The cord has a plug as shown in the diagram.
- Toujou ploge aparèy chofaj yo dirèkteman nan yon priz/reseptak miray. Pa janm itilize ak yon kòd ekstansyon oswa tiyo kouran ki kapab deplase (priz/tire kouran).
- Asire w ke priz elektrik la byen konekte ak tè a.
2. Pwodwi souview
The BELLEZE 42-inch Electric Fireplace Heater provides warmth and ambiance with realistic flame effects. It can be installed as a recessed or wall-mounted unit.
Karakteristik kle:
- Pouvwa: 120V, 1400W heater.
- Enstalasyon: Recessed or Wall Mounted.
- Kouvèti chofaj: Warms rooms up to 400 square feet.
- Efè flanm dife: 16 flame colors and 16 ember bed colors. Flame and ember bed can glow separately.
- Kontwòl: Remote control and integrated touch screen.
- Anviwònman reglabl: 5 levels of brightness, 5 flame speeds, temperature settings (64°F to 82°F).
- Revèy: 1 to 9 hours timer control.
- Sekirite: CSA/UL certified with overheating protection.
Kontni pake:
- Electric Fireplace Unit (42-inch)
- Kontwòl Remote
- Mounting Hardware (brackets, screws, anchors)
- Manyèl itilizatè
- Crystal Stones (for ember bed)

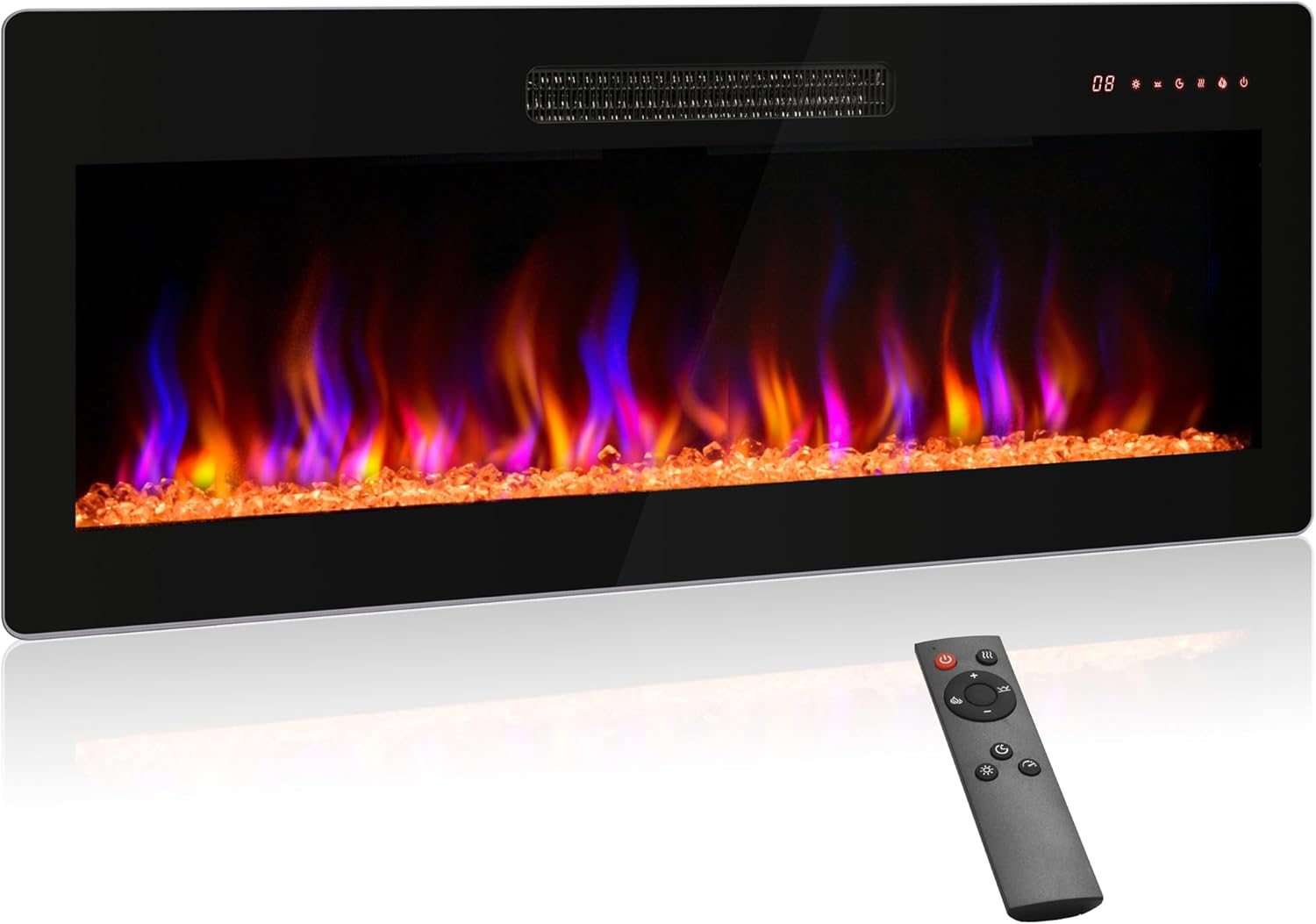

Image 2.1: The BELLEZE 42-inch Electric Fireplace Heater with its remote control, showcasing vibrant flame effects.
3. Enstalasyon ak Enstalasyon
Anvan enstalasyon:
- Ak anpil atansyon retire tout eleman nan anbalaj la.
- Inspect the unit and components for any damage. Do not install if damaged.
- Choose a suitable location for installation. Ensure it is away from combustible materials and has access to a grounded 120V outlet.
- Confirm the dimensions of the fireplace for your chosen installation method.
Image 3.1: Diagram showing the dimensions of the 42-inch electric fireplace: 42 inches (L) x 4.2 inches (W) x 16 inches (H).
Opsyon enstalasyon:
This fireplace can be installed as a wall-mounted unit or recessed into a wall.
Enstalasyon sou mi:
- Select a wall location that is sturdy and can support the weight of the fireplace.
- Mark the desired height and position for the mounting bracket on the wall. Ensure it is level.
- Fè twou gid epi byen sere sipò montaj la sou miray la avèk vis ak lank ki apwopriye yo.
- Carefully lift the fireplace unit and hook it onto the wall mounting bracket.
- Secure the bottom of the fireplace to the wall using the provided screws to prevent accidental dislodging.
Enstalasyon ankastre:
- Construct a framed opening in the wall with precise dimensions to fit the fireplace. Refer to the product dimensions for exact measurements.
- Ensure there is adequate clearance around the unit for ventilation and electrical connections.
- Slide the fireplace unit into the framed opening.
- Secure the fireplace to the framing using the provided screws through the designated mounting holes on the sides of the unit.
Image 3.2: Illustration demonstrating the process of wall-mounted installation for the electric fireplace.
4. Operasyon Enstriksyon
The fireplace can be operated using the touch screen controls on the unit or the included remote control.
Kontwòl Panel ak Remote Control:
Imaj 4.1: Detaye view of the fireplace's LED touch screen control panel and the full-function remote control, highlighting various buttons and their corresponding actions.
Operasyon debaz:
- Limen/Etenyen: Press the Power button on the control panel or remote to turn the unit on or off.
- Fonksyon chalè: Press the Heat button to activate the heater. Use the temperature settings to adjust the desired room temperature between 64°F and 82°F. The heater will cycle on and off to maintain the set temperature.
- Koulè flanm dife: Press the Flame button to cycle through 16 different flame colors.
- Ember Bed Color: Press the Ember Bed button to cycle through 16 different ember bed colors.
- Klate: Use the Brightness button to adjust the flame and ember bed brightness through 5 levels (L1-L5 for flame, D1-D5 for ember bed).
- Vitès flanm dife: Use the Speed button to adjust the flame movement speed.
- Fonksyon revèy: Press the Timer button to set the automatic shut-off timer from 1 to 9 hours. Continue pressing to cycle through options or turn off the timer.
- Mòd bèbè: Activate mute mode to silence operational sounds.
- Energy Conservation Mode: This mode optimizes energy usage.
Imaj 4.2: Plis paseview of the various control options available, including 5 flame settings, 5 brightness levels, 16 flame colors, 16 glowing crystal colors, LED touchscreen, mute mode, 1-9 hour timer, and energy conservation mode.
Image 4.3: Visual representation of the 16 available sparkling crystal flame colors and 16 ember bed colors.
Image 4.4: Depiction of the 5 faux flame brightness settings (L1 to L5) and ember bed brightness settings (D1 to D5).
5. Antretyen
Netwayaj:
- Toujou dekonekte kouran an anvan w netwaye.
- Siye sifas eksteryè yo ak yon mou, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa espre.
- Clean the air vents regularly with a vacuum cleaner or soft brush to prevent dust buildup.
- The glass panel can be cleaned with a soft cloth and glass cleaner.
Depo:
When not in use, store the fireplace in a dry, dust-free location. If storing for an extended period, it is recommended to cover the unit to protect it from dust.
NAN. Depanaj
If you experience issues with your electric fireplace, refer to the following table for common problems and solutions.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Chemine a pa limen. | No power to the unit; Power switch off; Overheating protection activated. | Ensure unit is plugged into a working 120V outlet. Check if the main power switch is on. Unplug, wait 10 minutes, then plug back in if overheating protection was triggered. |
| Pa gen pwodiksyon chalè. | Heater function not activated; Temperature setting too low; Air vents blocked. | Press the Heat button. Increase the desired temperature setting. Check and clear any obstructions from air vents. |
| Flames are not visible or dim. | Flame effect turned off; Brightness setting too low. | Press the Flame button to activate. Increase the brightness level using the Brightness button. |
| Remote kontwòl pa travay. | Pil yo mouri oswa yo mal mete; Gen obstak ant kontwòl remote la ak aparèy la. | Replace batteries. Ensure line of sight between remote and fireplace sensor. |
| Heater runs continuously, does not shut off at set temperature. | Thermostat malfunction; Room temperature not reaching set point. | Ensure the room is adequately insulated. If the issue persists, contact customer support for assistance. |
7. Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Mak | BELLEZE |
| Non modèl | ZF42D03F-G1 (050-HA-50042) |
| Dimansyon pwodwi | 4.2"D x 42"W x 16"H |
| Sous pouvwa | Fil elektrik |
| Pwodiksyon Chalè | 120 Vòlt, 1400 Watt |
| Kouvèti chofaj | Jiska 400 pye kare |
| Materyèl | Metal, Vè apeze |
| Fini Kalite | Poud kouvwi |
| Kalite enstalasyon | Ankastre & Mi monte |
| Karakteristik espesyal | Infrared, Adjustable Flame, Timer, Touch Screen |
| Koulè | Nwa |
| Kalite chanm | Sal k ap viv |
| Kalite vantilasyon | Anile gratis |
| Konpozan ki enkli | Kontwòl Remote |
| Pwa atik | 27.3 liv |
| Kalite brûler | Quartz |
| UPC | 192928035629 |
8. Garanti & Sipò
Enfòmasyon sou garanti:
This BELLEZE electric fireplace heater comes with a 1 ane garanti limiteTanpri konsève prèv acha ou a pou reklamasyon garanti. Garanti a kouvri domaj fabrikasyon nan itilizasyon nòmal.
Sipò Kliyan:
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact BELLEZE customer support. Refer to the contact information provided with your purchase or visit the official BELLEZE websit pou detay sipò.
