Entwodiksyon
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DuroMax XP15000HXT 15,000 Watt Tri Fuel Portable Generator. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.
The DuroMax XP15000HXT is a powerful tri-fuel generator designed to provide reliable power using gasoline, propane, or natural gas. It features a 50-amp plug, multiple 120V outlets, and a digital control center for monitoring performance. This generator is equipped with a CO Alert system for enhanced safety.
Enfòmasyon sou Sekirite
Always operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents, to prevent carbon monoxide poisoning. The generator is equipped with a CO Alert system that automatically shuts down the unit if harmful carbon monoxide levels are detected. Do not bypass or disable this safety feature.
- Danje monoksid kabòn: Generators produce carbon monoxide, an odorless, colorless gas that can kill.
- Danje chòk elektrik: Do not operate in wet conditions. Ensure all connections are secure and dry.
- Danje dife: Fuel is highly flammable. Refuel in a well-ventilated area with the engine off and cool.
- Sifas cho: Motè a ak silansye a vin cho pandan y ap fonksyone epi yo rete cho pou yon ti tan apre yo fin etenn li. Evite kontak.
Enstalasyon ak Asanble
Before first use, certain components must be assembled and fluids added. Refer to the included components list and follow these steps.
Eleman ki enkli:
- XP15000HXT Generator
- Antonwa lwil oliv
- Etensèl ploge kle
- Ansanm zouti
- Wheel & Handle Kit
- 15-Foot x 3/4-Inch Natural Gas Hose
- Propane regilatè
- Kontwòl Remote
- Manyèl Pwopriyetè a

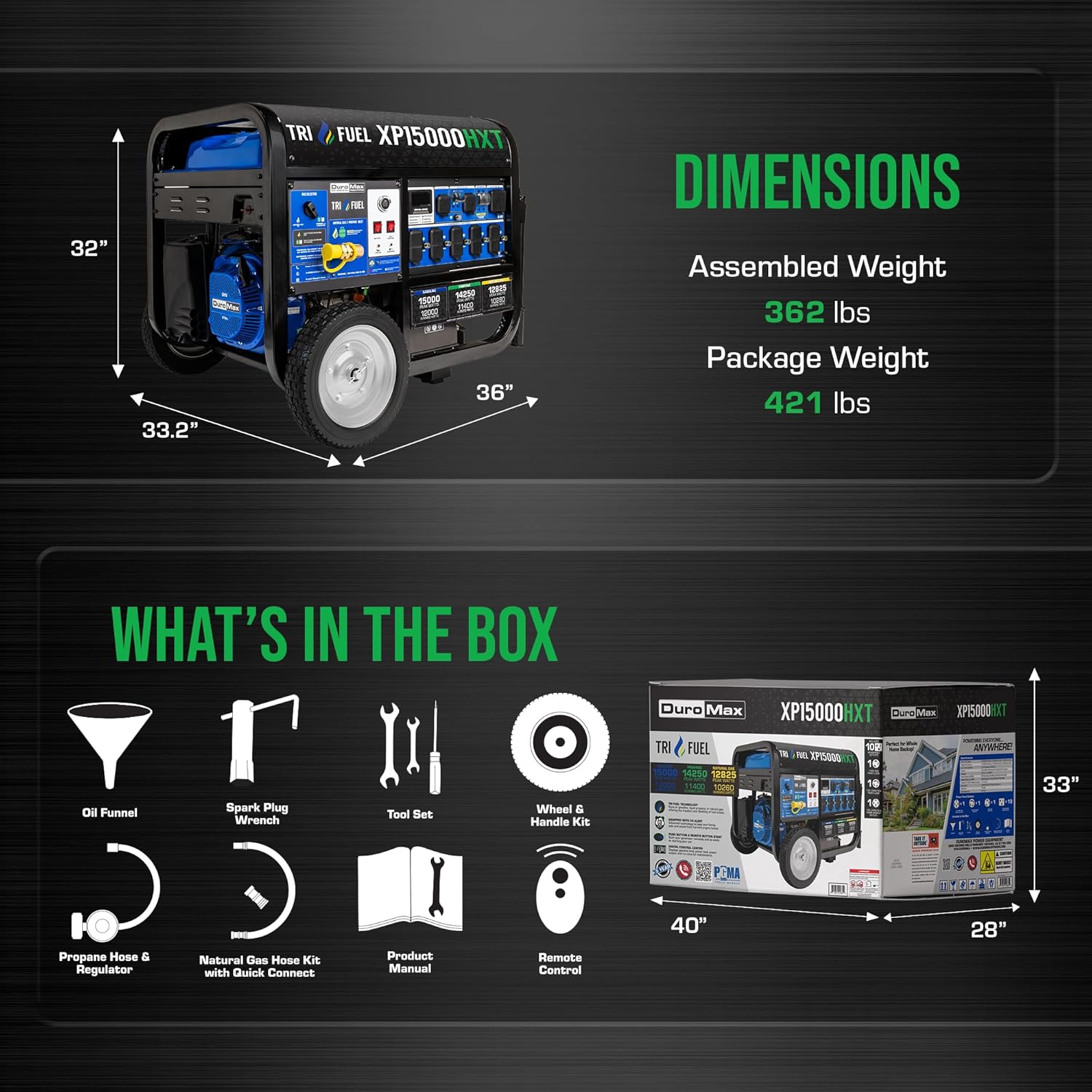

Image: Contents of the DuroMax XP15000HXT generator box, including the generator, oil funnel, spark plug wrench, tool set, wheel and handle kit, natural gas hose, propane regulator, remote control, and owner's manual.
1. Attach Wheels and Handles:
Install the wheel and handle kit using the provided tools. This will allow for easier portability of the generator.
Video: This video demonstrates the initial setup steps for a DuroMax generator, including attaching the wheels and handles.
2. Ajoute lwil motè:
The engine is shipped without oil. Add the recommended amount and type of engine oil (10W-30 SAE) using the provided oil funnel. Do not overfill.
3. Connect Battery:
Connect the battery terminals. Ensure positive (+) and negative (-) connections are correct to avoid electrical damage.
Imaj: Dèyè view of the DuroMax XP15000HXT generator showing the battery compartment.
Enstriksyon Operasyon
Your DuroMax XP15000HXT generator can operate on gasoline, propane, or natural gas. Always ensure the generator is placed on a level surface and in a well-ventilated outdoor area before starting.
Seleksyon gaz:
The generator features a front-facing fuel interface with a gas selector knob. Turn the knob to select your desired fuel type: Natural Gas, Propane, or Gasoline.
Image: Close-up of the DuroMax XP15000HXT generator's front-facing fuel interface, showing the gas selector knob for Natural Gas, Propane, or Gasoline.
Operasyon gazolin:
- Ensure the fuel selector is set to "Gasoline".
- Fill the fuel tank with fresh, unleaded gasoline. The tank capacity is 13.2 gallons.
- Pa ranpli twòp.
Propane Operation:
- Ensure the fuel selector is set to "Propane".
- Connect the propane regulator and hose to a propane tank and the generator's propane inlet.
- Louvri valv la sou tank pwopan an.
Image: Close-up of the DuroMax XP15000HXT generator showing the propane connection point with a hose attached to a propane tank.
Natural Gas Operation:
- Ensure the fuel selector is set to "Natural Gas".
- Connect the 15-foot x 3/4-inch natural gas hose to a natural gas supply and the generator's natural gas inlet.
- Ensure the natural gas supply valve is open.

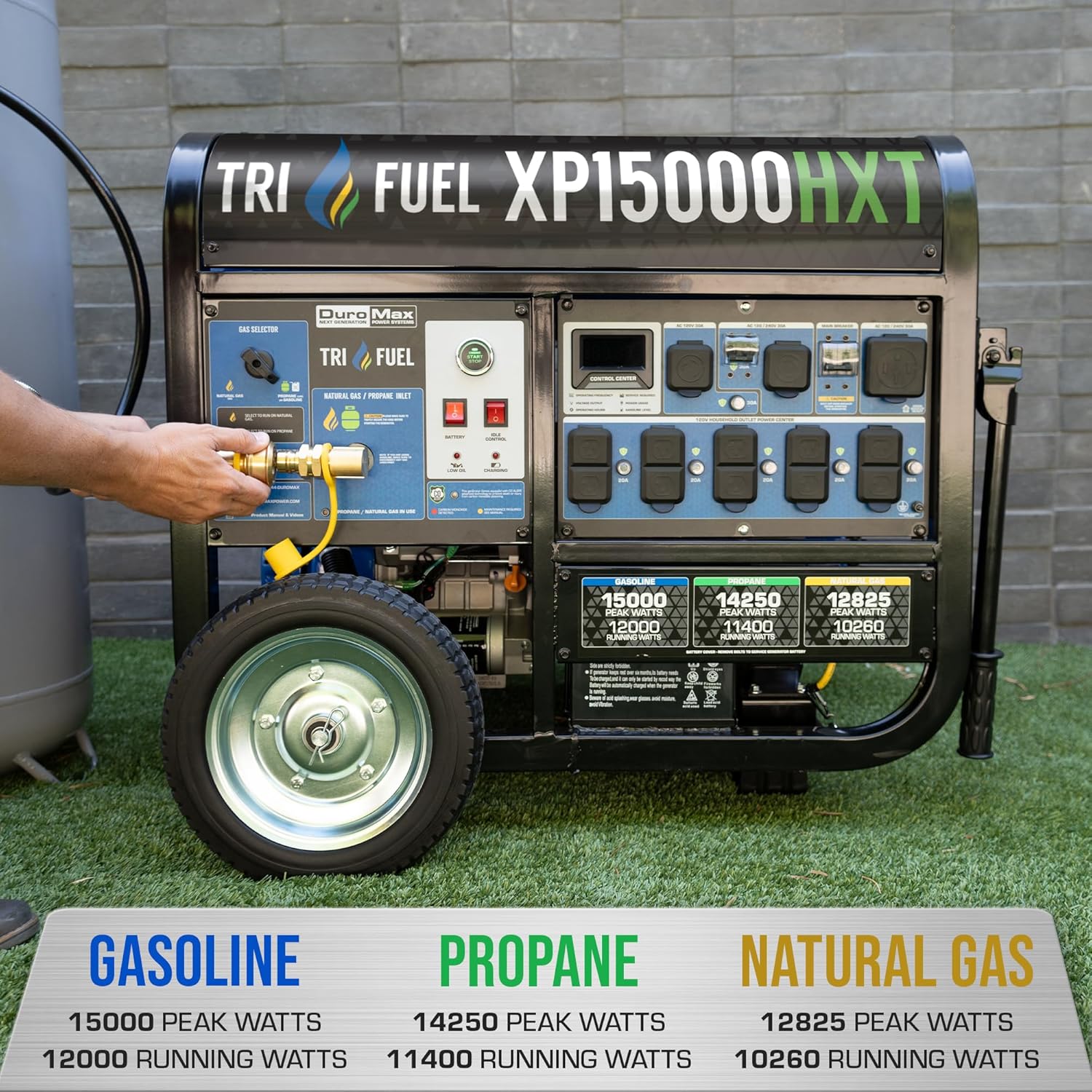

Image: A person connecting the natural gas hose to the DuroMax XP15000HXT generator.
Kòmanse dèlko a:
The XP15000HXT features both push-button and remote start capabilities.
- Pouse bouton kòmanse: After selecting the fuel type, press the "Engine Start/Stop" button on the control panel.
- Kòmanse Remote: Use the provided remote control to start the generator from a distance.
Image: Close-up of the remote start key fob for the DuroMax XP15000HXT generator.
Power Panel and Outlets:
The generator's control center includes a digital multimeter to monitor voltage, frequency, and running hours. It offers a variety of outlets for different power needs.
Imaj: Plis paseview of the DuroMax XP15000HXT control panel, showing the digital multimeter, various outlets, and fuel selection.
- 4 x 120V 20A GFCI outlets
- 1 x 120V 30A twist lock outlet
- 1 x 120/240V 30A twist lock outlet
- 1 x 120/240V 50A HEAVY DUTY outlet (transfer switch-ready)
Image: Close-up of the 120/240V 50A HEAVY DUTY outlet on the DuroMax XP15000HXT, indicating it is home backup-ready.
Videyo: Videyo sa a bay yon plis paseview of the DuroMax XP15000HXT generator's power panel and its various outlets.
Antretyen
Regular maintenance is crucial for the longevity and reliable operation of your generator. Always ensure the generator is off and cooled down before performing any maintenance.
Lwil motè:
- Tcheke nivo lwil oliv anvan chak itilizasyon.
- Chanje lwil la apre premye 20 èdtan operasyon yo, apre sa chak 100 èdtan oubyen chak ane.
- Use 10W-30 SAE engine oil.
Filtè lè:
- Enspekte filtè lè a chak 50 èdtan oswa chak mwa.
- Netwaye oswa ranplase si li sal.
Bouji:
- Enspekte bouji a chak 100 èdtan oswa chak ane.
- Clean or replace as needed using the provided spark plug wrench.
Depo:
For extended storage, drain the gasoline fuel system or add a fuel stabilizer. Ensure propane and natural gas lines are disconnected and valves are closed. Store in a dry, protected area.
Depanaj
Seksyon sa a bay solisyon pou pwoblèm fonksyònman komen. Pou pwoblèm ki pa nan lis la a, kontakte sèvis kliyan.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Motè pa pral kòmanse | No fuel, incorrect fuel selection, low oil, battery dead, choke position incorrect. | Check fuel level and type. Ensure oil is at proper level. Charge or replace battery. Adjust choke. |
| Generator shuts down unexpectedly | Low oil, CO Alert activated, overload, fuel shortage. | Check oil level. Move generator to a better ventilated area if CO Alert is active. Reduce load. Refuel. |
| Pa gen pwodiksyon pouvwa | Circuit breaker tripped, connections loose, generator overloaded. | Reset circuit breakers. Check all electrical connections. Reduce connected load. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | DuroMax |
| Non modèl | XP15000HXT |
| Wattage (Pik) | 15,000 Watts |
| Wattage (Ap kouri) | 12,000 Watts |
| Kalite gaz | Gasoline, Liquefied Petroleum Gas (Propane), Natural Gas |
| Deplasman motè | 670 santimèt kib |
| Volim Tank (Gazolin) | 13.2 galon |
| Voltage | 240 Volts |
| Rating aktyèl | 50 Amps |
| Plòg pouvwa total | 14 |
| Pwa atik | 362 liv |
| Dimansyon pwodwi | 36"L x 33.2"L x 32"H |
| Karakteristik espesyal | CO Sensor, Digital Display, Electric Start, Portable |
| Copper Windings | 100% Copper Windings |
Garanti ak sipò
Enfòmasyon sou garanti:
The DuroMax XP15000HXT generator comes with a 5-ane garanti. Please refer to the official owner's manual for full warranty terms and conditions.
Sipò Kliyan:
For technical assistance, parts, or service, please contact DuroMax customer support. DuroMax offers USA-based customer support and a nationwide network of service centers.
- Resous sou entènèt: Vizite la DuroMax Store pou plis enfòmasyon ak resous pwodwi yo.
- Manyèl Pwopriyetè a: A detailed owner's manual is included with your generator for comprehensive guidance.
