uStream TT2 Belt Drive Turntable User Manual

1. Entwodiksyon

The uStream TT2 is a cutting-edge belt-drive turntable designed to deliver a premium vinyl listening experience. It combines classic analog sound reproduction with modern wireless convenience, featuring Bluetooth V5.1 connectivity for effortless pairing with compatible audio devices. This manual provides comprehensive instructions for setting up, operating, and maintaining your uStream TT2 turntable.

2. Pake kontni

Tanpri asire w ke tout atik yo prezan anvan ou kontinye ak konfigirasyon an:

• uStream TT2 Turntable Unit
• Kouvèti Pousyè
• Plat
• Kondwi Belt
• Kontrepwa
• Pwa anti-paten
• Pouvwa kab
• USB Recording Software (Audacity, typically provided via download link or CD)
• RCA Audio Kab
• Manyèl Enstriksyon (dokiman sa a)

3. Turntable Components

Familiarize yourself with the main components of your uStream TT2 turntable:

Figi 3.1: Top view of the uStream TT2 Turntable. This image shows the main unit with the dust cover open, revealing the platter, tonearm assembly, and speed/power knob.

• Plato: The circular platform on which records are placed. Made of aluminum for reduced resonance.
• Kondwi senti: Located beneath the platter, it connects to the motor pulley to rotate the platter.
• Tonbra: The arm that holds the cartridge and stylus. Made of aluminum.
• Cartridge (Audio-Technica AT91): Houses the stylus and converts groove vibrations into electrical signals.
• Dyaman: The needle that tracks the record grooves.
• Kontrepwa: Balances the tonearm and allows for adjustment of tracking force.
• Anti-skate Adjustment: Compensates for the inward force on the tonearm, ensuring even tracking.
• Speed Selector/Power Knob: Controls power and selects playback speeds (33 1/3 and 45 RPM).
• Kouvèti pousyè: Protects the turntable from dust when not in use.

Figi 3.2: Dèyè view of the uStream TT2 Turntable. This image highlights the connectivity options including RCA Line Out, Pre-Amp switch, USB port, and AC power input.

• RCA Outputs (LINE OUT): Pou konekte ak yon ekstèn amplifier oswa reseptè.
• PRE-AMP Chanjman (ON/OFF): Toggles the built-in RIAA equalizer. Set to ON for connecting to line-level inputs (e.g., AUX on a stereo system) or Bluetooth. Set to OFF for connecting to a dedicated PHONO input on an amplifier.
• Pò USB: For connecting to a computer to digitize vinyl records.
• Antre AC: Pou konekte kab pouvwa a.

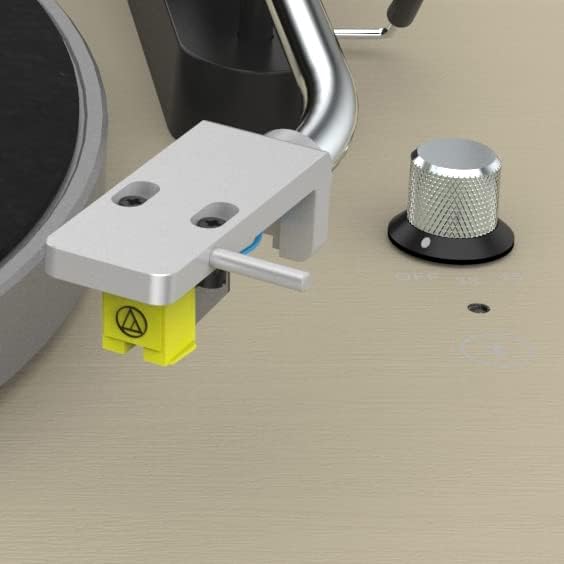

Figure 3.3: Close-up of the Audio-Technica AT91 moving magnet cartridge. This image provides a detailed view of the cartridge attached to the tonearm, responsible for sound reproduction.

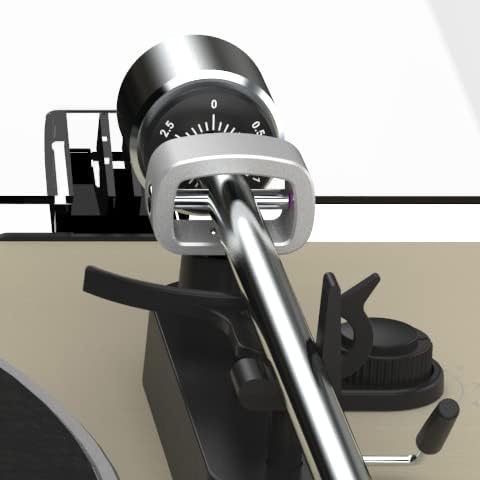

Figure 3.4: Close-up of the tonearm counterweight and anti-skate adjustment. This image shows the precision components used to balance the tonearm and ensure proper tracking force.

4. Gid Enstalasyon

4.1 Debalaj ak plasman

1. Ak anpil atansyon retire tout eleman nan anbalaj la.
2. Mete platin an sou yon sifas ki estab e plat, lwen limyè solèy dirèk, sous chalè, ak vibrasyon twòp.

4.2 Enstalasyon plato ak senti

1. Mete plato a sou aks santral la.
2. Locate the drive belt. Gently stretch the belt around the inner rim of the platter and hook it onto the motor pulley (a small brass or plastic cylinder) located in the motor well. Ensure the belt is not twisted.
3. Mete tapi a santi sou tèt plato a.

4.3 Tonearm Balance and Tracking Force Adjustment

1. Remove the stylus protector from the cartridge.
2. Place the counterweight onto the rear of the tonearm and twist it clockwise until it is approximately halfway on.
3. Lage tonear cl laamp. Carefully move the tonearm away from its rest.
4. Adjust the counterweight by rotating it until the tonearm is perfectly balanced, floating horizontally above the platter. Do not let the stylus touch the platter.
5. Once balanced, hold the counterweight steady with one hand and rotate the numbered ring on the front of the counterweight until the "0" aligns with the line on the tonearm.
6. Rotate the entire counterweight (both the numbered ring and the weight) clockwise until the desired tracking force is set. For the Audio-Technica AT91 cartridge, the recommended tracking force is typically 2.0 grams. Align the "2.0" mark with the line on the tonearm.
7. Return the tonearm to its rest and secure it with the clamp.

4.4 Anti-skate Adjustment

1. Attach the small loop of the anti-skate weight's thread to the anti-skate lever on the tonearm support.
2. Pass the thread through the wire support loop.
3. The anti-skate force should generally match the tracking force. If your tracking force is 2.0 grams, set the anti-skate to the corresponding notch or number (usually 2).

4.5 Enstalasyon Kouvèti Pousyè

1. Insert the hinges of the dust cover into the hinge slots on the rear of the turntable base.

4.6 Koneksyon Audio

Your uStream TT2 offers both wired (RCA) and wireless (Bluetooth) audio output options.

4.6.1 RCA Wired Connection

1. Connect the RCA audio cable (red and white plugs) from the "LINE OUT" ports on the rear of the turntable to the corresponding audio input (e.g., AUX, CD, LINE IN) on your amplifijè, reseptè, oswa oratè ki mache ak elektrisite.
2. PRE-AMP Chanje:
   • Mete sou ON if connecting to a standard line-level input (e.g., AUX, CD, LINE IN) on your amplifier/receiver, or if using Bluetooth. This activates the built-in phono preamp.
   • Mete sou OFF if connecting to a dedicated "PHONO" input on your amplifier/receiver, as these inputs have their own built-in phono preamp.

4.6.2 Koneksyon pouvwa

1. Connect the power cable to the AC input on the rear of the turntable.
2. Branche lòt bout kab kouran an nan yon priz miray ki apwopriye.

5. Operasyon

5.1 Jwe yon Disk

1. Mete yon dosye sou plato a.
2. Select the correct speed (33 1/3 or 45 RPM) using the speed selector knob. For 45 RPM records, you may need to use a 45 RPM adapter (not included, but commonly available).
3. Rotate the speed selector knob to turn the turntable ON. The platter will begin to spin.
4. Leve bra a dousman avèk levye repèkaj la.
5. Mete bra son an sou rainur ou vle pou kòmanse disk la.
6. Slowly lower the cueing lever to gently place the stylus onto the record.
7. At the end of the record, the auto-stop function will stop the platter rotation. Lift the tonearm using the cueing lever, return it to its rest, and secure it with the clamp. Rotate the speed selector knob to OFF to power down the unit.

5.2 Bluetooth Pairing

Ensure the PRE-AMP switch on the rear is set to ON for Bluetooth functionality.

1. Power on the uStream TT2 turntable.
2. Activate Bluetooth pairing mode on your desired Bluetooth speaker or headphones. Refer to your audio device's manual for specific instructions.
3. The uStream TT2 will automatically enter pairing mode when powered on with the PRE-AMP switch ON. The Bluetooth indicator light (if present, typically near the speed knob) will flash.
4. Once successfully paired, the Bluetooth indicator light will become solid.
5. You can now play records, and the audio will stream wirelessly to your paired Bluetooth device.

5.3 Digitizing Vinyl Records (USB)

The uStream TT2 allows you to convert your vinyl records into digital audio files using the USB port and included Audacity software.

1. Connect the USB cable (not included, standard USB-A to USB-B printer cable) from the turntable's USB port to an available USB port on your computer.
2. Install the Audacity software on your computer. (Download link or CD provided with purchase).
3. Open Audacity and configure the input device to recognize the turntable (often listed as "USB Audio CODEC" or similar).
4. Begin playing a record on the turntable.
5. In Audacity, click the "Record" button to start recording the audio.
6. When finished, click "Stop" in Audacity. You can then edit and export your digitized audio files.

6. Antretyen ak Swen

6.1 Netwaye Stylus la

• A dirty stylus can cause poor sound quality and damage to your records.
• Use a soft brush specifically designed for stylus cleaning. Brush gently from back to front (away from the cantilever).
• Do not use solvents or excessive force.

6.2 Netwaye platin an

• Wipe the dust cover and plinth with a soft, dry, lint-free cloth.
• Pou mak ki difisil pou retire, sèvi ak yon ti kras damp twal ak savon twò grav, apresa sèk byen.
• Avoid using abrasive cleaners or solvents, as they can damage the finish.

6.3 Ranplasman senti

The drive belt is a wear item and may need replacement over time if it stretches or degrades, leading to inconsistent speed. Replacement belts can be obtained from authorized Mitchell Acoustics dealers or reputable audio suppliers.

NAN. Depanaj

If you encounter issues with your uStream TT2, please consult the following table before contacting support.

8. Espesifikasyon

9. Garanti ak sipò

9.1 Enfòmasyon sou Garanti

Mitchell Acoustics products are crafted to exacting standards for superior performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Mitchell Acoustics websit la. Kenbe prèv acha ou pou reklamasyon garanti.

9.2 Sipò pou Kliyan

If you require further assistance or have questions not covered in this manual, please contact Mitchell Acoustics customer support. Contact details can typically be found on the official Mitchell Acoustics websit la oubyen sou anbalaj pwodwi ou a.

Designed by Paul Mitchell, renowned British audio specialist.
