1. Entwodiksyon
Thank you for choosing the toocki TQ-CC01 45W Dual-Port USB Car Charger. This device is designed to provide efficient and fast charging for a wide range of electronic devices, including smartphones, tablets, and laptops, directly from your vehicle's power outlet. Please read this manual carefully before use to ensure proper operation and safety.
2. Enfòmasyon sou Sekirite
- Pa ekspoze chargeur a nan imidite, tanperati ekstrèm, oswa limyè solèy dirèk.
- Evite lage chajè a oswa soumèt li a gwo enpak.
- Do not attempt to disassemble, modify, or repair the charger yourself. Contact qualified service personnel if needed.
- Ensure the car charger is securely inserted into the vehicle's cigarette lighter socket.
- Debranche chajè a lè w pa ap itilize l oswa lè w kite machin nan pou yon bon bout tan.
- Kenbe soti nan atenn timoun yo.
3. Pake kontni
Verifye ke tout atik yo prezan nan pakè ou a:
- 1 x toocki TQ-CC01 45W Dual-Port Car Charger
- 1 x 100W Kab USB-C pou USB-C
Image: The toocki 45W Dual-Port Car Charger and the included 100W USB-C to USB-C cable.
4. Pwodwi souview
The toocki TQ-CC01 is a compact and transparent car charger featuring two fast-charging ports: one USB-C port and one USB-A port. Its design allows for stable connection even on bumpy roads, and the transparent casing showcases the internal components.

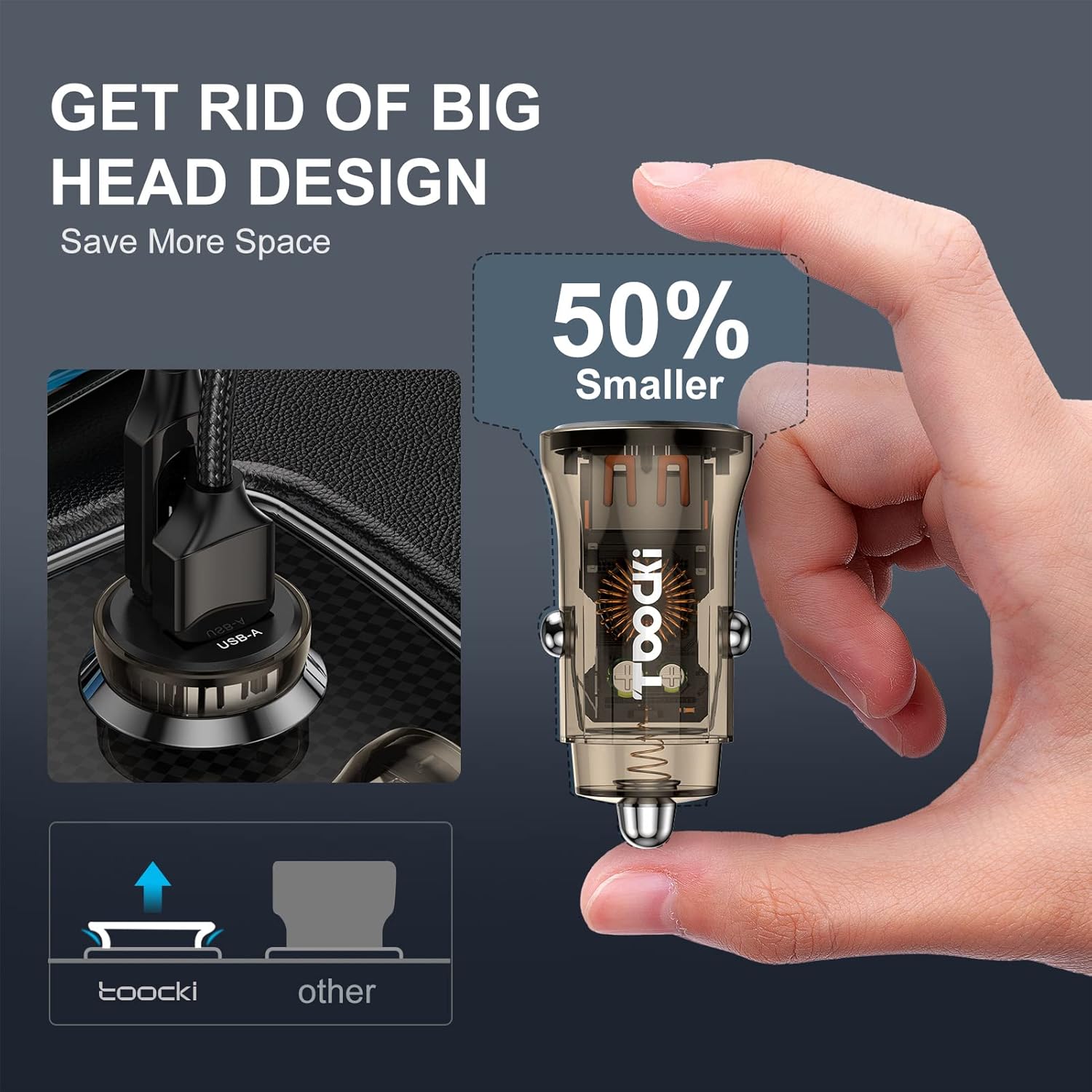

Image: The compact and mini design of the toocki car charger, illustrating its small footprint.
Imaj: Detaye view of the toocki TQ-CC01 car charger, highlighting its USB-C and USB-A ports, dimensions (43mm height, 24.5mm width), and input/output specifications.
5. Enstalasyon
- Locate the Vehicle's Power Outlet: Identify the 12V/24V cigarette lighter socket in your car.
- Mete plato machin nan: Firmly insert the toocki TQ-CC01 car charger into the vehicle's power outlet. Ensure it is seated correctly for a stable connection. The shrapnel buckle design helps secure it against bumps.
- Verifye pouvwa: Once inserted, the charger may have an indicator light to show it is receiving power (if applicable).
6. Operasyon Enstriksyon
The toocki TQ-CC01 car charger features both a USB-C port and a USB-A port, allowing for simultaneous charging of two devices.
- Konekte aparèy ou an: Use a compatible charging cable (such as the included 100W USB-C to USB-C cable) to connect your electronic device to either the USB-C or USB-A port on the car charger.
- Kòmanse Chaje: Once connected, your device should begin charging automatically. The charger supports various fast charging protocols, including PD (Power Delivery) and QC (Quick Charge), for efficient power delivery.
- Chaje Doub Pò: You can charge two devices simultaneously. The total maximum output for both ports combined is 45W, with each port capable of delivering up to 45W individually.
Image: The toocki car charger actively charging two devices simultaneously, demonstrating its dual-port fast charging capability.
Image: The toocki car charger delivering 45W Super Fast Charging (SFC) to a Samsung S22+ phone, with the cable displaying the charging wattage.
7. Antretyen
- Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye sifas plato a. Pa sèvi ak pwodui netwayaj likid oswa ayewosòl.
- Depo: Sere plato a nan yon kote ki fre, sèk lè li pa itilize.
- Swen kab: Avoid bending or twisting the charging cable excessively to prevent damage.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Charger pa travay | Loose connection in car socket; Vehicle power outlet not active; Damaged charger or cable. | Ensure charger is firmly inserted. Check if the vehicle's power outlet is functional. Try a different cable. |
| Chaje dousman | Non-fast charging cable used; Device not supporting fast charging; Multiple devices drawing too much power. | Use the included 100W USB-C cable or another fast-charging cable. Verify device compatibility with fast charging. Try charging one device at a time. |
| Chargeur a ap chofe | Normal during fast charging; Overload. | Slight warmth is normal. If it becomes excessively hot, disconnect immediately and reduce the load (e.g., charge one device). |
9. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | tooki |
| Modèl | TQ-CC01 |
| Materyèl | ABS + PC |
| Antre | DC12-24V |
| USB-C Sòti | 5V/3A, 4.5V/5A, 5V/4.5A, 9V/3A, 12V/3A, 20V/2.25A (45W Max) 3.3V-11V/3A-4.05A PPS |
| USB-A Sòti | 5V/3A, 4.5V/5A, 5V/4.5A, 9V/3A, 12V/3A, 20V/2.25A (45W Max) |
| Total Output (A+C) | 5V/5A (Max 45W shared) |
| Karakteristik espesyal | Fast Charging, Short Circuit Protection, Overcurrent Protection, Constant Temperature Charging |
| Dimansyon | Approximately 43mm (Height) x 24.5mm (Diameter) |
| Pwa | 50 g |
| Enkli kab | Kab USB-C pou USB-C 100W |
10. Garanti ak sipò
This toocki product comes with a 1-year customer service warranty. For any issues or support inquiries, please contact the toocki-authorized store where you purchased the product. We are committed to providing a satisfactory solution for you.
