1. Entwodiksyon
Mèsi pou acha aasing the Fenton SHFB65 Passive Bookshelf Speakers. This manual provides essential information for the safe and efficient use of your new audio equipment. Please read these instructions carefully before installation and operation, and retain them for future reference.
The Fenton SHFB65 speakers are designed to deliver high-fidelity audio, suitable for various applications including home stereo systems and home cinema setups. These passive speakers require an external amplifier pou operasyon.
Figure 1: Fenton SHFB65 Passive Bookshelf Speakers
2. Enfòmasyon sou Sekirite
To reduce the risk of electric shock, fire, or damage to the equipment, please observe the following safety precautions:
- Sous pouvwa: These are passive speakers and do not connect directly to a mains power outlet. They must be connected to an appropriate audio amplifier.
- Amplifier konpatibilite: Asire w amplifier's output power and impedance match the speaker's specifications to prevent damage.
- Vantilasyon: Pa bloke okenn ouvèti vantilasyon. Enstale li dapre enstriksyon manifakti a.
- Dlo ak imidite: Do not expose the speakers to rain, moisture, dripping, or splashing. Do not place objects filled with liquids, such as vases, on the speakers.
- Chalè: Pa enstale tou pre okenn sous chalè tankou radyatè, rejis chalè, recho, oswa lòt aparèy (tankou amplifiers) ki pwodui chalè.
- Plasman: Place speakers on a stable, level surface to prevent them from falling. The anti-slip rubber feet provide additional stability.
- Netwayaj: Sèlman netwaye ak yon twal sèk.
3. Pake kontni
The Fenton SHFB65 package includes:
- 2 x Fenton SHFB65 Passive Bookshelf Speakers
- Manyèl Itilizatè (dokiman sa a)
Please inspect the contents immediately upon receipt to ensure all parts are present and undamaged. Contact your supplier if any items are missing or damaged.
4. Pwodwi Features
The Fenton SHFB65 speakers incorporate several design elements for optimal audio reproduction:
- Sistèm Oratè 2-Fason: Each speaker features a 6.5-inch woofer for low and mid-range frequencies and a 3-inch tweeter for clear high frequencies.
- Bass-Reflex Design: An integrated bass-reflex port on the rear of the cabinet enhances low-frequency response, providing deeper bass.
- Gold-Plated Screw Terminals: High-quality gold-plated screw terminals ensure a secure connection and optimal signal transfer from your amplifier.
- Pye kawotchou anti-glise: Rubber feet are included on the base of each speaker to provide stability and minimize vibrations.
- Konstriksyon dirab: The speaker cabinets are constructed from wood, contributing to acoustic performance and durability.

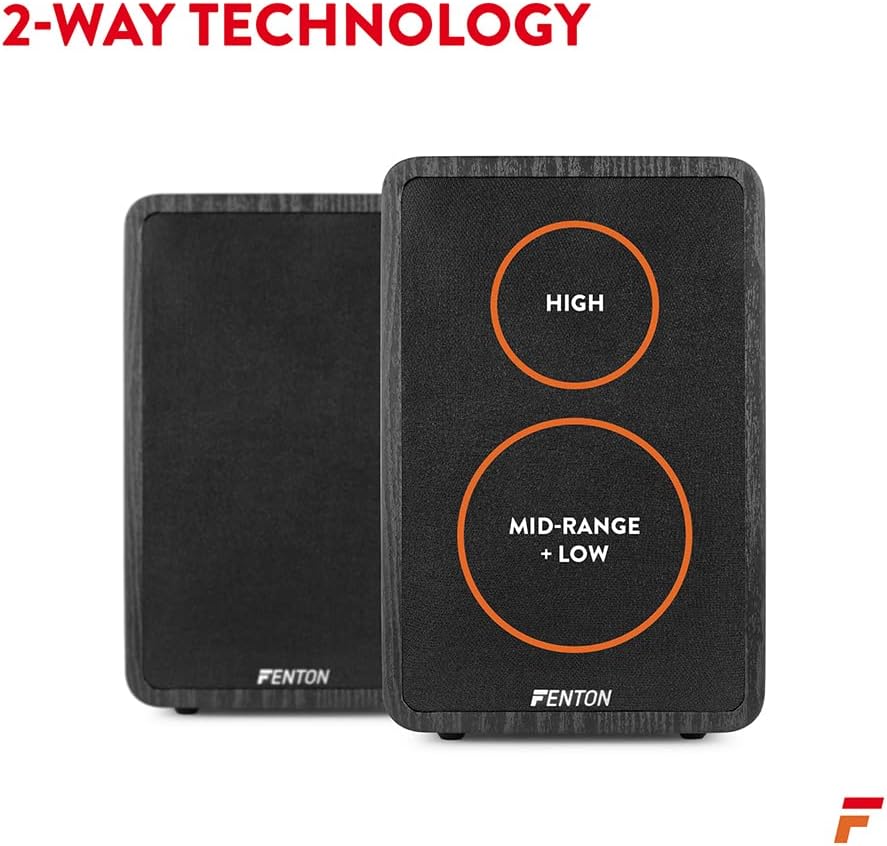

Figure 2: 2-Way Technology Illustration
5. Enstalasyon
Proper setup is crucial for optimal sound quality and speaker longevity. These speakers are passive and require an external amplifier.
5.1 Plasman
- Place the speakers on a stable, flat surface at ear level when seated.
- For stereo imaging, position the speakers equidistant from your listening position and spaced appropriately apart.
- Avoid placing speakers directly against a wall if possible, especially due to the rear bass-reflex port, to prevent excessive bass resonance. A distance of 10-30 cm from the wall is often ideal.
5.2 Konekte ak yon Amplifier
The Fenton SHFB65 speakers connect to your amplifier using speaker wire. Ensure your ampLifter la etenn anvan ou fè nenpòt koneksyon.
- Prepare fil oratè a: Strip approximately 1-2 cm of insulation from both ends of your speaker wire. Twist the exposed strands tightly to prevent stray wires.
- Konekte ak Oratè yo: Unscrew the gold-plated terminals on the back of each SHFB65 speaker. Insert the exposed speaker wire into the hole, ensuring that the positive (+) wire (often marked with red or a stripe) connects to the red terminal and the negative (-) wire (often marked with black or plain) connects to the black terminal. Tighten the terminals securely.
- Konekte ak Amplifier: Connect the other end of the speaker wire to the corresponding speaker output terminals on your amplifier. Again, ensure positive (+) connects to positive (+) and negative (-) connects to negative (-). Maintain consistent polarity for both speakers.

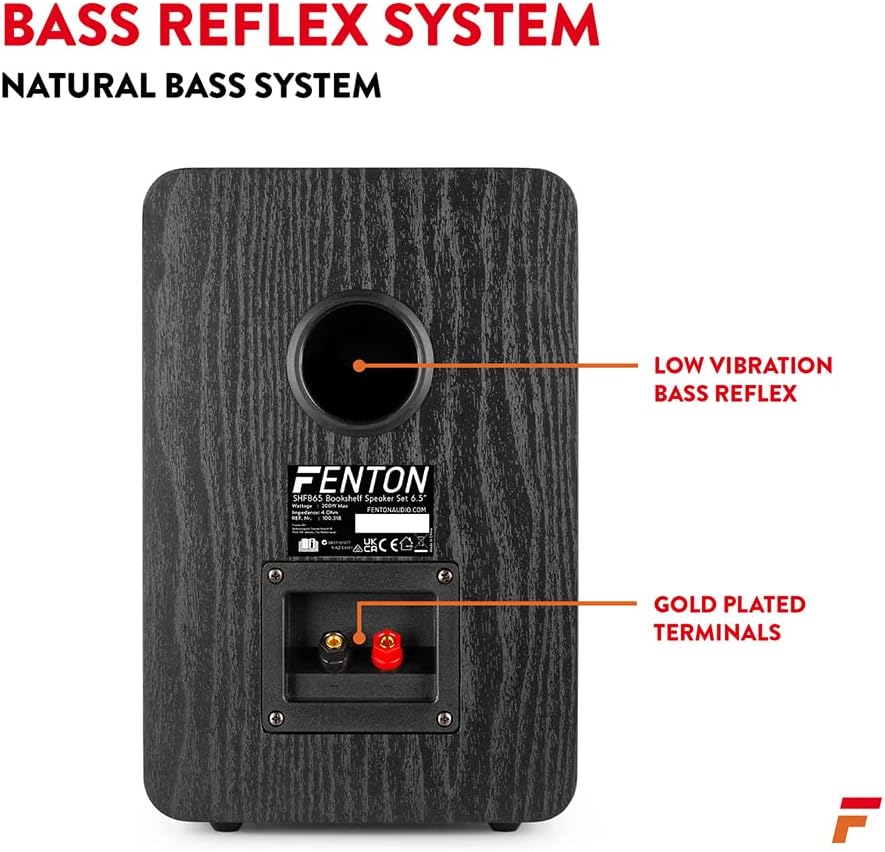

Figure 3: Rear Panel with Connections
Enpòtan: Incorrect polarity (e.g., positive to negative) will result in poor sound quality, particularly weak bass. Always double-check your connections.
6. Operasyon Enstriksyon
Yon fwa oratè yo byen konekte ak ou amplifier:
- Asire w ke tout koneksyon an sekirite.
- Limen ou amplifier.
- Chwazi sous odyo ou vle a sou ou amplifier.
- Start playing audio at a low volume and gradually increase it to your preferred listening level.
The volume and tone controls (bass/treble) are managed via your connected amplifier oswa sous odyo.
7. Antretyen
To ensure the longevity and performance of your Fenton SHFB65 speakers, follow these maintenance guidelines:
- Netwayaj: Use a soft, dry cloth to wipe the speaker cabinets. Do not use liquid cleaners, aerosols, or abrasive materials, as these can damage the finish.
- Griyaj: The speaker grilles can be carefully removed for cleaning if necessary. Use a soft brush or vacuum cleaner with a brush attachment to remove dust. Reattach securely.
- Anviwònman: Evite ekspoze oratè yo anba limyè solèy dirèk, tanperati ekstrèm, oswa imidite ki wo.
- Manyen: When moving the speakers, lift them carefully from the base. Avoid dropping or subjecting them to strong impacts.
NAN. Depanaj
Si ou rankontre pwoblèm ak oratè ou yo, gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen son ki soti nan moun kap pale | AmpLifitè a pa limen Antre ki pa kòrèk la chwazi sou amplifier Loose or incorrect speaker wire connections Amplifier volume too low or muted | Asire w amplifier is on and functioning Chwazi sous antre ki kòrèk la Check all speaker wire connections for proper polarity and tightness Ogmante amplifier volume and check mute settings |
| Son defòme oswa ki pa klè | Overdriven amplifier/oratè Loose speaker wire connections Kòrèk polarite Kòn oratè/tweeter domaje | Diminye amplifier volume; ensure amplifier power matches speaker rating Check and secure all speaker wire connections Verify positive-to-positive and negative-to-negative connections Contact support if physical damage is suspected |
| Bas fèb oswa pa gen bas | Incorrect speaker polarity Speakers placed too far from walls Amplifier bass setting too low | Ensure correct polarity (+ to +, - to -) Adjust speaker placement closer to a wall (but not directly against it) Adjust bass settings on your amplifier |
| Yon oratè pa travay | Loose connection to that speaker Fil oratè ki defektye Amppwoblèm kanal lifier | Check connections for the non-working speaker Swap speaker wires between channels to isolate the problem Test with another speaker if available to check ampchanèl lifier |
If the problem persists after trying these solutions, please consult a qualified technician or contact Fenton customer support.
9. Espesifikasyon
The following table details the technical specifications for the Fenton SHFB65 Passive Bookshelf Speakers:
| Karakteristik | Spesifikasyon |
|---|---|
| Modèl | SHFB65 |
| Kalite Oratè | Oratè etajè pasif |
| Sistèm | 2-Way Bass-Reflex |
| Woofer Size | 6.5 pous |
| Tweeter Gwosè | 3 pous |
| Max Power Output (per pair) | 200 Watts (2x 100W max) |
| Repons Frekans | 35Hz - 19kHz |
| Enpedans | 4 Ohms |
| SPL @ 1W/1m | 94 dB |
| Dimansyon (pa oratè) | 200 x 200 x 310 mm (Depth x Width x Height) |
| Pwa (pa oratè) | 6.6 kg |
| Materyèl kabinè | Bwa |
| Koneksyon | Speaker Cable (Gold-plated screw terminals) |
| Itilizasyon Rekòmande | Home Audio Entertainment |

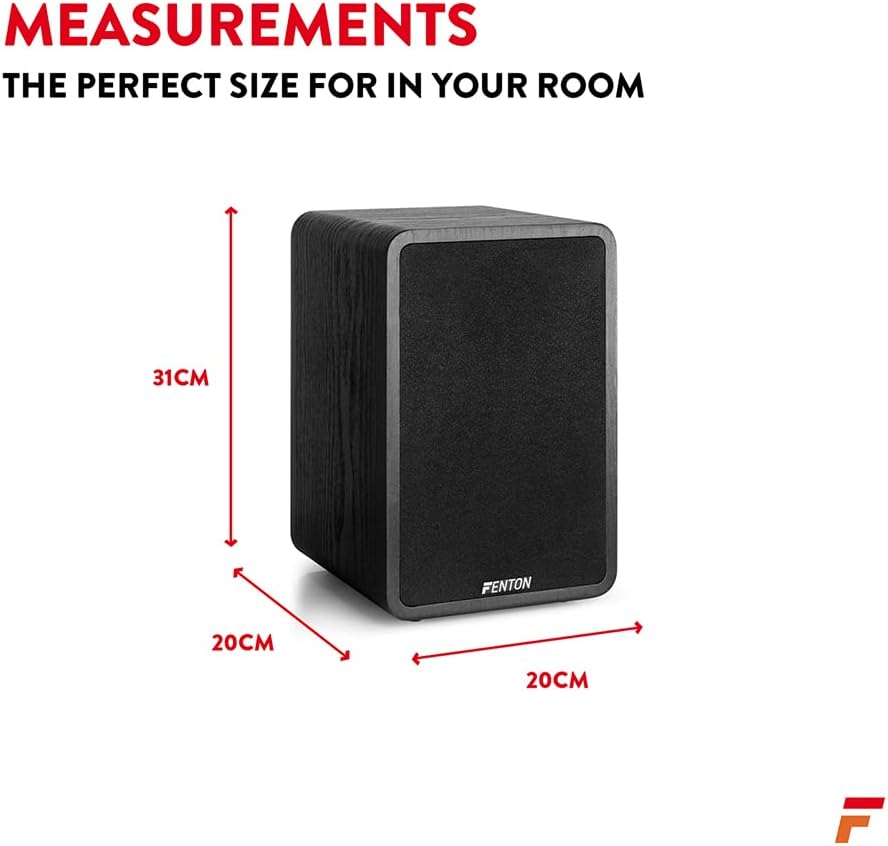

Figi 4: Dimansyon Oratè yo
10. Garanti ak sipò
Fenton products are designed and manufactured to the highest quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Fenton website. For technical support or service inquiries, please contact your retailer or the Fenton customer service department.
Please have your model number (SHFB65) and purchase date available when contacting support.
