MARS HYDRO FC-E1000W LED Grow Light Instruction Manual

1. Entwodiksyon

Thank you for choosing the MARS HYDRO FC-E1000W LED Grow Light. This manual provides essential information for the safe and efficient operation of your new grow light. Please read these instructions thoroughly before installation and use, and retain them for future reference.

2. Pwodwi souview

The MARS HYDRO FC-E1000W is a high-intensity, foldable bar-style LED grow light designed for professional indoor horticulture. It features US-based BridgeLux diodes for even light distribution and high efficiency. The light offers both smart and regular lighting modes, with optional WiFi/Bluetooth control via the MARS HYDRO App (iConnectu Controller sold separately). Its design prioritizes optimal heat dissipation and versatile application in various grow environments.

Karakteristik kle yo enkli:

• High Intensity 1000W LED Grow Light: Achieves up to 2.8 µmol/j efficiency and over 1,000 µmol/m²/s PPFD, with a maximum 3.0g yield/watt.
• Foldable & 2-IN-1 Design: Eliminates installation needs, offers storage flexibility, and supports smart control via the MARS HYDRO App (with optional iConnectu Controller).
• Optimal Heat Dissipation: Aluminum heatsink with slim profile bars reduces heat, allowing the driver to be positioned outside the grow tent.
• Versatile Commercial Grow Lights: Suitable for small-to-large vertical farms and grow rooms, ideal for 5x5 flowering areas or 4ft-wide commercial racks.
• Easy Dimming Daisy Chain: Features a broad spectrum for full-cycle growth, a dimming box for light level adjustment, and daisy-chain function for up to 30 lights.

3. Ki sa ki nan bwat la

Upon opening your MARS HYDRO FC-E1000W package, you should find the following components:

• FC-E1000W LED Grow Light fixture (foldable bar style)
• Ki ap dirije chofè
• Twous pandye
• Manyèl itilizatè
• Kòd pouvwa
• Daisy Chain Kab

4. Enstalasyon ak Enstalasyon

The FC-E1000W features a foldable design, simplifying the initial setup. Follow these steps for proper installation:

1. Unfold the Light Fixture: Carefully unfold the bar-style light fixture until it is fully extended.
2. Attach the LED Driver: Secure the LED driver to the designated mounting points on the light fixture. Ensure all connections are firm.
3. Konekte kab: Plug the power cord into the LED driver. If using the daisy chain function, connect the daisy chain cable to link multiple lights.
4. Install Hanging Kits: Attach the provided hanging kits to the corners of the light fixture.

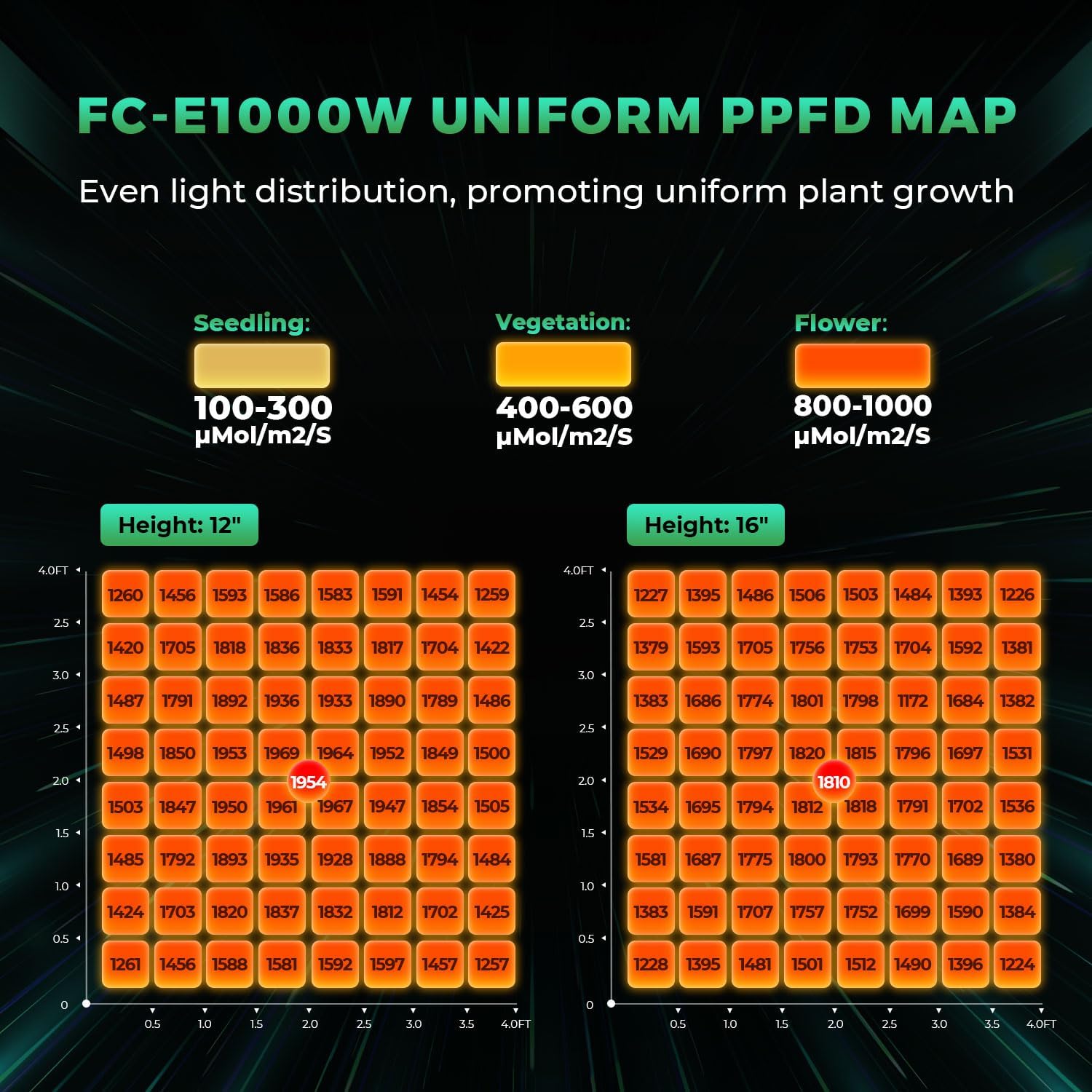

5. Kwoke Limyè a: Suspend the light fixture in your grow area using the hanging kits. Adjust the height according to your plant's growth stage (refer to recommended hanging distances in the Specifications section).
6. Optional: Remote Driver Placement: The detachable power supply allows for remote mounting outside the grow tent to reduce heat in the grow space.

5. Operasyon Enstriksyon

5.1. Dimming Control

The FC-E1000W offers multiple ways to adjust light intensity:

• Rotary Dimmer Knob: Manually adjust the light intensity from 0-100% using the dimmer knob located on the driver.
• MARS HYDRO App (Optional): With the iConnectu Controller (sold separately), you can remotely control and monitor your light's intensity via WiFi/Bluetooth using the MARS HYDRO App. The app also offers smart auto-mode and professional grow recipe settings.
• RJ11 Cable (Optional): Connect via an RJ11 cable to an iHub-Pro or Controller for dimming through the MarsPro App or a dedicated controller.

5.2. Daisy Chain Function

The daisy chain feature allows you to connect and control up to 30 FC-E1000W lights in a series. This is particularly useful for commercial growers to manage multiple fixtures from a single control point.

6. Espesifikasyon

7. Antretyen

To ensure the longevity and optimal performance of your MARS HYDRO FC-E1000W LED Grow Light, follow these maintenance guidelines:

• Netwayaj regilye: Gently wipe the LED bars and driver with a soft, dry cloth to remove dust and debris. Ensure the light is unplugged before cleaning.
• Enspekte Koneksyon: Periodically check all electrical connections, including the power cord and daisy chain cables, for any signs of wear or damage.
• Asire bon vantilasyon: Maintain good airflow around the light fixture and driver to facilitate heat dissipation.
• Evite kontak dirèk dlo: While the light is designed for horticultural environments, avoid direct exposure to water or excessive humidity to prevent damage.

NAN. Depanaj

If you encounter any issues with your FC-E1000W, refer to the following common troubleshooting tips:

• Limyè pa limen:
  • Tcheke si kòd elektrik la byen konekte nan tou de limyè a ak priz kouran an.
  • Asire w ke priz kouran an fonksyone.
  • Verify that the dimmer knob is not set to 0% or 'Off'.
• Inconsistent Dimming:
  • If using the app, ensure the iConnectu Controller is properly connected and the app is updated.
  • Check the RJ11 cable connections if using an external controller.
• Surchof:
  • Ensure adequate airflow around the light and driver.
  • Consider relocating the detachable driver outside the grow tent to reduce ambient temperature.

9. Garanti & Sipò

MARS HYDRO offers comprehensive support for its products. The FC-E1000W is covered by a standard warranty. For specific warranty details, including duration and coverage, please refer to the warranty information provided with your product packaging or visit the official MARS HYDRO websit.

For technical assistance, troubleshooting, or warranty claims, please contact MARS HYDRO customer service. You can often find support contact information on the product packaging, the official websit entènèt la, oubyen atravè revandè ou a.

Plan pwoteksyon opsyonèl disponib pou yon pwoteksyon pwolonje:

• Plan Pwoteksyon 4 Ane: Disponib pou achte.
• Pwoteksyon konplè: Yon plan mansyèl ki kouvri acha pase ak acha nan lavni ki kalifye.
