Beelink SEi11 Mini PC Intel Core i5-11320H Instruction Manual

1. Entwodiksyon

The Beelink SEi11 Mini PC is a compact desktop computer designed for a wide range of applications, from home use to business and gaming. It features an 11th Gen Intel Core i5-11320H processor, 16GB DDR4 RAM, and a 500GB NVMe SSD, offering responsive performance. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

2. Ki sa ki nan bwat la

Upon opening your Beelink SEi11 Mini PC package, you should find the following items:

• Beelink SEi11 Mini PC unit
• Power Adapter (with correct regional plug)
• HDMI Cables (short and long)
• Mi-monte bracket ak vis
• SATA Ribbon Cable (for 2.5-inch drive expansion)
• Manyèl itilizatè

Figure 2.1: Included accessories for the Beelink SEi11 Mini PC.

3. Inisyal Enstalasyon

Follow these steps to set up your Beelink SEi11 Mini PC:

1. Konekte ak pouvwa: Plug the power adapter into the DC-in port on the back of the Mini PC, then plug the adapter into a power outlet.
2. Konekte ak Display: Use one of the provided HDMI cables to connect the Mini PC to your monitor or TV. The device supports dual 4K@60Hz display output via HDMI and Type-C.
3. Konekte periferik: Connect your keyboard, mouse, and other USB devices to the available USB ports (2x USB 3.0, 2x USB 2.0, 1x Type-C).
4. Rezo Koneksyon: For a wired connection, plug an Ethernet cable into the Gigabit Ethernet LAN port. For wireless, the device supports Wi-Fi 6.
5. Pouvwa sou: Press the red power button on the front of the Mini PC. The device comes with Windows 11 Pro pre-installed.

Figure 3.1: Rear and front ports of the Beelink SEi11 Mini PC.

4. Operasyon Enstriksyon

Your Beelink SEi11 Mini PC is equipped with Windows 11 Pro, providing a full desktop experience. It supports 4K@60Hz resolution across multiple displays, making it suitable for various tasks including office work, entertainment, and light gaming.

4.1. Konfigirasyon Ekspozisyon

The Mini PC supports triple 4K@60Hz screen display output via its dual HDMI ports and one Type-C port. This allows for extended desktop setups, enhancing productivity or providing an immersive entertainment experience.

Figure 4.1: Triple screen display setup for enhanced productivity or entertainment.

4.2. Performance for Applications and Gaming

The Intel Core i5-11320H processor with Intel Iris Xe Graphics provides sufficient power for everyday computing tasks, multimedia consumption, and casual gaming. Its 4 cores and 8 threads, with a Max Turbo Frequency of up to 4.50GHz, ensure smooth operation.

5. Koneksyon

The Beelink SEi11 Mini PC offers robust connectivity options:

• San fil: 802.11ac Dual Band 2.4 & 5GHz Wi-Fi (Wi-Fi 6) for high-speed internet access, and Bluetooth 5.2 for connecting wireless peripherals.
• Branche: 1x Gigabit Ethernet LAN port for stable and fast wired network connections.
• Pò USB: 2x USB 3.0 ports, 2x USB 2.0 ports, and 1x Type-C port (supporting 10Gbps Super speed data transfer).
• Pò ekspozisyon: 2x HDMI 2.0 ports and 1x Type-C port for connecting multiple displays.
• Odyo: 1x MIC headphone jack.

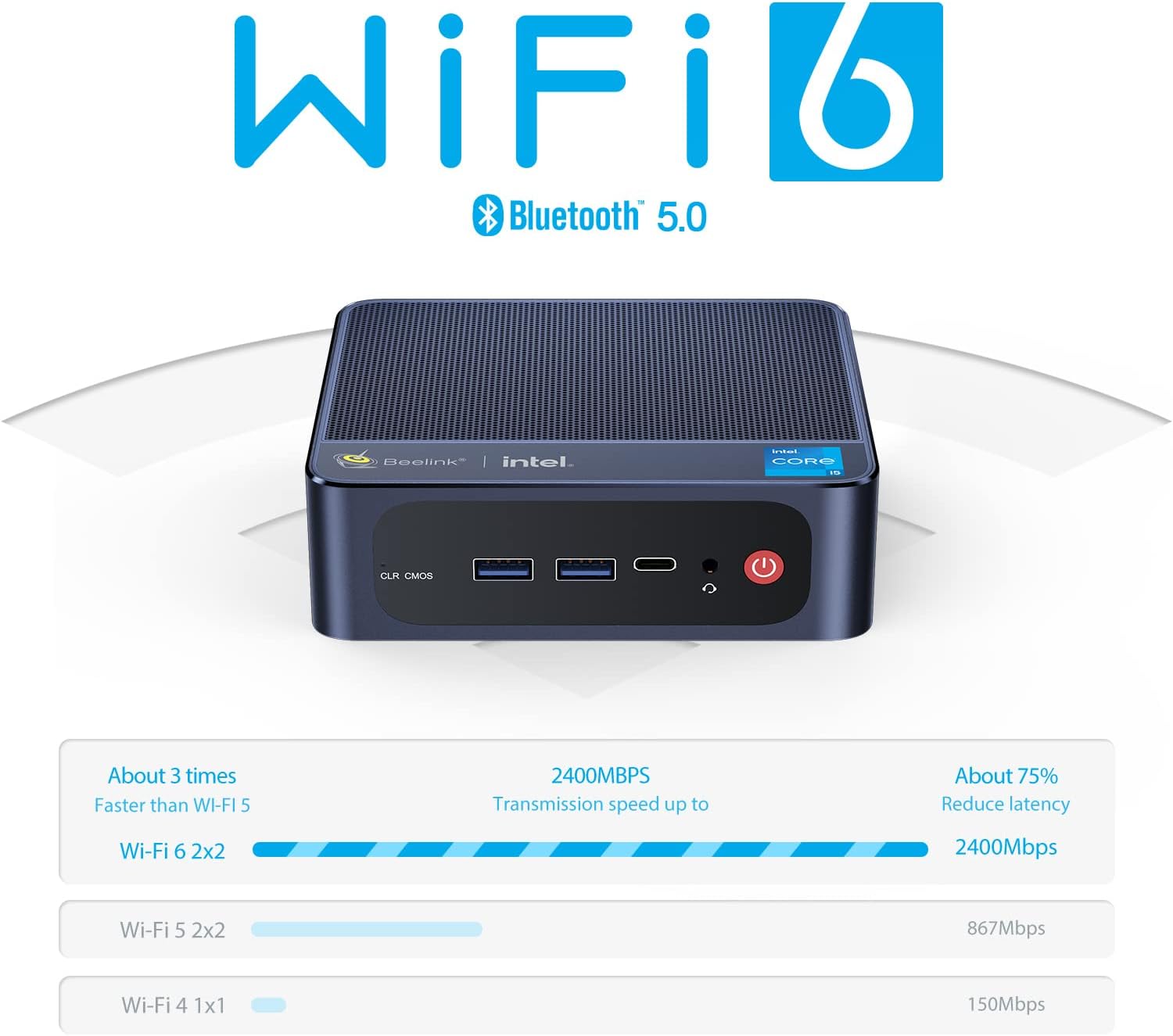

Figure 5.1: Wi-Fi 6 and Bluetooth 5.0 for enhanced wireless connectivity.

6. Amelyorasyon Memwa ak Depo

The Beelink SEi11 Mini PC is designed for easy upgrades to enhance its performance and storage capacity.

6.1. RAM Upgrade

The Mini PC comes with 16GB DDR4 RAM (2x 8GB modules). It features dual SODIMM slots and can be upgraded to a maximum of 64GB DDR4 RAM (2x 32GB modules) at 3200MHz.

Figure 6.1: DDR4 RAM modules for memory expansion.

6.2. SSD and HDD Expansion

The device includes a 500GB M.2 NVMe 2280 SSD, which can be upgraded to a maximum of 2TB. Additionally, you can install a 2.5-inch 7mm SATA3 HDD or SSD (up to 2TB) for expanded storage. The necessary SATA ribbon cable is included in the package.

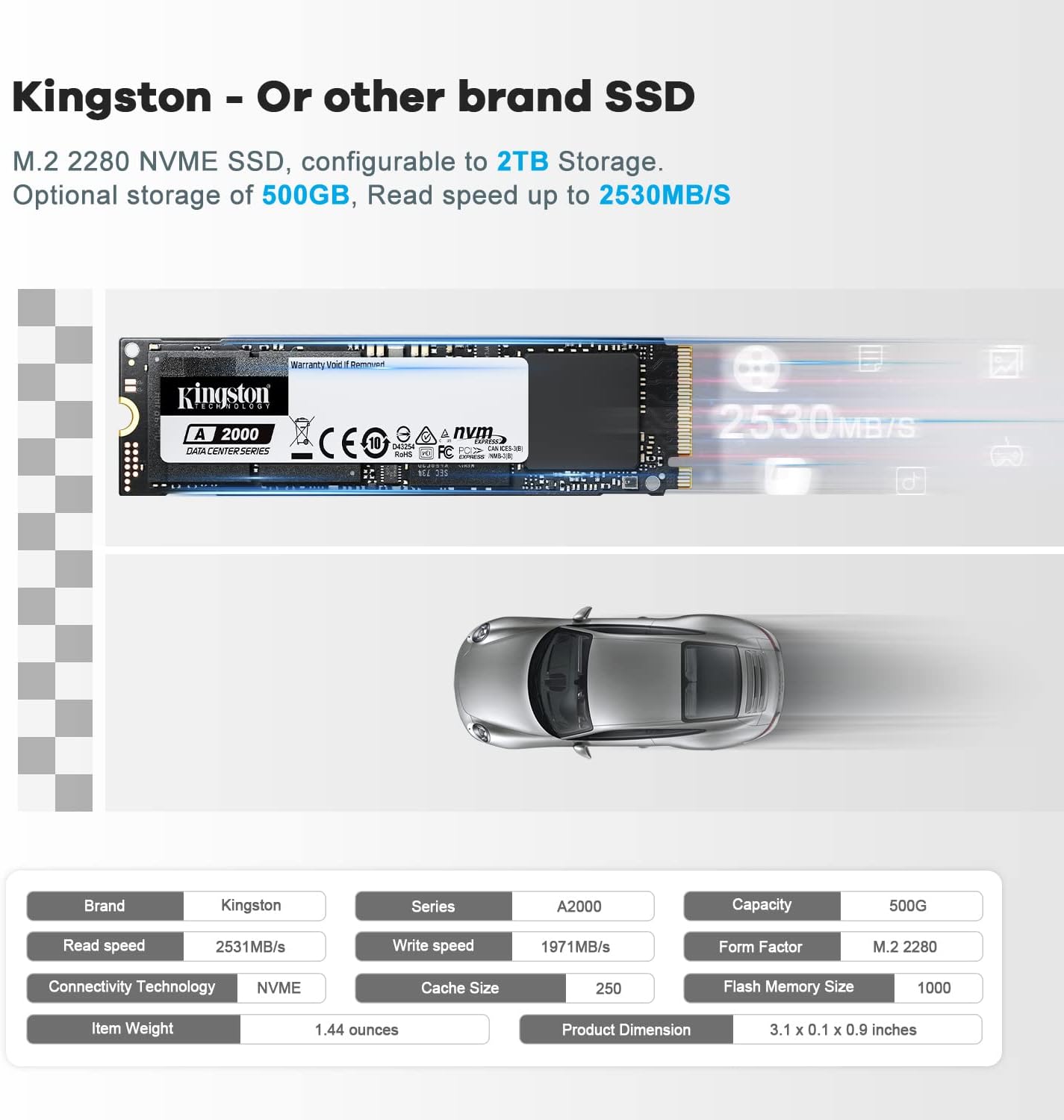

Figure 6.2: M.2 NVMe SSD for fast storage.

7. Espesifikasyon teknik

8. Antretyen

To ensure the longevity and optimal performance of your Beelink SEi11 Mini PC, follow these maintenance guidelines:

• Netwayaj: Regularly clean the exterior with a soft, dry cloth. Avoid using liquid cleaners or harsh chemicals. Ensure ventilation grilles are free from dust and debris.
• Vantilasyon: The Mini PC features a built-in cooling fan and heat pipes for efficient heat dissipation. Ensure the device is placed in a well-ventilated area and that the side and top mesh grilles are not obstructed.
• Mizajou lojisyèl: Keep your Windows operating system and drivers updated to ensure stability and security.
• Kondisyon anviwònman: Operate the device within recommended temperature and humidity ranges to prevent damage.

Figure 8.1: Internal cooling system for efficient heat dissipation.

NAN. Depanaj

If you encounter issues with your Beelink SEi11 Mini PC, consider the following common troubleshooting steps:

• Pa gen pouvwa: Ensure the power adapter is securely connected to both the Mini PC and a working power outlet. Test the outlet with another device.
• Pa gen ekspozisyon: Verify that the HDMI or Type-C cable is correctly connected to both the Mini PC and the monitor. Ensure the monitor is set to the correct input source.
• Periferik pa detekte: Try connecting the peripheral to a different USB port. Ensure drivers are installed if required.
• Pèfòmans Ralanti: Check for excessive background applications or high CPU/RAM usage in Task Manager. Ensure sufficient free storage space.
• Pwoblèm rezo: For wired connections, check the Ethernet cable and router. For Wi-Fi, ensure the device is within range of your router and the Wi-Fi adapter is enabled.
• Reyajiste BIOS la: If experiencing boot issues, locate the CLR CMOS reset hole on the front panel and use a paperclip to press the button inside.

10. Garanti ak sipò

Beelink provides a one-year quality assurance for the Mini PC. For any questions or technical assistance during use, you can contact Beelink customer service. They offer 24/7 manual customer service and lifetime technical support.

10.1. Kijan pou kontakte Sipò a

If you purchased your device through Amazon, you can typically find support options by:

1. Logging into your Amazon account.
2. Navigating to 'Your Account' then 'Your Orders'.
3. Locating your Beelink Mini PC order and selecting 'Ask Product Question'.

Figure 10.1: Steps to contact customer service.
