Manyèl Enstriksyon pou Laveur a Presyon Konpak WORKPRO

Entwodiksyon

Thank you for choosing the WORKPRO Compact Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before first use and keep it for future reference.

This electric pressure washer is designed for effective cleaning tasks around your home, including cars, boats, driveways, decks, patios, and lawn equipment. Its compact and lightweight design ensures ease of use and storage.

Enfòmasyon enpòtan sou sekirite

WARNING: Always follow basic safety precautions when using this product to reduce the risk of injury or electric shock.

• Pwoteksyon GFCI: The power cord is equipped with a Ground Fault Circuit Interrupter (GFCI) to protect against electric shock. Always ensure the GFCI is functioning correctly before each use.
• Total Stop System (TSS): This pressure washer features a Total Stop System, which automatically shuts off the pump when the trigger is not engaged. This saves energy and prolongs pump life.
• Lock sekirite: The spray gun includes a safety lock to prevent accidental triggering and avoid injury. Always engage the safety lock when the unit is not in use or when changing nozzles.
• Never point the spray gun at people or pets. High-pressure spray can cause serious injury.
• Asire w tout koneksyon yo byen fèm anvan w itilize li pou anpeche flit epi kenbe presyon an.
• Do not operate the pressure washer in the rain or near standing water.

Figure 1: Illustration of GFCI protection on the power cord and the safety lock on the spray gun handle.

Kontni pake

Upon unpacking, ensure all items listed below are present and undamaged. If any parts are missing or damaged, please contact WORKPRO customer support.

• WORKPRO Compact Pressure Washer Unit
• Tiyo presyon wo (35 pye)
• Manch zam flite
• Ekstansyon ralonj
• Bouch koneksyon rapid (0°, 15°, 25°, 40°)
• Soap Applicator (400ml Foam Cannon)
• Garden Hose Quick-Connector (Optional)
• Nettoyage PIN
• Manyèl Enstriksyon

Figure 2: All components included with the WORKPRO Compact Pressure Washer.

Enstalasyon ak Asanble

Follow these steps to assemble your pressure washer before first use:

1. Rasanble zam flite a:
   • Insert the extension wand into the gun handle until it clicks securely.
   • Attach your desired quick-connect nozzle (0°, 15°, 25°, 40°) or the foam cannon to the end of the extension wand. Push firmly until it locks into place.
2. Konekte tiyo presyon an:
   • Connect one end of the high-pressure hose to the spray gun handle. Push it in until it clicks and is secure. To remove, press the release button.
   • Connect the other end of the high-pressure hose to the water outlet on the pressure washer unit. Push it in until it clicks and is secure. To remove, press the release button.
3. Konekte tiyo jaden an:
   • Attach your garden hose (not included) to the water inlet on the pressure washer unit. Ensure a tight connection to prevent leaks. An optional quick-connector is included for convenience.
4. Konekte pouvwa:
   • Plug the GFCI-protected power cord into a suitable electrical outlet. Press the "RESET" button on the GFCI plug to ensure it is active.

Figure 3: Visual guide for connecting the spray gun, high-pressure hose, garden hose, and power supply.

Video 1: Demonstrates the assembly and connection process of the WORKPRO Pressure Washer components.

Operasyon

Before starting, ensure all connections are secure and the water supply is turned on. The unit generates up to 1900 PSI and 1.8 GPM for powerful cleaning.

1. Kòmanse Inite a: Turn the power switch on the pressure washer unit to the "ON" position. The pump will start.
2. Purge Air: Before spraying, squeeze the trigger on the spray gun for a few seconds to allow any trapped air to escape and ensure a steady stream of water.
3. Chwazi bouch: Choose the appropriate quick-connect nozzle for your cleaning task:
   • 0° (Wouj): Pin-point jet for tough, concentrated cleaning (e.g., stubborn stains on concrete). Use with extreme caution.
   • 15° (Jòn): Narrow fan spray for intense cleaning of hard surfaces (e.g., removing paint, rust).
   • 25° (Vèt): Medium fan spray for general cleaning (e.g., decks, patios, fences).
   • 40° (Blan): Wide fan spray for gentle cleaning (e.g., cars, delicate surfaces).
   • Soap (Black/Blue): Low-pressure spray for applying detergent with the foam cannon.
4. Aplike detèjan (Si ou vle): If using the foam cannon, fill it with appropriate pressure washer detergent. Attach it to the spray gun. The unit will automatically mix the detergent with water at low pressure.
5. Netwayaj: Hold the spray gun firmly and maintain a safe distance from the surface being cleaned. Move the spray gun in a sweeping motion to clean evenly.
6. Fèmen: When finished, turn the power switch to "OFF". Turn off the water supply. Squeeze the trigger to release any remaining pressure in the system before disconnecting hoses.

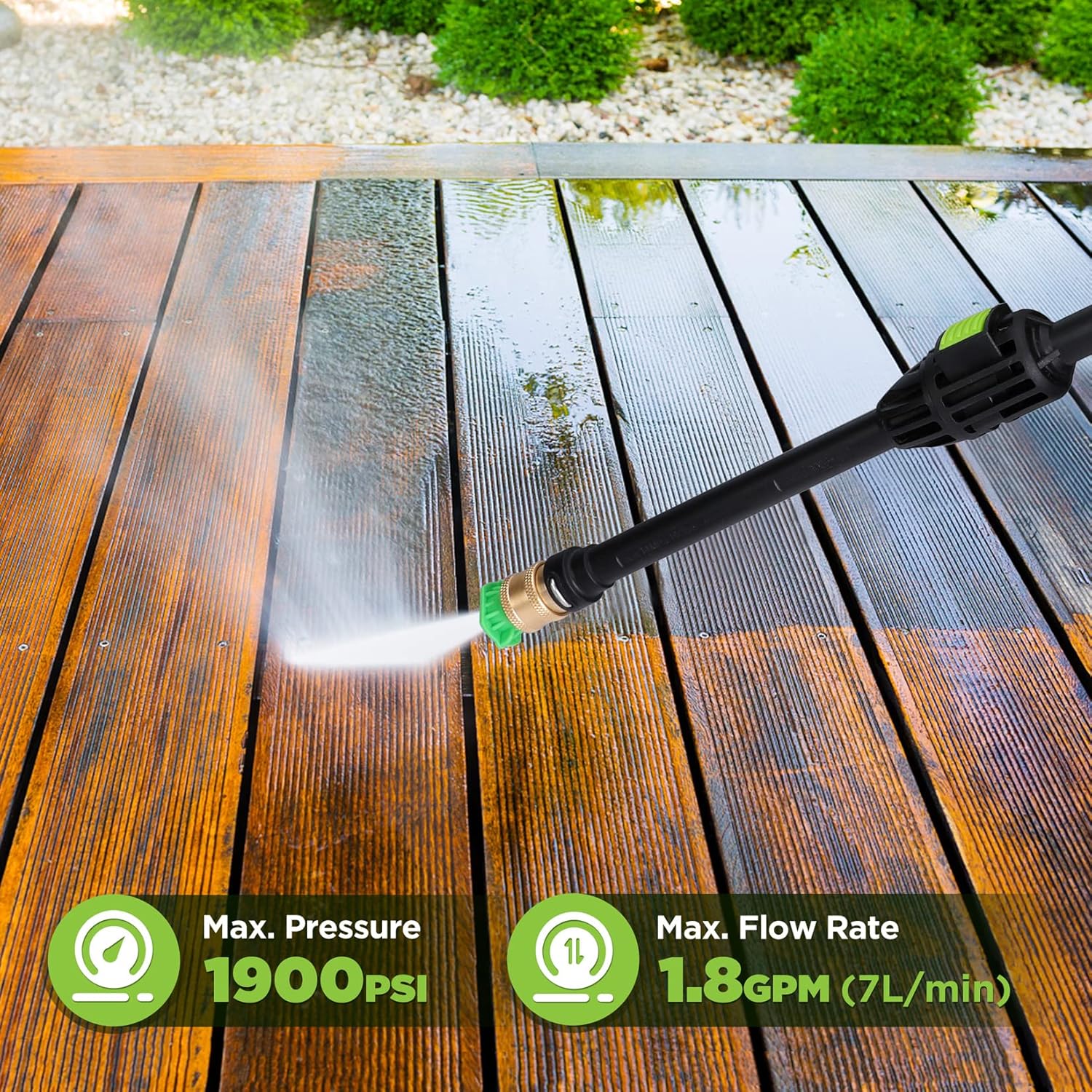

Figure 4: The pressure washer demonstrating its cleaning power on a wooden deck.

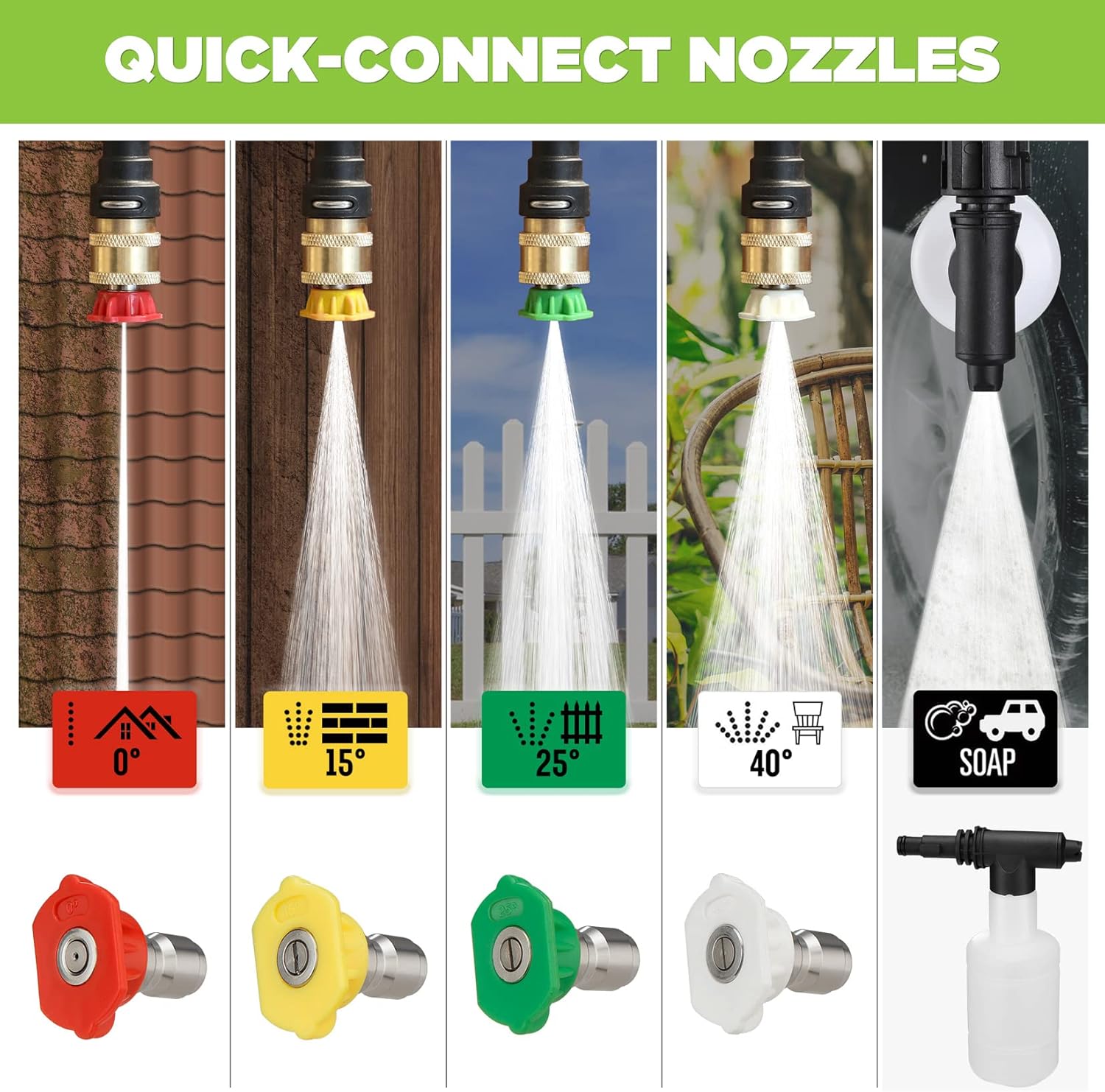

Figure 5: A visual representation of the different quick-connect nozzles and their spray patterns.

Figi 6: Egzamples of multiple cleaning applications for the pressure washer.

Videyo 2: Finiview of the WORKPRO Pressure Washer in action, demonstrating its versatility for various cleaning tasks.

Antretyen

Antretyen regilye asire lonjevite ak pèfòmans optimal machin pou lave presyon ou an.

• Netwayaj bouch yo: If a nozzle becomes clogged, use the included cleaning pin to clear any debris from the nozzle opening.
• Depo: The compact design (15.7 x 8.7 x 7 inches, 9.3 pounds) makes it easy to store. Always drain all water from the pump and hoses before storing, especially in freezing temperatures, to prevent damage.
• Swen Tiyo: The 35 ft. high-pressure hose should be coiled neatly after each use to prevent kinks and damage.
• Netwayaj jeneral: Siye inite a ak anonsamp cloth after use. Do not use harsh chemicals.

Figure 7: The compact and lightweight design of the pressure washer makes it easy to transport and store.

Depanaj

If you encounter issues with your pressure washer, refer to the common problems and solutions below:

Espesifikasyon

• Mak: WORKPRO
• Modèl: W125186A
• Sous pouvwa: Fil elektrik
• Motè: 12-Amp (1440-watt)
• Presyon maksimòm: 1900 psi
• To maksimòm koule: NAN GPM
• Max Tanperati Dlo Inlet: 122 ° F (50 ° C)
• Pwa atik: 9.3 liv (4.22 kg)
• Dimansyon pwodwi: 15.75"L x 8.86"L x 7.87"H
• Longè kawotchou wo-presyon: 35 pye (6 mèt)
• Longè kab pouvwa: 35 pye.
• UPC: 820909682325

Garanti ak sipò

WORKPRO stands behind the quality of its products. For any questions about your pressure washer, technical assistance, or warranty claims, please contact WORKPRO customer support. We are committed to providing prompt assistance within 24 hours.

Refer to the product packaging or the official WORKPRO websit la pou plis detay sou garanti a ak enfòmasyon pou kontakte yo.
