INKBIRDPLUS 6-in-1 CO2 Monitor User Manual

1. Entwodiksyon ak souview

The INKBIRDPLUS 6-in-1 CO2 Monitor is an advanced indoor air quality detection device designed to provide real-time measurements of various environmental parameters. This monitor helps you understand and maintain a healthy indoor environment by tracking Air Quality Index (AQI), Carbon Dioxide (CO2), Particulate Matter (PM2.5 and PM10), Temperature, and Humidity. Its clear display and alarm functions ensure you are always informed about your air quality.

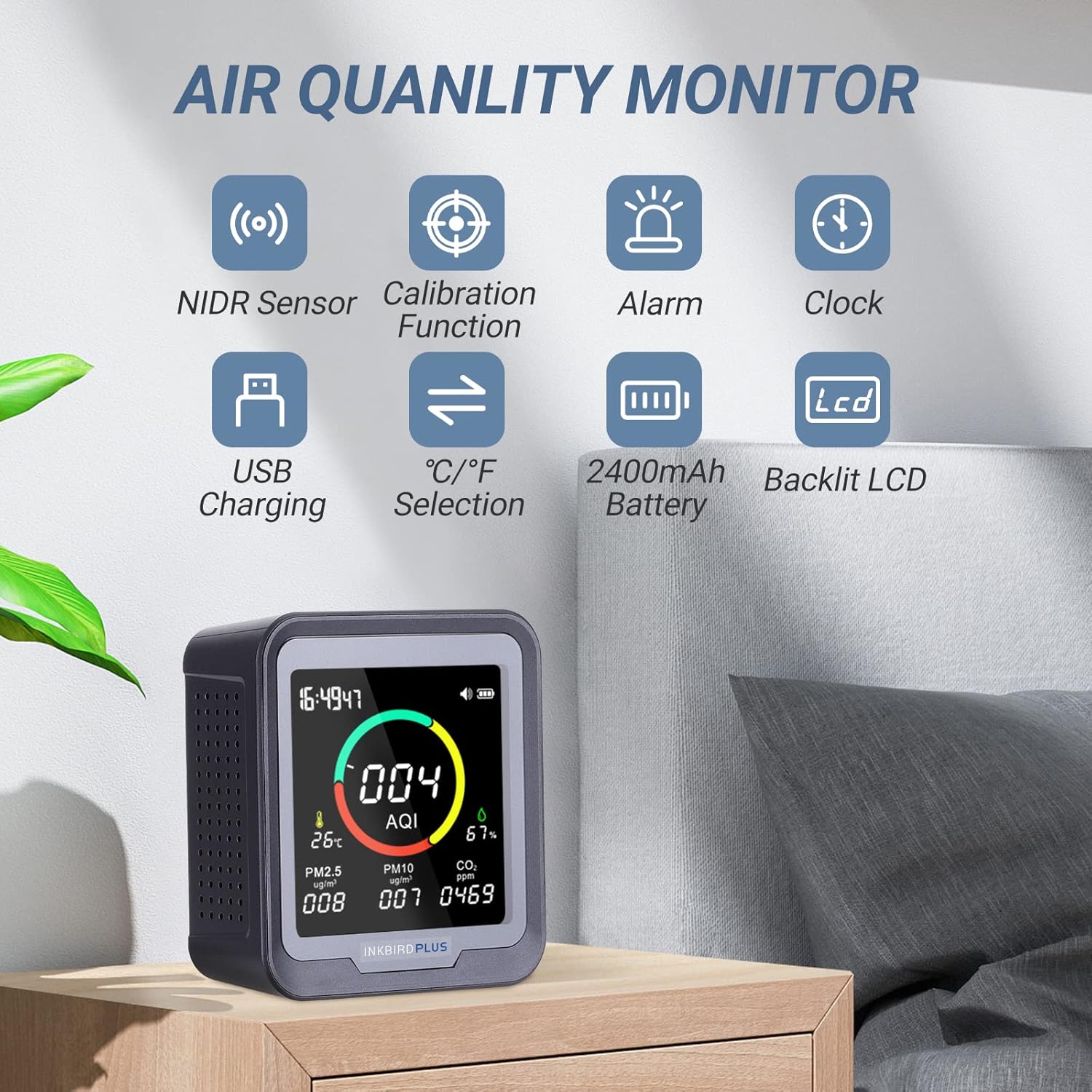

Figure 1: INKBIRDPLUS 6-in-1 CO2 Monitor displaying various air quality metrics.

2. Pwodwi Features

• 6 an 1 Multifonksyon: Accurately detects AQI, CO2, PM2.5, PM10, temperature, and humidity levels.
• 3-Color Status Indicator: Visual alerts for air quality: Green (Normal: 0-50), Yellow (Warning: 51-100), Red (Danger: 101-500). An audible alarm activates when AQI exceeds 100.
• Fasil pou itilize: USB rechargeable with automatic CO2 calibration. Temperature display can be switched between Celsius (℃) and Fahrenheit (℉).
• Ekspozisyon an tan reyèl: Backlit color display shows current values, time, date, and year.
• Plasman versatile: Features a hanging hole for wall mounting and a pull-out stand for desktop use.

Figure 2: Key features of the INKBIRDPLUS Air Quality Monitor.

3. Pake kontni

Lè w ap debale, asire w tout bagay yo la:

• 1x INKBIRDPLUS 6-in-1 Air Quality Monitor
• 1x USB Kalite-C Chaje Kab
• 1x manyèl itilizatè

4. Dyagram pwodwi ak konpozan

Familiarize yourself with the monitor's layout and controls:

Figi 3: Devan ak dèyè view of the monitor with labeled components.

• Ekspozisyon ekran: Shows all measurement values and settings.
• Bouton pouvwa: Limen/éteint aparèy la.
• 'DOWN' Button: Adjusts parameters, turns backlight on/off.
• 'UP' Button: Adjusts parameters, turns alarm on/off.
• USB-C pò: Pou chaje aparèy la.
• Twou pandye: Pou aliye miray la.
• Pull-out Stand: Pou plasman sou biwo.

5. Enstalasyon

5.1 Chaje Aparèy la

The monitor is equipped with a rechargeable lithium-ion battery. For continuous operation, it is recommended to keep the device plugged in using the provided USB Type-C cable. The battery serves as a backup power source.

Figure 4: Connecting the monitor for USB charging.

5.2 Plasman

The monitor can be placed on a flat surface using its integrated pull-out stand or mounted on a wall using the hanging hole on the back.

Figure 5: Wall mounting option for the monitor.

6. Operasyon Enstriksyon

6.1 Power On/Off

Press and hold the Power button to turn the device on or off. The device will perform an initial measurement sequence upon startup.

6.2 Initial Measurement

After powering on, the monitor will take approximately 30 seconds to measure CO2 and air quality. It performs this measurement five times to ensure accuracy.

6.3 Setting Time, Date, and Year

1. Double-click the 'Power' button to enter setting mode.
2. The setting sequence is year, date, then time. After setting each item, press the 'Power' button to confirm and move to the next setting.
3. Use the '-' button to decrease the parameter value and the '+' button to increase it.

Figure 6: Steps for setting the device's time and date.

7. Montre Enfòmasyon

The monitor features a clear, backlit color display that presents all relevant data at a glance. The AQI value is prominently displayed with a color-coded indicator:

• Vèt: Normal air quality (AQI 0-50)
• Papye jòn: Warning, moderate air quality (AQI 51-100)
• Wouj: Dangerous, unhealthy air quality (AQI 101-500)

Figure 7: AQI concentration levels and their corresponding color indicators.

8. Kalibrasyon

The CO2 sensor supports automatic calibration. For manual calibration, power off the device and then long-press three buttons simultaneously to enter the calibration mode. Follow the on-screen prompts to complete the calibration process.

Figure 8: Initiating the calibration function.

9. Fonksyon alam

The monitor features an audible alarm that activates when the detected AQI value exceeds 100. To abort the alarm, long-press the '+' key.

Figure 9: Stopping the AQI alarm.

10. Seleksyon Inite Tanperati

You can select either Celsius (℃) or Fahrenheit (℉) for temperature display based on your preference. Refer to the on-screen menu or the 'DOWN' button functionality for switching units.

11. Antretyen

• Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye aparèy la. Pa sèvi ak pwodui netwayaj abrazif oswa solvan.
• Swen batri: For optimal battery life, avoid fully discharging the device frequently. Keep it plugged in for continuous monitoring.
• Depo: Sere aparèy la nan yon kote ki fre epi sèk lè w pa itilize li pou yon bon bout tan.

NAN. Depanaj

• Kout lavi batri: The internal battery is primarily for backup. For continuous operation, keep the device plugged in via the USB-C cable.
• Lekti ki pa kòrèk: Ensure the device is placed in an area with good air circulation, away from direct drafts or heat sources. Allow sufficient time for initial calibration (approx. 30 seconds). If readings seem consistently off, perform a manual calibration as described in Section 8.
• Alam pa sonnen: Check if the alarm function is enabled (refer to 'UP' button functionality). Ensure the volume is not muted.
• Ekspozisyon pa travay: Ensure the device is charged or plugged in. If the screen is dark, try adjusting the backlight using the 'DOWN' button.

13. Espesifikasyon

14. Videyo pwodwi ofisyèl yo

15. Garanti ak sipò

For any questions, concerns, or support regarding your INKBIRDPLUS 6-in-1 CO2 Monitor, please contact customer service directly. You can reach them via email at: unni_technology@hotmail.com.
