Mishimoto Racing Tow Hook MMTH-91MM User Manual

Entwodiksyon

Welcome to the Mishimoto Racing Tow Hook user manual. This document provides essential information for the proper installation, operation, and maintenance of your Mishimoto Racing Tow Hook. Designed for both track performance and aesthetic appeal, this tow hook is a robust and functional piece of equipment, crafted from high-strength 7075 aluminum and 304 stainless steel.

Enfòmasyon sou Sekirite

• Always ensure the tow hook is securely fastened before use.
• Do not exceed the specified 8,000-pound straight-pull strength rating.
• Inspect the tow hook for any damage or wear before each use.
• Li rekòmande pou yon enstalasyon pwofesyonèl pou yon sekirite ak yon pèfòmans optimal.
• Keep hands and clothing clear of moving parts during installation and operation.

Kontni pake

• (1) Mishimoto Racing Tow Hook
• Mishimoto Lifetime Warranty Information

Espesifikasyon

Enstalasyon ak Enstalasyon

The Mishimoto Racing Tow Hook is designed for straightforward installation into a factory thread-in style tie-down point.

1. Locate Tow Hook Receptacle: Identify the factory tow hook receptacle on your vehicle's front or rear bumper. This is typically covered by a small removable cap.
2. Remove Cover (if applicable): Carefully remove any cover or cap obstructing the tow hook receptacle.
3. Prepare Tow Hook: Ensure the tow hook components are clean and free of debris.


Image: The threaded shaft of the Mishimoto Racing Tow Hook, showing the BMW Style 20mm thread for secure attachment.

4. Thread Tow Hook: Carefully thread the Mishimoto Racing Tow Hook into the factory receptacle. Turn clockwise until hand-tight.
5. Secure Tow Hook: Use an appropriate wrench (not included) to tighten the tow hook securely. Do not overtighten, but ensure it is firm enough to prevent loosening during use.

Image: A Mishimoto Racing Tow Hook, in a red finish, securely installed on the front of a vehicle, demonstrating proper fitment.
6. Verifye estabilite: Gently pull on the tow hook to confirm it is stable and does not wobble.

Nòt enpòtan:

Some vehicles may require minor modifications or specific tools for installation. Consult your vehicle's owner's manual or a professional mechanic if you encounter difficulties.

Enstriksyon Operasyon

The Mishimoto Racing Tow Hook is designed for vehicle recovery and track-side assistance.

• Deplwaman: The tow hook features a fold-down style ring. When needed, simply pull the ring into its upright position.

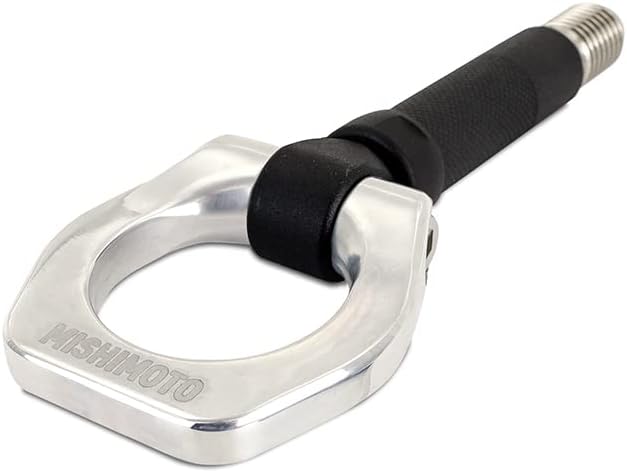

Image: The Mishimoto Racing Tow Hook in its functional, upright position, ready for towing or recovery.

• Towing Connection: Attach a suitable tow strap or rope to the 2-inch inside diameter ring. Ensure the connection is secure and properly rated for the towing load.
• Pliye: When not in use, the ring can be folded down to a compact position, reducing protrusion and maintaining vehicle aesthetics.

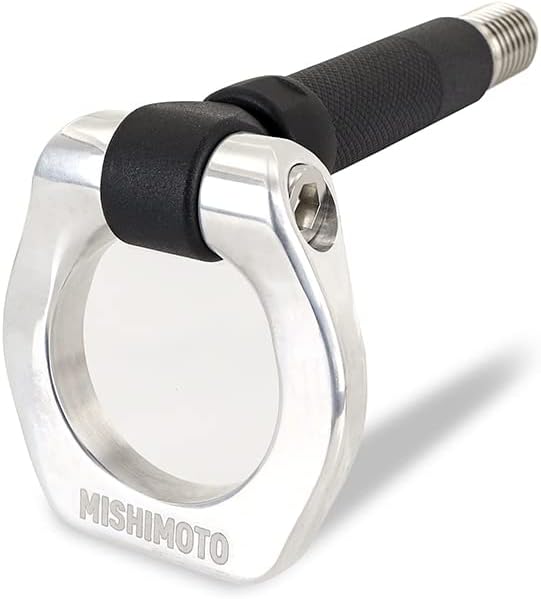

Image: The Mishimoto Racing Tow Hook with its ring folded down, illustrating its low-profile design when not in active use.
• Towing Procedure: Always follow safe towing practices. Apply steady, gentle force when towing. Avoid sudden jerks or excessive speed.

Antretyen

• Enspeksyon regilye: Periodically inspect the tow hook for any signs of wear, corrosion, or damage, especially after heavy use.
• Netwayaj: Clean the tow hook with mild soap and water. Avoid harsh chemicals that may damage the finish.
• Lubrifikasyon: Apply a small amount of grease or anti-seize compound to the threads if removal becomes difficult, or to prevent corrosion.
• Depo: If removed, store the tow hook in a clean, dry place to prevent damage or loss.

Depanaj

Issue: Tow hook is difficult to thread into the receptacle.

Kòz posib: Misalignment, dirty threads, cross-threading.

Solisyon:

• Ensure the tow hook is perfectly aligned with the receptacle before threading.
• Clean both the tow hook threads and the vehicle's receptacle threads.
• Do not force the tow hook. If resistance is met, unthread, realign, and try again.
• Apply a small amount of anti-seize lubricant to the threads.

Issue: Tow hook feels loose after tightening.

Kòz posib: Insufficient tightening, damaged threads.

Solisyon:

• Re-tighten the tow hook using an appropriate wrench, ensuring it is snug but not overtightened.
• If the issue persists, inspect the threads on both the tow hook and the vehicle's receptacle for damage. Damaged threads may require professional repair or replacement.

Garanti ak sipò

The Mishimoto Racing Tow Hook is backed by the Mishimoto Lifetime Warranty. This warranty covers manufacturing defects and ensures the quality and durability of your product.

For detailed warranty information, claims, or technical support, please visit the official Mishimoto websit oswa kontakte depatman sèvis kliyan yo.

Ou ka jwenn plis enfòmasyon ak sipò nan: www.mishimoto.com
