1. Entwodiksyon
The Redfern Pure Breeze 10ex is a portable air cooler designed to efficiently reduce room temperature by up to 60 degrees Fahrenheit (15 Celsius). Its compact design and concealed castor wheels allow for easy portability from room to room without requiring complex installation. This unit is ideal for residential use, providing a comfortable environment wherever needed.
Unit measures approximately 10 inches deep x 11 inches wide x 30 inches high.
2. Karakteristik kle
- Reduces room temperature up to 60 degrees Fahrenheit (15 Celsius).
- Comes with a reusable gel ice pack to cool down faster.
- Easily portable from room to room thanks to the four concealed castor wheels.
- Unit measures 10 x 11 x 30 inches.
- Equipped with remote control for convenient operation.
- Features multiple operating modes: Sleep, Natural, Sway, and Cool.
- Adjustable fan speeds (1, 2, 3).
- 8-liter reservoir capacity.
- Suitable for floor areas up to 220 square feet.
3. Gid Enstalasyon
Follow these steps to set up your Pure Breeze 10ex air cooler:
- Depakete inite a: Carefully remove the air cooler from its packaging. Ensure all components, including the remote control and reusable gel ice pack, are present.
- Mete glasyè a an pozisyon: Place the unit on a flat, stable surface in the desired room. The concealed castor wheels allow for easy movement. Ensure there is adequate space around the unit for proper airflow.
- Ranpli tank dlo a: Locate the water tank at the bottom of the unit. Pull out the tank and fill it with clean water. For enhanced cooling, you can add the reusable gel ice pack to the water tank. Do not overfill.
- Konekte ak pouvwa: Plug the power cord into a standard 220-volt electrical outlet. The unit consumes 45 watts.
- Operasyon inisyal: Press the "ON/OFF" button on the control panel or remote control to power on the unit.
Figi 3.1: Devan view of the Pure Breeze 10ex, highlighting its sleek design and air vents.

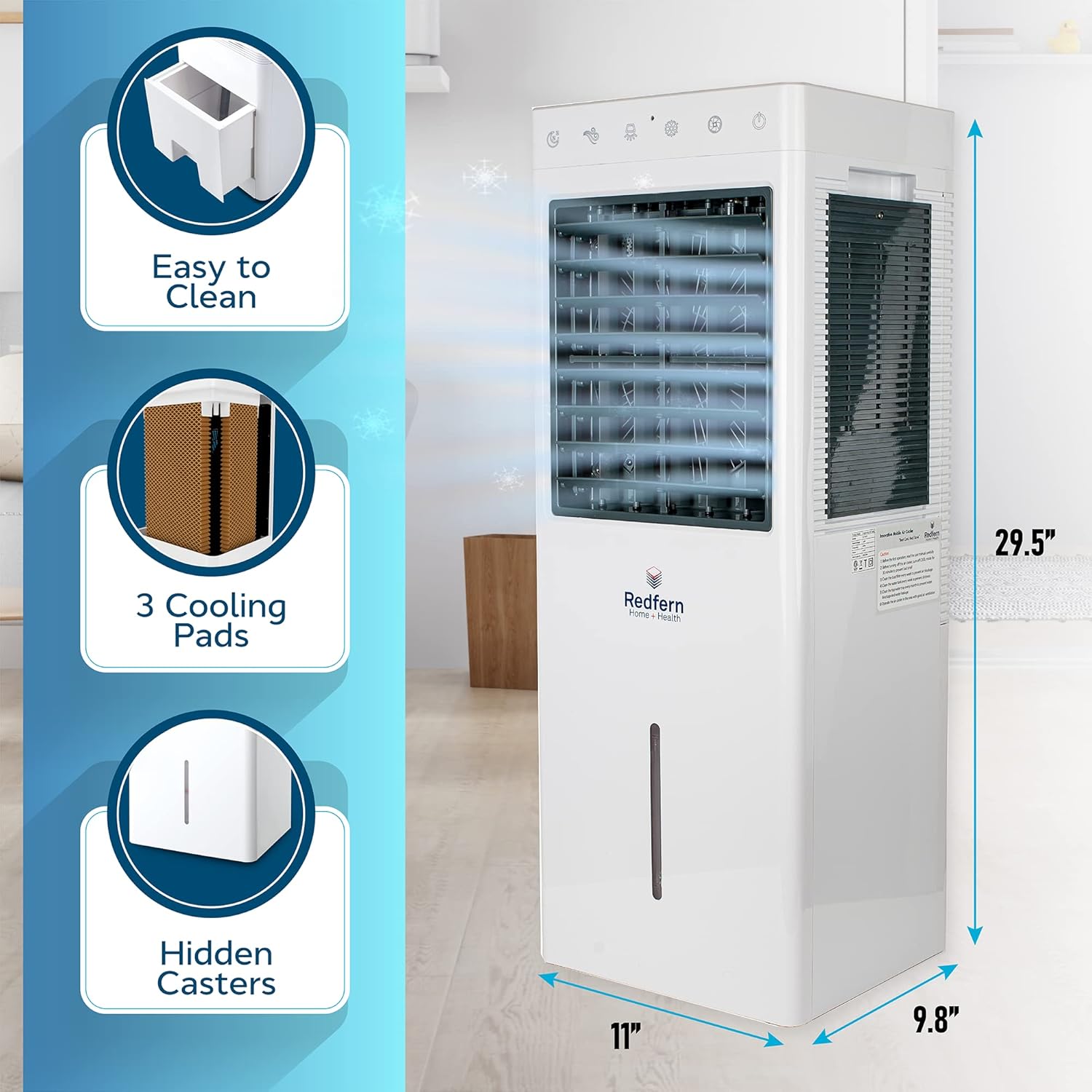

Figi 3.2: Side view illustrating the dimensions and key features like easy cleaning, cooling pads, and hidden casters.
4. Operasyon Enstriksyon
The Pure Breeze 10ex can be operated using the control panel on top of the unit or the included remote control.
Fonksyon Panèl Kontwòl / Kontwòl Remote:
- ON/OFF: Limen oswa etenn inite a.
- VITESSE: Cycles through fan speeds (1, 2, 3).
- KOULÈ: Activates the cooling function, utilizing the water and ice pack for evaporative cooling.
- SWAY: Activates the oscillation feature, moving the air vents from side to side for wider air distribution.
- NATIRÈL: Simile yon briz natirèl lè li varye vitès vantilatè a.
- DÒM: Reduces fan speed and light indicators for quiet operation during sleep.
Video 4.1: Official Redfern iQ Pure Breeze Video demonstrating product features, setup, and operation.
5. Antretyen
Regular maintenance ensures optimal performance and longevity of your Pure Breeze 10ex air cooler.
- Netwayaj tank dlo: Regularly empty and clean the water tank to prevent mold and mildew buildup. Use a mild detergent and rinse thoroughly.
- Netwayaj kousen refwadisman: The unit features 3 cooling pads that can be easily removed for cleaning. Rinse them under running water to remove dust and mineral deposits. Allow them to dry completely before reinserting.
- Netwayaj eksteryè: Siye eksteryè inite a ak yon mou, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvang.
- Depo: If storing the unit for an extended period, ensure the water tank and cooling pads are completely dry. Store in a cool, dry place.
NAN. Depanaj
If you encounter issues with your Pure Breeze 10ex, refer to the following common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Aparèy pa limen. | Pa gen kouran; kòd kouran an pa byen konekte. | Check if the unit is plugged into a working 220V outlet. Ensure the power cord is securely connected. |
| Air is not cooling. | Water tank is empty; cooling pads are dirty; cooling function not activated. | Fill the water tank. Clean the cooling pads. Press the "COOL" button on the control panel or remote. Ensure the gel ice pack is frozen and placed in the tank. |
| Flux lè fèb. | Fan speed is too low; air intake/outlet blocked. | Increase the fan speed using the "SPEED" button. Ensure nothing is obstructing the air intake or outlet grilles. |
| Odè etranj. | Stagnant water in the tank; dirty cooling pads. | Empty and clean the water tank thoroughly. Clean the cooling pads. Use fresh water. |
7. Espesifikasyon
- Mak: Redfern
- Non modèl: 10ex (also referred to as 'castor' in some specifications)
- Kalite montaj: Otonòm
- Karakteristik espesyal: Pòtab
- Koulè: Multicolored (unit is primarily white)
- Kalite Kontwòl yo: Remote
- Kapasite rezèvwa: 8 lit
- Kouvèti zòn etaj: 220 pye kare
- Itilizasyon Rekòmande: Rezidans lan
- Eleman ki enkli: Fan, Remote
- Kantite vitès: 3
- Dimansyon pwodwi: 10"D x 11"W x 30"H
- Voltage: 220 Volts
- Sous pouvwa: Electric (45 watts)
- Pwa atik: 18.43 liv
- Peyi orijin: Lachin
- UPC: 882903031240
8. Garanti ak sipò
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Redfern customer service directly. Keep your purchase receipt as proof of purchase.
Redfern Customer Service: www.redfern.com/support (EgzampLyen an)
