Manyèl Itilizatè Kamera Aksyon LAMAX X9.2

Entwodiksyon

Thank you for choosing the LAMAX X9.2 Action Camera. This manual provides detailed instructions to help you set up, operate, and maintain your camera, ensuring you get the most out of its advanced features. Please read this manual thoroughly before use and keep it for future reference.

Ki sa ki nan bwat la

The LAMAX X9.2 comes with a comprehensive set of accessories to enhance your shooting experience. Please verify that all items listed below are included in your package:

• Kamera Aksyon LAMAX X9.2
• Waterproof case (for use up to 40m depth)
• Remote kontwòl
• Mikwofòn ekstèn
• Ankadreman pou itilize san kouvèti ki enpèmeyab
• Klip rezèv pou bwat ki enpèmeyab
• Battery (1 Lithium Ion, included)
• 2 × Self-adhesive mounts (for smooth surfaces like helmets, hoods)
• Fast Plug-in (for quick insertion into mount)
• J-mount (for quick locking with elevation)
• Bar mount (for attachment to handlebars, etc.)
• 3-axis connector (for attachment in any direction)
• 2 × 3M adhesive stickers (for repositioning self-adhesive mounts)
• Tripod adapter (for connecting camera to tripod housing)
• Tripod reduction (for connecting camera to accessory)
• Micro USB cable (for charging the camera)
• Ka pwoteksyon
• Microfiber cloth (for cleaning screens and lenses)
• Instructions and safety tips

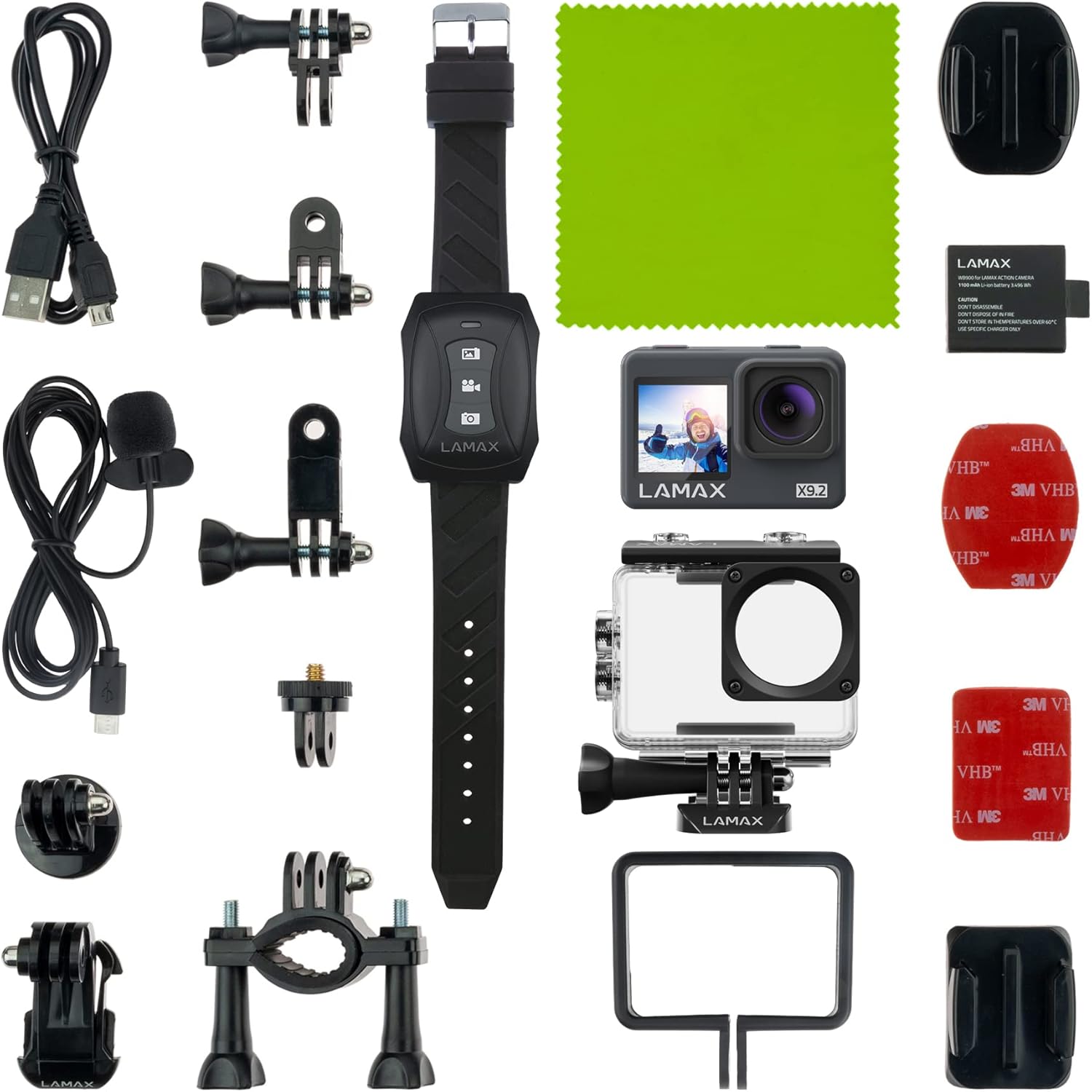

Imaj: Plis paseview of the LAMAX X9.2 Action Camera and its 22 included accessories, such as the waterproof case, remote control, external microphone, various mounts, and charging cable.

Pwodwi souview

Familiarize yourself with the main components and controls of your LAMAX X9.2 Action Camera.

Image: The LAMAX X9.2 Action Camera, featuring its main body, a wrist-worn remote control, and an external microphone. The camera has a front display and a prominent lens.

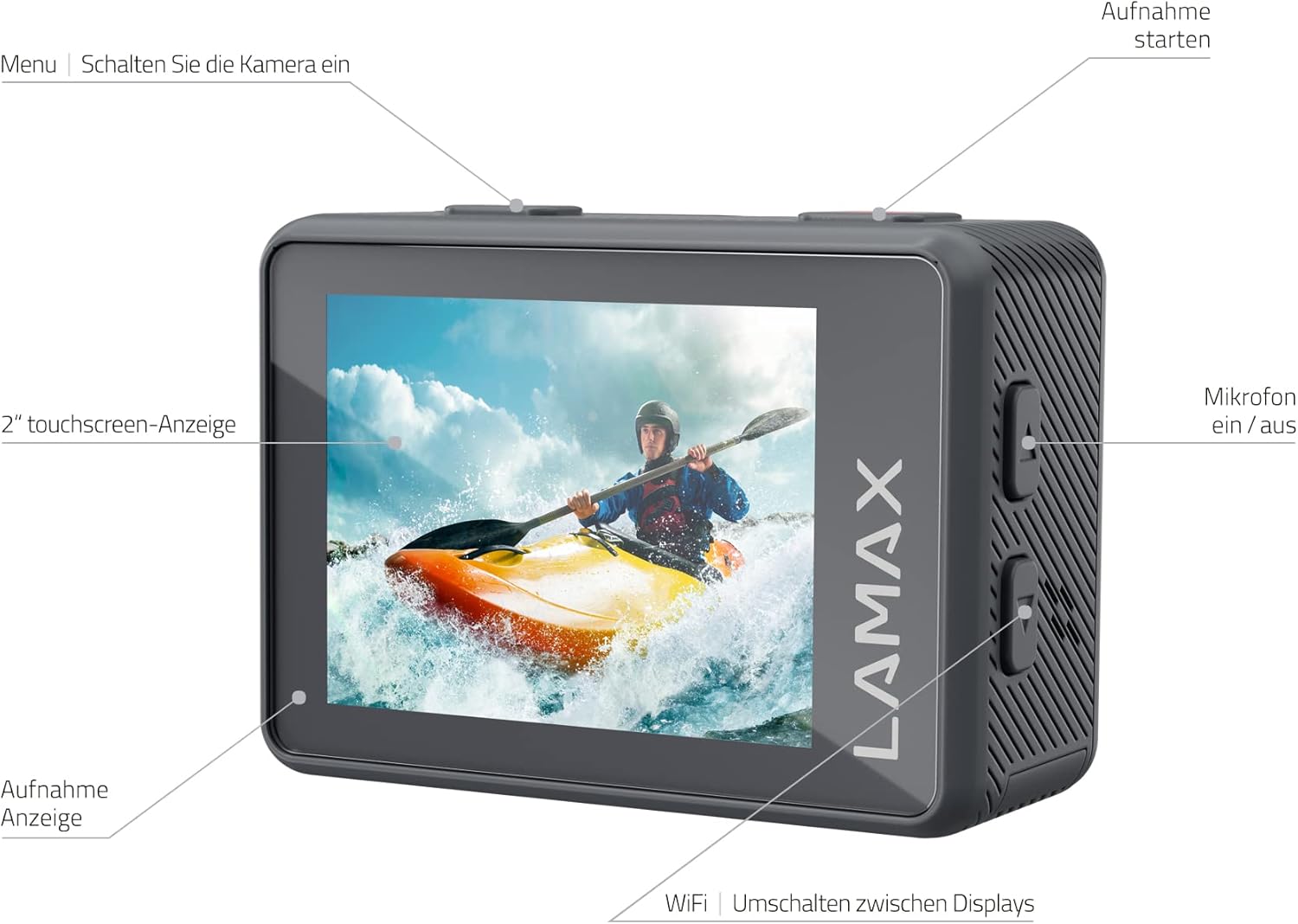

Image: A detailed diagram of the LAMAX X9.2 Action Camera's rear and side, highlighting key controls such as the Menu button, Record button, 2-inch touchscreen display, Recording indicator, Microphone On/Off button, and Wi-Fi/Display switch button.

Konpozan kle:

• Lantiy: High-quality lens for capturing 4K video and 16MP photos.
• Front Display (1.3"): Ideal for selfies and vlogging, allowing you to frame yourself.
• Rear Touchscreen Display (2"): Pou viewing footage, navigating menus, and adjusting settings.
• Pouvwa / Mode bouton: Used to power the camera on/off and switch between modes.
• Bouton Panno / Dosye: Initiates photo capture or video recording.
• Pò Mikwofòn Ekstèn: For connecting the included external microphone for enhanced audio.
• MicroSD Kat plas: For inserting your memory card (MicroSD, not included).
• Pò USB: Pou chaje ak transfè done.

Enstalasyon

1. Enstalasyon ak Chaje Batri

1. Louvri kouvèti konpatiman batri a ki anba kamera a.
2. Insert the included Lithium Ion battery, ensuring correct polarity.
3. Fèmen kouvèti lòj batri a byen.
4. Connect the camera to a power source using the Micro USB cable to fully charge the battery before first use. The charging indicator will show the charging status.

2. Mete Kat MicroSD

1. Jwenn fant kat MicroSD a sou bò kamera a.
2. Insert a compatible MicroSD card (Class 10 or higher, up to 128GB recommended) with the contacts facing the camera's front.
3. Gently push the card until it clicks into place. To remove, push again until it springs out.

3. Itilizasyon Bwat ki Enpèmeyab la

The included waterproof case allows the camera to be submerged up to 40 meters. Ensure the camera is securely placed inside the case and the latch is fully closed before entering water.

Image: The LAMAX X9.2 Action Camera securely enclosed within its transparent waterproof housing, ready for underwater use. The housing features buttons that align with the camera's controls.

4. Connecting the External Microphone

For improved audio quality, connect the external microphone to the designated port on the camera. This is particularly useful for vlogging or capturing clear dialogue.

5. Pè kontwòl remote

The wrist-worn remote control allows for convenient operation. Refer to the remote control's specific instructions for pairing with your camera. Typically, this involves activating a pairing mode on both devices.

Opere kamera a

Power On/Off

Peze epi kenbe bouton Pouvwa/Mòd la pou limen oswa etenn kamera a.

Basic Recording and Photo Capture

• Anrejistreman videyo: In video mode, press the Shutter/Record button to start recording. Press again to stop. The camera supports 4K resolution at 60 frames per second (fps) and Full HD at 120 fps for slow-motion effects.
• Capture foto: In photo mode, press the Shutter/Record button to take a 16-megapixel photo.

MAXsmooth Stabilization

The LAMAX X9.2 features MAXsmooth stabilization to reduce blur and shakiness in your footage, even during dynamic activities. This feature is automatically applied to enhance video quality.

Image: A split image demonstrating the effect of MAXsmooth stabilization. The left side shows a blurry, shaky view from a moving vehicle (stabilization OFF), while the right side shows a clear, stable view of the same scene (stabilization ON).

Using Front and Rear Displays

• La 2-inch rear touchscreen is your primary interface for viewing viv footage, playing back recordings, and navigating camera settings.
• La 1.3-inch front display is designed for easy self-framing, making it perfect for vlogging and selfies. You can switch between displays using the dedicated button.

Image: A person is shown taking a selfie with the LAMAX X9.2 Action Camera, which is mounted on a selfie stick. The camera's front display is visible, showing the user's reflection, emphasizing its utility for self-portraits.

Touchscreen vs. Button Operation

The camera offers flexibility in control. Use the intuitive touchscreen for quick adjustments and playback. When the camera is in its protective case or if you are wearing gloves, the physical buttons provide reliable control for recording and navigating menus.

Transfè Wi-Fi

Utilize the built-in Wi-Fi function to easily transfer videos and photos to your smartphone. Connect your phone to the camera's Wi-Fi network and use the dedicated LAMAX app (if available) to manage your media.

Mòd kreyatif

Explore various creative modes to enhance your content:

• Timelapse: Capture changes over time by taking photos at set intervals and stitching them into a video.
• Dousman: Record at high frame rates (e.g., Full HD 120fps) to slow down fast-paced action up to 8 times during playback.
• Ekspozisyon lontan: Capture stunning low-light scenes with extended shutter times.
• Plonje Mode: Optimizes color balance for underwater footage when using the waterproof case.

Image: One person is filming another person, who is on roller skates, using the LAMAX X9.2 Action Camera mounted on a selfie stick. The camera's compact size and versatility for capturing dynamic scenes are highlighted.

Antretyen

Netwaye kamera a

Use the provided microfiber cloth to gently clean the camera lens and displays. For stubborn smudges, slightly dampRense twal la avèk dlo. Pa sèvi ak pwodui chimik ki agresif oswa materyèl abrazif.

Swen batri

• Sere pil yo nan yon kote ki fre, sèk lè yo pa itilize yo.
• Evite ekspoze pil yo a tanperati ekstrèm.
• Pa demonte oswa twou batri a.

Depo

When storing the camera for extended periods, remove the battery and keep the camera in its protective case in a dry, dust-free environment.

Depanaj

If you encounter issues with your LAMAX X9.2 Action Camera, try the following steps:

• Kamera pa limen: Asire w ke batri a byen chaje epi li byen mete l.
• Pwoblèm anrejistreman: Check if the MicroSD card is inserted correctly and has sufficient free space. Ensure the card is Class 10 or higher.
• Move kalite videyo: Verify that you are recording in your desired resolution (e.g., 4K). Ensure the lens is clean.
• Pwoblèm koneksyon Wi-Fi: Restart both the camera and your smartphone. Ensure you are within range of the camera's Wi-Fi signal.
• Kontwòl remote pa travay: Check the remote's battery and ensure it is properly paired with the camera.

If problems persist, consult the LAMAX support websit la oubyen kontakte sèvis kliyan pou plis asistans.

Espesifikasyon

Below are the technical specifications for the LAMAX X9.2 Action Camera:

Garanti ak sipò

For warranty information and customer support, please refer to the documentation included with your product or visit the official LAMAX websit la. Kenbe prèv acha ou a pou nenpòt reklamasyon garanti.
