1. Enstriksyon Sekirite Enpòtan
Please read all instructions carefully before using the appliance and keep them for future reference. Incorrect operation may cause potential hazards.
- Asire voltagVolim ki endike sou aparèy la koresponn ak vòltaj kouran prensipal ou a.tage anvan konekte.
- Pa plonje aparèy la, kòd elektrik la, oswa ploge nan dlo oswa nenpòt lòt likid.
- Aparèy sa a fèt pou itilizasyon nan kay la sèlman. Pa sèvi ak deyò.
- Deploge soti nan priz la lè yo pa itilize ak anvan netwaye. Kite refwadi anvan ou mete oswa retire pati yo, epi anvan ou netwaye aparèy la.
- Pa opere nenpòt aparèy ki gen yon kòd oswa ploge ki domaje, oswa apre aparèy la fonksyone mal oswa li te domaje nan nenpòt fason.
- Itilizasyon akseswar manifakti aparèy la pa rekòmande pou yo ka lakòz dife, chòk elektrik oswa blesi sou moun.
- Pa kite kòd la pandye sou kwen yon tab oswa kontwa, oswa manyen sifas cho.
- Pa mete sou oswa toupre yon gaz cho oswa recho elektrik, oswa nan yon fou chofe.
- Always ensure the water tank is filled to the appropriate level before operating.
- Fè anpil atansyon lè w ap manyen likid cho ak vapè.
- Kenbe soti nan atenn timoun yo.
2. Pwodwi souview
The Techwood TCA-191N is a versatile multi-capsule espresso coffee maker designed for convenience and quality. It features a 19-bar pump pressure system and a detachable water tank.
Karakteristik kle:
- Compatible with various coffee and tea capsules.
- Detachable transparent 600mL water tank for easy refilling and cleaning.
- 19 bar pump pressure for optimal espresso extraction.
- Supplied with two different capsule adapters for broad compatibility.

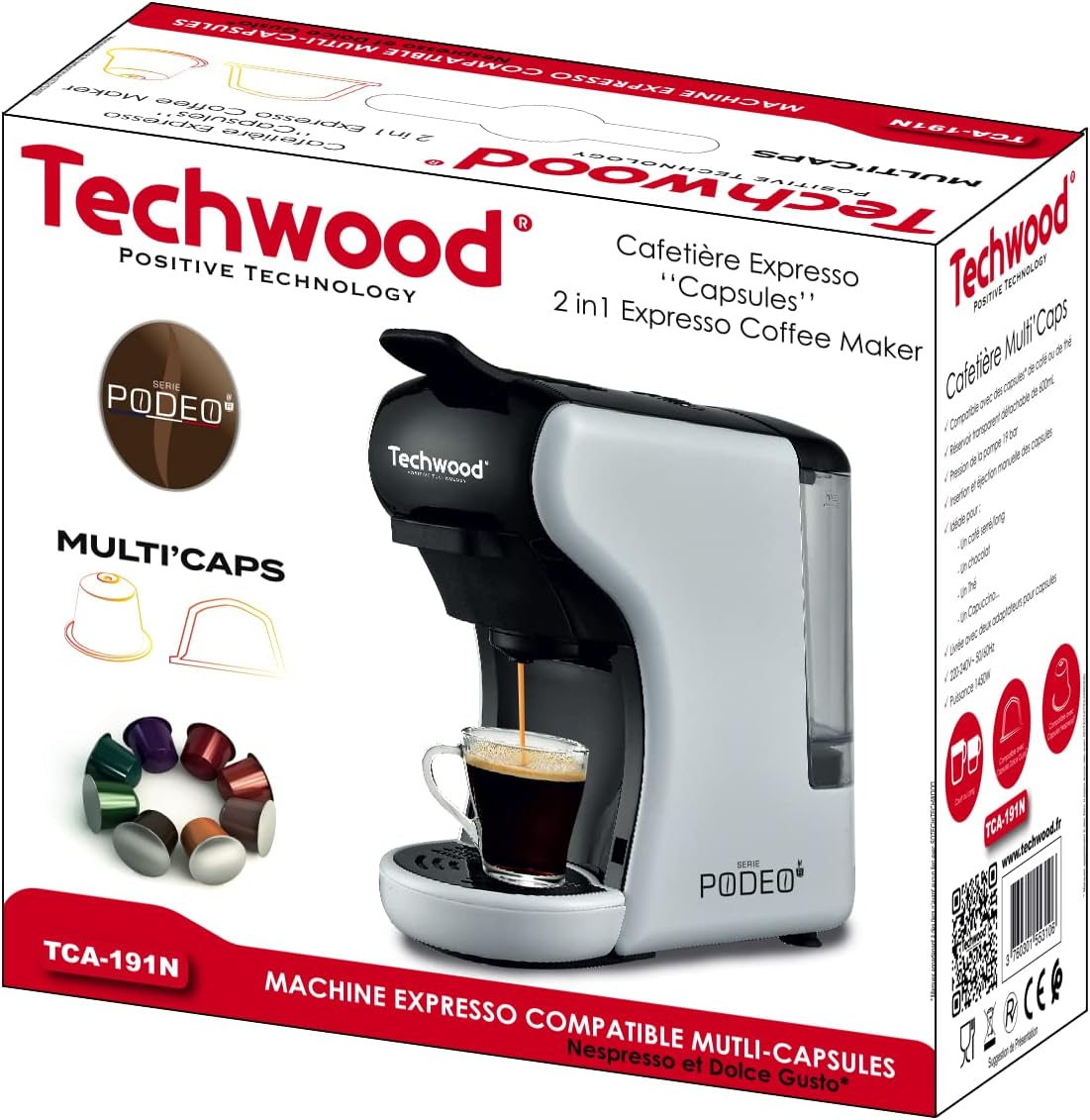

Figi 1: The Techwood TCA-191N Multi-Capsule Espresso Coffee Maker and its packaging, highlighting its compatibility with various capsule types.
3. Enstalasyon ak Premye Itilizasyon
- Debake: Carefully remove the coffee maker and all accessories from the packaging. Retain packaging for future transport or storage.
- Netwayaj inisyal: Before first use, wash the water tank, drip tray, and capsule adapters with warm soapy water. Rinse thoroughly and dry.
- Pozisyon: Place the coffee maker on a stable, flat, heat-resistant surface, away from water sources and heat. Ensure adequate ventilation.
- Ranpli tank dlo: Remove the detachable 600mL water tank. Fill it with fresh, cold drinking water up to the MAX level indicator. Replace the tank securely.
- Koneksyon pouvwa: Ploge kòd elektrik la nan yon priz elektrik ki gen tè.
- Priming the Pump (First Use Only):
- Mete yon tas vid sou plato degoute a.
- Do not insert any capsule.
- Press the power button to turn on the machine. The indicator light will flash while heating.
- Once the light stops flashing and remains steady, press the brew button. Water will flow through the system into the cup. Repeat this process 2-3 times to ensure the system is primed and clean.
4. Operasyon Enstriksyon
Making Coffee/Tea:
- Prepare dlo: Ensure the water tank is filled with fresh, cold water.
- Pouvwa sou: Press the power button. The indicator light will flash during heating and become steady when ready.
- Mete kapsil la:
- Select the appropriate capsule adapter for your capsule type (e.g., Nespresso compatible, Dolce Gusto compatible).
- Place the capsule into the adapter.
- Open the brewing chamber lever, insert the adapter with the capsule, and close the lever firmly.
- Mete gode a: Position your cup on the drip tray. Adjust the drip tray height if necessary for different cup sizes.
- Brew: Press the brew button. The machine will start dispensing your beverage.
- Sispann brase: The machine will automatically stop after a preset volume, or you can press the brew button again to stop manually for a desired volume.
- Remove Capsule: After brewing, open the lever to eject the used capsule into the internal collection bin. Dispose of the capsule and clean the adapter.
Figi 2: The Techwood TCA-191N coffee maker in operation, dispensing a fresh espresso into a glass cup.
5. Antretyen ak netwayaj
Netwayaj regilye asire pi bon pèfòmans epi li pwolonje dire lavi machin kafe ou a.
Netwayaj chak jou:
- Drip Tray and Capsule Bin: Empty and rinse the drip tray and used capsule collection bin after each use or daily.
- Tank dlo: Empty any remaining water from the tank and rinse it. Refill with fresh water for the next use.
- Eksteryè: Siye eksteryè machin nan ak yon mou, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa épurateur.
- Capsule Adapters: Rinse the capsule adapters thoroughly after each use to remove any coffee or tea residue.
Descaling (Every 2-3 Months or as Needed):
Descaling removes mineral deposits that can affect machine performance and taste. Use a descaling solution specifically designed for coffee machines.
- Empty the water tank and fill it with descaling solution mixed with water according to the descaler manufacturer's instructions.
- Mete yon gwo veso anba tiyo kafe a.
- Turn on the machine. Once heated, run several brewing cycles without a capsule until the water tank is empty.
- Rense tank dlo a byen epi ranpli l ak dlo fre.
- Run several cycles with fresh water to rinse out any remaining descaling solution.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Machin pa vire sou. | Pa gen ekipman pou pouvwa. | Check if the power cord is securely plugged into the outlet. Check the power switch. |
| No water flow / very little water. | Water tank empty; Air in the system; Machine needs descaling. | Fill water tank. Prime the pump (see Setup). Perform descaling procedure. |
| Kafe pa cho ase. | Machine not fully heated; Cups are cold; Machine needs descaling. | Wait for the indicator light to be steady. Preheat cups with hot water. Perform descaling procedure. |
| Coffee leaks from around the capsule. | Capsule not inserted correctly; Capsule adapter not properly closed; Damaged capsule. | Ensure capsule and adapter are correctly seated and lever is firmly closed. Use an undamaged capsule. |
| Indicator light keeps flashing. | Machin ap chofe. | Wait for the light to become steady, indicating the machine is ready for use. |
7. Espesifikasyon
- Mak: Techwood
- Nimewo Modèl: TCA-191N
- Non modèl: Techwood Multi-Capsule Espresso Coffee Maker
- Pouvwa: 1450 Watts
- Voltage: 240 Volts
- Presyon ponp: 19 Bar
- Kapasite tank dlo: 600 mililit
- Product Dimensions (Depth x Width x Height): 26.8 cm x 11 cm x 26 cm
- Pwa atik: 2.48 Kilogram
- Materyèl: Plastik
- Koulè: Blan
- Operasyon mòd: Totalman otomatik
- Karakteristik espesyal: Pwogramasyon
- Eleman ki enkli: Coffee Maker, Filter, Two capsule adapters. (Note: 'Carafe' was listed in original data, but typically not included with capsule machines. This refers to the main unit or a small collection cup.)
- Manifakti: SO TECH
Figi 3: Dimensions of the Techwood TCA-191N Multi-Capsule Espresso Coffee Maker.
8. Garanti ak sipò
This product is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact Techwood customer support. Contact information can typically be found on the product packaging, the official Techwood websit la, oubyen resi acha ou a.
When contacting support, please have your model number (TCA-191N) and proof of purchase readily available.
