1. Entwodiksyon ak souview
This manual provides essential information for the safe and efficient operation of the Superdental TD4C Automatic Benchtop Centrifuge. The TD4C is a low-speed centrifuge designed for various applications in research and production, including laboratory work, bioengineering, genetic engineering, biochemistry, plant extraction, blood preparation, food processing, petrochemical, and cream separation.
Please read this manual thoroughly before operating the device to ensure proper usage and to prevent damage or injury.
Figi 1: Devan view of the TD4C Centrifuge, showing the control panel.
2. Enstriksyon Sekirite
Adherence to these safety guidelines is crucial for safe operation and to prolong the life of the centrifuge.
- Plasman: Always place the centrifuge on a stable, level, and vibration-free surface. Ensure adequate ventilation around the unit.
- Pwovizyon pou pouvwa: Connect the centrifuge only to a grounded power outlet with the specified voltage (110V). Use only the provided power cord.
- Rotor and Tubes: Ensure the rotor is correctly installed and secured. Always balance test tubes with equal volumes of liquid directly opposite each other in the rotor. Unbalanced loads can cause severe vibration and damage.
- Sample Volim: Kantite sample added to the centrifuge tube should not exceed 80% of the tube's capacity to prevent overflow during operation.
- Fèmen kouvèti: Always ensure the centrifuge lid is securely closed before starting operation. The unit features an automatic protection function for the door cover.
- Pandan operasyon an: Do not open the lid or attempt to touch the rotor while the centrifuge is running. Wait until the rotor has come to a complete stop.
- Overspeed Protection: The centrifuge is equipped with automatic overspeed protection to ensure safety.
- Antretyen: Disconnect the power cord before performing any cleaning or maintenance.
- Sipèvizyon: Do not leave the centrifuge unattended during operation, especially during the initial cycles.
3. Konpozan pwodwi ak kontni pake a
The Superdental TD4C centrifuge package includes the following items:
- 1 x TD4C Centrifuge Unit
- 8 x Centrifuge Tubes (20ml capacity)
- 1 x pouvwa kòd
- 1 x manyèl enstriksyon
Key components of the centrifuge include the main body, control panel, rotor chamber, 8-place rotor, and lid with safety lock mechanism.
Figi 2: Top view of the TD4C Centrifuge with the lid open, revealing the 8-place rotor.
Figi 3: Detaye view of the 8-place rotor, designed for 20ml tubes.

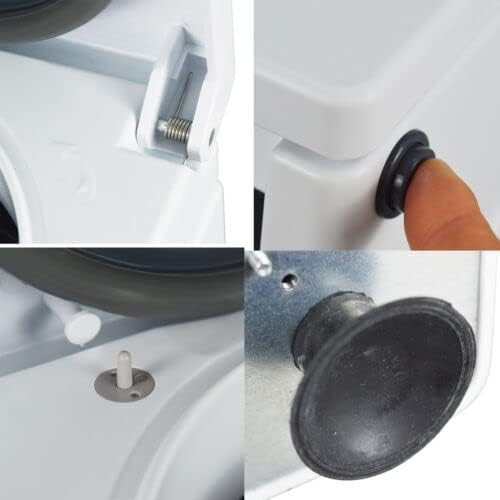

Figure 4: Close-up details of the centrifuge's construction, including the lid hinge, lid lock mechanism, and stable suction feet.
4. Espesifikasyon
| Paramèt | Valè |
|---|---|
| Pwovizyon pou pouvwa | 110V |
| Nivo bri | Mwens pase 60 dBA |
| Kapasite rotor | 8 x 20 ml (compatible with 5, 8, 10, 15 ml centrifuge tubes and 5, 8, 10 ml vacuum tubes) |
| Range vitès | 0 - 4000 R/min (Revolutions per minute) |
| Relative Centrifugal Force (RCF) | 2150 XG |
| Kalite motè | Motè Brushless |
| Pwa atik | 14.08 liv |
5. Enstalasyon
- Debake: Carefully remove the centrifuge and all accessories from the packaging. Inspect for any signs of damage during transit.
- Plasman: Position the centrifuge on a sturdy, level, and non-slip workbench. Ensure there is at least 10 cm (4 inches) of clear space around the unit for proper ventilation.
- Enstalasyon rotor: Ensure the 8-place rotor is securely seated on the motor shaft. The rotor is typically pre-installed.
- Koneksyon pouvwa: Connect the provided power cord to the power inlet on the back of the centrifuge and then to a grounded 110V AC power outlet.
Figi 5: Detaye views of the control panel, power input, rotor, and lid sensor mechanism.
6. Operasyon Enstriksyon
The TD4C centrifuge features a microcomputer control system with a touch panel and intuitive digital display for easy operation.
- Chaje Samples:
- Louvri kouvèti santrifij la.
- Place the test tubes containing your samples into the rotor holes. Always ensure that tubes are balanced by placing tubes of equal weight and volume directly opposite each other. An unbalanced load can cause excessive vibration and potential damage.
- Asire s laample volume does not exceed 80% of the tube's capacity.
- Fèmen kouvèti a: Close the centrifuge lid firmly until it clicks into place. The safety interlock prevents operation if the lid is not properly closed.
- Anviwònman Paramèt:
- Use the touch panel and digital display to set the desired speed (RPM) and time (minutes).
- Peze a '+' or '-' buttons next to 'RPM r/min' to adjust the speed.
- Peze a '+' or '-' buttons next to 'Time min' to adjust the centrifugation duration.
- The 'Speed RCF' button allows toggling between displaying speed in RPM and Relative Centrifugal Force (RCF).
- Kòmanse operasyon: Peze a Kòmanse button to begin the centrifugation cycle. The centrifuge will gradually accelerate to the set speed.
- Siveyans: The digital display will show the current speed and remaining time. Parameters can be modified during operation if necessary to achieve satisfactory centrifugal effect.
- Sispann Operasyon an: The centrifuge will automatically stop and decelerate when the set time expires. To stop operation manually before the set time, press the Sispann bouton.
- Dechaje Samples: Once the rotor has come to a complete stop, the lid can be opened. Carefully remove the centrifuged samples.
7. Antretyen
Regular maintenance ensures the longevity and optimal performance of your centrifuge.
- Netwayaj: Regularly clean the exterior of the centrifuge and the rotor chamber with a soft, damp cloth and a mild detergent. Avoid abrasive cleaners or solvents. Ensure no liquid enters the motor or electrical components.
- Swen Rotor: Clean the rotor and tube holes after each use, especially if there are spills. Ensure the rotor is dry before re-installing or storing.
- Motè: The TD4C is equipped with a brushless motor and high-speed bearings, designed for smooth operation and requiring minimal maintenance.
- Enspeksyon: Periodically inspect the power cord for any damage. Check the lid seal for wear and tear.
- Depo: When not in use for extended periods, store the centrifuge in a clean, dry environment.
NAN. Depanaj
This section addresses common issues you might encounter with your centrifuge.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Centrifuge does not start | No power; Lid not closed properly; Power switch off | Check power cord connection; Ensure lid is securely closed; Turn on power switch |
| Excessive vibration or noise during operation | Unbalanced load; Centrifuge not on a level surface; Damaged rotor or tubes | Ensure tubes are balanced with equal weights; Place centrifuge on a level surface; Inspect rotor and tubes for damage and replace if necessary |
| Lid cannot be opened after operation | Rotor still spinning; Safety interlock engaged | Wait for the rotor to come to a complete stop; If still locked, ensure power is on and try again after a few moments. Do not force open. |
| Centrifuge stops unexpectedly | Power interruption; Overspeed protection activated; Unbalanced load detected | Check power supply; Rebalance tubes and restart; If problem persists, contact support. |
If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact customer support.
9. Garanti ak sipò
For warranty information, please refer to the documentation provided at the time of purchase or contact your vendor. In case of technical issues, questions, or to obtain replacement parts, please contact Superdental customer support or your authorized distributor. Please have your model number (TD4C) and purchase details ready when contacting support.
