Yard Force Vita HX V06S Garden Tool Kit User Manual

Entwodiksyon

Thank you for choosing the Yard Force Vita HX V06S Garden Tool Kit. This versatile kit is designed for urban and small gardens, offering a range of essential tools powered by a convenient 4V/4.0 Ah rechargeable battery. This manual provides detailed instructions for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your tools.

Enfòmasyon sou Sekirite

Always read and understand all safety warnings and instructions before operating the tools. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Kenbe zòn travay pwòp epi byen limen. Zòn ankonbre oswa nwa yo envite aksidan.
• Pa opere zouti elektrik nan atmosfè eksplozif, tankou nan prezans likid ki ka pran dife, gaz, oswa pousyè.
• Kenbe timoun yo ak moun ki t ap gade yo lwen pandan w ap opere yon zouti elektrik. Distraksyon ka lakòz ou pèdi kontwòl.
• Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and sturdy footwear.
• Evite demaraj aksidantèl. Asire w ke switch la nan pozisyon "off" anvan ou konekte l ak pake batri a, anvan ou ranmase l oswa anvan ou pote zouti a.
• Pa depase. Kenbe bon pye ak balans tout tan.
• Dekonekte pake batri a nan zouti a anvan ou fè nenpòt ajisteman, chanje akseswa, oswa sere zouti elektrik yo.
• Use the tool and accessories in accordance with these instructions, taking into account the working conditions and the work to be performed.
• Only use the specified battery and charger for this product.

Kontni pake

Carefully unpack all items and ensure you have received all components listed below. If any items are missing or damaged, please contact customer support.

• 1 x Yard Force Vita Tool Box
• 1 x 4V/4.0 Ah Lithium-ion Battery
• 1 x USB Charging Cable (Type-C input, Type-A output)
• 1 x Cordless Pruner (Max. cutting diameter: 14 mm)
• 1 x Cordless Grass Shears (with 80 mm grass cutting blade)
• 1 x 120 mm Shrub Trimming Blade attachment
• 1 x Hand Trowel
• 1 x Hand Cultivator
• 1 x Hand Fork

Image: All components of the Yard Force Vita HX V06S Tool Kit, including the toolbox, battery, pruner, grass shears, and hand tools.

Pwodwi souview

Familiarize yourself with the main parts of your Yard Force Vita tool kit.

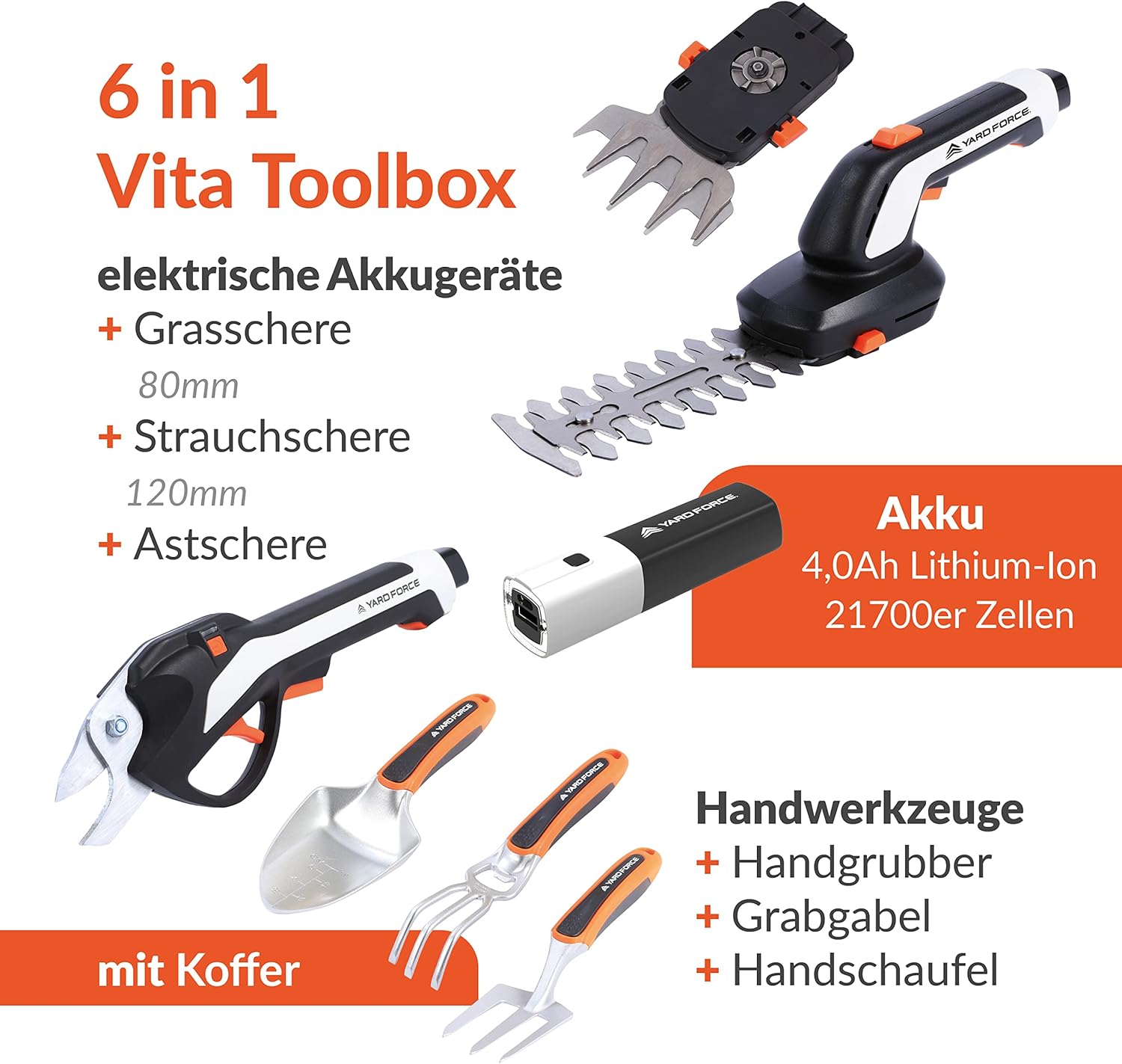

Image: Visual representation of the 6-in-1 Vita Toolbox components, highlighting the electric tools (pruner, grass/shrub shears) and hand tools (cultivator, fork, trowel), along with the 4.0Ah Lithium-ion battery.

Konpozan kle:

• 4V/4.0 Ah Lithium-ion Battery: Powers the cordless tools and can also function as a power bank.
• Cordless Pruner: For cutting branches up to 14mm in diameter. Features an ergonomic handle.
• Cordless Grass Shears: Equipped with an 80mm blade for trimming grass.
• Shrub Trimming Blade: A 120mm attachment for the grass shears, converting them into shrub shears.
• Zouti men: Includes a hand trowel, hand cultivator, and hand fork for various gardening tasks.
• Bwat zouti: Compact and portable storage for all components.

Enstalasyon

1. Chaje batri a

The 4V/4.0 Ah Lithium-ion battery needs to be fully charged before first use. A full charge takes approximately 180 minutes (3 hours).

1. Connect the USB charging cable to the Type-C input port on the battery.
2. Connect the other end of the USB cable (Type-A) to any standard USB adapter (not included) or a powered USB port.
3. The battery indicator light will show charging status. Once fully charged, disconnect the cable.

Image: Demonstrates the battery being charged via a USB power adapter and the cordless tool in use, highlighting its powerful performance.

2. Assembling the Grass/Shrub Shears

The cordless grass shears can be easily converted into shrub shears by changing the blade.

1. Ensure the tool is switched off and the battery is removed before changing blades.
2. Locate the quick-release mechanism on the grass shears.
3. Press the release button/lever and carefully remove the 80mm grass cutting blade.
4. Align the 120mm shrub trimming blade with the tool's mounting slot and push it firmly until it clicks into place.
5. Verify the blade is securely attached before reinserting the battery.

Image: Illustrates the versatility of the grass shears, showing how the grass cutting blade can be detached and replaced with the shrub trimming blade.

Enstriksyon Operasyon

Using the Cordless Pruner

• Insert the charged battery into the pruner handle until it clicks.
• To activate, press and hold the safety switch, then press the trigger. The blades will open.
• Position the branch (up to 14mm diameter) between the open blades.
• Press the trigger to close the blades and make the cut. Release the trigger to open the blades.
• Always ensure your hands are clear of the blades during operation.

Image: A hand operating the Yard Force Vita cordless pruner, demonstrating its use for efficient and safe cutting of branches up to 14mm.

Using the Cordless Grass/Shrub Shears

• Ensure the correct blade (grass or shrub) is securely attached.
• Insert the charged battery into the shears.
• Peze bouton pouvwa a pou kòmanse lam yo.
• For grass trimming, hold the shears parallel to the ground and move steadily across the area.
• For shrub trimming, guide the shears along the desired shape of the shrub.
• Always keep hands and feet away from the blades.

Using the Hand Tools

The hand trowel, hand cultivator, and hand fork are designed for various manual gardening tasks such as digging, loosening soil, planting, and weeding. Their ergonomic handles provide comfortable grip.

Image: Close-up of the Yard Force Vita hand tools: hand trowel, hand cultivator, and hand fork, highlighting their durable construction and ergonomic design.

Antretyen

Netwayaj

• Toujou retire batri a anvan w netwaye.
• Wipe down the tool bodies with a damp twal. Pa sèvi ak pwodui chimik piman bouk oswa pwodui netwayaj abrazif.
• Clean blades of the pruner and shears after each use to remove sap, dirt, and debris. A stiff brush or cloth can be used.
• For optimal performance, lightly oil the blades of the pruner and shears periodically to prevent rust and ensure smooth operation.
• Clean hand tools with water and a brush, then dry thoroughly to prevent rust.

Depo

• Store all tools and the battery in the provided toolbox in a dry, cool place, away from direct sunlight and moisture.
• Ensure the battery is partially charged (not fully depleted or fully charged) if storing for extended periods to prolong its lifespan. Recharge every 3-6 months if not in use.
• Kenbe zouti yo pa rive jwenn timoun yo.

Image: The Yard Force Vita toolbox, demonstrating its compact design and how it neatly stores all the tools for easy transport and space-saving storage.

Depanaj

Espesifikasyon

Garanti ak sipò

Yard Force products are designed for reliability and performance. For warranty information, technical support, or to purchase replacement parts, please refer to the official Yard Force websit la oubyen kontakte depatman sèvis kliyan yo. Kenbe resi acha w la kòm prèv acha pou reklamasyon garanti.

Pou plis asistans, tanpri vizite: www.yardforce.eu
