Entwodiksyon
This manual provides essential instructions for the safe and efficient operation, installation, maintenance, and troubleshooting of your Midea MFK80 Front Load Washer. Please read this manual thoroughly before using the appliance and retain it for future reference.
Pwodwi souview

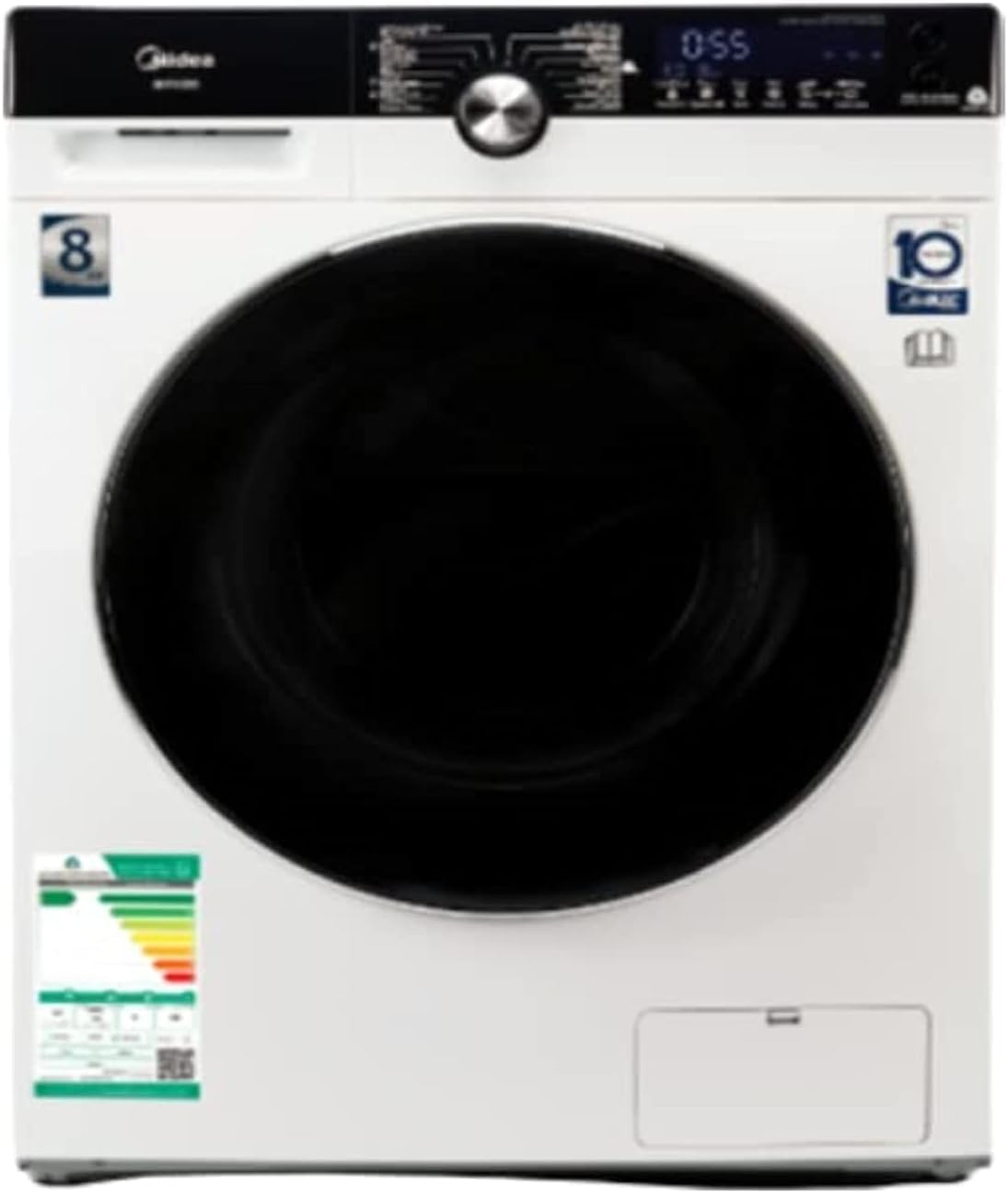

The image above displays the Midea MFK80 Front Load Washer. Key features visible include the large front-loading door, the digital display panel, and the control knob. The washer has an 8 kg capacity and a maximum spin speed of 1500 RPM, indicated by the '8' and '10' (likely referring to a 10-year warranty or similar feature) symbols on the front. An energy efficiency label is also visible on the lower left.
Enstalasyon ak Enstalasyon
1. Debake
- Retire tout materyèl anbalaj yo, tankou baz polistirèn lan ak nenpòt fim pwoteksyon.
- Inspect the appliance for any damage. Do not install if damaged.
2. Retire Boulon Transpò yo
Before use, remove all transit bolts located at the rear of the machine. These bolts secure the drum during transport and must be removed to prevent damage during operation. Keep the bolts for future transport.
3. Nivelman Aparèy la
The washer must be perfectly level to ensure stable operation and prevent excessive vibration. Adjust the adjustable leveling legs (as per specifications) at the bottom of the appliance until it is stable on all four corners.
4. Koneksyon Dlo ak Elektrisite
- Konekte tiyo admisyon dlo a nan yon wobinèt dlo frèt. Asire w koneksyon yo byen sere pou anpeche flit.
- Position the drain hose correctly into a standpipe or sink, ensuring it is not kinked.
- Branche kòd kouran an nan yon priz elektrik ki gen tè. Asire w vòltaj latage matche ak kondisyon aparèy yo.
Enstriksyon Operasyon
1. Chaje lesiv
- Open the washer door and load items loosely into the drum. Do not overload the machine beyond its 8 kg capacity.
- Fèmen pòt la byen fèm.
2. Ajoute detèjan ak adousisan
Pull out the detergent dispenser drawer. Add appropriate amounts of detergent to the main wash compartment and fabric softener to its designated compartment. Close the drawer gently.
3. Chwazi yon pwogram lave
Turn the program selector knob to choose the desired wash program. The digital display will show the default settings for the selected program. The 'Normal' cycle option is available.
4. Adjusting Settings (if applicable)
Use the touch controls to adjust temperature, spin speed, or add extra rinse options if available and desired.
5. Kòmanse Sik Lave a
Press the Start/Pause button to begin the wash cycle. The machine will automatically lock the door and start filling with water.
6. Fen Sik la
Once the cycle is complete, the machine will signal, and the door will unlock. Remove laundry promptly.
Antretyen ak Swen
1. Netwaye Eksteryè a
Siye sifas eksteryè yo ak yon mou, damp twal. Evite pwodui netwayaj abrazif oswa solvan.
2. Netwaye distribitè detèjan an
Retire epi netwaye tiwa dispansè detèjan an regilyèman anba dlo k ap koule pou anpeche akimile rezidi.
3. Netwaye tanbou a
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a small amount of detergent or a specialized washing machine cleaner) periodically to clean the drum and remove odors.
4. Netwaye Filtè Ponp Drenaj la
Locate the drain pump filter (typically behind a small cover at the bottom front of the machine). Open it carefully, drain any residual water, and clean out lint or foreign objects. Refer to the product image for the location of the filter access panel.
5. Door Seal Care
Siye sele pòt la apre chak lave pou retire imidite ak pousyè, pou anpeche mwazi ak odè.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Machin pou lave pa kòmanse | Kòd kouran an pa branche; Pòt la pa byen fèmen; Bouton Start/Poz la pa peze. | Check power connection; Ensure door is securely latched; Press Start/Pause. |
| Pa gen dlo ranpli | Water tap closed; Water inlet hose kinked; Water supply interrupted. | Louvri wobinèt dlo a; Redrese tiyo a; Tcheke rezèv dlo nan kay la. |
| Vibrasyon twòp / bri | Transit bolts not removed; Appliance not level; Uneven load. | Remove transit bolts; Adjust leveling legs; Redistribute laundry. |
| Dlo pa drenaj | Tiyo drenaj la pliye oswa bouche; Filtè ponp drenaj la bouche. | Tcheke epi netwaye tiyo drenaj la; Netwaye filtè ponp drenaj la. |
Espesifikasyon
- Mak: Midea
- Modèl: MFK80
- Kapasite: 8 Kilogram
- Maksimòm vitès wotasyon: 1500 RPM
- Kote aksè: Chaj devan
- Kalite kontwòl: Manyen
- Koulè: Blan
- Dimansyon pwodwi (PxWxH): 56.5D x 85W x 59.5H santimèt
- Pwa atik: 65 Kilogram
- Karakteristik espesyal: Janm nivelman reglabl
- Eleman ki enkli: Kòd pouvwa
- Kalite materyèl: Plastic (for certain components)
- Spesifikasyon satisfè: CE
Garanti ak sipò
This Midea MFK80 Front Load Washer comes with a 2-year warranty. For warranty claims, technical support, or installation assistance, please contact Midea customer service.
Installation Support Contacts:
- Riyad: +966-11-4094006 Ekstansyon – 113
- Djedda: +966-12-6577714
- Dammam: +966-13-8343691
- Kassim: +966 581044198
- Abha: +966 593322785
For general inquiries or further assistance, please visit the official Midea websit oswa kontakte depatman sèvis kliyan yo.
