DS18 Hydro CF-10M 10-Inch Marine Coaxial Speakers with RGB Lights Instruction Manual

Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your DS18 Hydro CF-10M 10-inch Marine Coaxial Speakers. These speakers are designed for marine and off-road environments, offering high-quality audio and integrated RGB lighting. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Karakteristik kle:

• Konsepsyon kowaksyal 2-fason: Integrated tweeter and mid-range woofer for a wide frequency range (35Hz - 20KHz).
• Gwo pouvwa manyen: 600 Watts maximum power output.
• Integrated RGB Lighting: Customizable LED lights to match various color schemes, compatible with DS18 LED-BTC controller (sold separately).
• Marine Grade Durability: IP65 waterproof rating and 100% UV stable construction for harsh environments.
• Carbon Fiber Cone: Enhanced sound quality and durability.

Enfòmasyon sou Sekirite

Observe the following safety precautions to prevent injury and damage to the product:

• Toujou dekonekte batri machin nan anvan ou kòmanse nenpòt travay elektrik.
• Asire w ke tout fil elektrik yo byen izole epi byen sere pou anpeche kous kout ak domaj.
• Use appropriate personal protective equipment (PPE) during installation, such as safety glasses.
• Pa sèvi ak oratè yo nan yon volim twò wo pandan yon peryòd pwolonje, paske sa ka lakòz domaj nan zòrèy.
• Konsilte yon enstalatè pwofesyonèl si ou pa sèten sou nenpòt pati nan pwosesis enstalasyon an.

Ki sa ki nan bwat la

Your DS18 Hydro CF-10M speaker package includes:

• One pair of marine coaxial speakers

Enstalasyon ak Enstalasyon

Montaj

Careful planning of the mounting location is crucial for optimal sound performance and speaker longevity. Ensure the chosen location provides sufficient clearance for the speaker's depth and allows for secure fastening.

• Dyamèt jeneral: 10.7 pous (274mm)
• Pwofondè monte: 4.2 pous (106.6mm)
• Front Mount Baffle Cut Out: 8.75 pous (222mm)

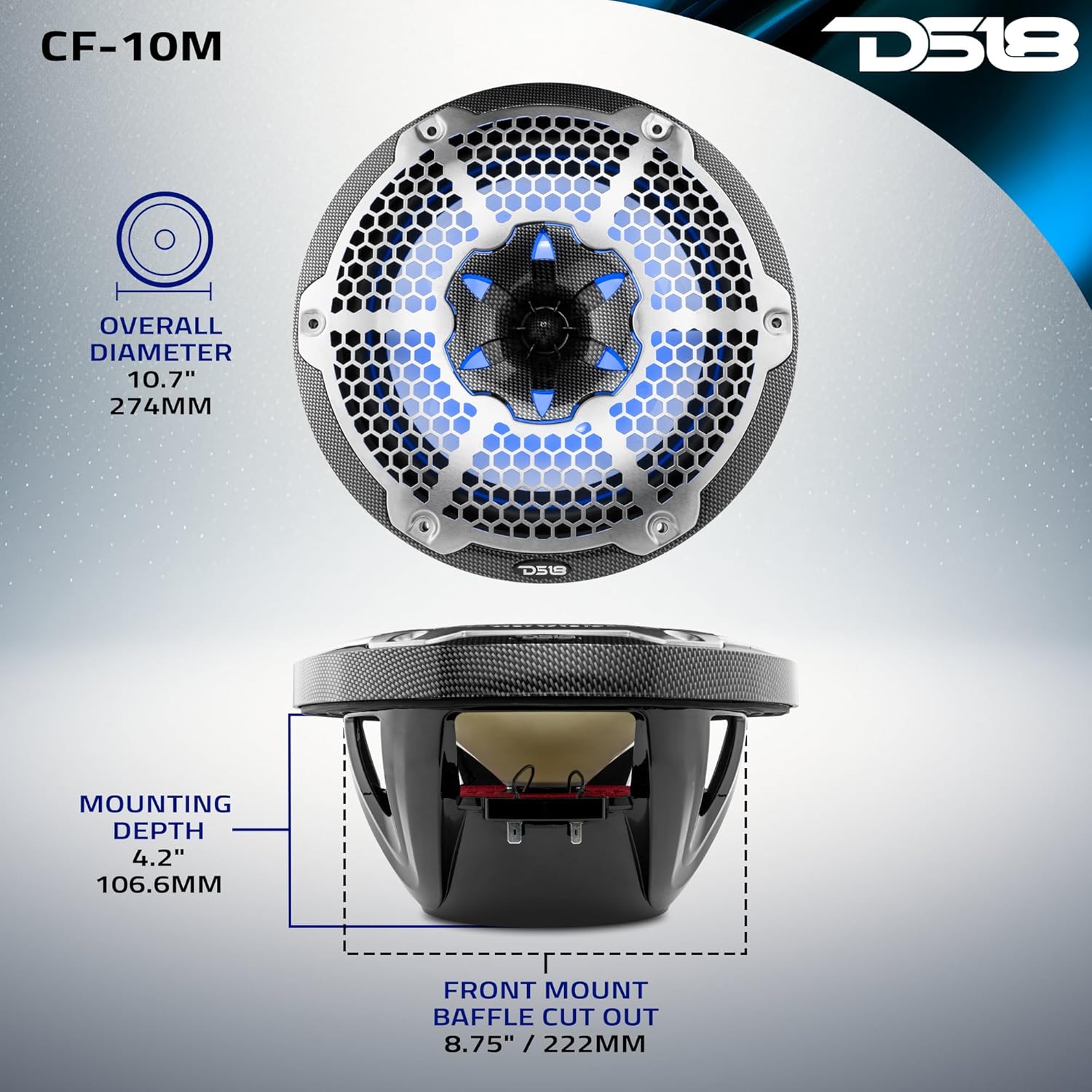

Figure 1: Speaker Dimensions for Installation

1. Select a flat, sturdy mounting surface that can support the speaker's weight and withstand vibrations.

2. Using the provided template (if applicable) or the specified cut-out dimensions, carefully mark and cut the mounting hole.

3. Drill pilot holes for the mounting screws.

4. Position the speaker into the opening and secure it with the provided hardware. Do not overtighten screws.

Fil elektrik Audio

The DS18 Hydro CF-10M speakers have an impedance of 4 Ohms. Ensure your amplifier is stable at this impedance. Connect the speaker wires to the appropriate positive (+) and negative (-) terminals on your amplifier.

Figure 2: Speaker Wiring Terminals

1. Identify the positive (+) and negative (-) terminals on the speaker and your amplifier.

2. Connect the positive speaker wire from the amplifier to the positive terminal on the speaker.

3. Connect the negative speaker wire from the amplifier to the negative terminal on the speaker.

4. Ensure all connections are secure and free from corrosion, especially in marine environments.

RGB Lighting Connection

The integrated RGB lights require a separate connection. These speakers are compatible with the DS18 LED-BTC controller (sold separately) for full color control via an app.

Figure 3: RGB LED Lighting Feature

1. Connect the RGB wiring from the speaker to the DS18 LED-BTC controller according to the controller's instructions.

2. Ensure the controller is powered correctly and connected to your device for app control.

Operasyon

Lektur odyo

Once properly installed and wired, your DS18 Hydro CF-10M speakers will reproduce audio from your connected source. Adjust volume and audio settings through your head unit or amplifier.

RGB Limyè Kontwòl

The RGB lighting can be controlled via an app when connected to a compatible DS18 LED-BTC controller. Refer to the controller's manual for specific instructions on changing colors, patterns, and brightness.

Antretyen

To ensure the longevity and performance of your DS18 Hydro CF-10M speakers, follow these maintenance guidelines:

• Netwayaj: Regularly clean the speaker grilles and cones with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish or waterproof seals.
• Rezistans dlo: While the speakers are IP65 rated, avoid direct high-pressure water sprays. After exposure to saltwater, rinse with fresh water to prevent salt buildup and corrosion.
• Estabilite UV: The materials are 100% UV stable, but prolonged exposure to extreme sunlight can still cause minor fading over many years.
• Enspeksyon: Periodically check all wiring connections for tightness and signs of corrosion or wear.

Depanaj

Si ou rankontre pwoblèm ak oratè ou yo, gade pwoblèm ak solisyon komen sa yo:

• Pa gen son:
  • Check all audio wiring connections at both the speaker and amplifier.
  • Verifye a amplifier limen epi li fonksyone kòrèkteman.
  • Ensure the audio source is playing and volume is turned up.
• Son defòme:
  • Reduce the volume level to check if distortion is due to overdriving the speakers or amplifier.
  • Enspekte kòn oratè yo pou nenpòt domaj fizik.
  • Tcheke pou koneksyon fil elektrik ki lach.
• Limyè RGB pa travay:
  • Ensure the DS18 LED-BTC controller is properly connected and powered.
  • Verify the app control is functioning and settings are correct.
  • Check RGB wiring for secure connections.

Espesifikasyon

Garanti ak sipò

Garanti limite

The DS18 Hydro CF-10M speakers come with a limited warranty. Please refer to the warranty card included with your product or visit the official DS18 websit la pou wè kondisyon detaye konsènan pwoteksyon ak dire a.

Sipò pou Kliyan

For technical assistance, troubleshooting, or warranty claims, please contact DS18 customer support. You can find contact information and additional resources on the official DS18 websit la oubyen atravè konsesyonè otorize ou a.
