RecPro RV Refrigerator User Manual

1. Entwodiksyon

Thank you for choosing the RecPro RV Refrigerator. This manual provides essential information for the safe and efficient operation of your 6.3 Cubic Feet Gas and Electric RV Refrigerator. Please read this manual thoroughly before installation and use, and keep it for future reference.

Figure 1: RecPro RV Refrigerator (Black Finish)

This image shows the RecPro RV Refrigerator in a sleek black finish, viewed from the front. It highlights the dual-door design for the freezer and refrigerator compartments.

2. Enfòmasyon sou Sekirite

Toujou respekte prekosyon sekirite sa yo pou evite aksidan oswa domaj nan aparèy la.

• Sekirite elektrik: Ensure the refrigerator is connected to a properly grounded power source (110V or 12V) as specified. Do not use extension cords.
• Sekirite gaz: When operating on propane gas, ensure proper ventilation. Check for gas leaks regularly using a soapy water solution. Never use an open flame to check for leaks.
• Vantilasyon: Adequate ventilation is crucial for proper operation and safety, especially when using propane. Ensure the refrigerator's ventilation openings are not obstructed.
• Enstalasyon: Installation should be performed by a qualified technician in accordance with all local codes and regulations.
• Timoun: Keep children away from the refrigerator, especially when the door is open.
• Materyèl ki ka pran dife: Pa sere sibstans eksplozif oswa materyèl ki ka pran dife andedan oswa toupre frijidè a.

Figure 2: Rear Components and Safety Labels

This image displays the rear of the refrigerator, showing the cooling unit, wiring, and various warning labels. It emphasizes the importance of proper installation and adherence to safety guidelines.

3. Enstalasyon ak Enstalasyon

3.1 Debake

Carefully remove the refrigerator from its packaging. Inspect for any shipping damage. Report any damage to your dealer immediately.

3.2 Plasman

Position the refrigerator on a level, stable surface. Ensure adequate clearance around the unit for proper ventilation. Refer to the dimensions for precise fitting.

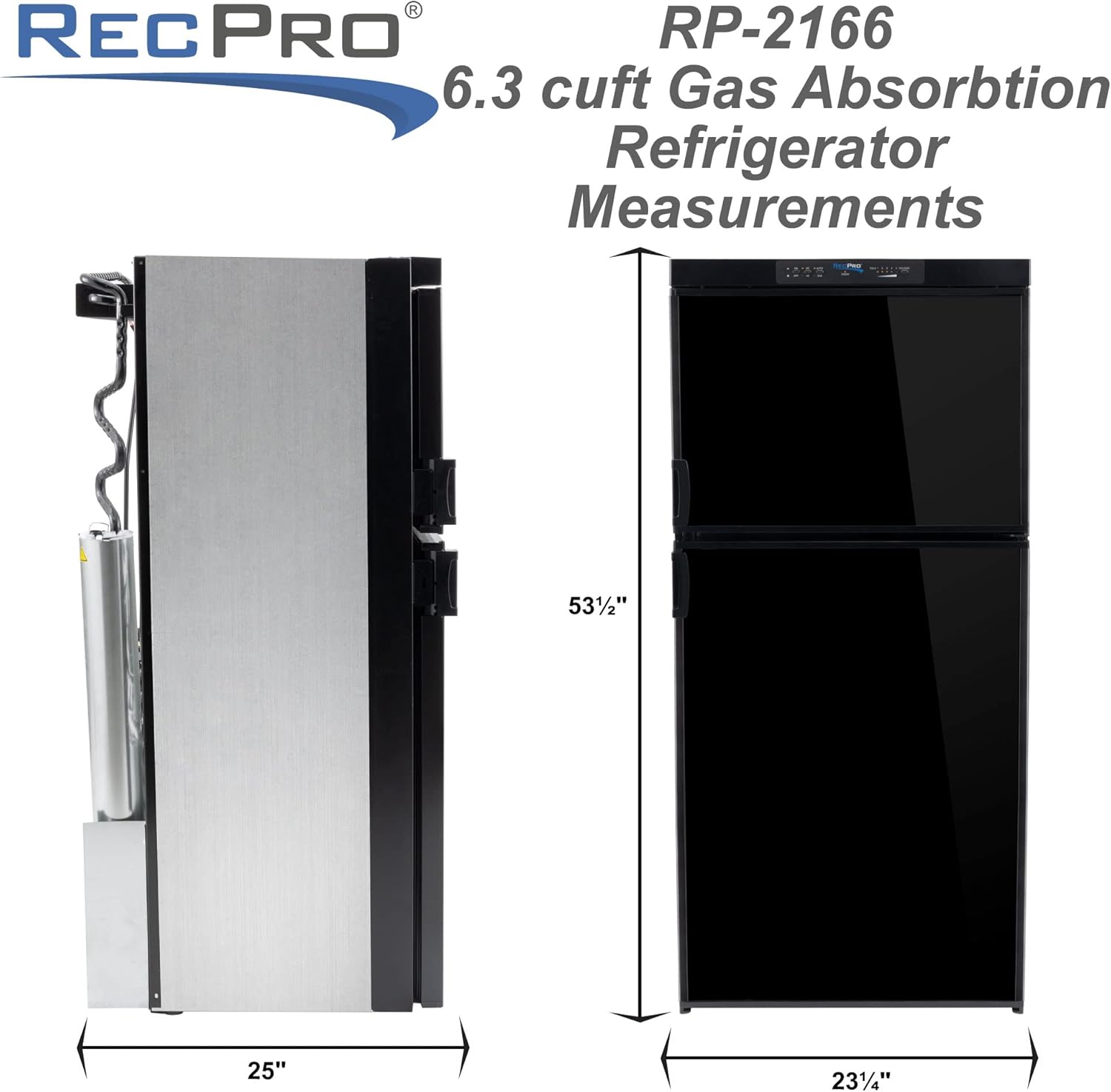

Figure 3: Refrigerator Dimensions

This diagram illustrates the key dimensions of the RecPro RV Refrigerator, including its height, width, and depth, crucial for proper installation planning.

3.3 Koneksyon pouvwa

This refrigerator supports 110V-120V AC, 12V DC, and Propane Gas operation. Connect the appropriate power source based on your RV's setup. Ensure all electrical connections are secure and conform to local electrical codes.

• 110V/120V AC: Ploge nan yon priz ki baze sou tè.
• 12V DC: Connect to the RV's 12V system, ensuring correct polarity.
• Gaz pwopàn: Connect to the RV's propane supply. A qualified technician should perform gas connections and leak checks.

Figure 4: Propane Gas Connection Point

Yon detaye view of the brass fitting used for connecting the propane gas line to the refrigerator, highlighting the precision of the component.

4. Operasyon

4.1 Kontwòl Panel

The control panel is located at the top of the refrigerator. It allows you to select the power source (Auto/Gas) and monitor the cooling status.

Figi 5: Detay sou panèl kontwòl la

This close-up shows the control panel of the RecPro RV Refrigerator, featuring buttons for 'AUTO' and 'GAS' modes, along with indicator lights, including a 'CHECK' light for system status.

4.2 Premye Refwadisman

For optimal cooling efficiency, turn the refrigerator on and allow it to chill for 12 hours prior to placing food inside. This allows the absorption system to stabilize and reach optimal temperatures.

4.3 Seleksyon Sous Kouran

• Mòd OTO: The refrigerator will automatically select the best available power source (AC, then DC, then Gas).
• GAS Mode: Forces the refrigerator to operate on propane gas. Ensure gas supply is open and pilot light (if applicable) is lit.

Figure 6: Refrigerator Interior

Imaj sa a bay yon lide klè view of the refrigerator's interior, showcasing its spacious design, adjustable shelves, and door storage, filled with various food items to demonstrate capacity.

5. Antretyen

5.1 Netwayaj

Clean the interior and exterior of the refrigerator regularly with a mild detergent and warm water. Avoid abrasive cleaners or solvents. Ensure the drain tube is clear to prevent water buildup.

5.2 Griy vantilasyon

Keep the exterior ventilation grilles clean and free of obstructions (dust, leaves, insects) to ensure proper airflow for the cooling unit.

5.3 Pòt Revèsib

The refrigerator features reversible doors, allowing you to change the door swing direction to suit your RV layout. A hardware kit for reversible doors is available from RecPro. Consult the kit's instructions for the reversal process.

Figi 7: Karakteristik kle yoview

This graphic highlights three key features of the RecPro RV Refrigerator: latching handles for secure travel, reversible doors for flexible installation, and its versatile 3-way power capability (Propane, 12V, and 110V).

NAN. Depanaj

This section provides solutions to common issues you might encounter. For problems not listed here, contact RecPro customer support.

7. Espesifikasyon

Detailed technical specifications for the RecPro RV Refrigerator Model RP-2166.

8. Garanti & Sipò

8.1 Enfòmasyon sou Garanti

RecPro products are designed for durability and performance. For specific warranty details, please refer to the warranty card included with your purchase or visit the official RecPro websit la. Kenbe prèv acha ou pou reklamasyon garanti.

8.2 Sipò pou Kliyan

If you have any questions, require technical assistance, or need to order replacement parts, please contact RecPro customer support. You can find contact information on the RecPro websit entènèt la oubyen atravè magazen orijinal ou a.

RecPro Websit: Visit the RecPro Store on Amazon
