Ledvion LED Ceiling Light 60cm, 7W, 6500K, IP65 - Instruction Manual

1. Pwodwi souview

The Ledvion LED Ceiling Light is a professional-grade luminaire designed for various indoor and outdoor applications, including wet rooms. This 60 cm fixture is equipped with a 7 Watt LED tube, providing 1120 lumens of daylight white light (6500K). Its IP65 rating ensures resistance to dust and water jets, making it suitable for challenging environments. The robust construction features a polycarbonate fixture and stainless steel clamps, offering enhanced durability and impact resistance (IK06 rated).

This product is designed for easy installation and offers energy-efficient illumination with a long lifespan.

2. Enstriksyon Sekirite

Tanpri li enstriksyon sekirite sa yo ak anpil atansyon anvan enstalasyon ak itilizasyon. Si ou pa swiv enstriksyon sa yo, ou ka pran chòk elektrik, pran dife oswa pran lòt danje.

• Sekirite elektrik: Installation should only be performed by a qualified electrician in accordance with local wiring regulations. Always disconnect power at the main circuit breaker before installation or maintenance.
• Entegrite pwodwi: Do not modify or disassemble the product. Any modifications will void the warranty and may lead to unsafe operation.
• Anviwònman Fonksyònman: Ensure the operating environment is within the specified temperature and humidity ranges. Do not expose the fixture to corrosive chemicals.
• Manyen: Handle the LED tube and fixture with care to avoid damage. Do not apply excessive force.
• Dispozisyon: Dispose of the product and its components responsibly, following local regulations for electronic waste.

3. Ki sa ki nan bwat la

Verifye ke tout konpozan yo prezan epi yo pa domaje anvan ou kontinye ak enstalasyon an.

Image: Contents of the package for Ledvion LED Ceiling Light (SKU: LV30001-6500K). It shows: 1x Fixture, 1x LED Tube, 2x Connectors, 2x Suspension set, 6x Clips, 4x Screw wall plugs, 4x Screws, and 1x Manual.

• 1x dirije aparèy
• 1x LED Tube (7W, 6500K, 1120 Lumens)
• 2x Konektè
• 2x Suspension Set (for hanging installation)
• 6x Mounting Clips (stainless steel)
• 4x Bouchon Miray Vis
• 4x Vis
• 1x manyèl enstriksyon

Image: A close-up of the included Ledvion 7 Watt, 6500K, 1120 Lumen LED tube, highlighting its flicker-free design.

Image: An LED starter included with the product, designed for retrofitting traditional tube fixtures. This starter is for LED tubes use only.

4. Enstriksyon Enstalasyon

Follow these steps for safe and proper installation of your Ledvion LED Ceiling Light.

4.1. Preparasyon

1. Dekonekte pouvwa: Before starting any electrical work, ensure the power supply to the installation area is completely switched off at the main circuit breaker.
2. Rasanble zouti: You will need a drill, screwdriver, wire strippers, and potentially a voltage tèsteur.
3. Chwazi Kote: Select a suitable mounting location, ensuring it can support the weight of the fixture and is free from obstructions.

4.2. Monte aparèy la

1. Make pwen egzèsis: Hold the fixture or mounting clips against the desired surface and mark the drilling points for the screws.
2. Fè twou: Drill holes at the marked points. Insert the screw wall plugs into the drilled holes.
3. Attach Clips/Suspension: Secure the mounting clips or the suspension set to the surface using the provided screws. Ensure they are firmly attached.
4. Mount Fixture: Snap the LED fixture into the secured mounting clips or attach it to the suspension set.

4.3. Koneksyon elektrik

1. Lòj fil elektrik louvri: Carefully open the wiring compartment of the fixture.
2. Konekte fil yo: Connect the main power supply wires to the terminal block inside the fixture. Ensure correct polarity (Live, Neutral, Earth). Use the provided connectors/glands to maintain IP65 rating.
3. Sekirize fil elektrik: Ensure all connections are tight and secure. Close the wiring compartment, making sure no wires are pinched.

4.4. Inserting the LED Tube

1. Mete Tib la: Carefully insert the LED tube into the fixture. Ensure it is properly seated. Note: If the light does not function after connection, try rotating the LED tube 180 degrees to reverse polarity.
2. Fèmen Enstalasyon: Securely close the fixture cover, ensuring all seals are correctly positioned to maintain the IP65 rating.

4.5. Etap final yo

1. Retabli pouvwa: Yon fwa enstalasyon an fini epi tout koneksyon yo byen fèm, retabli kouran an nan disjonktè prensipal la.
2. Limyè tès: Turn on the light to ensure it functions correctly.

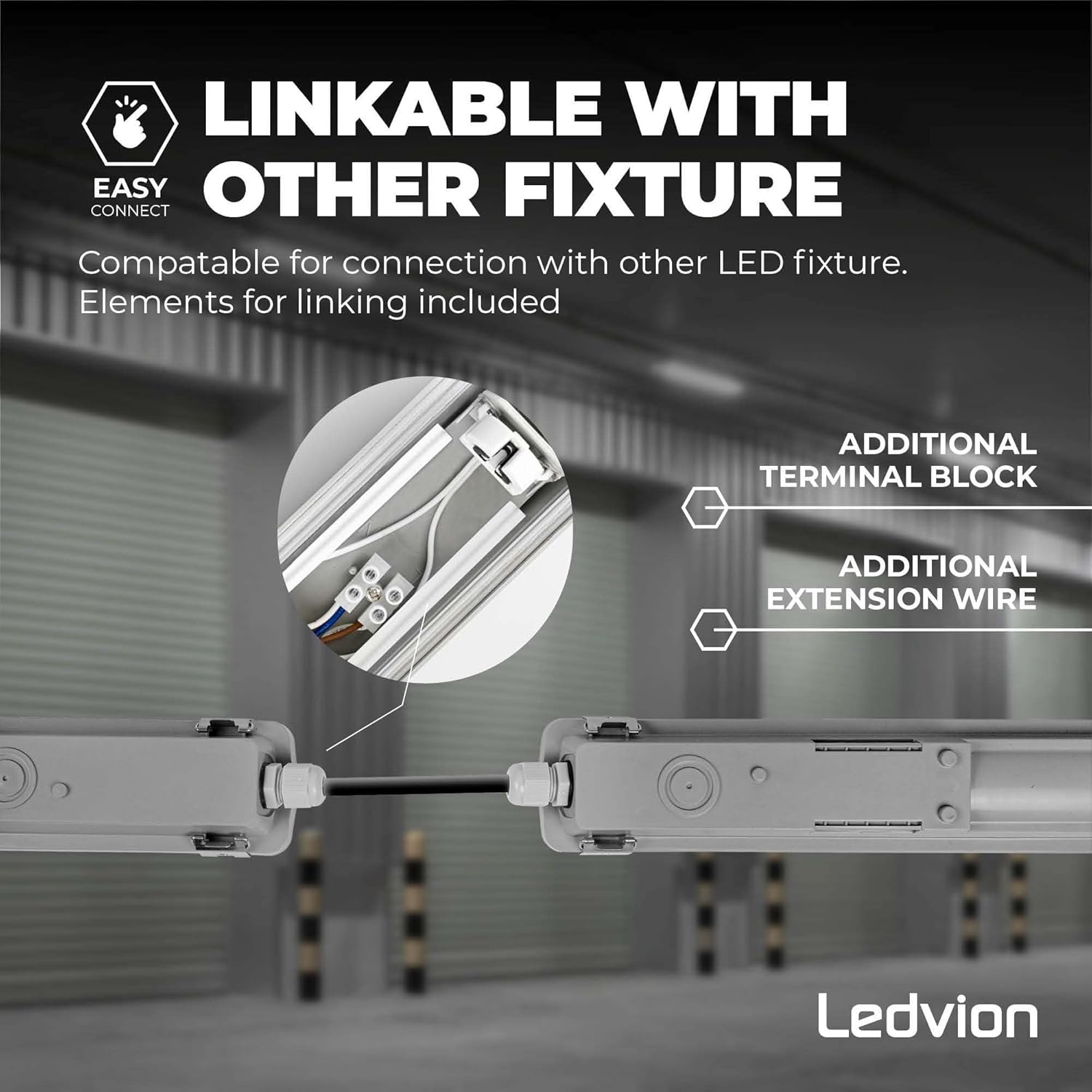

Image: Diagram illustrating the linkable feature of the Ledvion fixture, showing how to connect multiple units using an additional terminal block and extension wire.

Linking Multiple Fixtures: This fixture is designed to be linkable with other LED fixtures. Additional terminal blocks and extension wires are included for this purpose. Refer to the diagram for connection details.

5. Operasyon Enstriksyon

The Ledvion LED Ceiling Light operates simply via a standard wall switch connected to its power supply. Once installed and powered, the light will turn on and off with the switch.

• Bouton On/Off: Use the connected wall switch to turn the light on or off.
• Enstantane klète konplè: LED technology provides instant full brightness without warm-up time.
• Operasyon san flicker: The included LED tube is designed for flicker-free illumination, providing comfortable light.

6. Antretyen

Regular maintenance ensures optimal performance and longevity of your LED Ceiling Light.

• Netwayaj: Dekonekte kouran an anvan ou netwaye li. Siye aparèy la ak yon twal mou.amp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or seals.
• Enspeksyon: Enspekte aparèy la detanzantan pou wè si li gen nenpòt siy domaj, koneksyon ki lach, oswa itilizasyon. Si ou jwenn nenpòt pwoblèm, dekonekte kouran an epi konsilte yon elektrisyen kalifye.
• Ranplasman Tib LED: The LED tube is designed for a long lifespan. If replacement is necessary, ensure the power is disconnected. Carefully remove the old tube and insert a new compatible LED tube. Ensure correct polarity.
• Maintaining IP65 Rating: Ensure all seals and glands are properly seated and tightened after any maintenance to maintain the IP65 dust and water resistance rating.

NAN. Depanaj

If you encounter issues with your Ledvion LED Ceiling Light, refer to the following common problems and solutions:

Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, tanpri kontakte sèvis kliyan Ledvion oswa yon elektrisyen kalifye.

8. Espesifikasyon

Detailed technical specifications for the Ledvion LED Ceiling Light (Model LV30001-6500K).

Image: Dimensional drawing showing the length (668 mm) and width (62 mm) of the Ledvion LED Ceiling Light.

Image: Illustration emphasizing the IK06 rating for durability and impact resistance, featuring polycarbonate and stainless steel construction.

Image: EU Energy Label for a Ledvion product (Model LV20006, Energy Class D, 15 kWh/1000h). Note: This label may be for a similar product or an older model. For more details, visit the EPREL baz done.

9. Garanti ak sipò

Ledvion products are manufactured with high-quality materials and undergo strict quality control.

• Garanti: Pwodwi sa a vini ak yon 2-ane garanti apati dat acha a. Garanti sa a kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon nòmal. Li pa kouvri domaj ki koze pa move enstalasyon, move itilizasyon, aksidan, oswa modifikasyon san otorizasyon.
• Reklame garanti: In case of a warranty claim, please contact your retailer or Ledvion customer service with proof of purchase.
• Sipò Kliyan: For technical assistance, troubleshooting, or general inquiries, please visit the official Ledvion websit la oubyen kontakte chanèl sèvis kliyan yo.

Image: Graphic indicating a 2-year warranty for the product, highlighting higher product durability compared to polycarbonate and glass tubes.
