Renogy RMS-DCDC-JP MPPT Charge Controller Monitor Instruction Manual

1. Entwodiksyon

The Renogy RMS-DCDC-JP is a high-precision monitor specifically designed for Renogy MPPT charge controllers. It provides a clean and professional interface for monitoring your charging system. This monitor can be flush-mounted and features a backlit LCD display. With its four intuitive buttons, users can easily view critical system information, including charging parameters and error codes. It offers real-time feedback for two battery systems, ensuring you have the most current status of your power setup.

Image: The Renogy RMS-DCDC-JP monitor displaying system information, shown with and without its backlight activated.

2. Karakteristik kle

• Two Battery System Monitoring: Continuously track the charging status of both main and sub-batteries, providing a comprehensive overview of your solar system's health.
• Paramèt reglabl: Modify charging voltage, charging current, and other settings directly through the monitor interface.
• Koneksyon senp: Connects directly to the DCC charge controller via an RJ45 cable for immediate use.
• Mezi egzat: Provides real-time charging information from both solar panels and the alternator with high accuracy.
• Konpatibilite: Designed for use with DCC Charge Controllers 12V 30A MPPT (RBC30D1S-JP) and DCC Charge Controllers 12V 50A MPPT (RBC50D1S-JP).

3. Pake kontni

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact Renogy customer support.

• LCD Monitor (x1)
• English Instruction Manual (x1)
• Communication Cable (CAT5, 5m) (x1)
• Mounting Screws (M2.9x13) (x4)

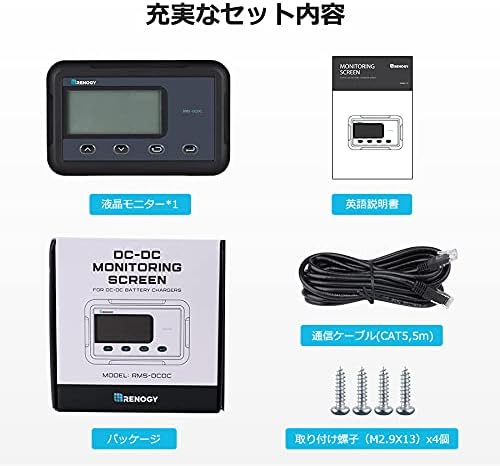

Image: All components included in the RMS-DCDC-JP product package.

4. Enstalasyon ak Enstalasyon

4.1 Enstalasyon Fizik

The RMS-DCDC-JP monitor is designed for flush mounting. Ensure you have adequate space behind the mounting surface for the monitor's body and cable connections. Use the provided mounting screws to secure the monitor in place.

Image: Exploded diagram illustrating the monitor's components, including the PVC board, ABS resin covers, and high-resolution display.

4.2 Koneksyon elektrik

Connect the monitor to your Renogy DCC charge controller using the supplied RJ45 communication cable. Simply plug one end of the RJ45 cable into the monitor's port and the other end into the corresponding port on the DCC charge controller. The monitor will power on automatically once connected.

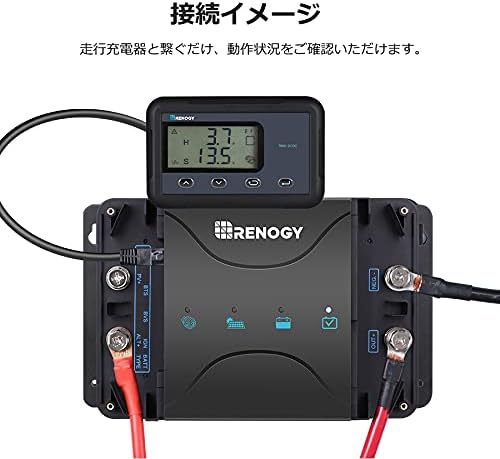

Image: The RMS-DCDC-JP monitor connected to a Renogy DCC charge controller, showing the RJ45 cable connection.

5. Operasyon Enstriksyon

5.1 Ekspozisyon souview

The LCD display provides real-time information about your battery and charging system. The displayed items may vary based on your system's configuration.

Image: Detailed breakdown of the monitor's display, indicating icons for solar charging, sub-battery, system error, parameter units, alternator, main battery, and charging status.

• Solar Charge Icon: Indicates active solar charging.
• Sub-Battery Icon: Represents the secondary battery's status.
• Erè sistèm: Displays error codes if a fault is detected.
• Parameter Unit: Shows units for displayed values (e.g., V, A, W, kWh).
• Alternator Icon: Indicates charging from the alternator.
• Main Battery Icon: Represents the primary battery's status.
• Chaje Estati: Shows the current charging phase (MPPT, Boost, Float, Equalization).
• Sistèm Voltage: Montre sistèm aktyèl la voltage.
• Paramèt batri: Shows various battery-related data.
• Sub-Battery State of Charge (SOC): Indicates the charge level of the sub-battery.

5.2 Fonksyon bouton

The monitor features four buttons for navigation and parameter adjustment.

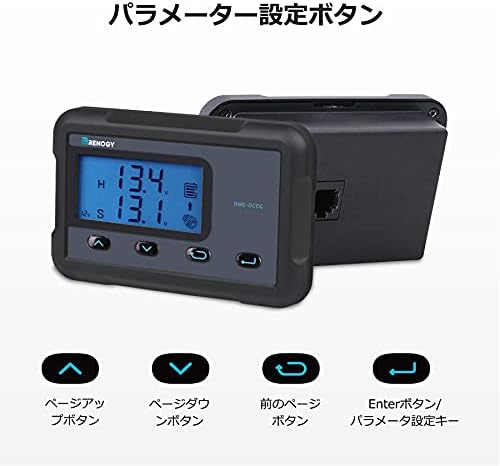

Image: The four control buttons on the monitor: Page Up, Page Down, Previous Page, and Enter/Parameter Setting Key.

• Up Arrow (Page Up) Button: Navigates up through menu options or increases a value.
• Down Arrow (Page Down) Button: Navigates down through menu options or decreases a value.
• Left Arrow (Previous Page) Button: Retounen nan ekran oswa meni anvan an.
• Right Arrow (Enter/Parameter Setting Key) Button: Confirms selections or enters parameter adjustment mode.

5.3 Ajisteman Paramèt

You can adjust charging current limits for the sub-battery directly from the monitor. This feature allows you to optimize charging based on your battery's specifications and system requirements.

Image: Current limit settings for DCC30S and DCC50S models, adjustable via the monitor.

Pou ajiste paramèt yo:

1. Peze a Antre button to access the parameter setting menu.
2. Sèvi ak la Up epi Desann arrow buttons to navigate through the available parameters (e.g., charging voltage, charging current limit).
3. Peze Antre again to select a parameter for adjustment.
4. Sèvi ak la Up epi Desann arrow buttons to change the value.
5. Peze Antre pou konfime nouvo valè a.
6. Peze a Paj Previous button to exit the setting menu.

6. Espesifikasyon

Image: Technical specifications and dimensions of the RMS-DCDC-JP monitor.

7. Konpatibilite

The Renogy RMS-DCDC-JP monitor is compatible with the following Renogy DCC Charge Controllers:

• DCC Charge Controller 12V 30A MPPT (Model: RBC30D1S-JP)
• DCC Charge Controller 12V 50A MPPT (Model: RBC50D1S-JP)

NAN. Depanaj

If you encounter issues with your Renogy RMS-DCDC-JP monitor, please refer to the following common troubleshooting steps:

• Monitè a pa limen:
  • Ensure the RJ45 communication cable is securely connected to both the monitor and the DCC charge controller.
  • Verify that the DCC charge controller is powered on and functioning correctly.
• Lekti ki pa kòrèk:
  • Tcheke tout koneksyon kab yo pou wè si yo lach oswa domaje.
  • Confirm that the monitor is compatible with your specific DCC charge controller model.
  • Refer to the main DCC charge controller manual for calibration procedures if available.
• Montre kòd erè:
  • Note the specific error code displayed on the monitor.
  • Consult the DCC charge controller's instruction manual for a detailed explanation of error codes and their corresponding troubleshooting steps.
• Bouton ki pa reponn:
  • Ensure the monitor is not in a locked mode (if applicable, refer to the main manual).
  • Gently press the buttons to ensure proper contact.

For persistent issues or advanced troubleshooting, please contact Renogy customer support.

9. Antretyen

The Renogy RMS-DCDC-JP monitor requires minimal maintenance to ensure optimal performance and longevity.

• Netwayaj: Regularly wipe the display screen and casing with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface.
• Koneksyon: Tcheke tout koneksyon kab yo detanzantan pou asire yo byen fèm epi yo pa gen korozyon.
• Anviwònman: Ensure the monitor is installed in a location that adheres to the specified operating temperature range and is protected from direct moisture and extreme environmental conditions.

10. Garanti ak sipò

The Renogy RMS-DCDC-JP monitor comes with a Garanti manifakti 1 zan. Garanti sa a kouvri domaj nan materyèl ak atizan konn fè nan itilizasyon nòmal.

For warranty claims, technical assistance, or any product-related inquiries, please contact Renogy customer support through their official website or the retailer where the product was purchased. Please have your product model number (RMS-DCDC-JP) and proof of purchase ready when contacting support.
