MCombo Outdoor Storage Cabinet Model 0870 Instruction Manual

1. Entwodiksyon

Thank you for choosing the MCombo Outdoor Storage Cabinet Model 0870. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Enfòmasyon sou Sekirite

Atansyon: Handle heavy components during assembly. Ensure stability by adjusting feet. Be mindful of the 55 pounds weight limit for the entire unit. Handle with care to avoid injury from potential sharp edges or splinters. Always follow local safety regulations.

• Kenbe timoun ak bèt kay lwen pandan asanble a.
• Asire w ke tout eleman fikse yo byen sere anvan w itilize yo.
• Pa twò chaje etajè yo; distribye pwa a egalego.
• Place the cabinet on a stable, level surface. Use adjustable feet to compensate for uneven ground.

3. Pwodwi Features

• Materyèl: Constructed from high-quality fir wood with a polished surface, offering a rustic aesthetic.
• Kapasite Depo: Features 2 removable shelves, creating 4 distinct storage spaces for various garden tools, feed, pool chemicals, and equipment.
• Waterproof Roof: Equipped with a sloping asphalt roof designed to be waterproof and prevent water accumulation, extending the product's lifespan.
• Estabilite: Includes 4 metal brackets for enhanced fixation and 6 adjustable feet to ensure stability on uneven surfaces.
• Sekirite: Lockable doors with a metal latch and magnetic locks prevent unauthorized access, providing a secure storage solution.

Figure 3.1: MCombo Outdoor Storage Cabinet with doors open, showcasing internal storage in a garden setting.

Figure 3.2: Detail of the high-quality fir wood construction.

Figure 3.3: The waterproof asphalt roof design for weather protection.

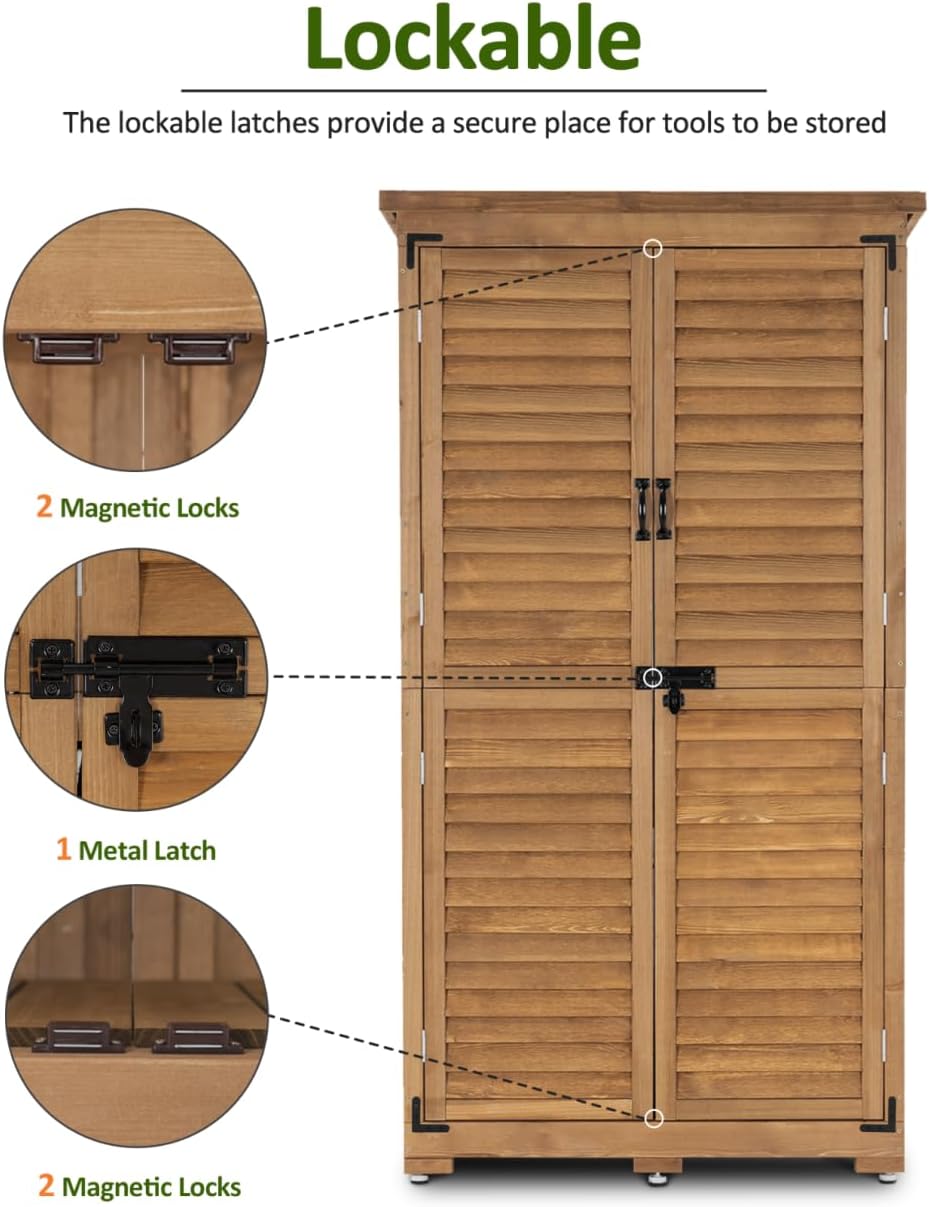

Figure 3.4: Secure lockable doors with metal latch and magnetic closures.

4. Enstalasyon ak Asanble

The MCombo Outdoor Storage Cabinet is designed for easy assembly, with all necessary tools included. It arrives in a single box. While assembly can be done by one person, having a second person may simplify the process.

4.1 Asanble finiview

Refer to the included instruction manual for detailed step-by-step diagrams. Ensure all parts are accounted for before beginning. The cabinet features a strong iron frame for stability and solid wood panels.

4.2 Etap kle pou asanblaj la

• Assemble the base frame first, ensuring it is level.
• Attach the side and back panels, securing them with the provided hardware.
• Install the removable shelves at your desired height. The shelves can be easily taken out to create larger storage areas.
• Secure the waterproof asphalt roof.
• Attach the doors, ensuring they align properly for the locking mechanism.
• Install the 4 metal brackets to further fix the garden shed to a stable surface.
• Adjust the 6 adjustable feet to level the cabinet and enhance stability on uneven ground.

Figure 4.2: Product dimensions and assembly information.

Figure 4.3: Installation of anti-falling devices, metal brackets, and adjustable feet for stability.

5. Operasyon Enstriksyon

Using your MCombo Outdoor Storage Cabinet is straightforward:

• Ouvèti/Fèmen Pòt: The doors are equipped with magnetic locks and a metal latch. To open, disengage the metal latch and gently pull the doors open. To close, push the doors shut until the magnetic locks engage, then secure the metal latch.
• Ajiste etajè: The two internal shelves are removable. Simply lift and slide them out to create larger vertical storage spaces as needed. This allows for flexible organization of various items.

Figure 5.1: Customizable storage with removable shelves.

6. Antretyen

Proper maintenance will ensure the longevity and appearance of your MCombo Outdoor Storage Cabinet.

• Netwayaj: Wipe down the wood surfaces with a damp cloth as needed. Avoid harsh chemicals that may damage the wood finish.
• Swen bwa: As the cabinet is made of fir wood, consider applying a wood sealant or oil periodically to protect it from weathering and prolong its life, especially if exposed to direct outdoor elements.
• Materyèl: Periodically check all screws and fasteners to ensure they remain tight. Tighten any loose hardware to maintain structural integrity.
• Enspeksyon twati: Inspect the asphalt roof regularly for any damage or wear. Repair any issues promptly to maintain its waterproof properties.

NAN. Depanaj

• Kabinè a santi l enstab: Ensure the cabinet is placed on a level surface. Use the 6 adjustable feet at the base to fine-tune stability. Check that all metal brackets are securely fastened.
• Pòt yo pa fèmen byen: Verify that the cabinet is level. Check for any obstructions in the door path or hinges. Ensure the magnetic locks and metal latch are aligned and functioning correctly.
• Flit dlo: Inspect the asphalt roof for any cracks or damage. Ensure the roof is properly installed and sealed. Check the overall assembly for any gaps that may allow water entry.

8. Espesifikasyon

Figure 8.1: Detailed dimensions of the storage cabinet.

9. Garanti ak sipò

MCombo offers a 30-day easy return policy for this product. For any questions, concerns, or assistance, please contact MCombo Customer Support. Details can be found on the MCombo store page or through your purchase platform.
