Enstriksyon Sekirite Enpòtan
Always follow basic safety precautions when using this power tool to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this product.
- Sekirite Zòn Travay: Kenbe zòn travay ou pwòp epi byen limen. Zòn ki dezòdone oswa ki fè nwa yo ka lakòz aksidan. Pa sèvi ak zouti elektrik nan atmosfè eksplozif, tankou lè gen likid, gaz oswa pousyè ki ka pran dife.
- Sekirite elektrik: Evite kontak kò ak sifas ki konekte ak tè. Pa ekspoze zouti elektrik yo anba lapli oswa nan kondisyon mouye.
- Sekirite Pèsonèl: Toujou mete pwoteksyon pou je yo. Sèvi ak pwoteksyon pou zòrèy lè w ap opere pou yon bon bout tan. Abiye byen; evite rad ki lach oswa bijou. Mare cheve w long.
- Itilizasyon zouti ak swen: Pa fòse zouti elektrik la. Sèvi ak zouti elektrik ki kòrèk la pou aplikasyon w lan. Dekonekte pake batri a nan zouti elektrik la anvan ou fè nenpòt ajisteman, chanje akseswa, oswa sere zouti elektrik yo.
- Sekirite Espesifik pou Moulen Ang: Ensure the disc is correctly mounted and tightened before use. Always use the protective guard. Do not use damaged or incorrect discs. Maintain a firm grip on the tool with both hands.
Pwodwi souview
The Ingco 20V Cordless Brushless Angle Grinder (Model CAGLI201158) is designed for various grinding, cutting, and polishing tasks. It features a robust design and user-friendly controls.
Karakteristik kle:
- Konsepsyon: Aluminum alloy head structure, brushless motor, with dust-proof body and internal heat dissipation system for longer service life.
- Versatile: Features a self-locking function and an anti-slip rubber side handle to reduce vibration during operation for better control.
- Sekirite: Double insulation prevents touching live parts of the tool; an anti-rotation protective guard provides a high level of user protection.
- Konvenyans: Two-speed regulation (3000/8500 RPM); portable cordless design, easy to carry and operate. Suitable for polishing stainless steel security windows, iron slag, cutting iron bars, ceramic tiles, marble, and other materials.

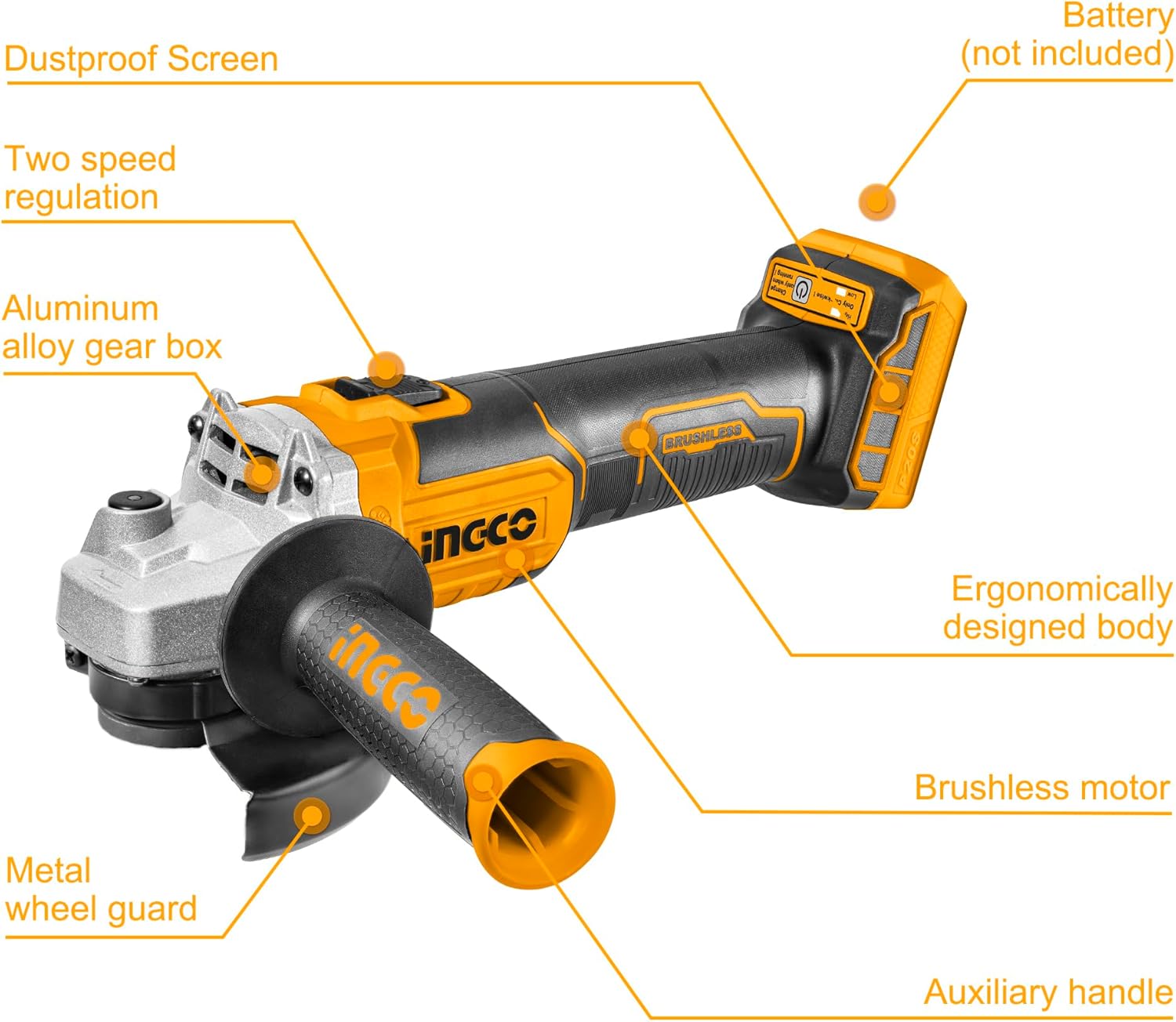

Dyagram Konpozan yo:
This diagram illustrates the main components of the Ingco 20V Cordless Brushless Angle Grinder, highlighting features such as the dustproof screen, two-speed regulation switch, aluminum alloy gearbox, brushless motor, metal wheel guard, auxiliary handle, and the ergonomically designed body. It also indicates the battery slot (battery not included).
Espesifikasyon
| Voltage | 20 Volts |
| Vitès san chaj | 3000/8500 RPM |
| Dyamèt disk | 115 mm |
| Fil woulèt | M14 |
| Sous pouvwa | Batri Powered |
| Wattage | 800 Watts |
| Pwa atik | 1.88 kg |
| Dimansyon pwodwi | 10 x 20 x 37 cm |
| Konpozan ki enkli | 1 Angle Polishing Tool, 1 Spanner Wrench |
| Batri obligatwa | No (Tool Body Only) |
This image displays the key technical specifications of the Ingco Angle Grinder, including its 20V voltage, 3000/8500 RPM no-load speed, 115mm disc diameter, and M14 spindle thread. It also provides approximate dimensions of the tool.
Enstalasyon
Before initial use, ensure all components are present and undamaged. This product is sold as a 'Tool Body Only' and does not include a battery or charger.
This image explicitly states that the battery and charger are not included with the Ingco Angle Grinder, indicating that these items must be purchased separately.
- Battery Installation (Sold Separately): Insert a compatible Ingco 20V battery pack into the battery slot until it clicks securely into place. Ensure the battery is fully charged using a compatible Ingco charger.
- Atachman Manch Oksilyè: Screw the auxiliary handle into one of the threaded holes on the grinder's gearbox housing. Tighten it firmly for secure operation.
- Protective Guard Adjustment: Dekole gad clamping screw, adjust the protective guard to cover the disc as much as possible, ensuring it is positioned to deflect sparks away from you. Tighten the screw firmly.
- Enstalasyon disk:
- Peze epi kenbe bouton an fèmen file koton.
- Mete flanj enteryè a sou aks la.
- Mount the grinding or cutting disc onto the spindle, ensuring it sits flush against the inner flange.
- Thread the outer flange (nut) onto the spindle and tighten it firmly using the provided spanner wrench while holding the spindle lock button.
- Lage seri a file koton.
Enstriksyon Operasyon
Toujou asire w ke pyès travay la byen sere.amped and you have a stable footing before starting the grinder.
- Limen/Etenyen: To start the grinder, slide the ON/OFF switch to the 'ON' position. To stop, slide the switch to the 'OFF' position.
- Règleman vitès: This grinder features two-speed settings (3000 RPM and 8500 RPM). Use the speed selector switch to choose the appropriate speed for your application. Lower speeds are generally for polishing or lighter tasks, while higher speeds are for cutting and heavy grinding.
- Manje: Hold the grinder firmly with both hands. Position the disc at a slight angle (15-30 degrees) to the workpiece. Apply moderate pressure and move the grinder smoothly across the surface.
- Koupe: For cutting, hold the grinder perpendicular to the workpiece. Apply light, consistent pressure and allow the disc to do the work. Do not twist or force the disc, as this can cause kickback or disc breakage.
- Polisaj: Use appropriate polishing pads and compounds. Operate at a lower speed and apply even pressure for best results.
Aplikasyon Egzamples:
Cutting a metal pipe with the angle grinder.
Grinding rebar on a construction site.
Various applications of the angle grinder, including grinding and cutting different materials.
Antretyen
Antretyen regilye asire lonjevite ak operasyon an sekirite nan moulen ang ou a.
- Netwayaj: After each use, clean the tool with a soft cloth. Use compressed air to blow out dust from the ventilation openings. Do not use water or chemical cleaners.
- Enspeksyon Disk: Regularly inspect grinding and cutting discs for cracks, chips, or excessive wear. Replace damaged discs immediately.
- Motè Brushless: This tool features a brushless motor, which requires less maintenance compared to brushed motors. No carbon brush replacement is needed.
- Depo: Sere zouti a nan yon kote ki sèk, an sekirite, kote timoun pa ka rive. Retire pil la anvan ou sere l.
Depanaj
Si ou rankontre pwoblèm ak moulen ang ou a, gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Zouti pa kòmanse | Batri a pa chaje oswa li pa byen mete. | Asire w ke batri a byen chaje epi li byen mete nan plas li. |
| Rediksyon nan puisans oswa vitès | Batri a ba; disk la ize oswa li pa bon. | Recharge battery; replace disc if worn or unsuitable for task. |
| Twòp Vibration | Disc improperly mounted or damaged; loose auxiliary handle. | Check disc mounting and replace if damaged. Tighten auxiliary handle. |
| Sparks in wrong direction | Protective guard incorrectly positioned. | Adjust the protective guard to deflect sparks away from the user. |
If the problem persists after attempting these solutions, contact qualified service personnel or the retailer for assistance.
Garanti ak sipò
This Ingco product is designed for durability and performance. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty coverage typically addresses manufacturing defects and material flaws under normal use.
For technical support, spare parts, or service inquiries, please contact your local Ingco distributor or the point of purchase. Ensure you have your product model number (CAGLI201158) and proof of purchase available when seeking support.
