Techwood TAB-311 Cordless Stick Vacuum Cleaner User Manual

1. Enstriksyon Sekirite

Please read these instructions carefully before using the appliance. Keep this user manual for future reference.

• Aparèy sa a se pou itilizasyon domestik sèlman. Pa sèvi avè l deyò oswa pou rezon komèsyal.
• Pa okipe ploge oswa aparèy la avèk men mouye.
• Do not vacuum liquids, hot ashes, burning cigarettes, sharp objects, or flammable/explosive materials.
• Asire w ke filtè a byen enstale anvan w itilize li.
• Kenbe cheve, rad ki lach, dwèt, ak tout pati nan kò a lwen ouvèti ak pati k ap deplase.
• Debranche chajè a nan priz kouran an lè w pa ap itilize l epi anvan w netwaye l.
• Do not allow children to operate the vacuum cleaner. Supervise children to ensure they do not play with the appliance.
• Si kòd elektrik la domaje, li dwe ranplase pa manifakti a, ajan sèvis li yo, oswa moun ki kalifye menm jan an pou evite yon danje.
• Sèvi sèlman ak plato ki vini ak aparèy la.

2. Pwodwi souview

The Techwood TAB-311 is a versatile 2-in-1 cordless stick vacuum cleaner designed for efficient cleaning of various surfaces.

Figure 2.1: Fully assembled Techwood TAB-311 Cordless Stick Vacuum Cleaner.

Eleman:

• Inite Prensipal (Aspiratè Pòtab)
• Tib ekstansyon
• Motorized Brush Head with Light
• Mini Brush (Accessory)
• Wall Mount/Support
• Charger
• Manyèl itilizatè

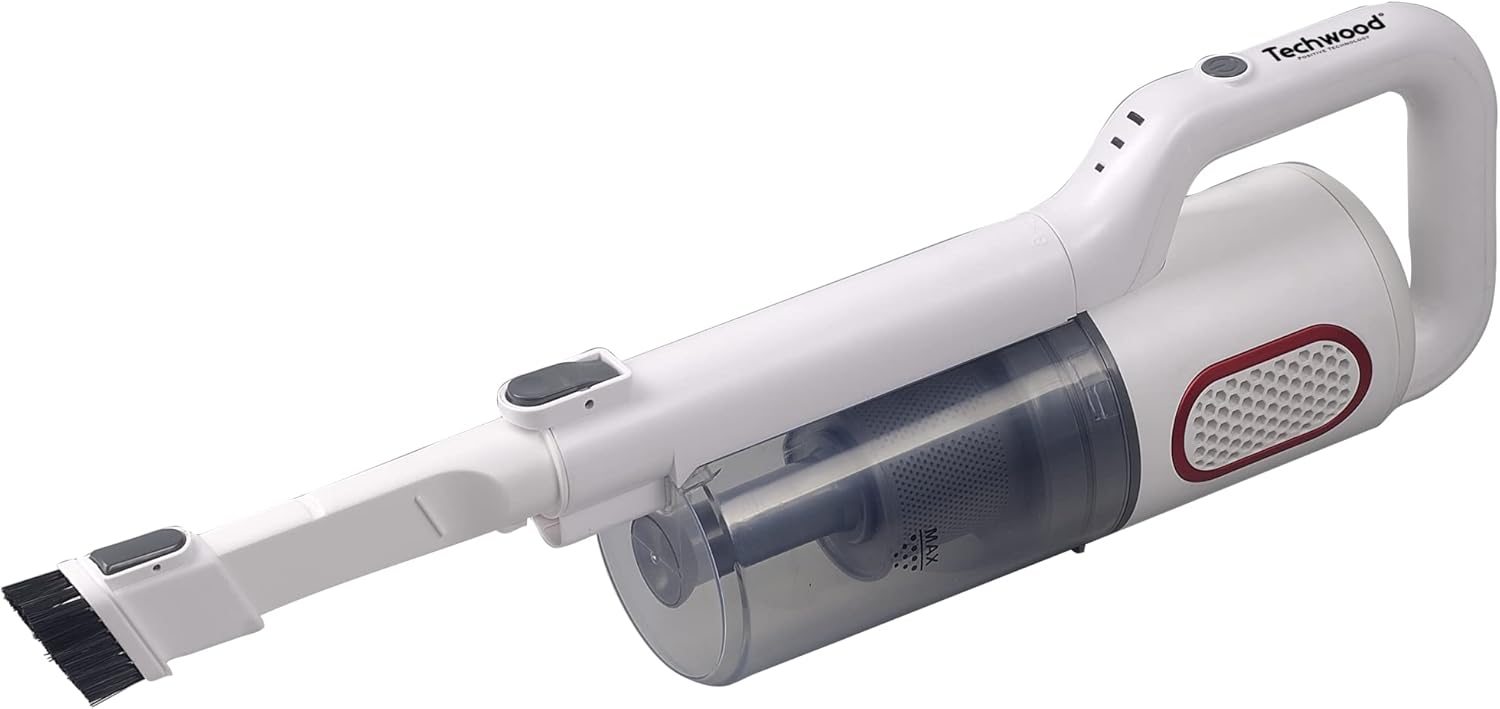

Figure 2.2: Detachable handheld vacuum unit with brush attachment.

3. Asanble

Follow these steps to assemble your Techwood TAB-311 vacuum cleaner:

1. Mete tib ekstansyon an an kontak: Insert the extension tube into the main handheld unit until it clicks securely into place.
2. Connect the Motorized Brush Head: Attach the motorized brush head to the other end of the extension tube, ensuring it locks firmly.
3. Enstale sipò miray la (opsyonèl): Choose a suitable location for the wall mount. Secure it to the wall using appropriate screws and anchors (not included). The vacuum can be stored on this mount.
4. Akseswa pou atache: For handheld use, attach the mini brush or other accessories directly to the main unit's nozzle.

4. Chaje batri a

The Techwood TAB-311 is powered by a 22.2V Lithium battery. Before first use, fully charge the battery.

1. Konekte plato a: Ploge plato a nan yon priz miray estanda.
2. Konekte ak aspiratè a: Insert the charging plug into the charging port on the main handheld unit.
3. Endikatè chaje: The charging indicator lights will illuminate, showing the charging status.
4. Chaj konplè: A full charge takes approximately 5 hours. Once fully charged, the indicator lights will change or turn off, depending on the model.
5. Lavi batri: A full charge provides up to 40 minutes of runtime in ECO mode and 20 minutes in Rapid mode.

Nòt: For optimal battery life, avoid completely draining the battery before recharging. The Lithium battery is designed for long-term durability and easy replacement.

5. Operasyon Enstriksyon

5.1 Starting the Vacuum

1. Pouvwa sou: Peze bouton pouvwa ki sitiye sou inite prensipal la pou limen aspiratè a.
2. Chwazi vitès: The vacuum has two suction speeds. Press the speed selection button to switch between ECO mode (longer runtime) and Rapid mode (higher suction).

5.2 Itilizasyon aspiratè a

• Mòd Aspiratè Baton: Use the assembled stick vacuum for cleaning floors, carpets, and hard surfaces. The motorized brush head is effective for picking up debris.
• Mòd Aspiratè Pòtab: Detach the main unit from the extension tube to use it as a handheld vacuum. Attach the mini brush or other accessories for cleaning upholstery, car interiors, or tight spaces.
• Motorized Brush Light: The motorized brush head includes a light to illuminate the cleaning path, helping to spot dust in dark areas.

Figure 5.1: Demonstrating the Techwood TAB-311 in use on a hard floor.

5.3 Vide bwat fatra a

The vacuum features a 500 ml dustbin. Empty it regularly to maintain optimal suction power.

1. Detach Dustbin: Locate the dustbin release button on the main unit. Press it to detach the dustbin.
2. Kontni vid: Hold the dustbin over a trash can and press the dustbin release button (usually a single click button) to open the bottom flap and empty the collected debris.
3. Reattach Dustbin: Close the flap and reattach the dustbin to the main unit until it clicks securely.

6. Antretyen ak netwayaj

Antretyen regilye asire lonjevite ak pèfòmans aspiratè ou a.

6.1 Netwaye bwat fatra a ak filtè a

1. Bwat fatra vid: As described in section 5.3.
2. Retire filtè a: Twist or pull to remove the filter assembly from the dustbin. The vacuum uses a fabric filter.
3. Netwaye filtè: Tap the filter gently over a trash can to remove loose dust. If necessary, rinse the filter under cold running water.
4. Filtè sèk: Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use the vacuum with a wet filter.
5. Remonte: Once dry, reinsert the filter into the dustbin and reattach the dustbin to the main unit.

6.2 Netwaye tèt bwòs la

• Regularly check the motorized brush head for tangled hair, threads, or debris.
• Turn off and unplug the vacuum before cleaning the brush.
• Use scissors to carefully cut and remove any tangled material from the brush roll.

6.3 Depo

Store the vacuum cleaner in a cool, dry place. Use the provided wall mount for convenient storage.

NAN. Depanaj

If you encounter issues with your vacuum cleaner, refer to the following table:

8. Espesifikasyon

9. Garanti ak sipò

Techwood products are designed and manufactured to the highest quality standards. In the unlikely event of a problem with your product, please refer to the warranty conditions provided at the time of purchase or contact Techwood customer support.

For technical assistance or service inquiries, please visit the official Techwood websit la oubyen kontakte depatman sèvis kliyan yo. Kenbe prèv acha ou pou reklamasyon garanti.
