Vileda Steam Plus Triangular Edition with Power Pad - Instruction Manual

1. Pwodwi souview

The Vileda Steam Plus Triangular Edition with Power Pad is a powerful steam mop designed for hygienic cleaning of all hard floors and carpets without the need for harsh chemicals. Its innovative design ensures efficient and thorough cleaning, reaching even difficult corners.

The Vileda Steam Plus in action, demonstrating its steam cleaning capability on a hard floor.

Karakteristik kle:

• Netwayaj Ijyèn: Eliminates up to 99.9% of bacteria and viruses* from all floors and carpets using only steam.
• Triangular Head: Designed for easy cleaning in corners, under furniture, and in small spaces.
• Chofaj rapid: Pare pou itilize nan jis 15 segonn.
• Depo fasil: The handle can be easily detached and stored compactly.
• Versatile: Suitable for all hard floors and carpets (with carpet glider).
• Power Pad: An additional PowerPad is included for tackling stubborn dirt.

2. Enstriksyon Sekirite

Please read all safety warnings and instructions carefully before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire, or serious injury.

• Always unplug the appliance from the electrical outlet before filling with water, cleaning, or performing maintenance.
• Use only distilled or demineralized water in the water tank to prevent limescale buildup and ensure optimal performance. Pa sèvi ak dlo tiyo.
• Never add any cleaning detergents, perfumes, essential oils, vinegar, or other chemical products to the water tank. This can damage the appliance and void the warranty.
• Pa dirije vapè a sou moun, bèt, oswa priz elektrik.
• Kenbe aparèy la lwen timoun ak bèt kay.
• Pa kite mop vapè a san siveyans pandan l branche oswa ap fonksyone.
• Asire w ke kòd elektrik la pa domaje epi evite pliye l oswa detire l.
• Toujou kite aparèy la refwadi nèt anvan ou estoke.

The Vileda Steam Plus operates without the need for chemical cleaning agents, promoting a chemical-free cleaning process.

3. Pake kontni

Carefully unpack your Vileda Steam Plus and check that all items are present and in good condition. If any items are missing or damaged, please contact your retailer.

• 1 x Vileda Steam Plus Unit
• 2 x Standard Microfiber Cleaning Pads
• 1 x PowerPad Microfiber Cleaning Pad
• 1 x Carpet Glider (for use on carpets)
• 1 x Water Filling Jug

The Vileda Steam Plus unit, accompanied by its included Power Pad and two standard microfiber cleaning pads.

4. Enstalasyon

4.1 Assembling the Steam Mop

1. Mete manch lan nan kò prensipal mop vapè a jiskaske li fè yon klik byen fèm nan plas li.
2. Asire w tout koneksyon yo byen fèm anvan w itilize li.

Instructions for assembling the handle and a visual representation of the Vileda Steam Plus's compact storage design.

4.2 Konble tank dlo a

1. Asire w ke aparèy la debranche nan priz kouran an.
2. Louvri bouchon tank dlo a.
3. Using the provided filling jug, carefully pour distilled or demineralized water into the tank. Do not overfill. The tank capacity is 400 ml.
4. Fèmen bouchon tank dlo a byen.

Yon detaye view of the water tank on the Vileda Steam Plus, indicating the water level.

4.3 Attaching the Cleaning Pad

1. Place the desired microfiber cleaning pad (standard or PowerPad) on the floor with the white side facing up.
2. Align the steam mop head with the pad and press down firmly to attach it using the hook-and-loop fasteners.
3. For carpet cleaning, place the carpet glider over the cleaning pad.

5. Operasyon Enstriksyon

5.1 Limen epi chofe

1. Ploge fil elektrik la nan yon priz elektrik apwopriye.
2. The steam mop will begin to heat up immediately. It is ready for use in approximately 15 seconds.

The Vileda Steam Plus heats up quickly, ready for use in just 15 seconds.

5.2 Adjusting Steam Settings

1. The Vileda Steam Plus features three different steam settings: Min, Mid, and Max.
2. Rotate the red dial on the main body of the mop to select the appropriate steam level for your floor type:
   • Min: For delicate floors like laminate or wood.
   • Mitan: For general cleaning of tiles or vinyl.
   • Max: For heavily soiled areas or carpets.

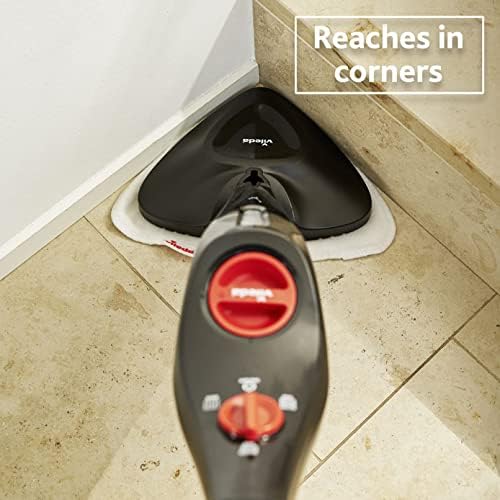

The control dial allows selection of three distinct steam settings for various cleaning needs.

5.3 Cleaning Your Floors

1. Once heated, gently push the mop forward and backward over the floor surface.
2. The triangular head design allows for easy maneuverability into corners and tight spaces.
3. For stubborn stains, hold the mop over the area for a few seconds to allow the steam to penetrate.
4. When cleaning carpets, ensure the carpet glider is attached and move the mop slowly over the carpet surface.

The triangular head design allows the steam mop to effectively clean hard-to-reach corners.

The Vileda Steam Plus can also be used for refreshing and cleaning carpets.

5.4 Etenn

1. To switch off the appliance, simply unplug it from the power outlet. The steam mop is designed to be ready for use again immediately upon re-plugging, without needing to reheat.

6. Antretyen

Regular maintenance will ensure the longevity and optimal performance of your Vileda Steam Plus.

6.1 Nettoyage kousinen

1. After each use, remove the cleaning pad from the mop head.
2. The microfiber cleaning pads are machine washable at up to 60°C (140°F). Do not use fabric softener or bleach.
3. Allow the pads to air dry completely before storing or reusing.

The cleaning pads are machine washable for easy maintenance.

6.2 Descaling the Appliance

Limescale buildup can affect steam production. Regular descaling is crucial, especially if using hard water (even if filtered, some minerals may remain). It is recommended to descale every 3-6 months depending on water hardness and frequency of use.

1. Asire w ke aparèy la debranche epi li refwadi nèt.
2. Prepare a descaling solution according to the instructions of a commercial descaler specifically designed for steam appliances or coffee machines. Do not use vinegar, as it may not be effective for severe buildup and can potentially damage internal components over time.
3. Vide solisyon an detartrage nan tank dlo a.
4. Plug in the appliance and allow it to heat up. Let it run until the tank is empty, directing the steam into a sink or bucket.
5. Repeat the process with clean distilled water to rinse out any remaining descaling solution.

6.3 Depo

1. Vide tout dlo ki rete nan tank la apre chak itilizasyon.
2. Allow the mop to cool down completely.
3. For compact storage, the handle can be detached and clipped to the back of the main unit.
4. Store the appliance in a dry, safe place.

Pro a bafile design allows for easy storage under furniture.

NAN. Depanaj

If you encounter any issues with your Vileda Steam Plus, please refer to the following table before contacting customer support.

8. Espesifikasyon

9. Garanti ak sipò

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Vileda products typically come with a manufacturer's warranty covering defects in materials and workmanship.

For technical support, spare parts, or further assistance, please visit the official Vileda website or contact their customer service department. Keep your proof of purchase handy when seeking support.

Vileda Official Websit: www.vileda.com
